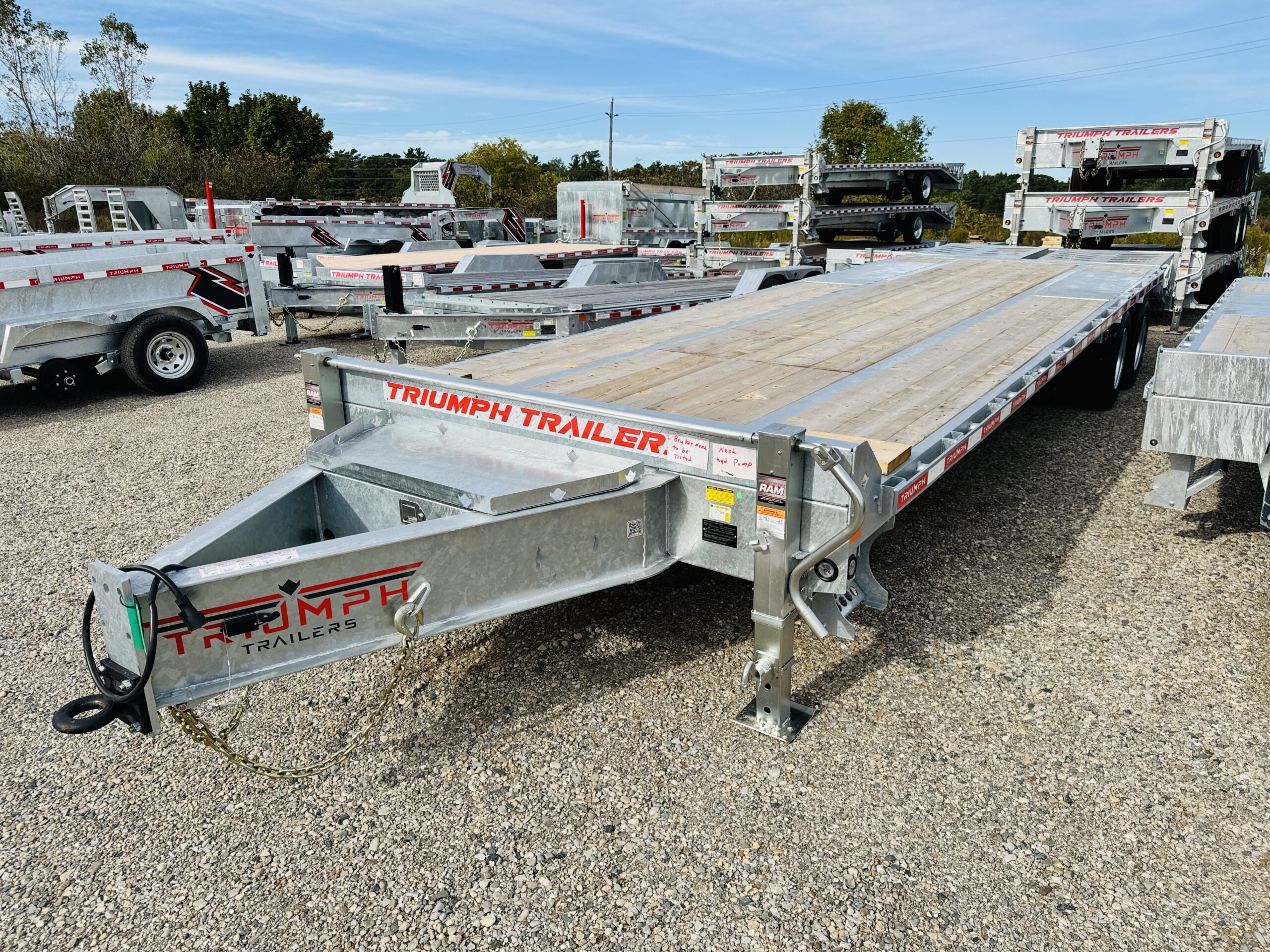

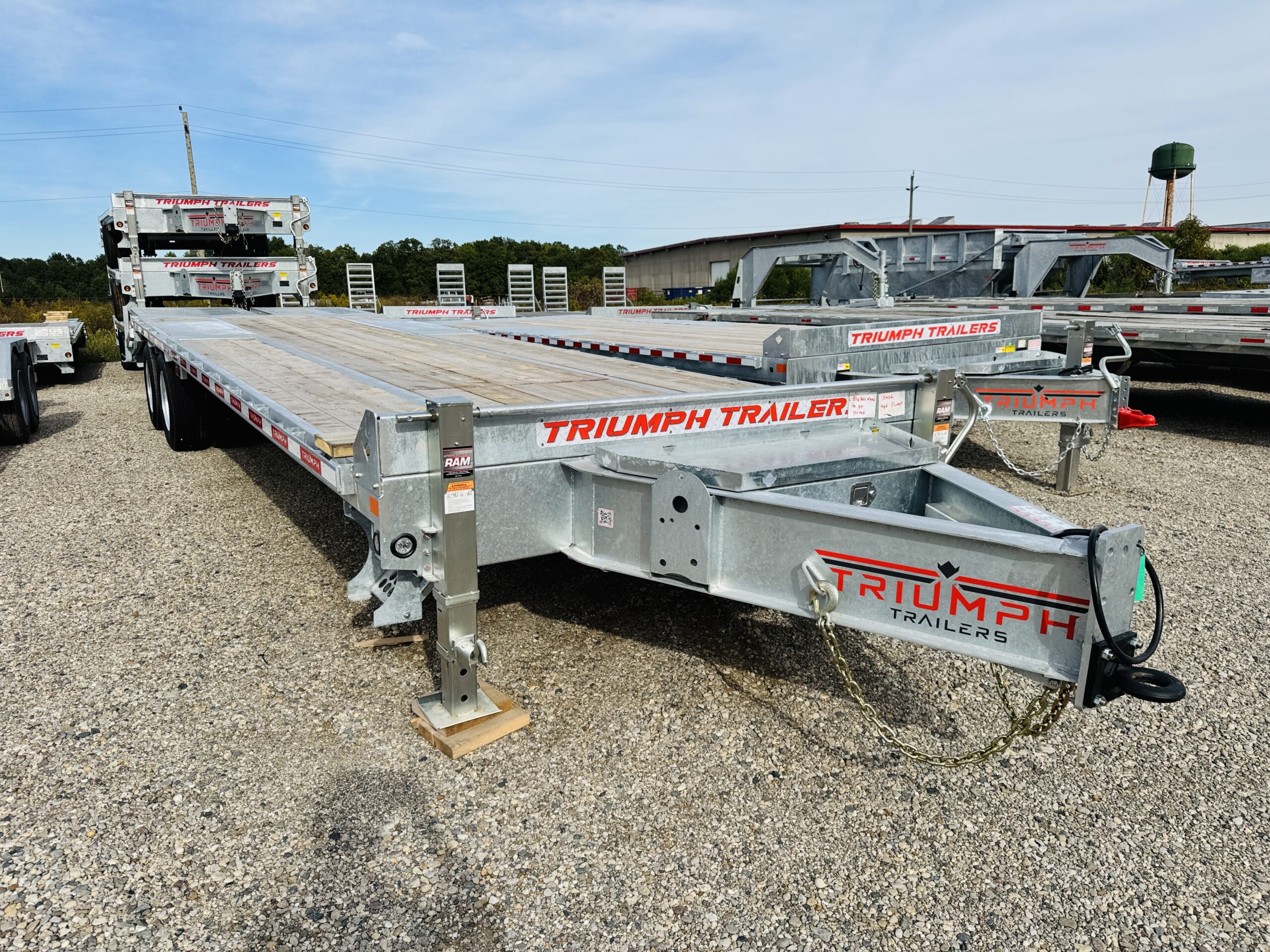

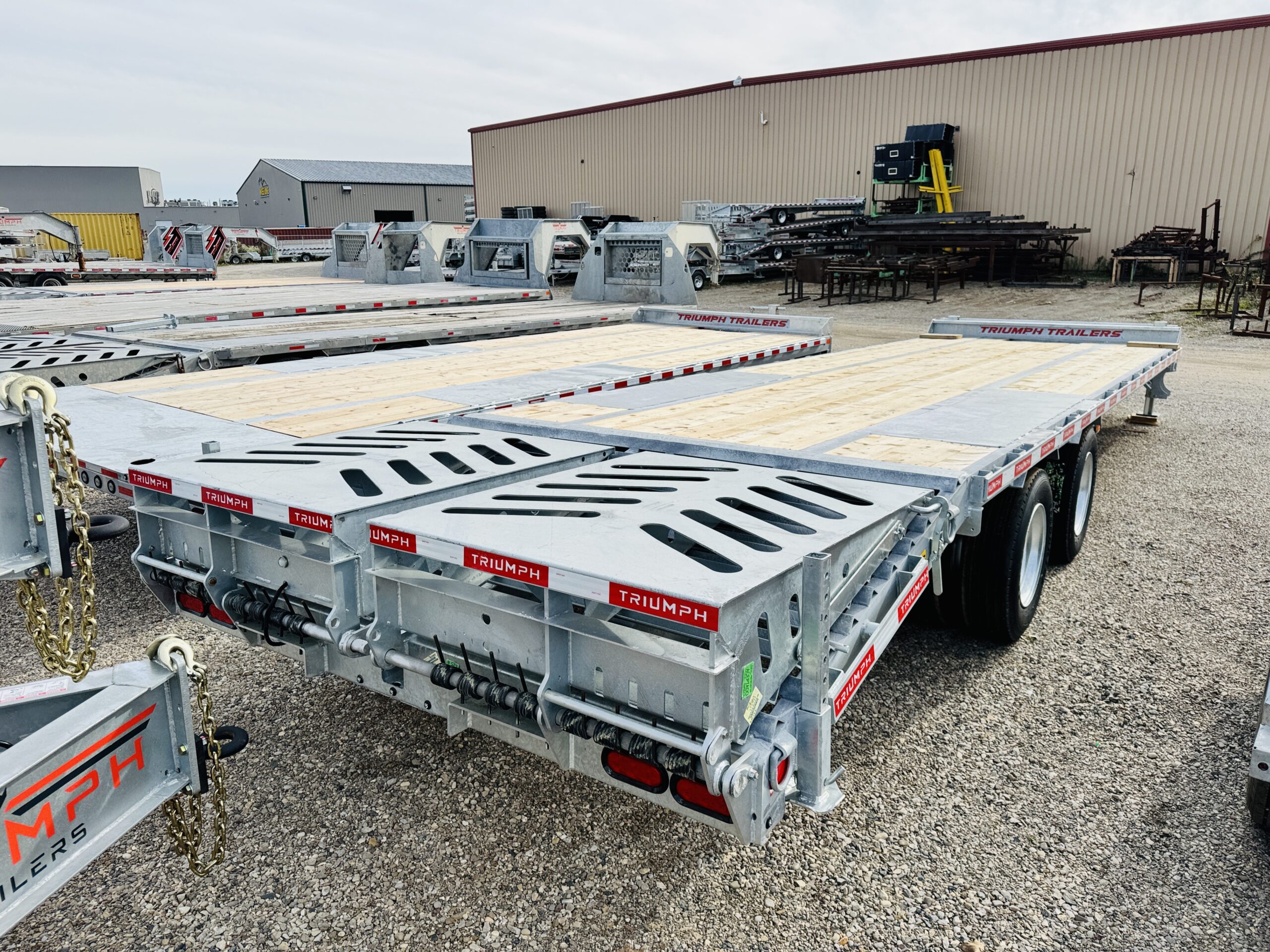

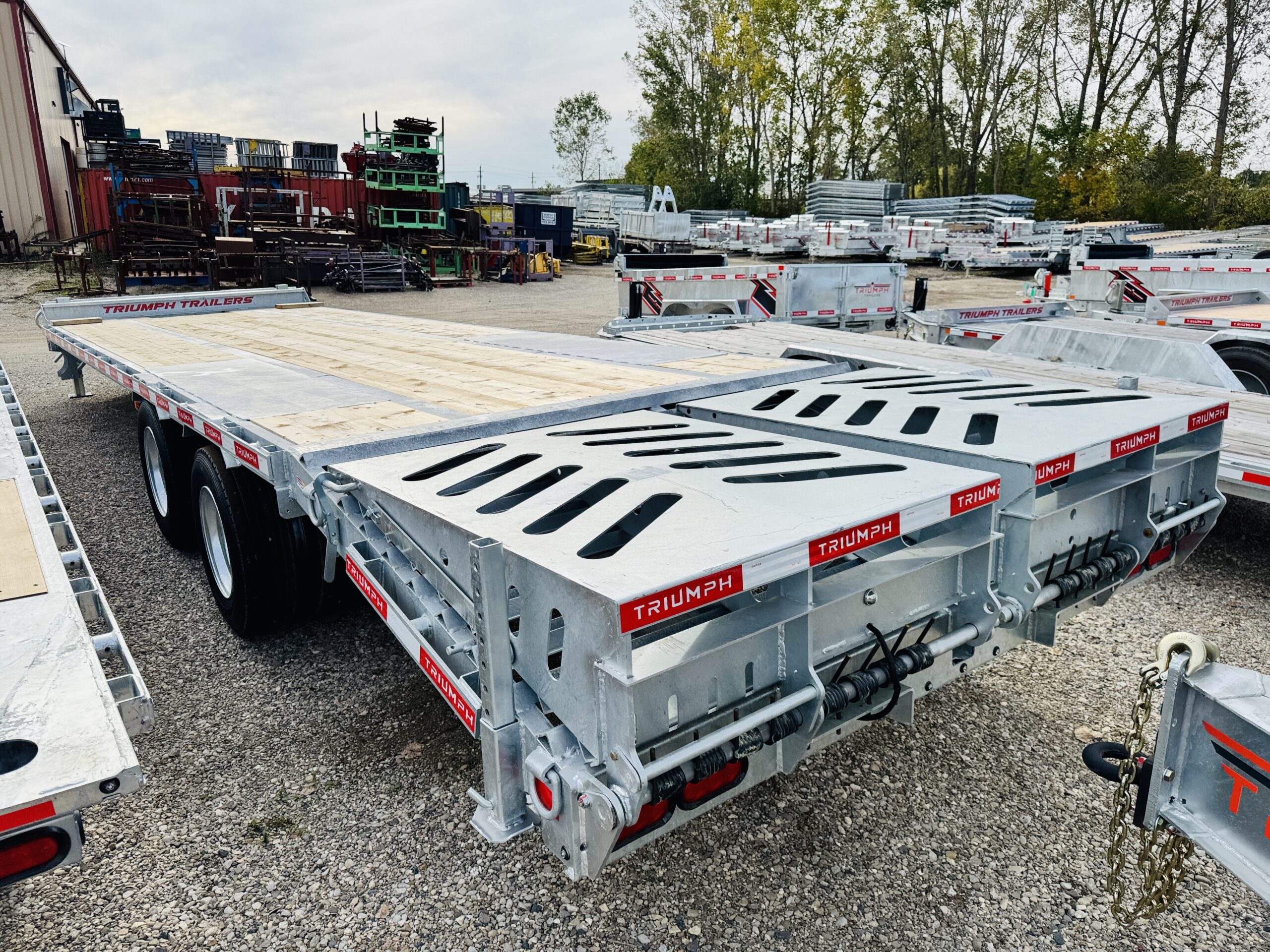

25+5 Foot 16 Ton Galvanized Pintle Deckover Trailer

$29,695.00

Deck Width 102″
Deck Length 25’+5′ Mega Ramp
Deck Height 34″
GVWR 35,200 lbs
Payload 27,000 lbs
Axle Rating 2×16,000 lbs

Description

$1 AXKE UPGRADE (15K→16K) ELIGIBLE

For an astonishing $1, transform your Tandem 15K Axles to robust Tandem 16K Axles, empowering you with an extra 2,000lb of payload capacity! Contact us for more details!

**while supplies last

GHDEF2-TA102x25+5-15k

– 16k dual axles with slipper suspension
– Both axles with electric brakes
– 235/75R17.5 radial tires, 16 ply
– 12” beam running front to back
– 3” C-channel at 16” centers with angled supports underneath
– Fitted with 12 welded HD D-rings
– Pintle ring rated for 40,000 pounds
– Tandem 12k jacks
– LED lighting
– Low profile deck (34” deck height)
– Heat shrink connectors on wire harness
– Drop legs
– Stake pockets/rub rail along sides of trailer
– Chain spools inside rub rail
– 5’ beavertail
– Mega ramps
– Heavy duty Spring assisted ramps
– Hot dip galvanize finish

Options
– Winch tracking with a slider every 5 feet
– 12k axle available
– 16k hydraulic axle upgrade
– 2 speed jacks
– Spare tire

Warranty
3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)

Additional information

Trailer Type

Structure

Width

Length

Deck Height

GVWR

Payload

Trailer Weight

Axle Weight Rating

Coupler Style

Ball Size

Electrical Plug

Location

,

Promotion
