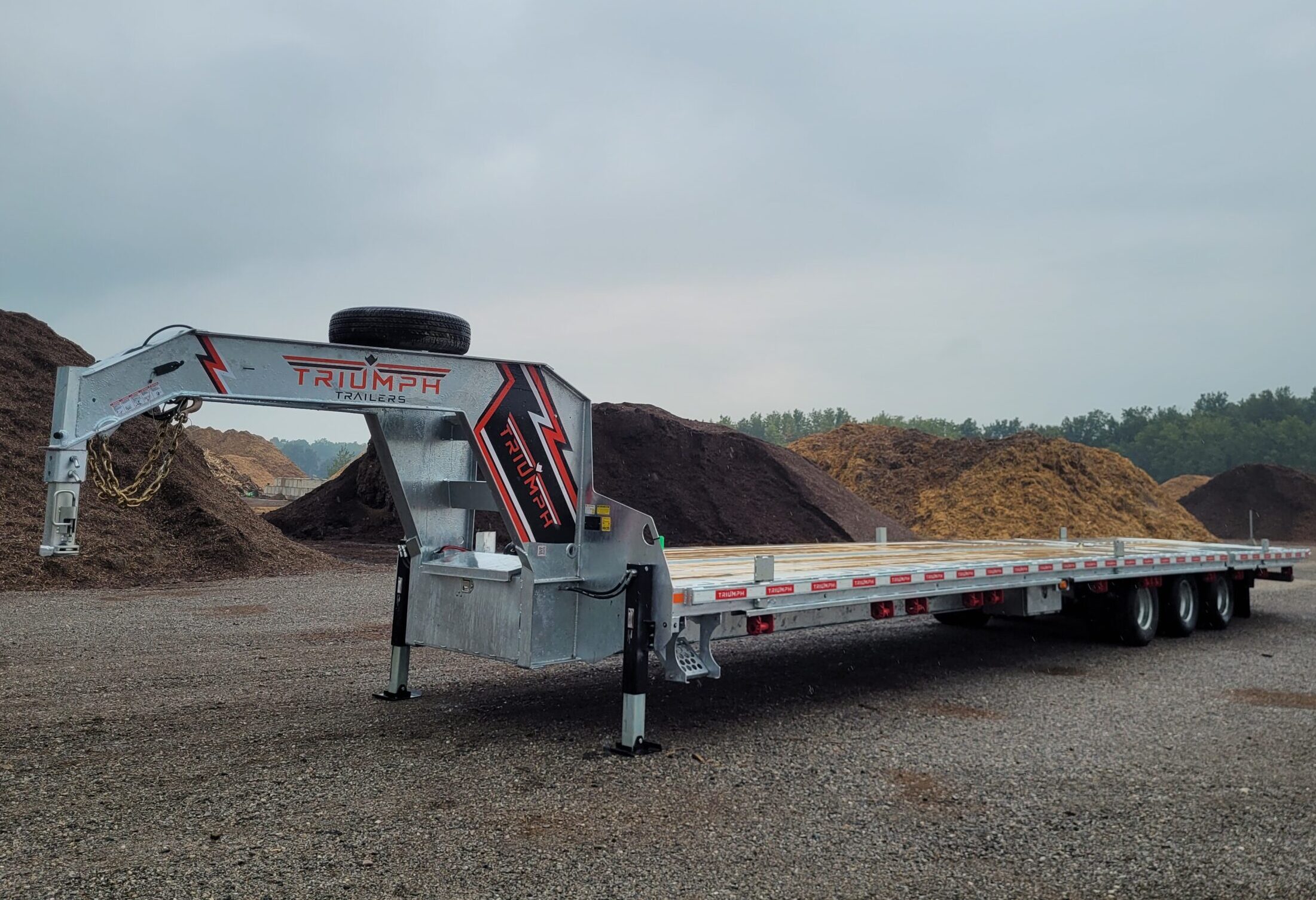

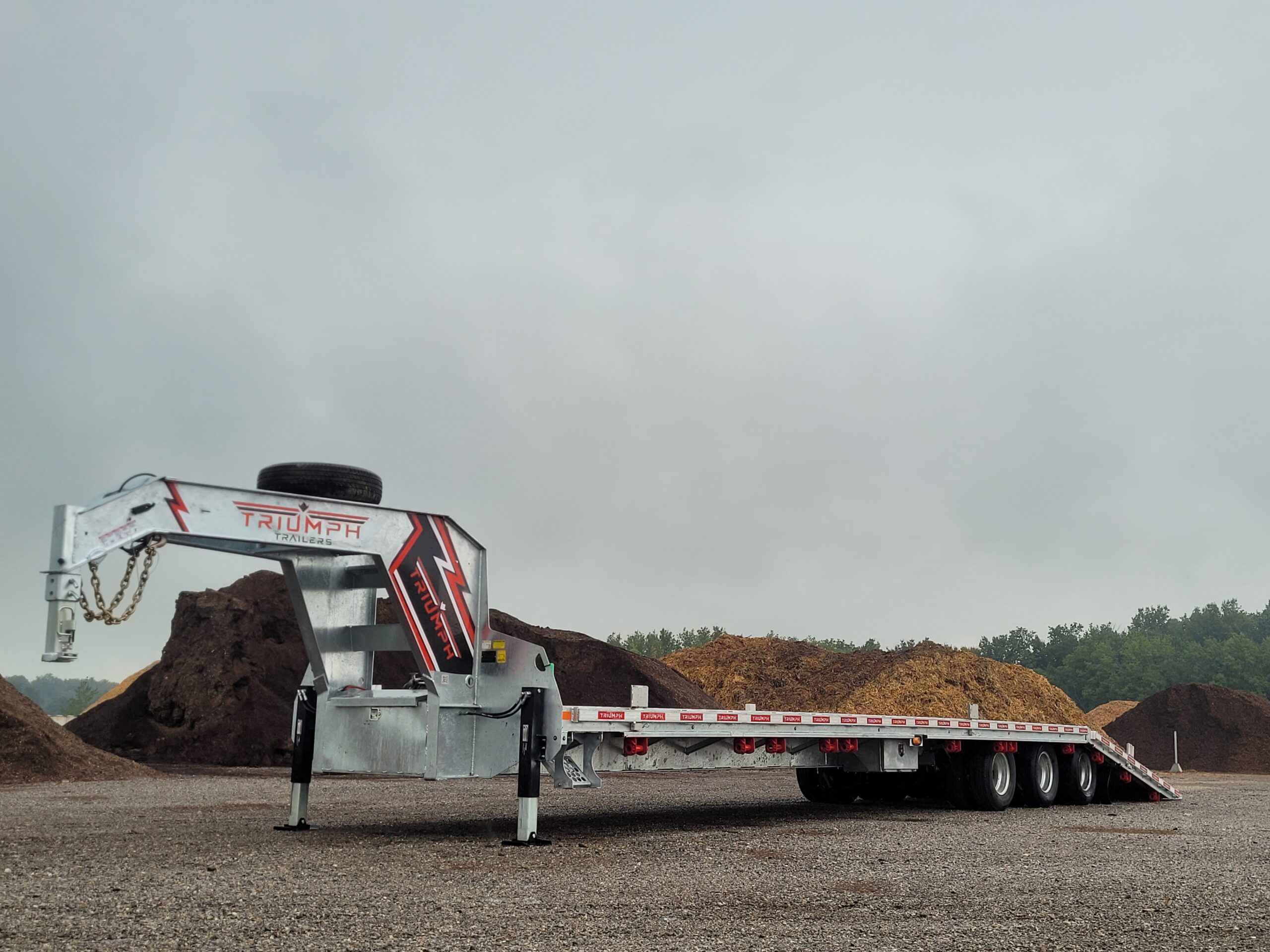

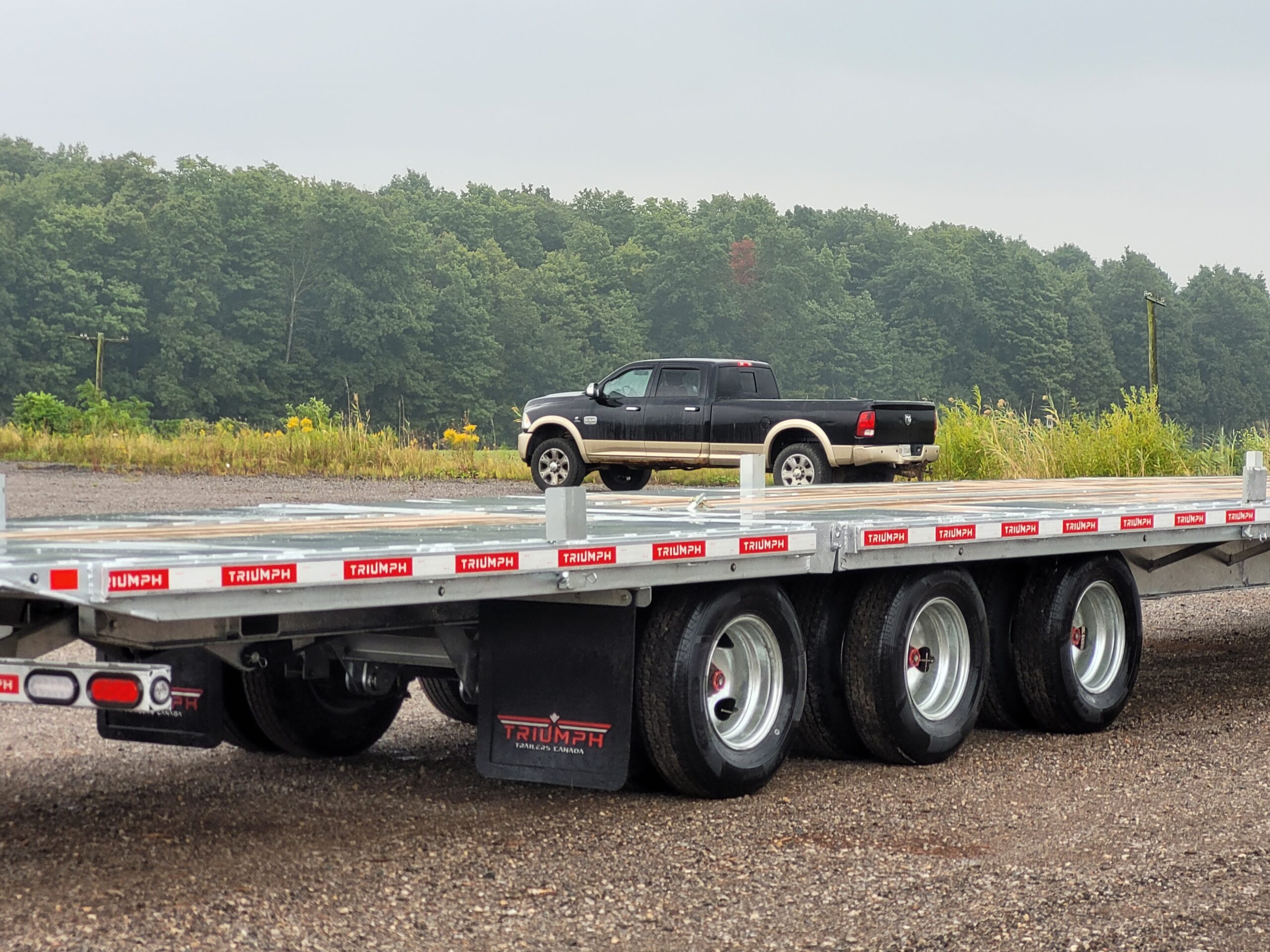

43 Foot 18 Ton Galvanized Gooseneck Dove Tail Tilt Deckover Trailer


Deck Width 102″
Deck Length 43′
Deck Height 34″
GVWR 43,200 lbs
Payload 30,200 lbs
Axle Rating 3×12,000 lbs
Tilt Angle 15 degree



  • 12k dually axles with slipper suspension
  • Tri-axles with electric brakes
  • 235/80R17.5 radial tires
  • Manufactured beam running front to back
  • 3” C-channel at 16” centers with angled supports underneath

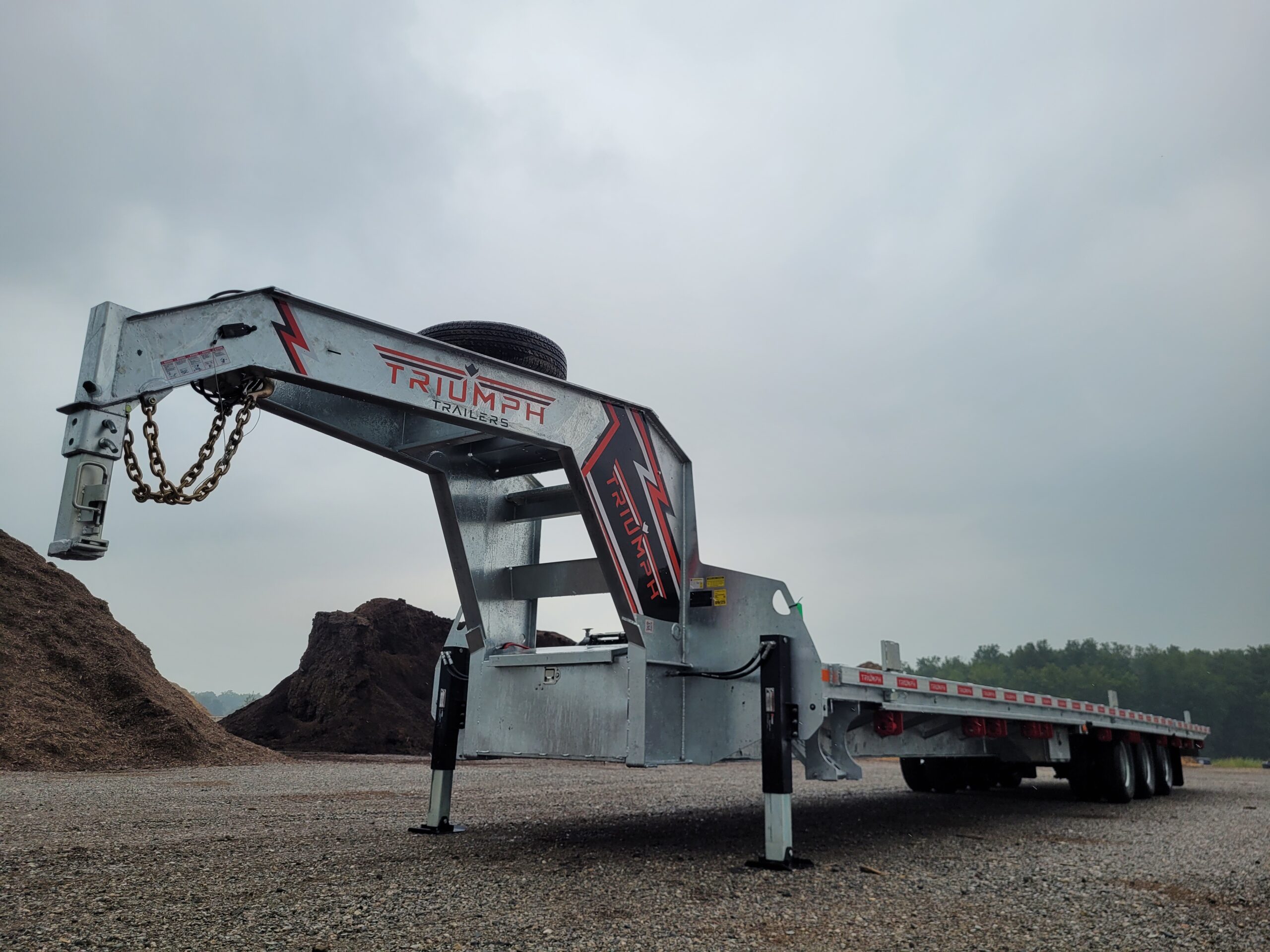

  • Monoblock Gooseneck (stronger than I-beam gooseneck)
  • 3” gooseneck coupler
  • Tandem 12k Hydraulic jacks

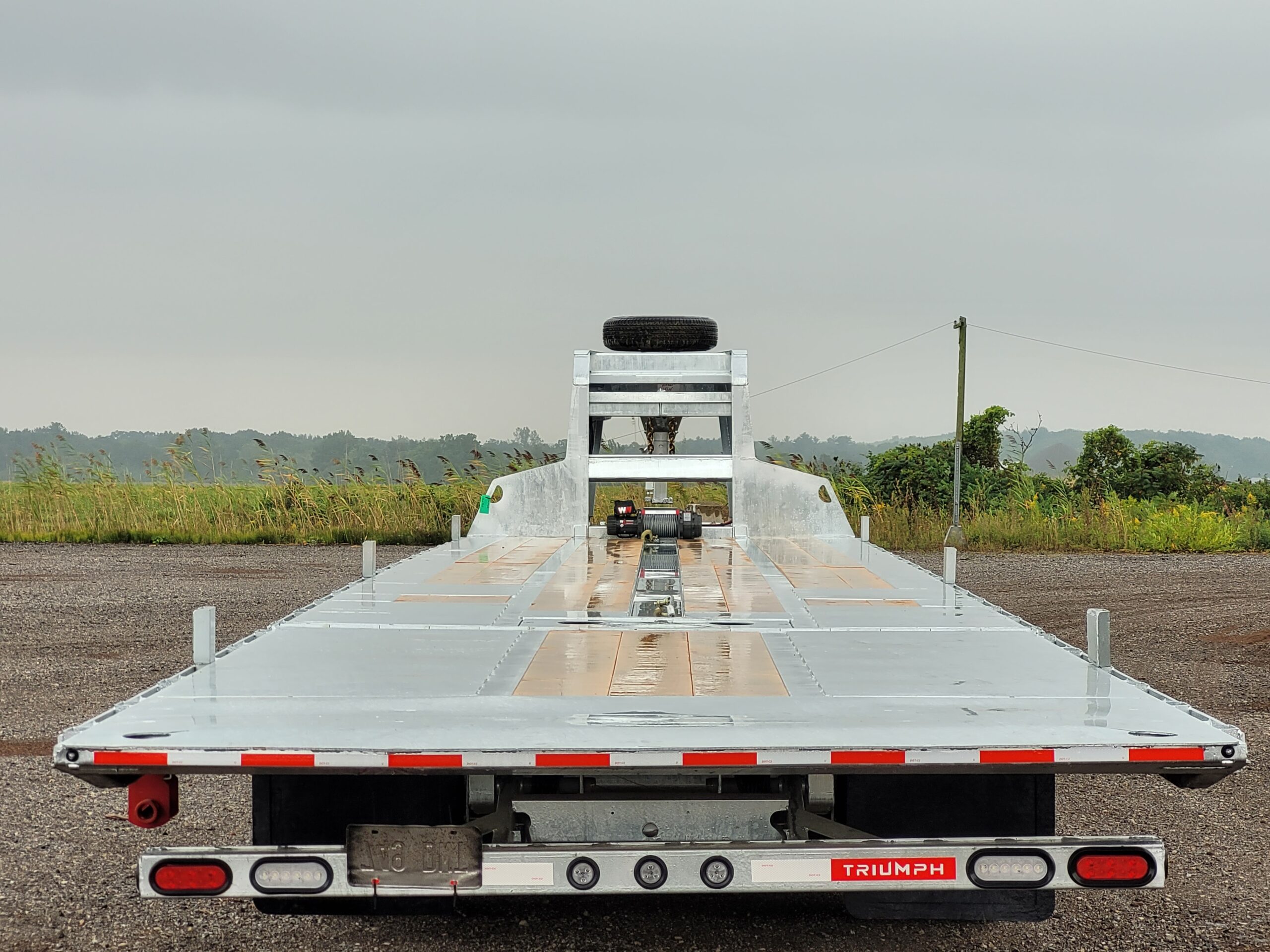

  • LED lighting
  • Low profile deck (34” deck height)

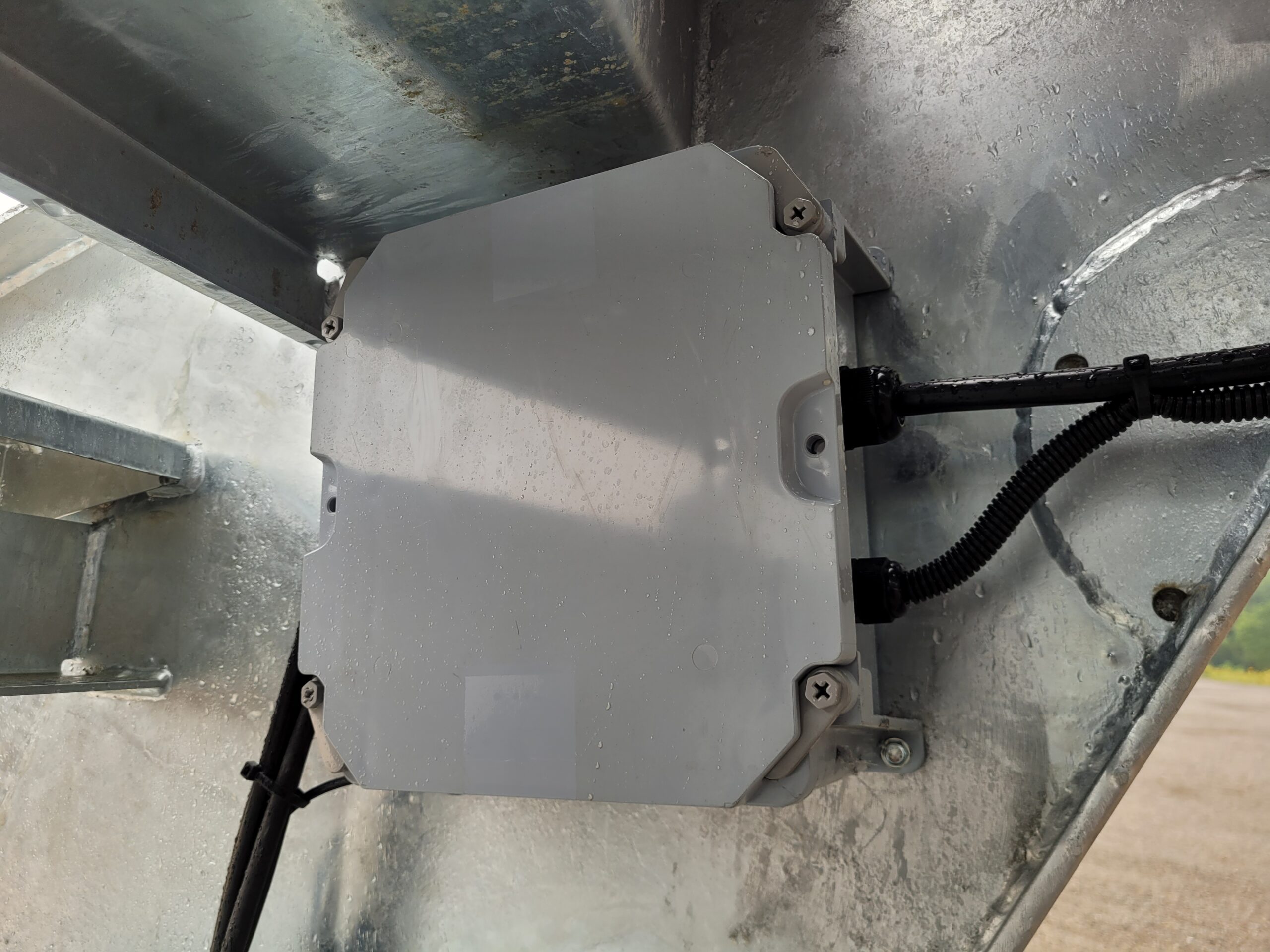

  • Sealed wire harness
  • Fold out footsteps on both sides in front

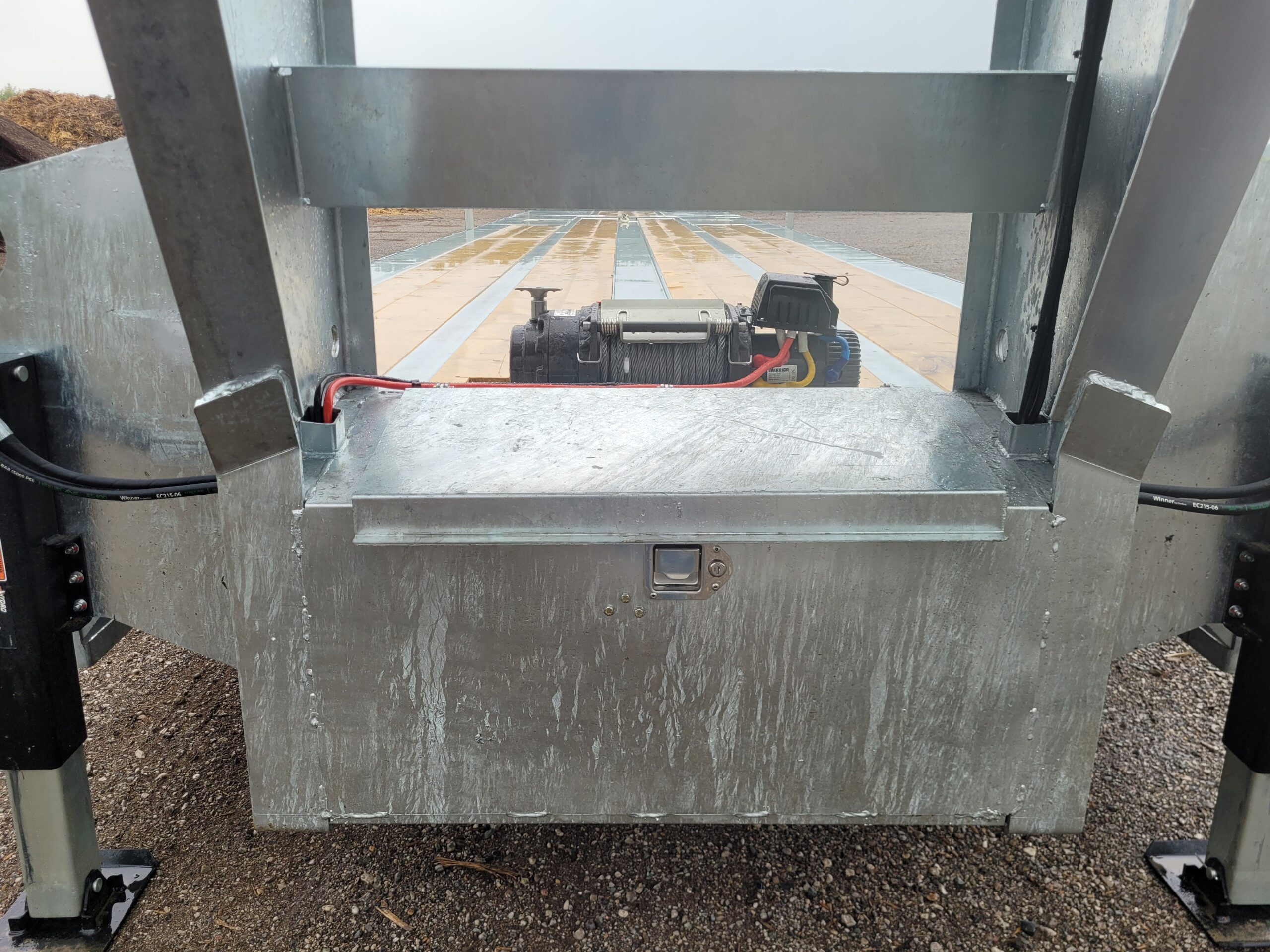

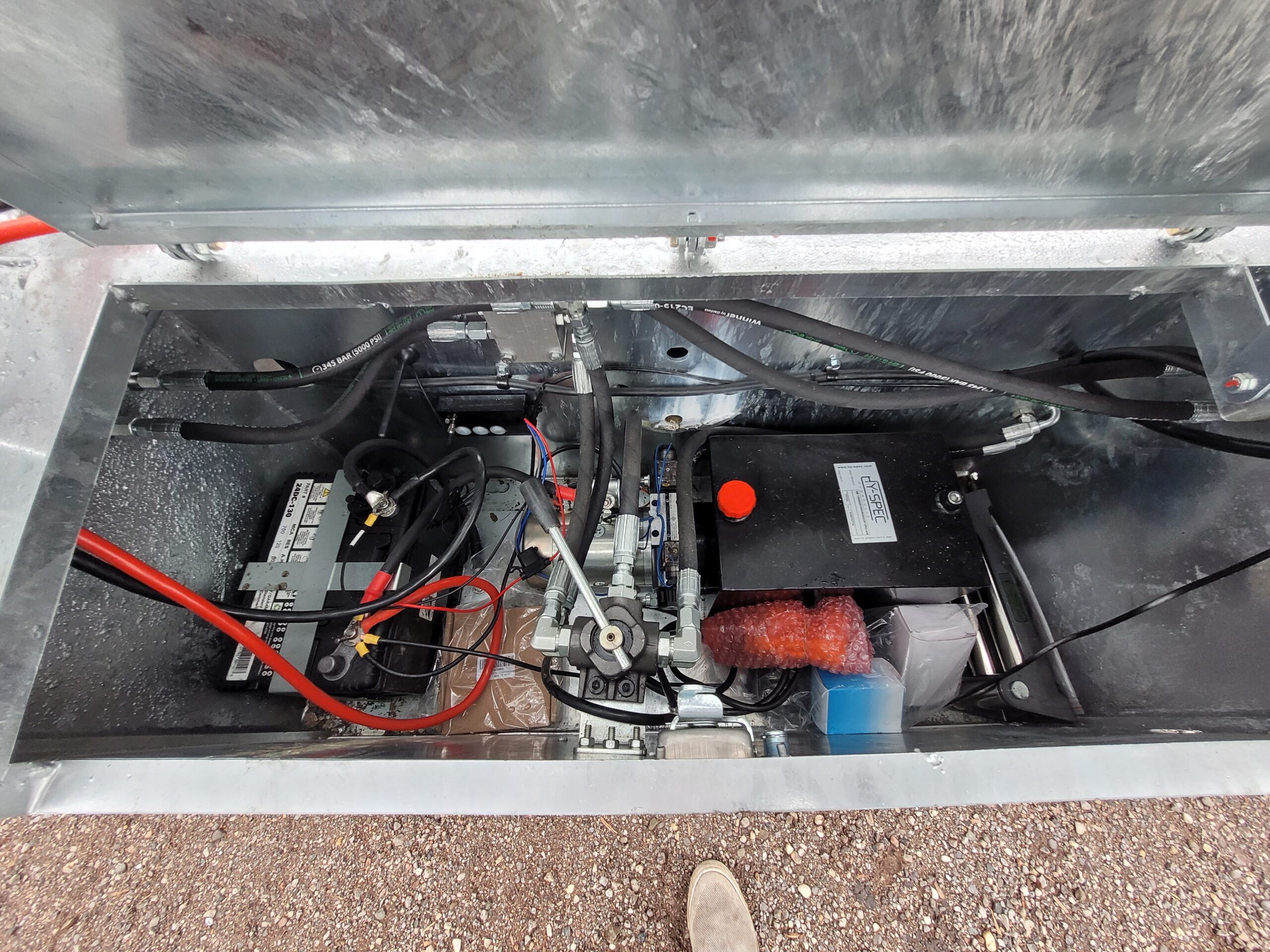

  • Built in toolbox in front
  • Two undermount toolboxes
  • Stake pockets/rub rail along sides of trailer
  • Chain spools inside rub rail

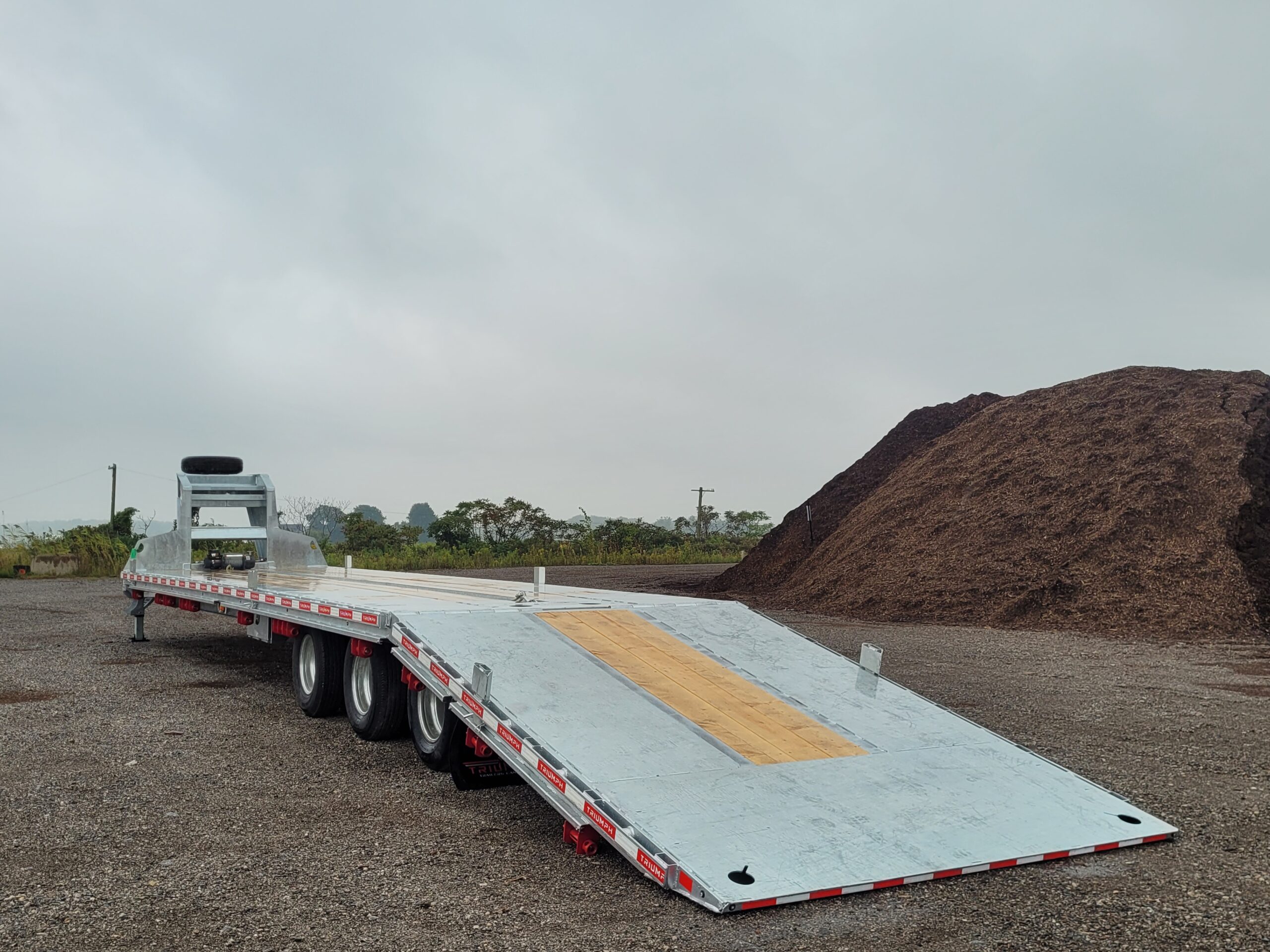

  • 12’ hydraulic dovetail
  • Dovetail rated to lift and carry 10,000 pounds
  • Dovetail designed with an over center lock so no other locking mechanism needed
  • Chain cabinet between gooseneck
  • Hot dip galvanize finish

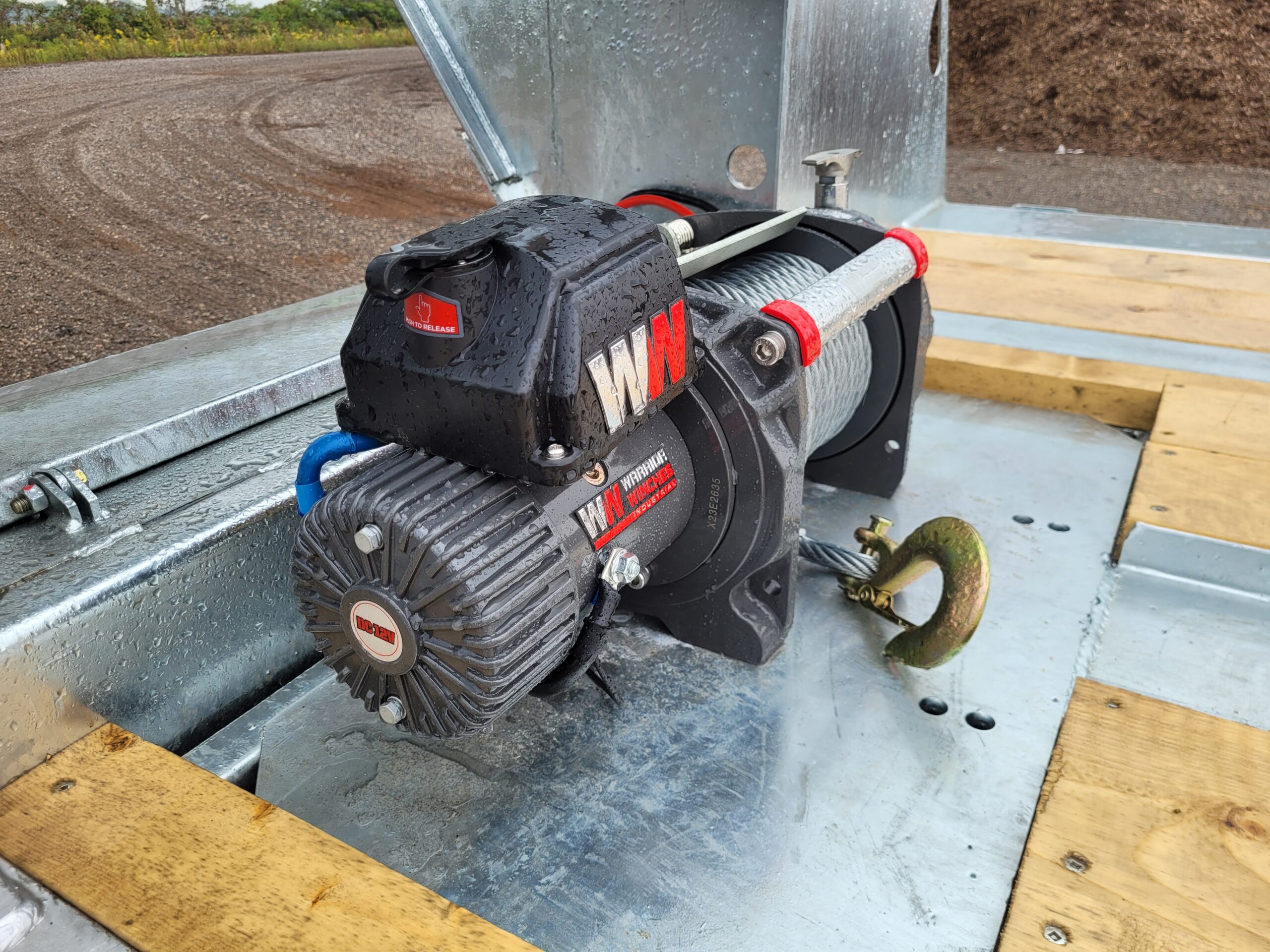

  • Winch tracking with a slider every 5 feet
  • 12k hydraulic axle upgrade
  • 5th wheel attachment optional
  • Spare tire


3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)

Additional information

Trailer Type



Deck Width

Deck Length

Deck Height



Trailer Weight

Axle Weight Rating

Coupler Style

Coupler Size

Electrical Plug

Tilt Angle
