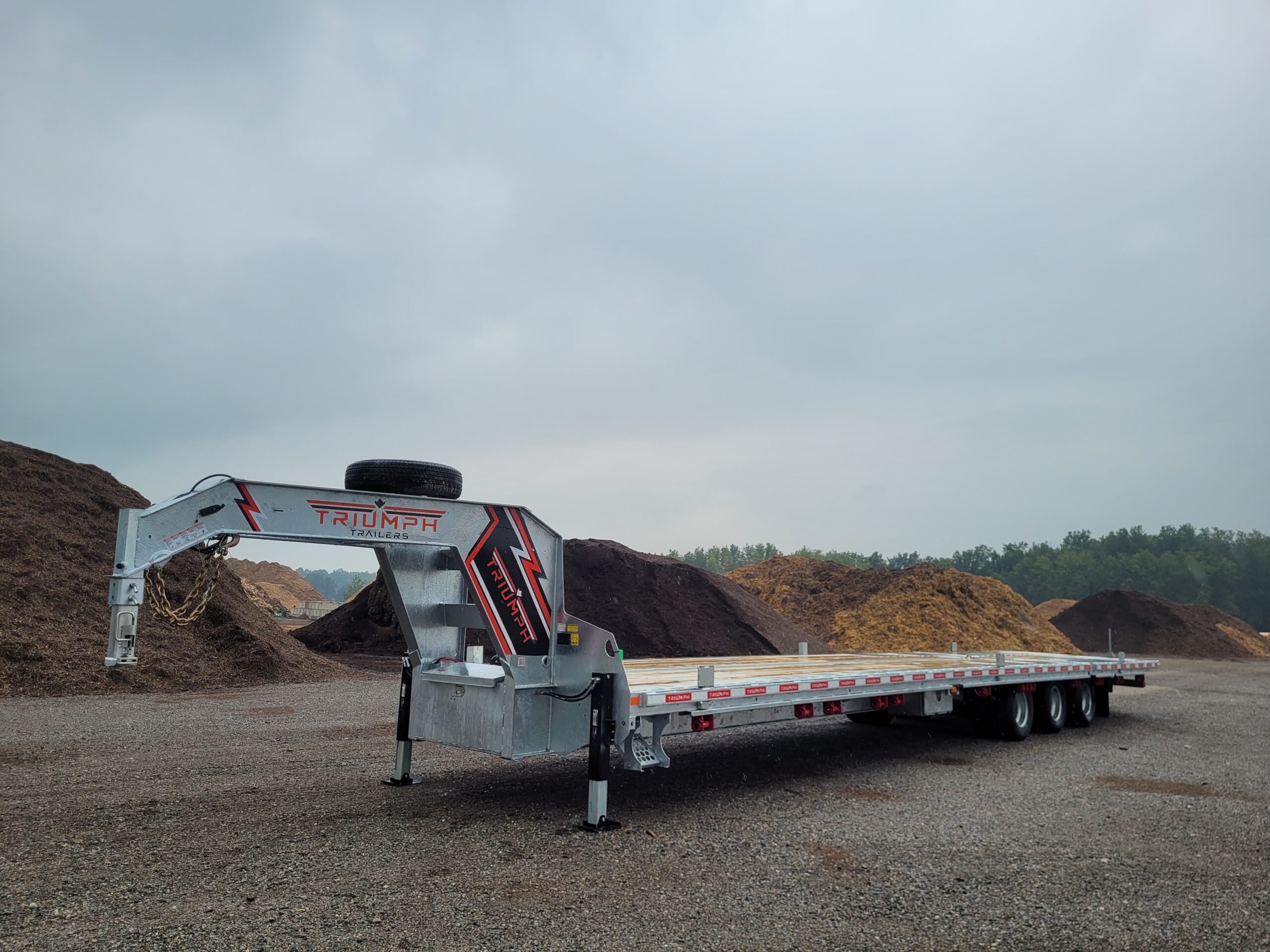

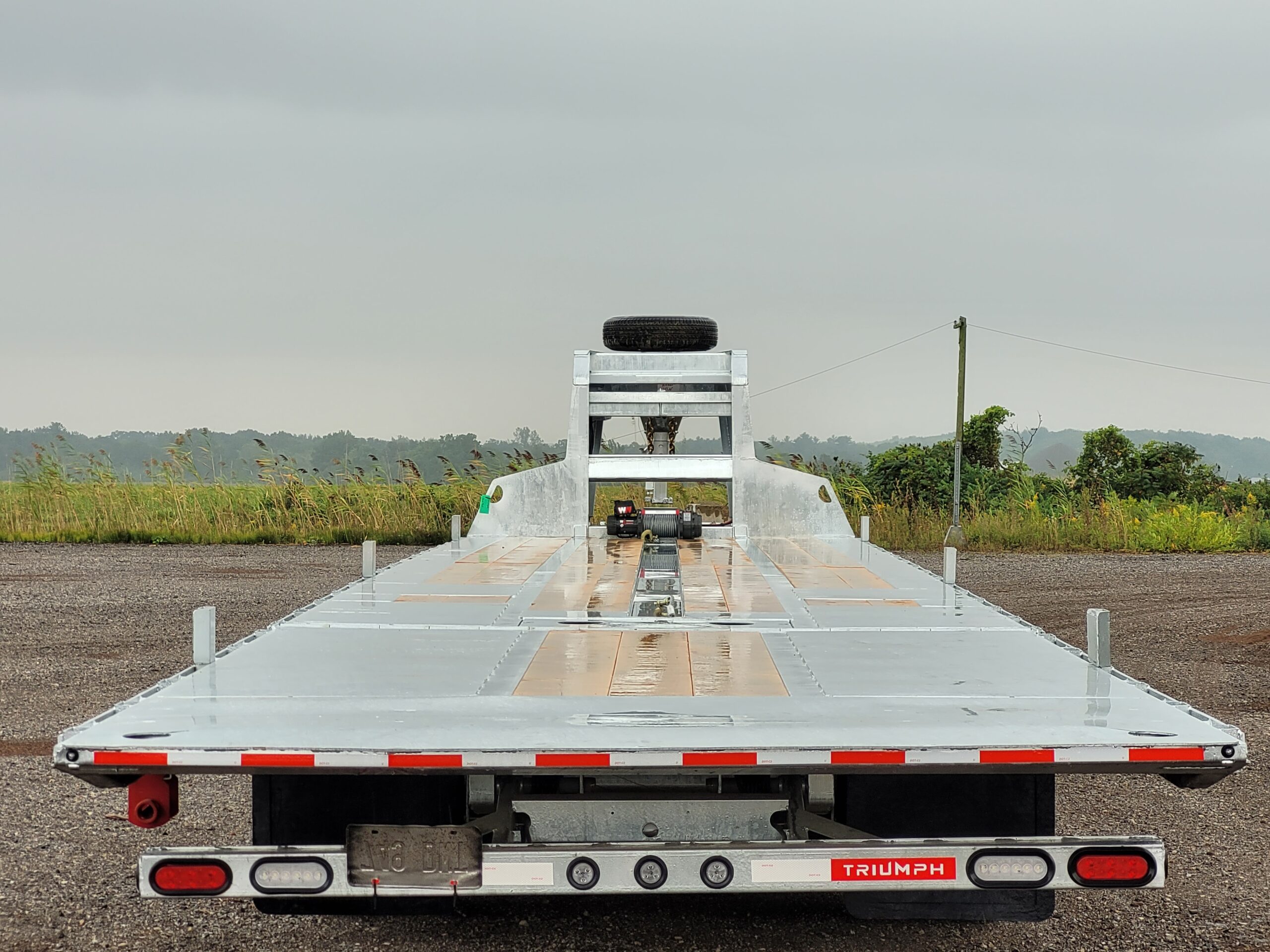

18 Ton 102×41 Galvanized Gooseneck Deckover with Dovetail
$54,995.00
Deck Width | 102″ |
Deck Length | 41′ |
Deck Height | 34″ |
GVWR | 43,200 lbs |
Payload | 32,100 lbs |
Axle Rating | 3×12,000 lbs |
Tilt Angle | 15 degree |
Description
HDDOGN-TRI102x41-12k

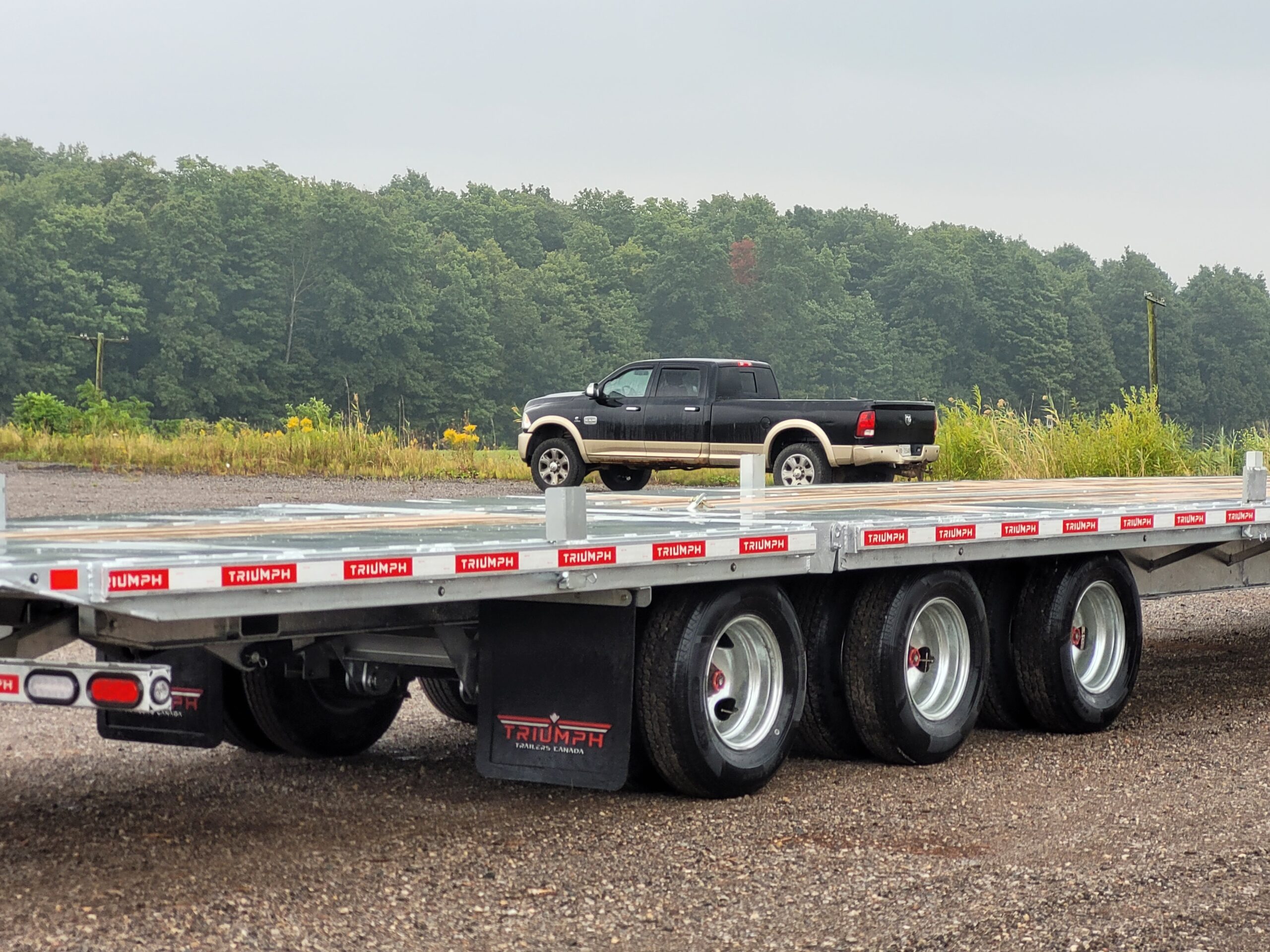

- 12k dually axles with slipper suspension
- Tri-axles with electric brakes
- 235/80R17.5 radial tires
- Manufactured beam running front to back
- 3” C-channel at 16” centers with angled supports underneath

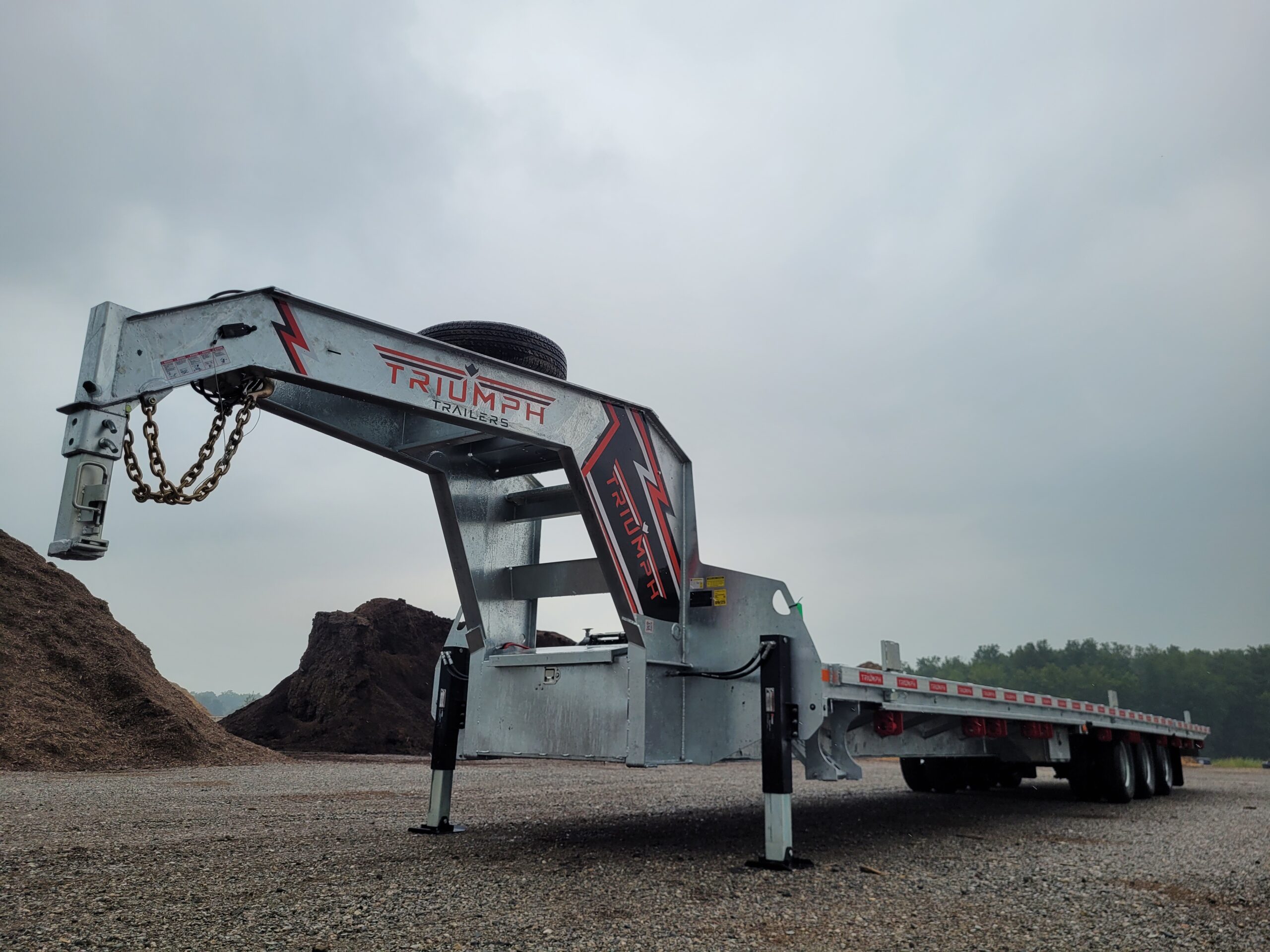

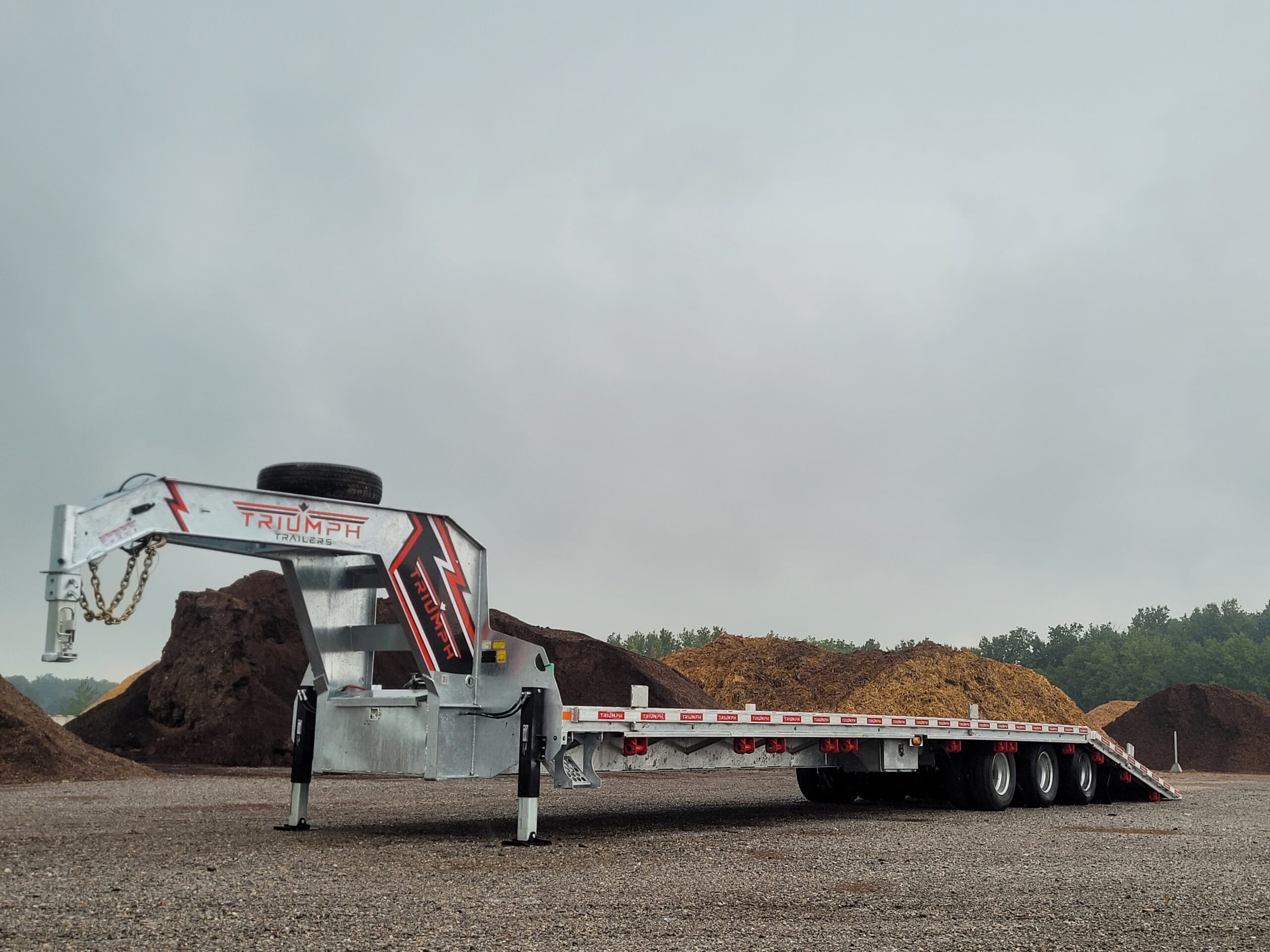

- Monoblock Gooseneck (stronger than I-beam gooseneck)
- 3” gooseneck coupler
- Tandem 12k Hydraulic jacks
- LED lighting
- Low profile deck (34” deck height)
- Sealed wire harness
- Fold out footsteps on both sides in front

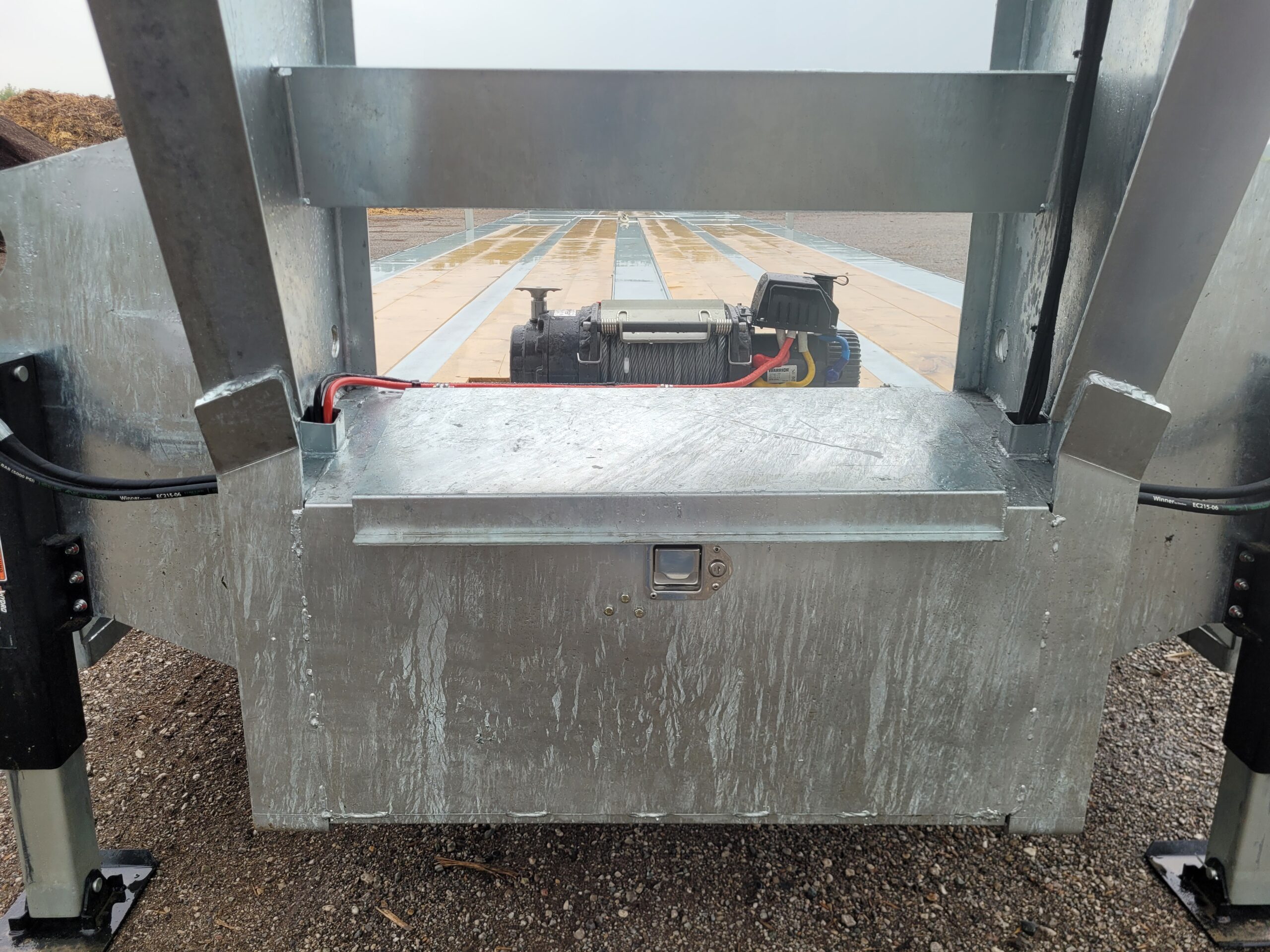

- Built in toolbox in front
- Two undermount toolboxes
- Stake pockets/rub rail along sides of trailer
- Chain spools inside rub rail

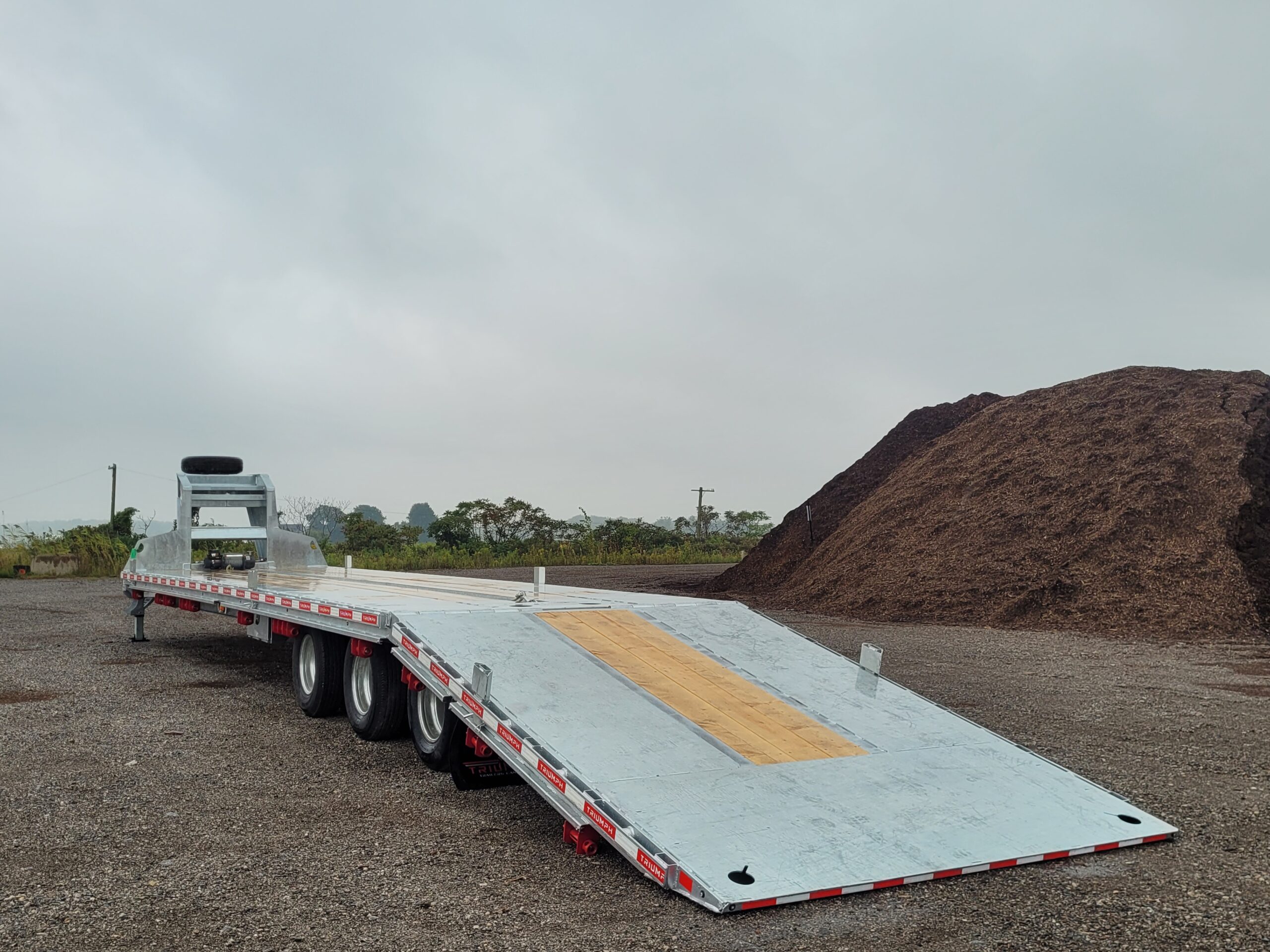

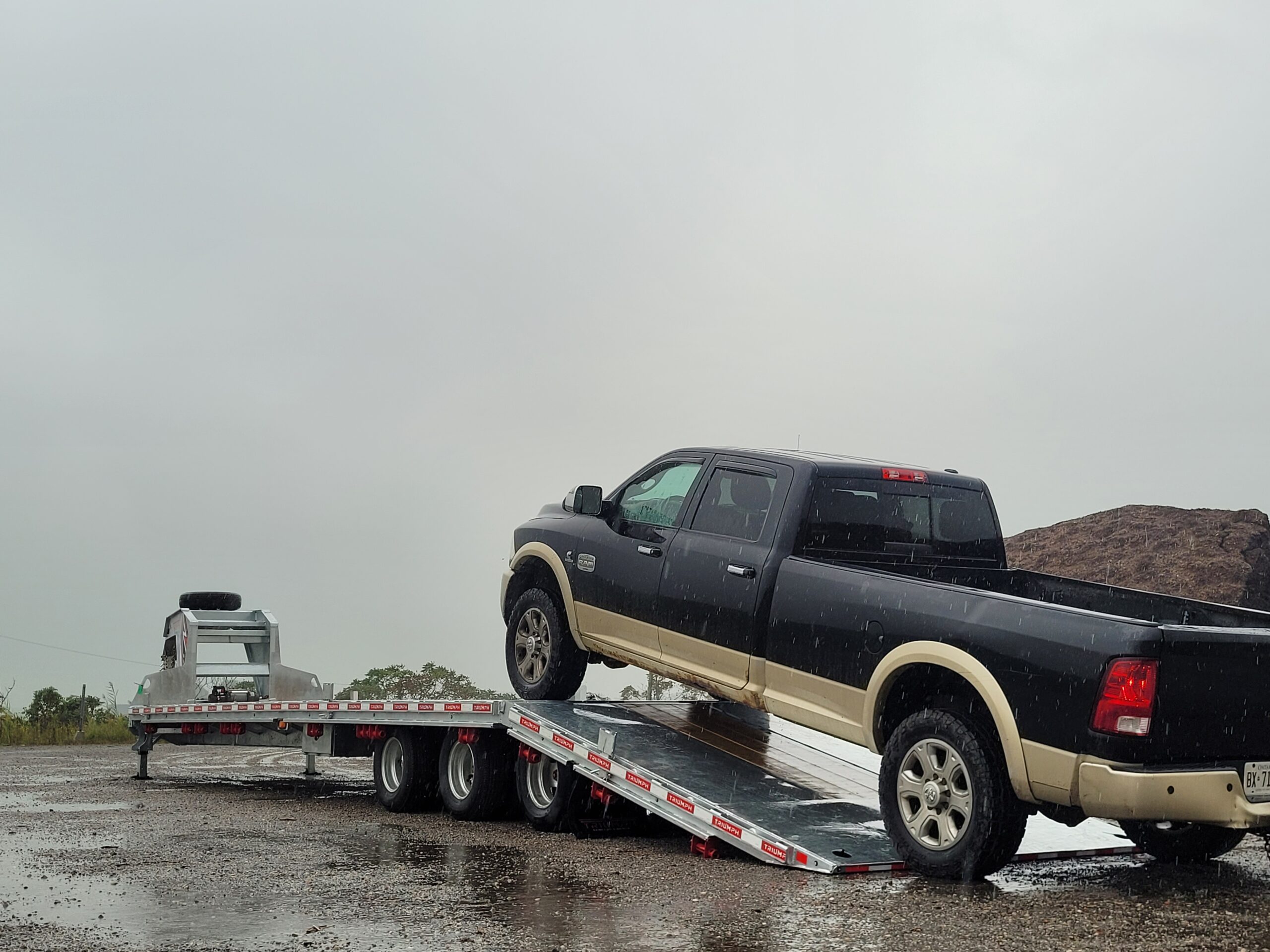

- 12’ hydraulic dovetail
- Dovetail rated to lift and carry 10,000 pounds
- Dovetail designed with an over center lock so no other locking mechanism needed
- Chain cabinet between gooseneck
- Hot dip galvanize finish
- Trailer weight 5025 KG
- Payload 11300 KG
Options

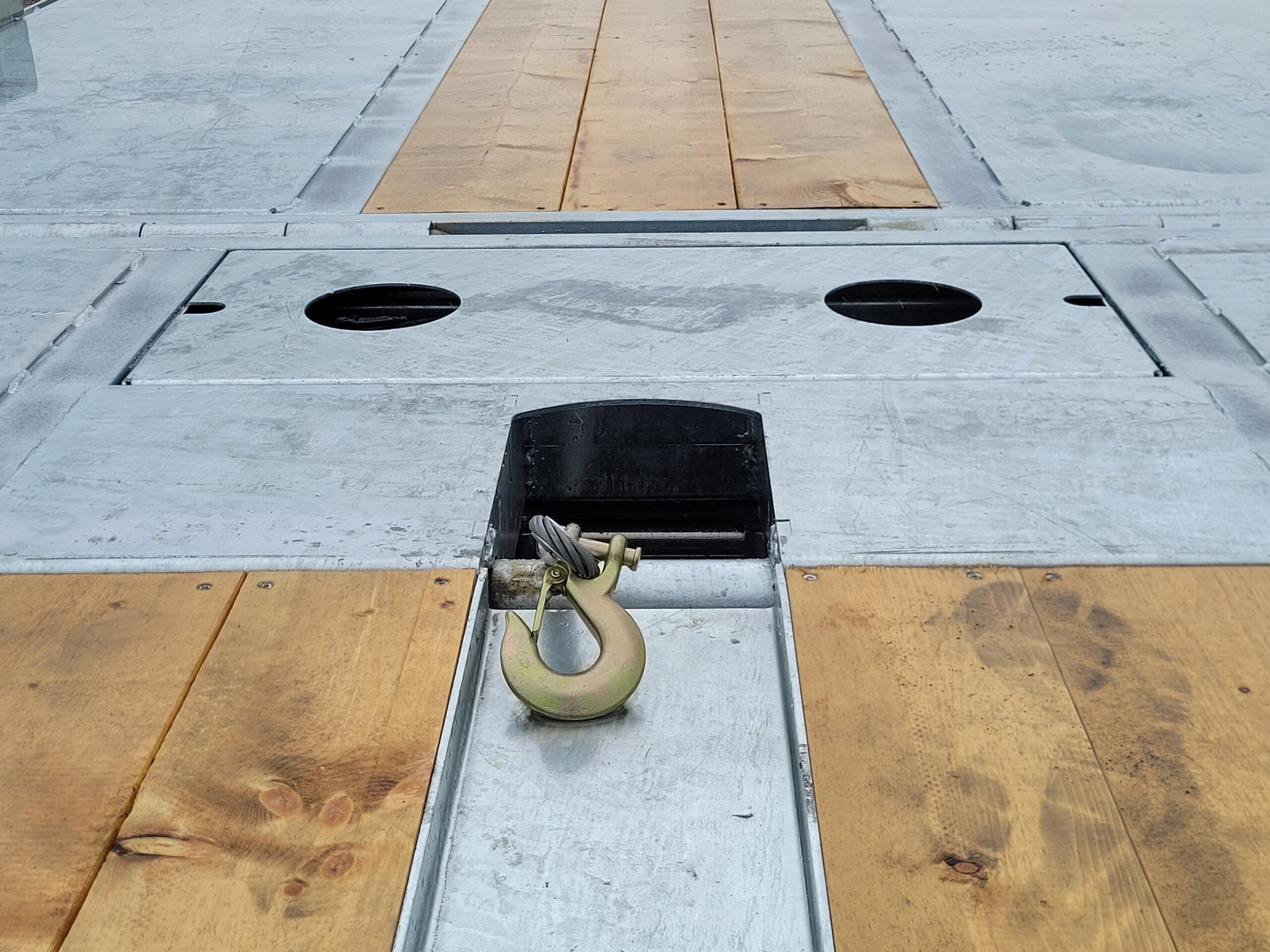

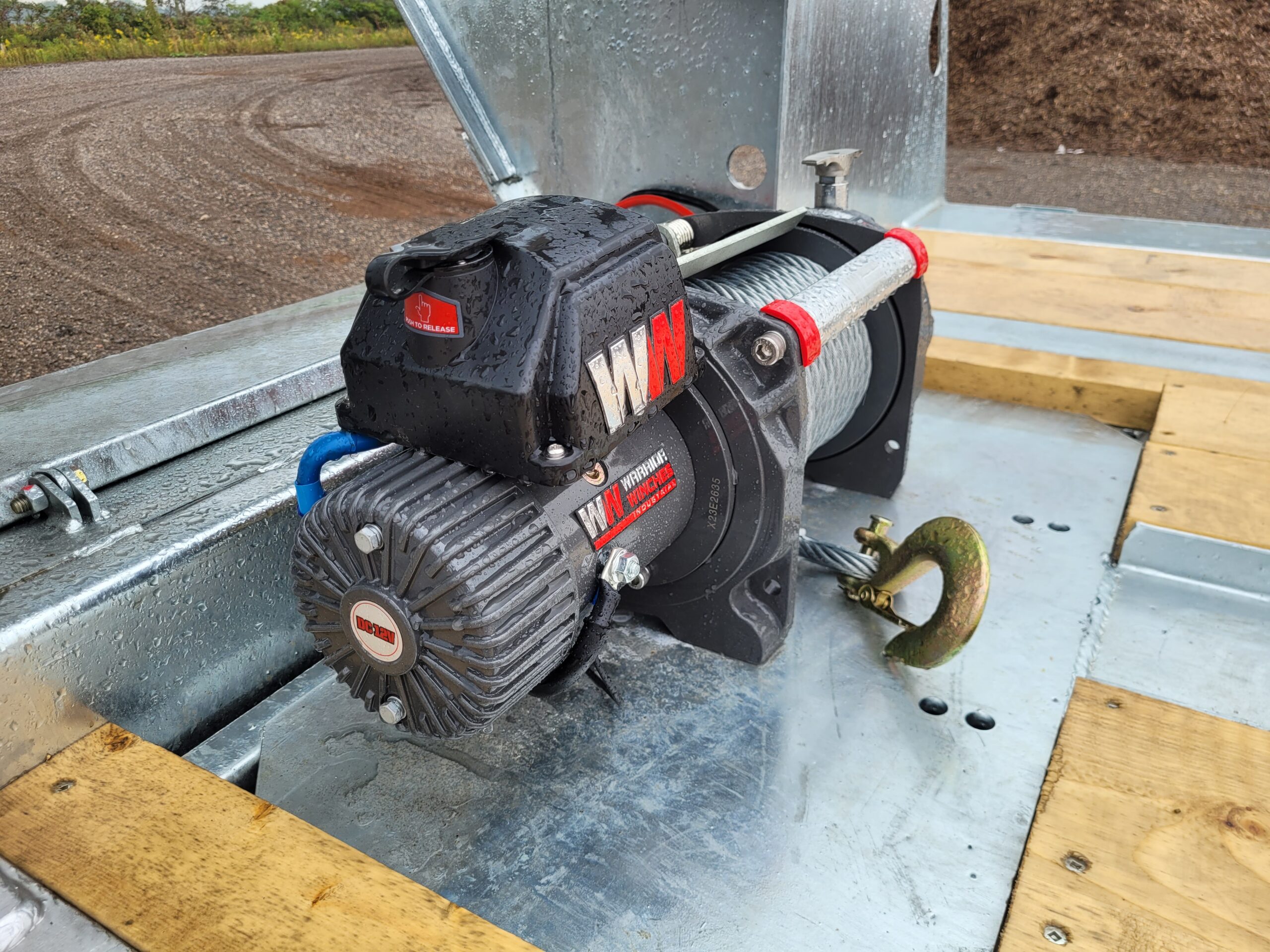

- Winch tracking with a slider every 5 feet
- 12k hydraulic axle upgrade
- 5th wheel attachment optional
- Spare tire
Warranty
Structural Warranty – 2 Years
Axles Warranty – 5 Years
Led Lights – Lifetime
Additional information
Trailer Type | |
---|---|
Finish | |
Deck Width | |
Deck Length | |
Deck Height | |
GVWR | |
Payload | |
Trailer Weight | |
Axle Weight Rating | |
Coupler Style | |
Coupler Size | |
Electrical Plug | |
Tilt Angle |
