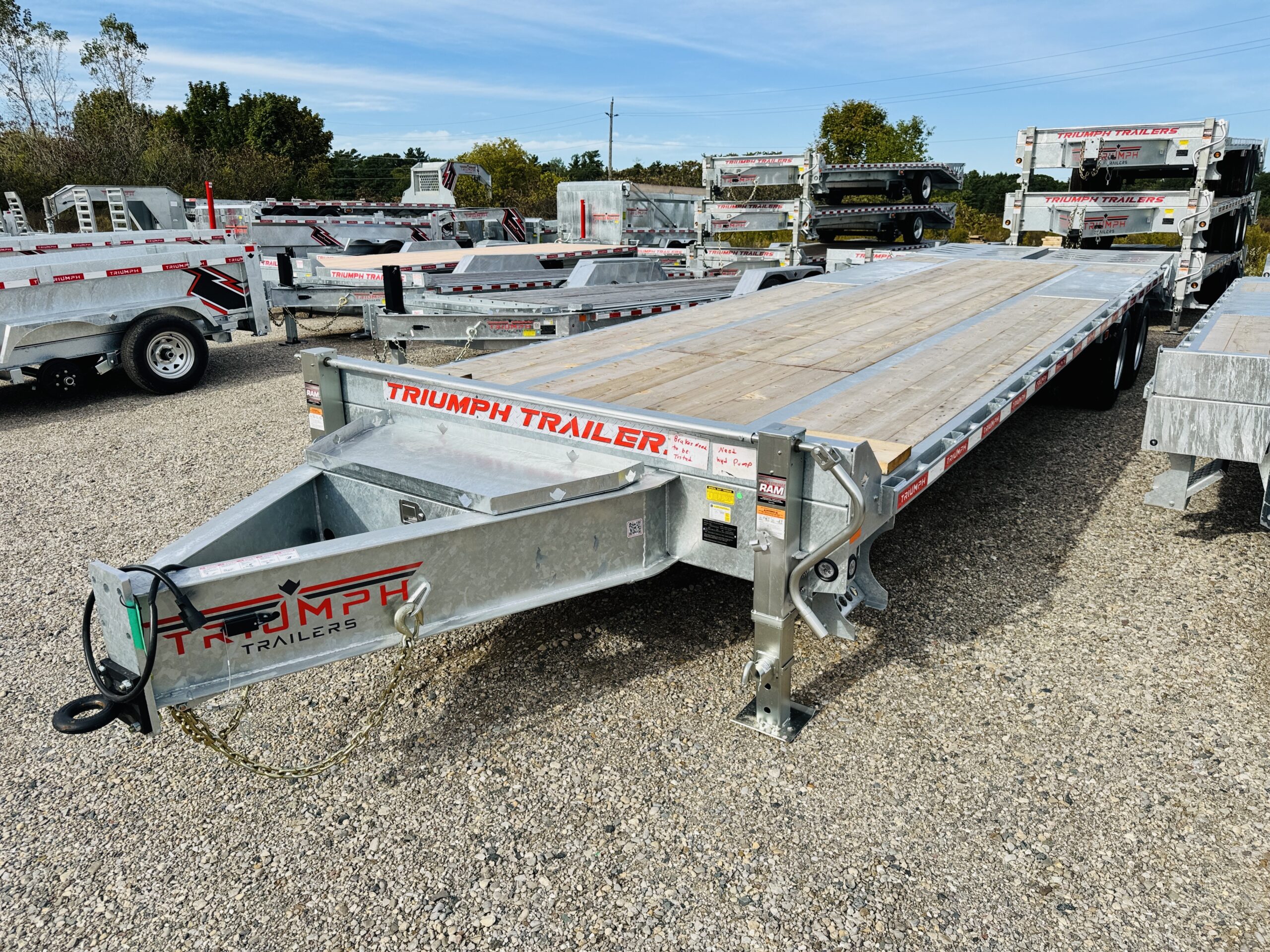

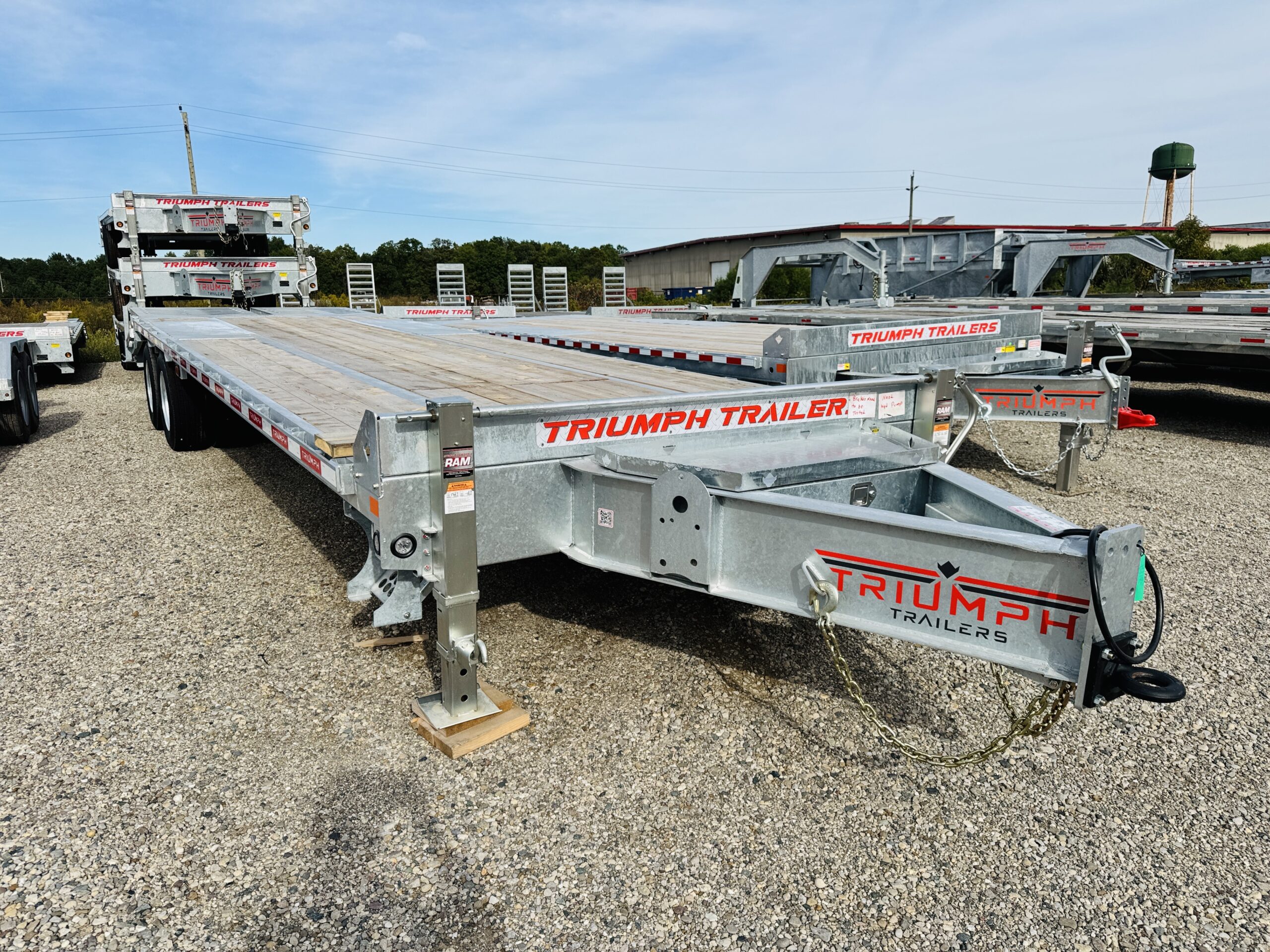

25+5 Foot 12 Ton Galvanized Pintle Deckover Trailer


Deck Width102″
Deck Length25’+5′ Mega Ramp
Deck Height34″
GVWR26,400 lbs
Payload18,285 lbs
Axle Rating2×12,000 lbs



– 12k dually, Dexter axles with slipper suspension
– Both axles with electric brakes
– 235/80R16 radial tires

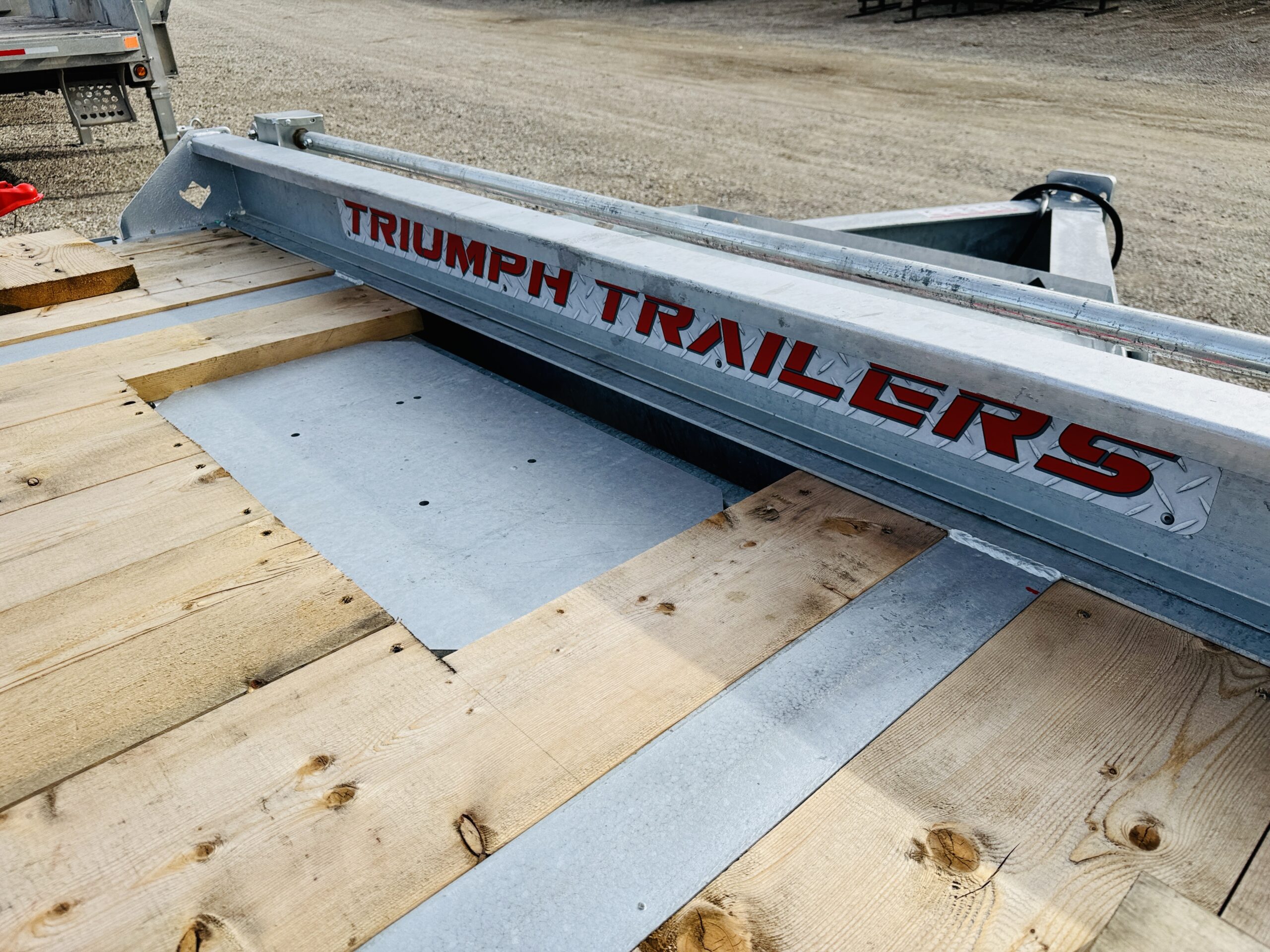

– 12” beam running front to back

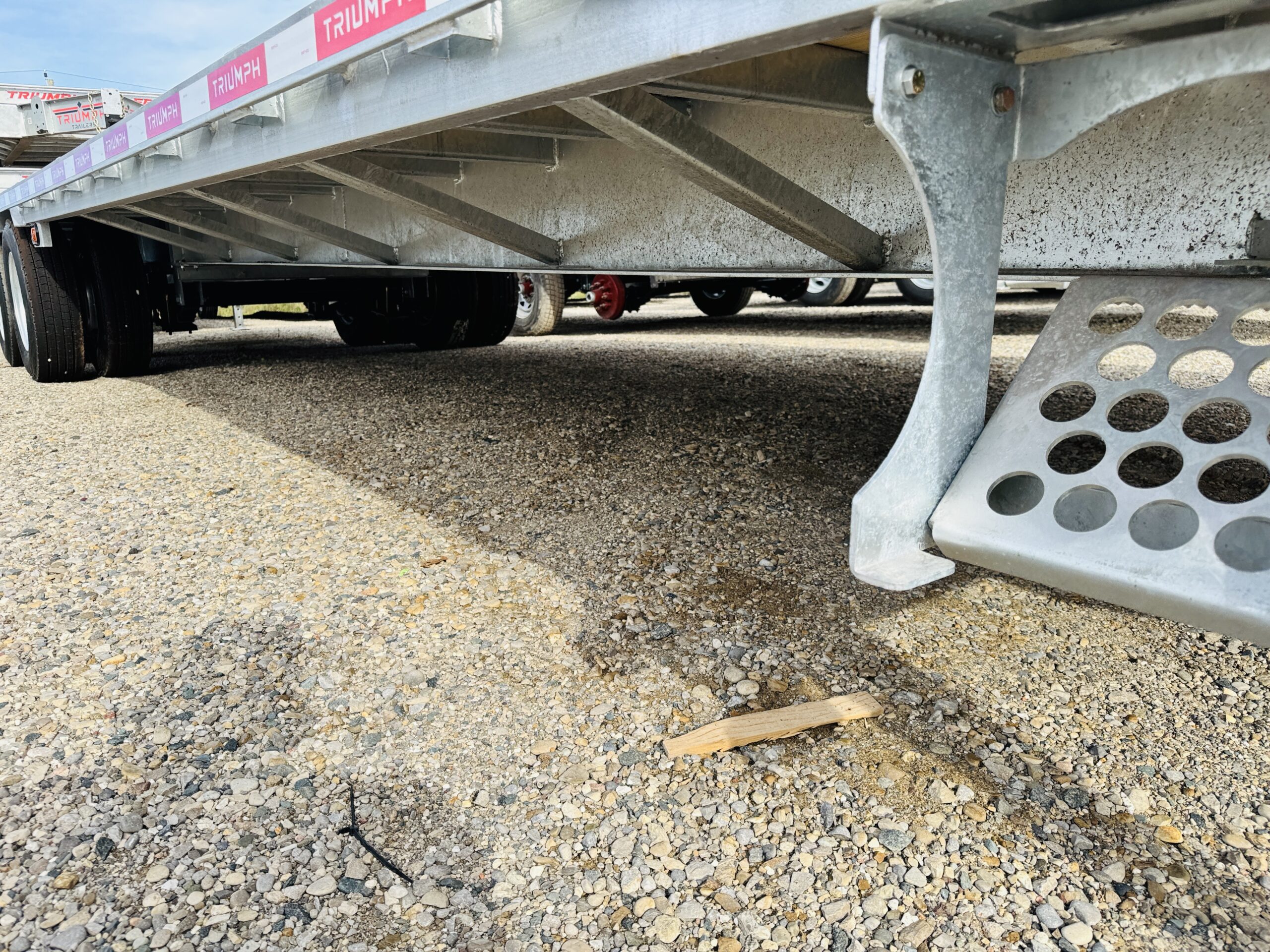

– 3” C-channel at 16” centers with angled supports underneath
– Fitted with 12 welded HD D-rings

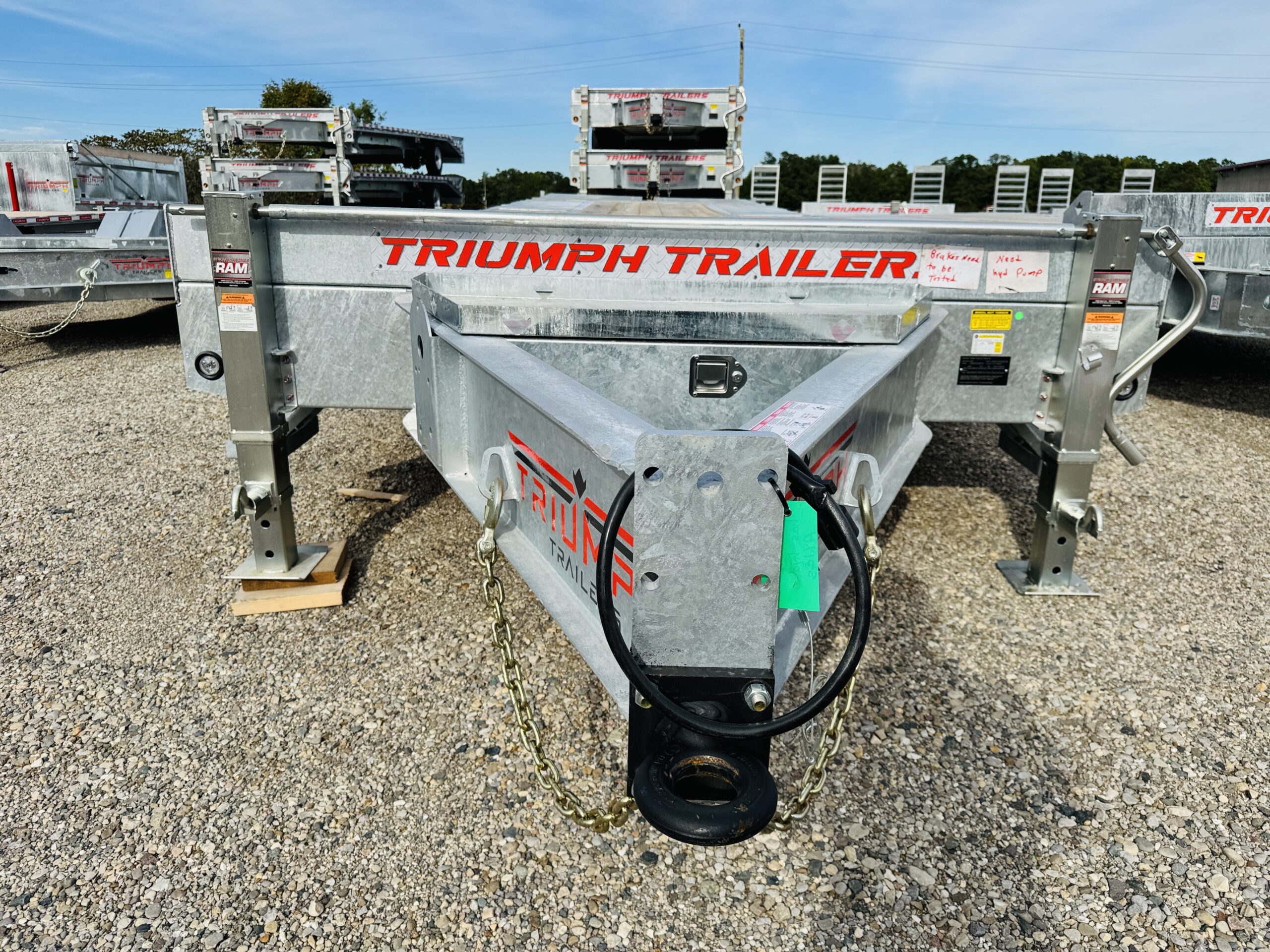

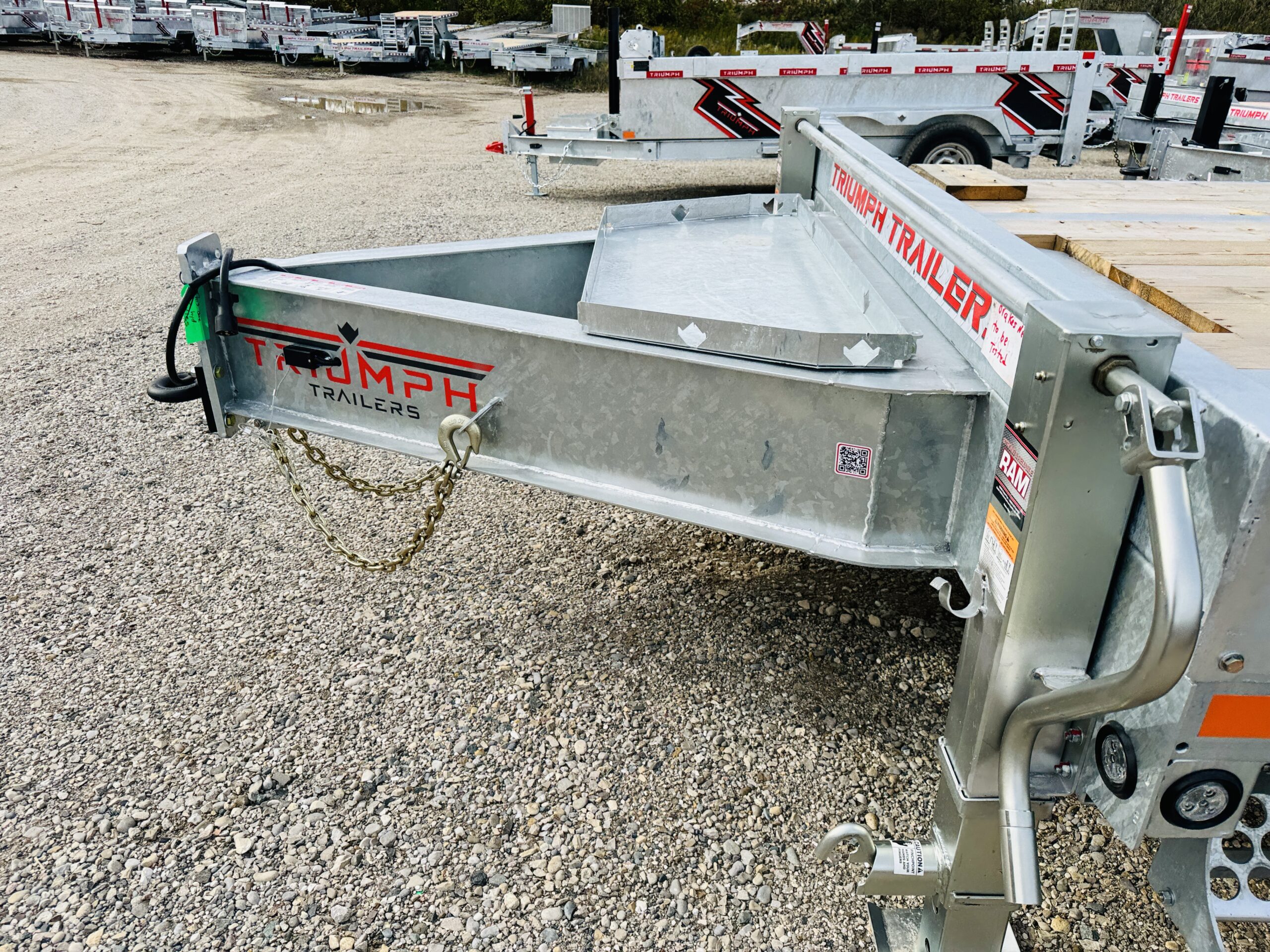

– Pintle ring rated for 40,000 pounds

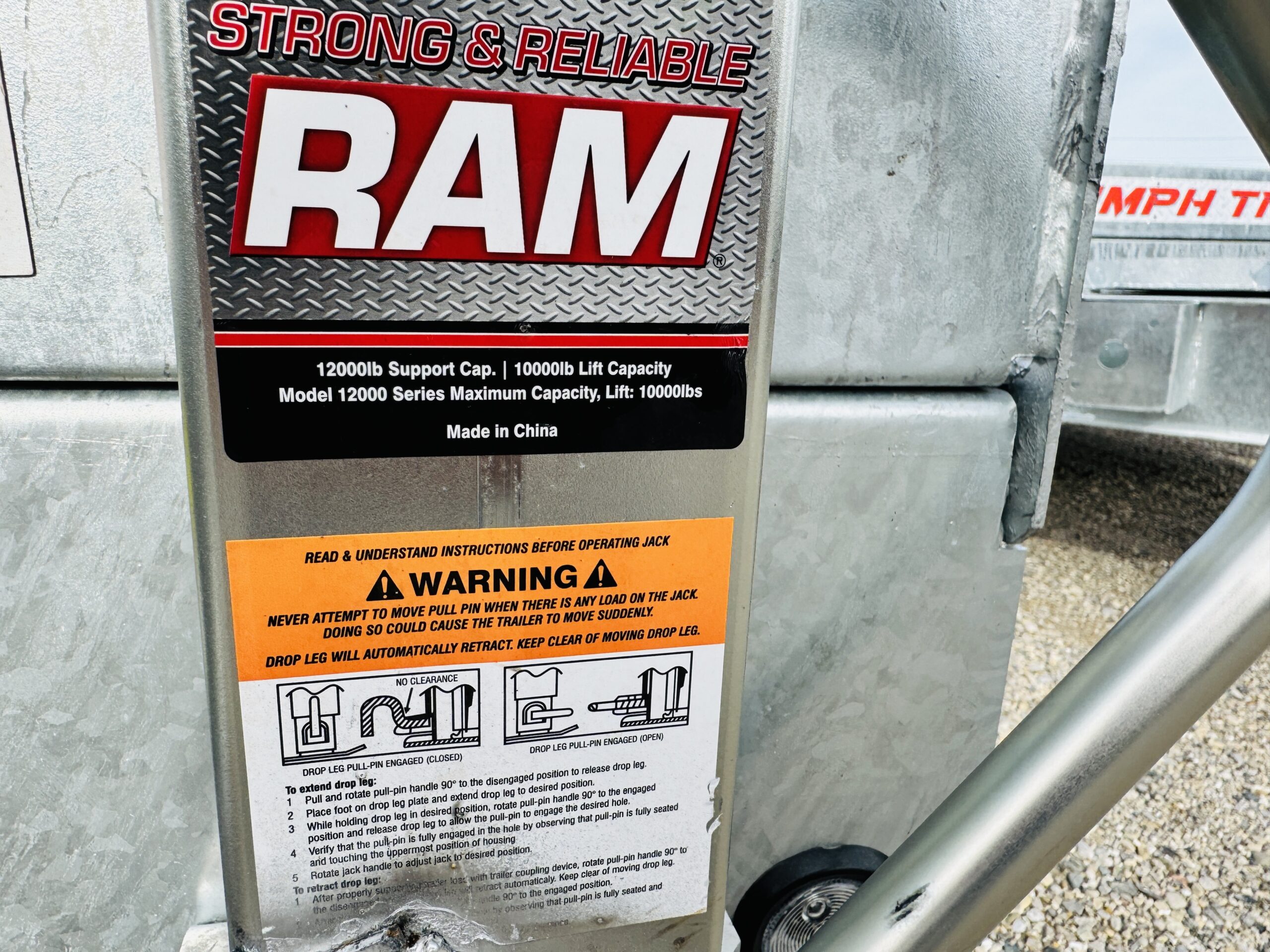

– Tandem 12k jacks
– LED lighting

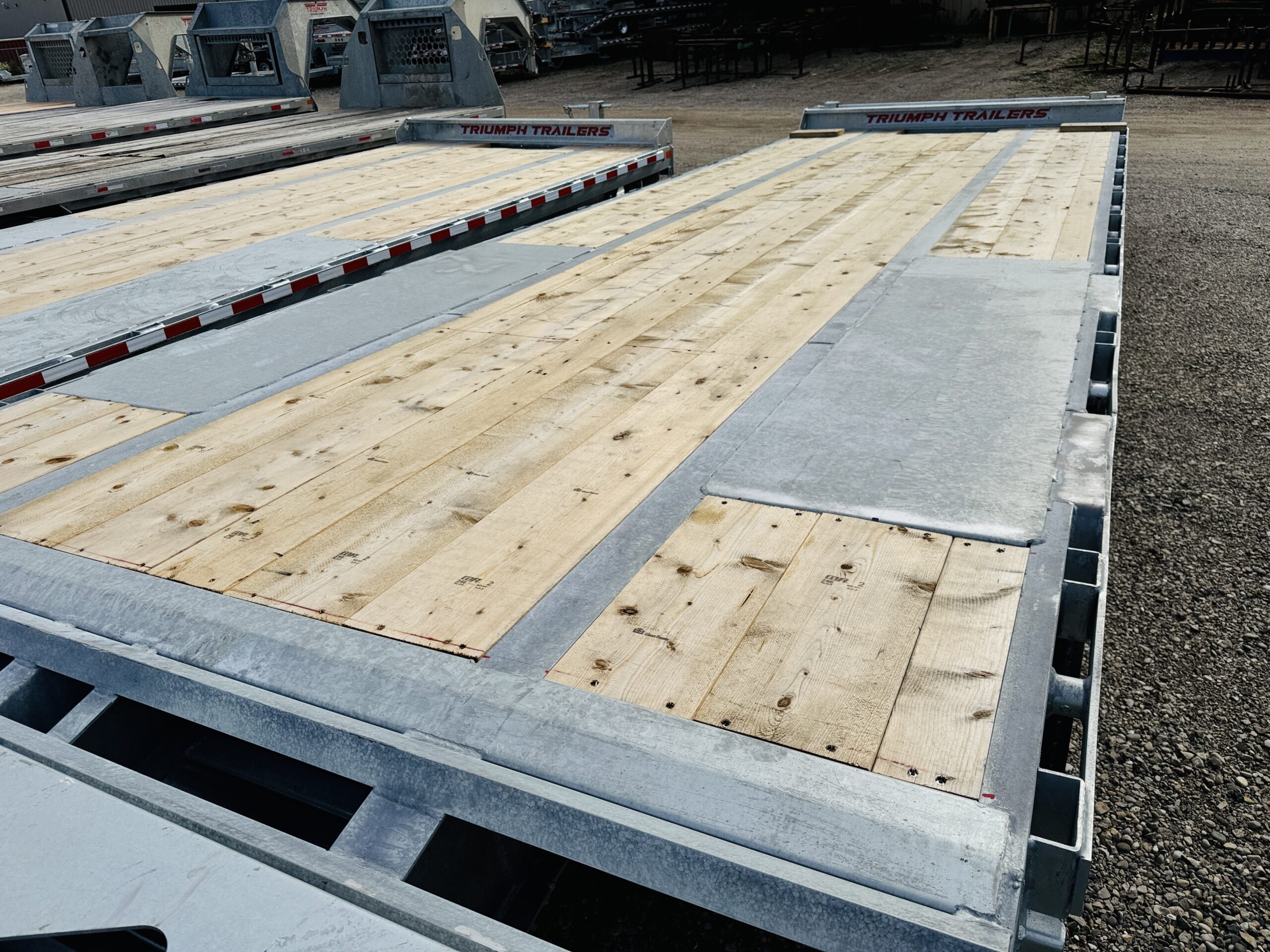

– Low profile deck (34” deck height)
– Heat shrink connectors on wire harness
– Drop legs
– Stake pockets/rub rail along sides of trailer
– Chain spools inside rub rail

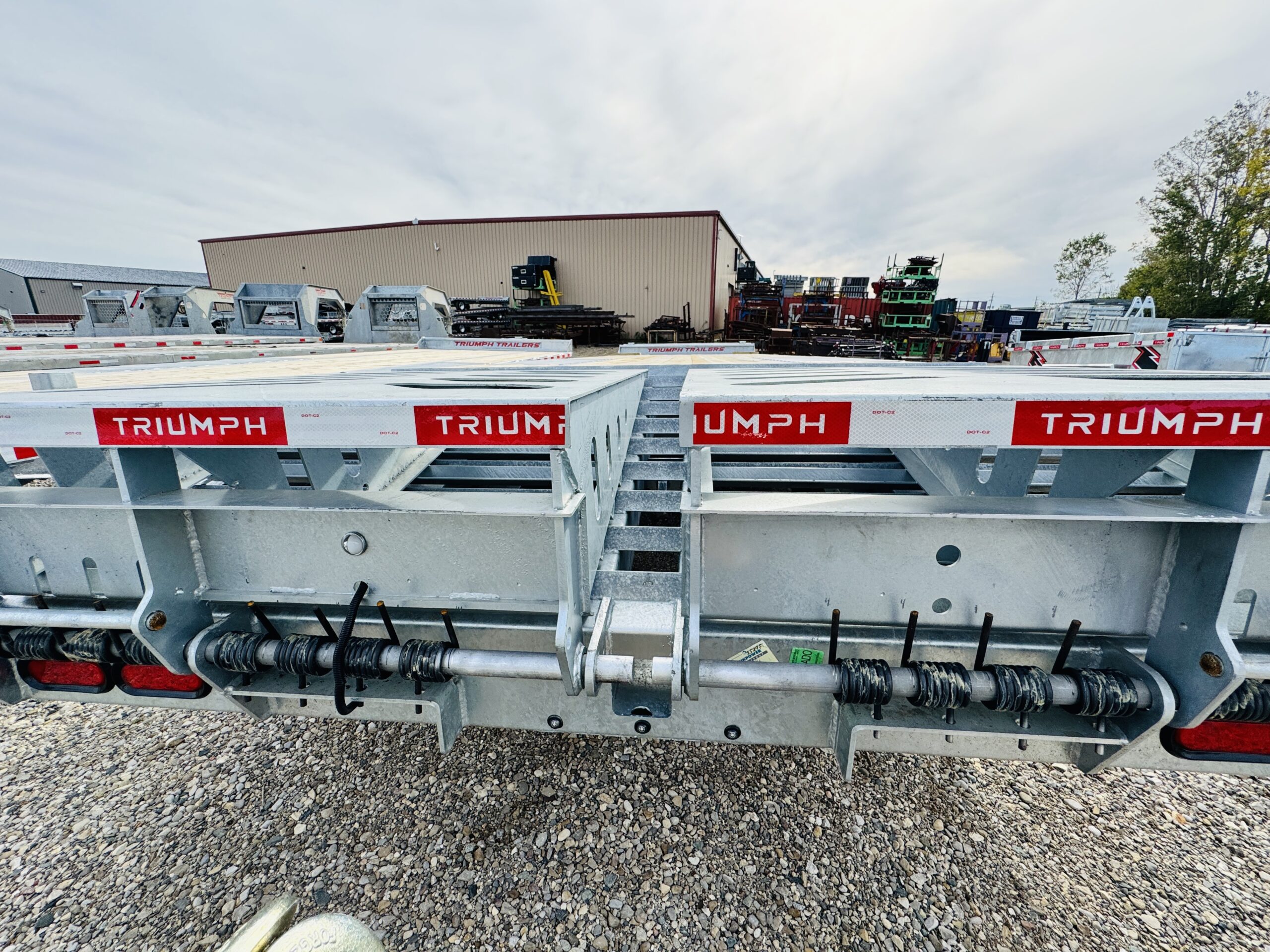

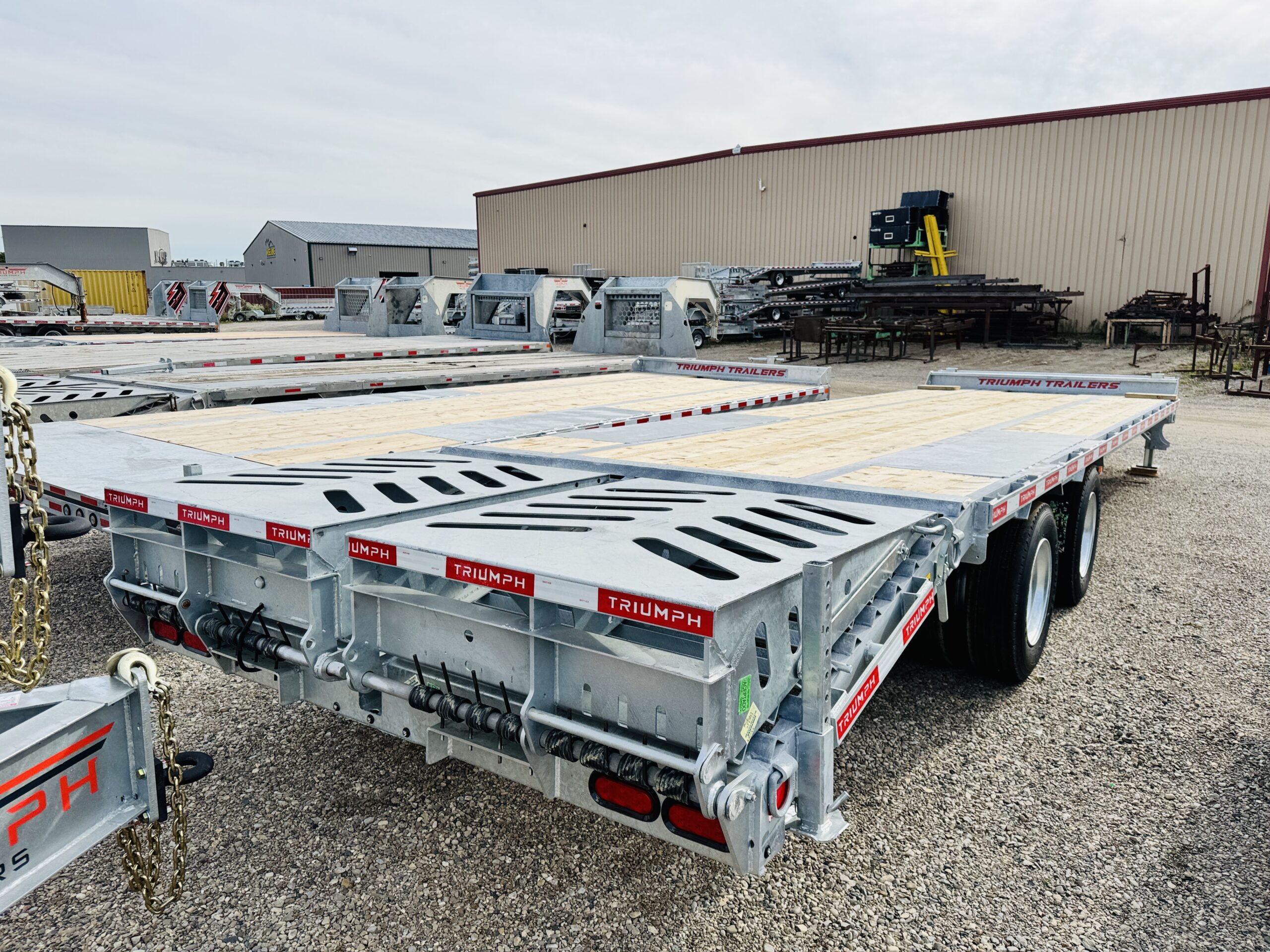

– 5’ beavertail

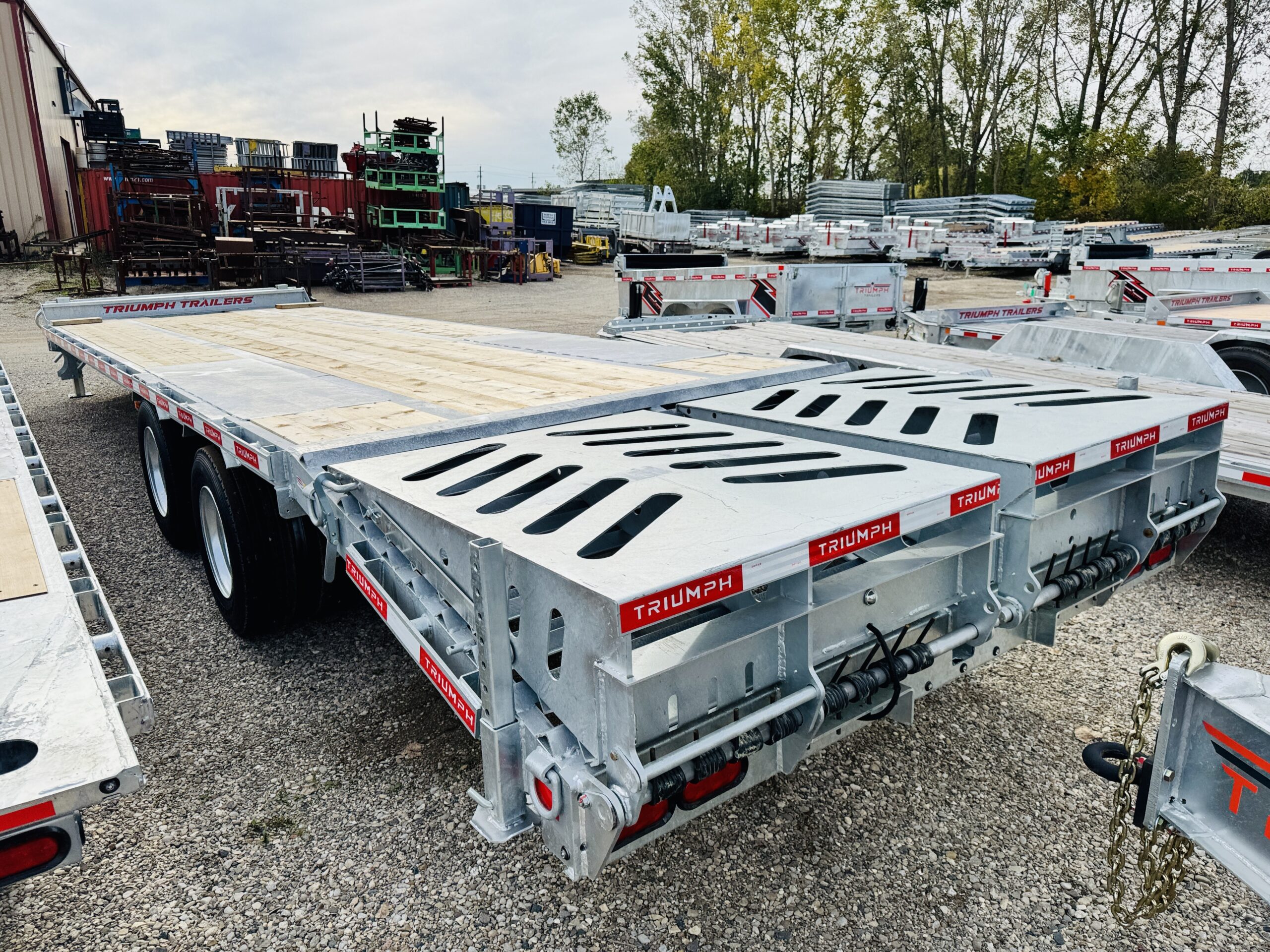

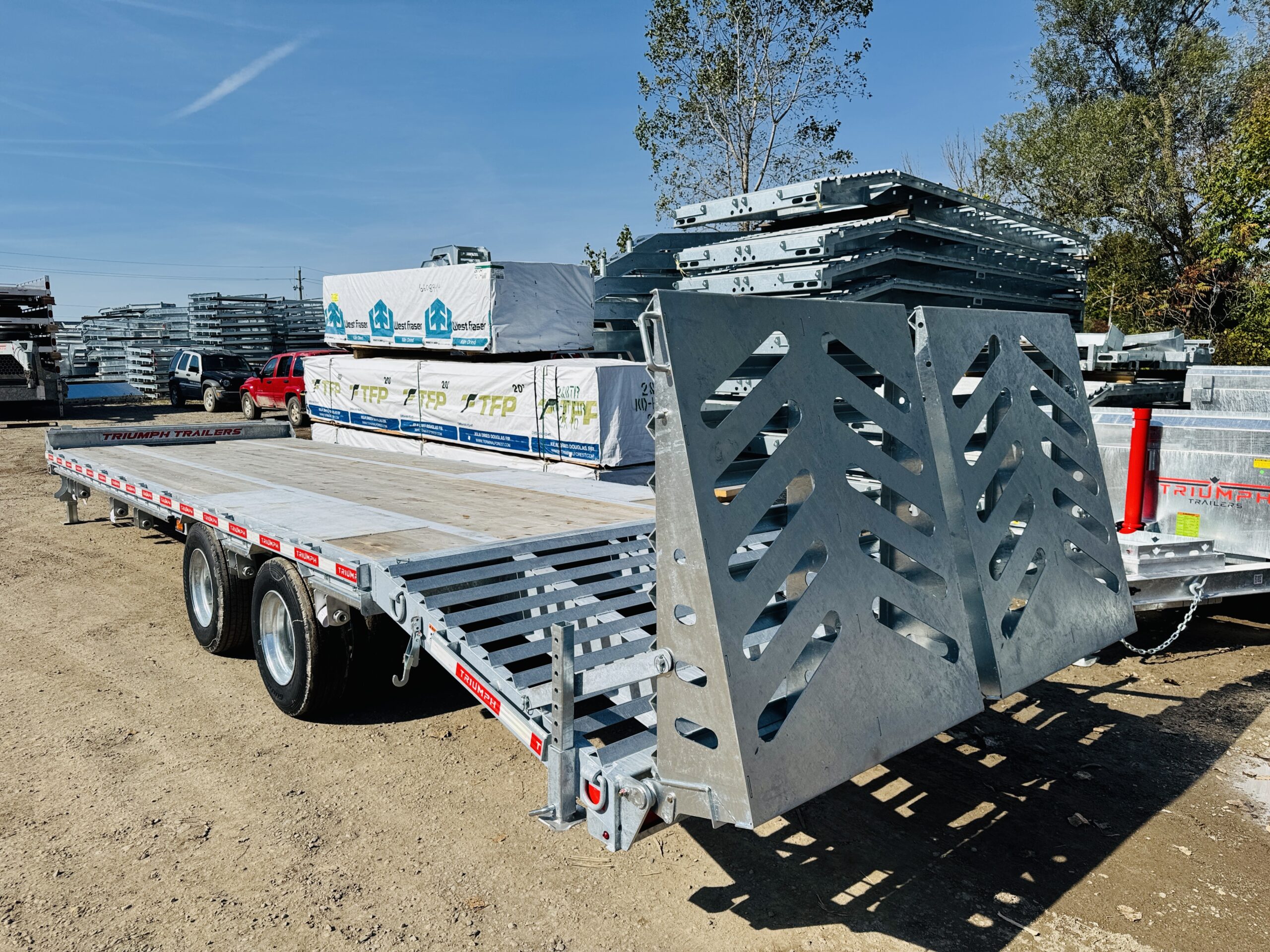

– Mega ramps

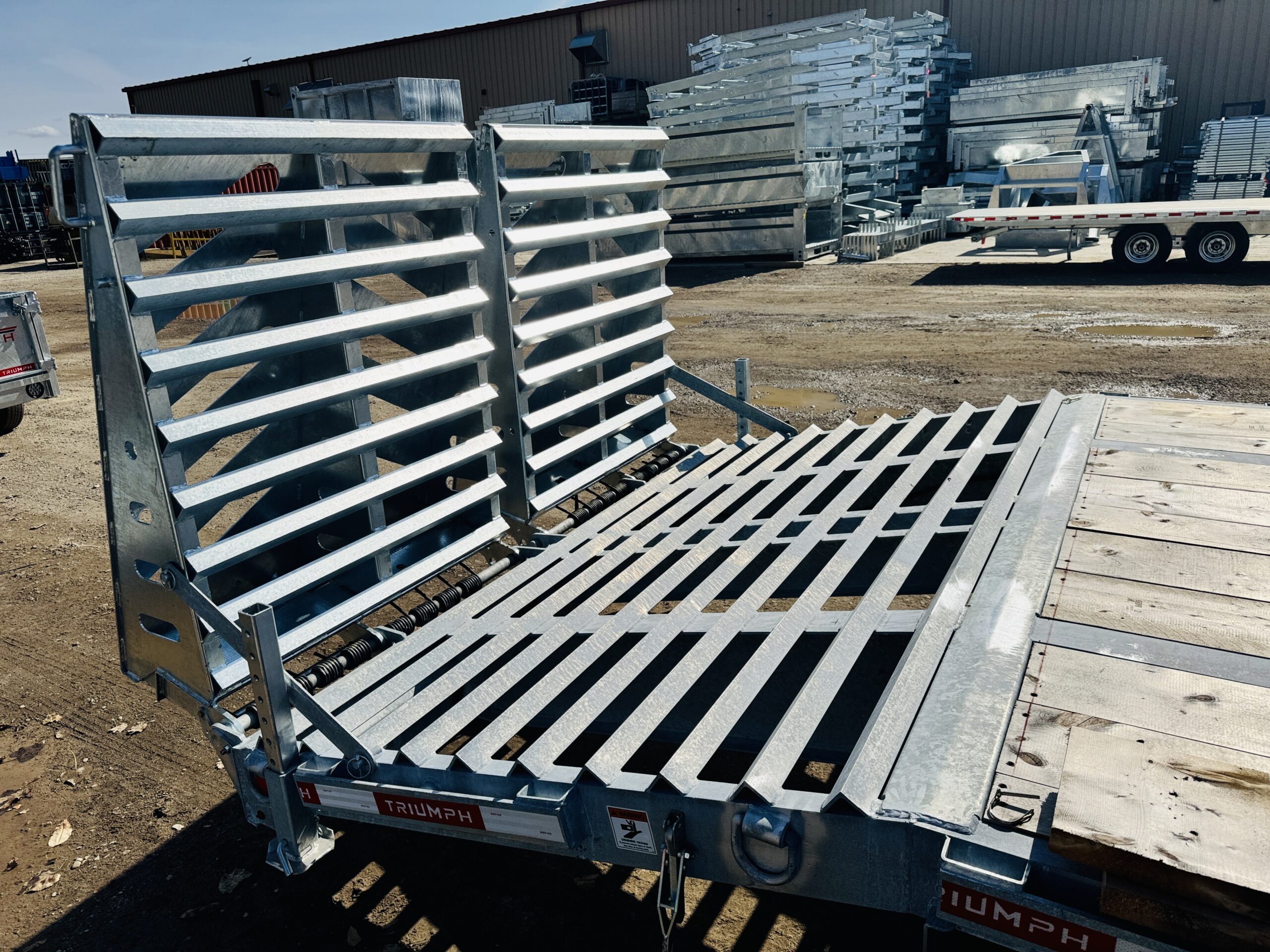

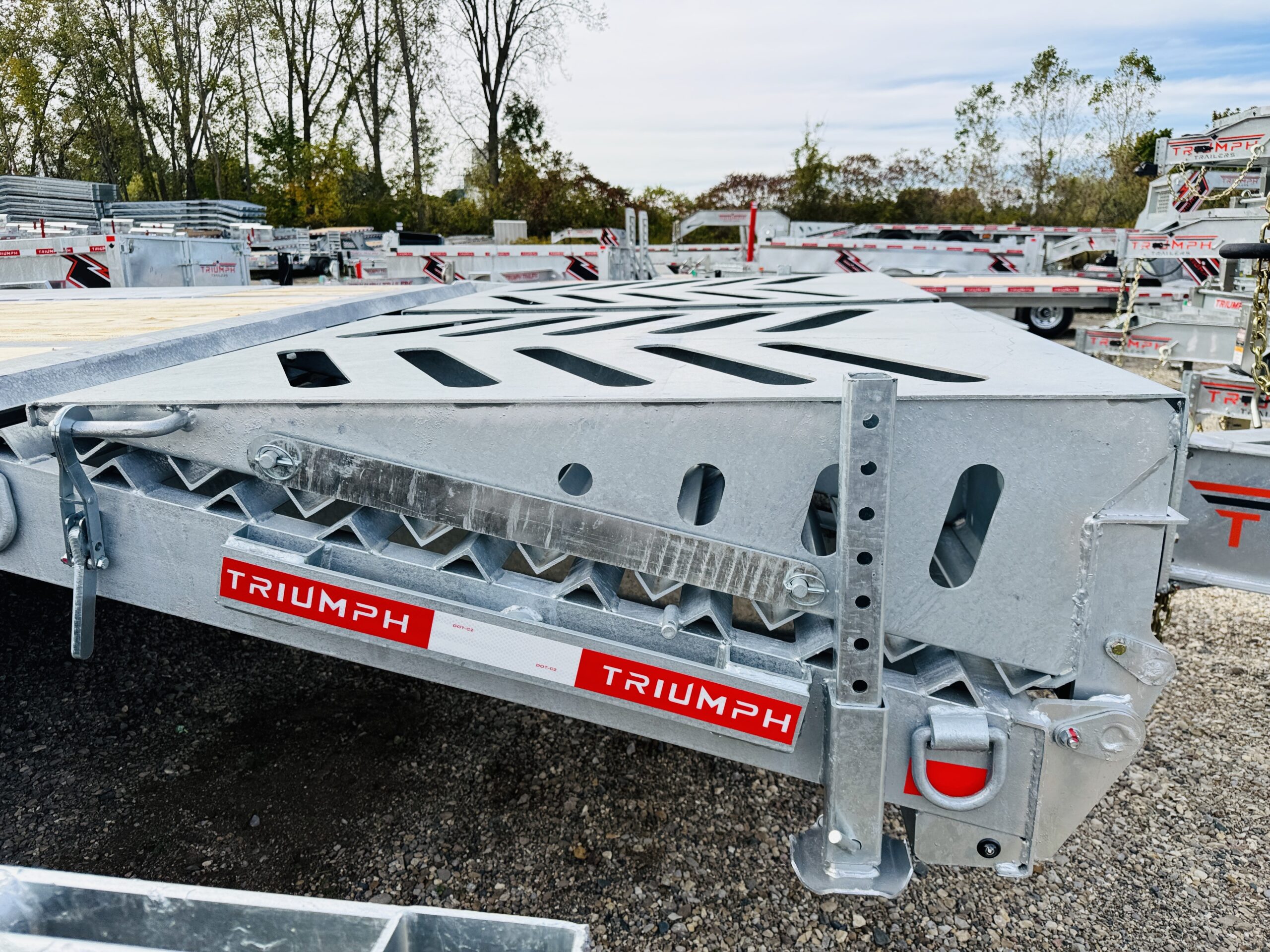

– Heavy duty Spring assisted ramps
– Hot dip galvanize finish

– Winch tracking with a slider every 5 feet
– 15k axle upgrade
– 15k hydraulic axle upgrade
– 5th wheel attachment optional
– 2 speed jacks
– Spare tire

3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)

Additional information

Trailer Type


Deck Width

Deck Length

Deck Height



Trailer Weight

Axle Weight Rating

Coupler Style

Coupler Size

Electrical Plug
