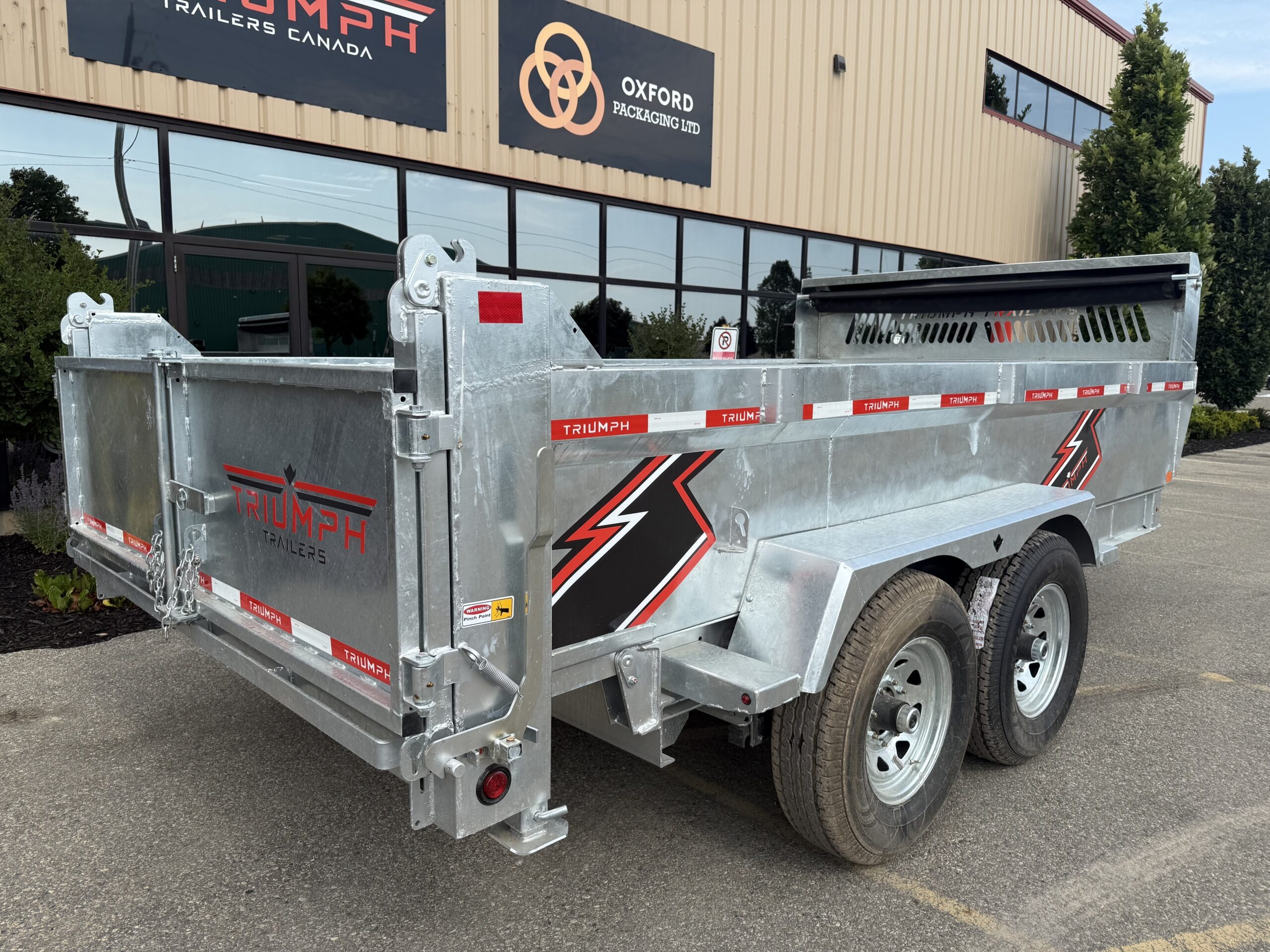

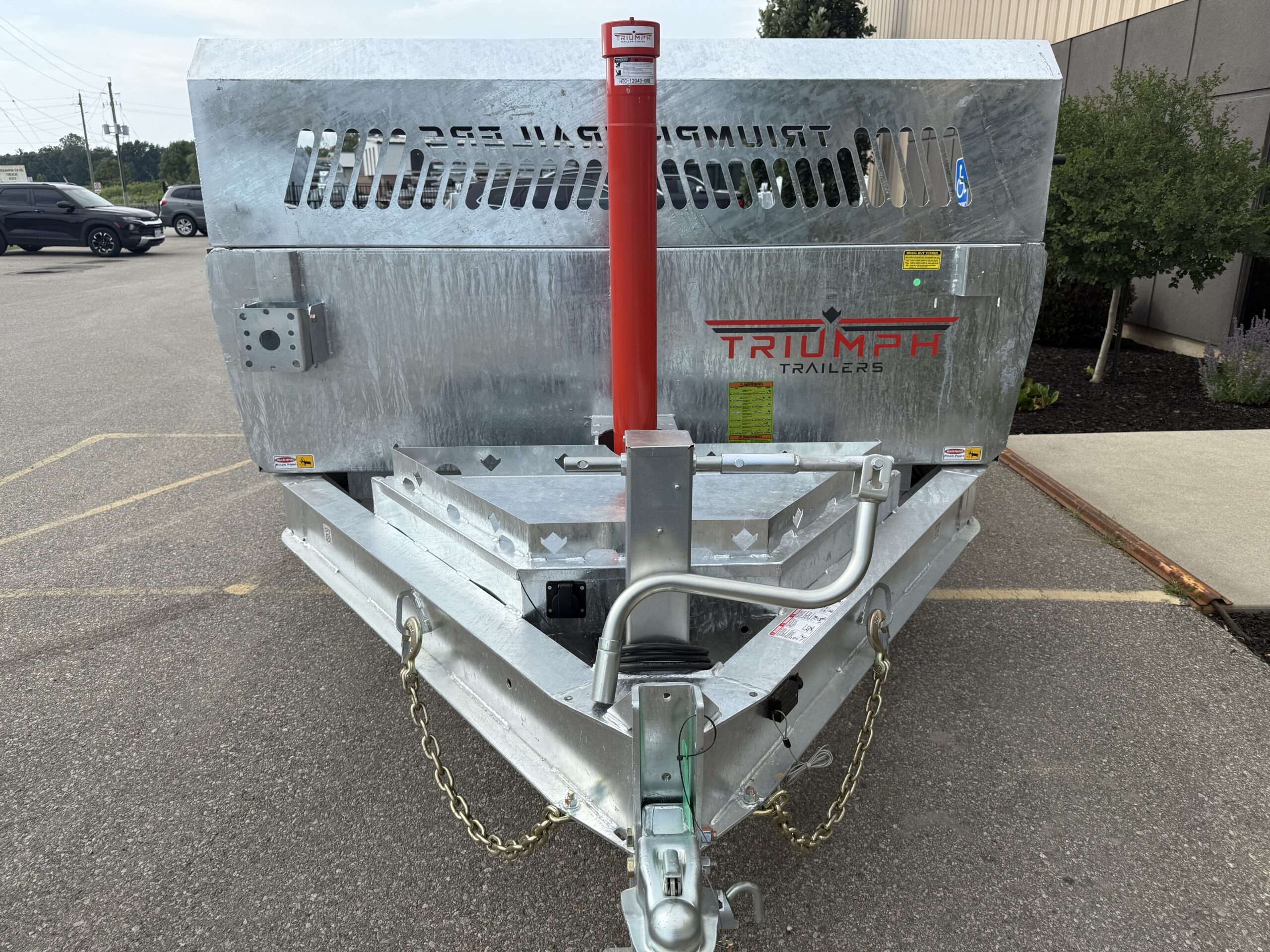

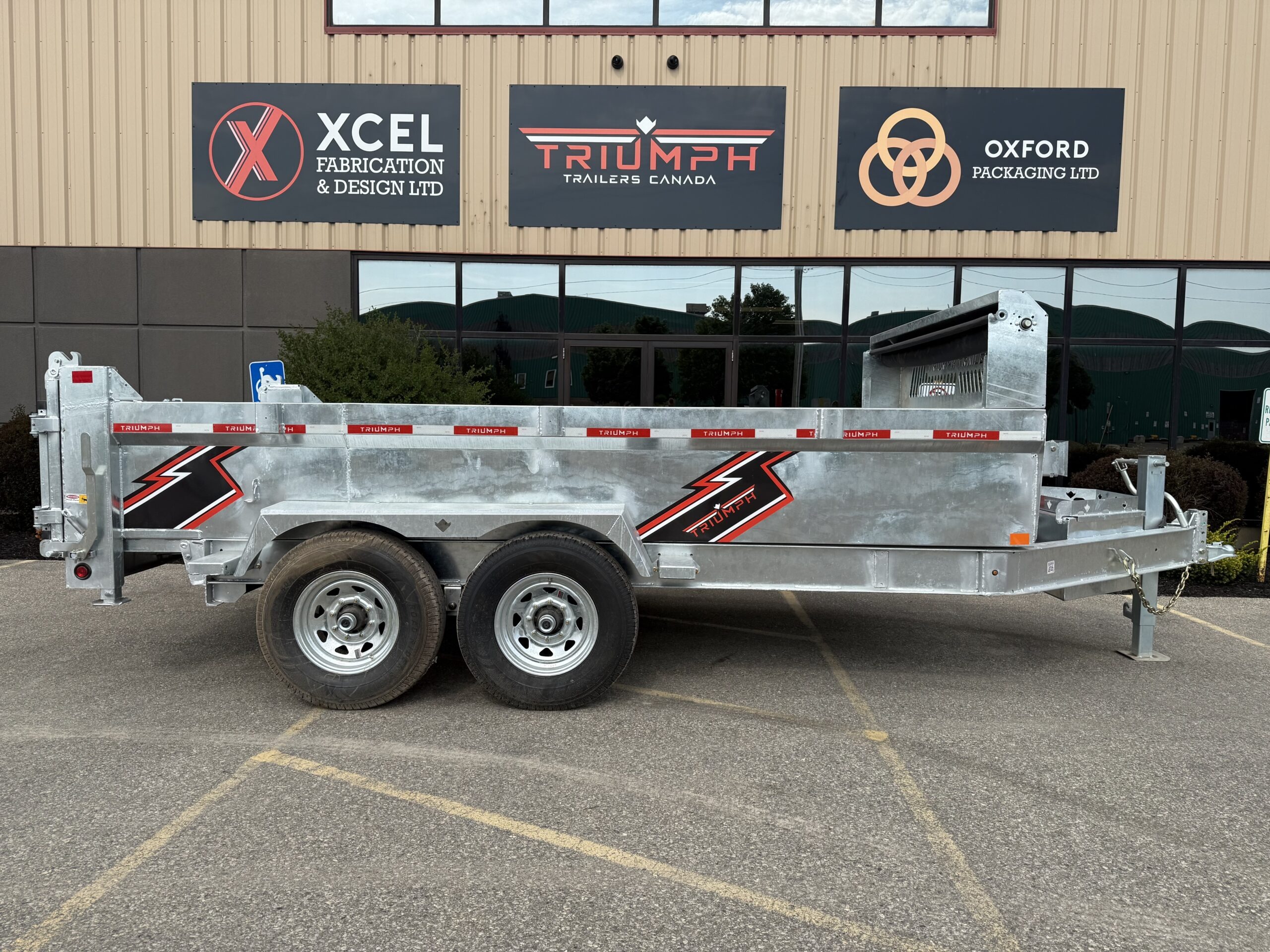

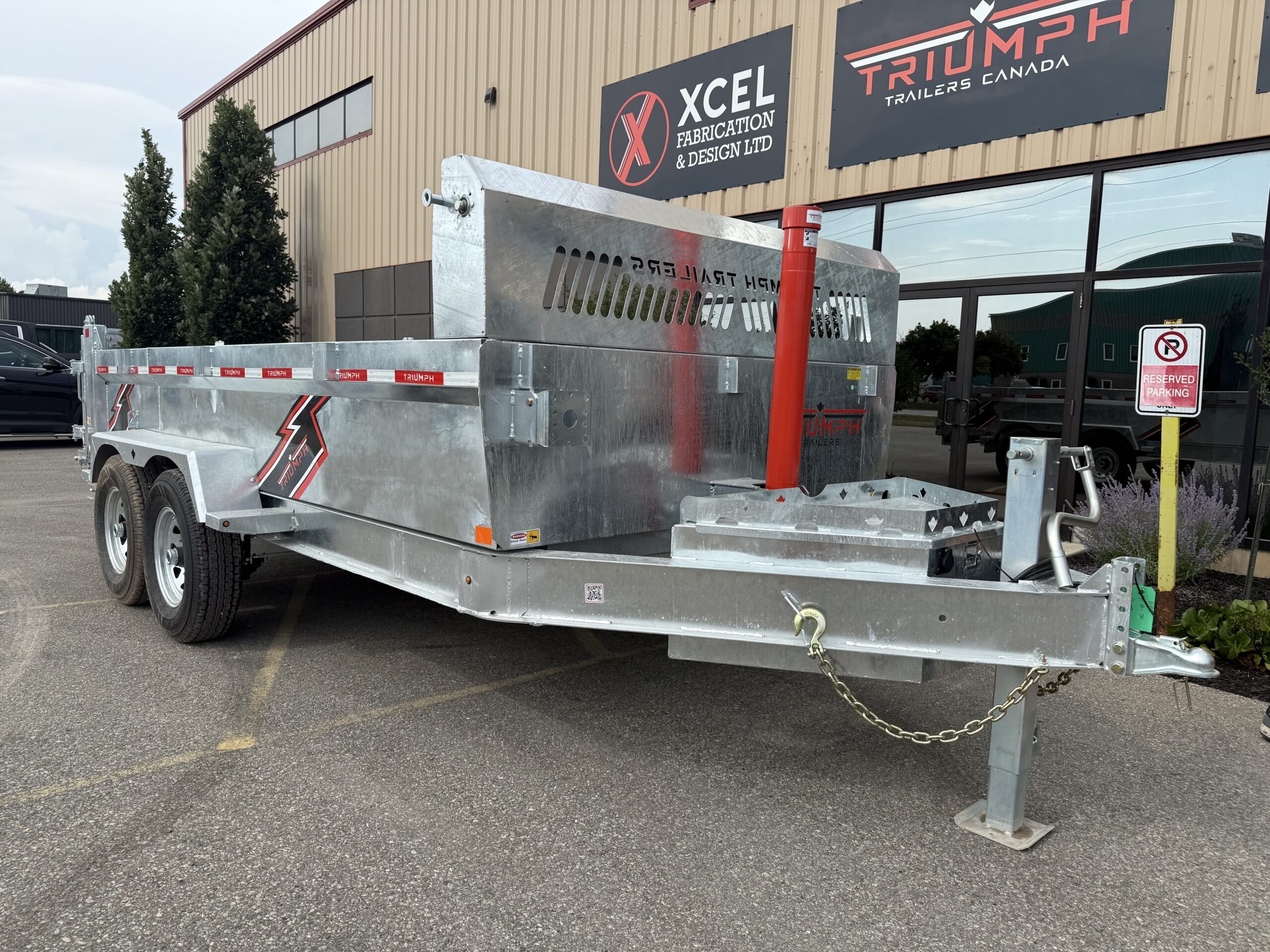

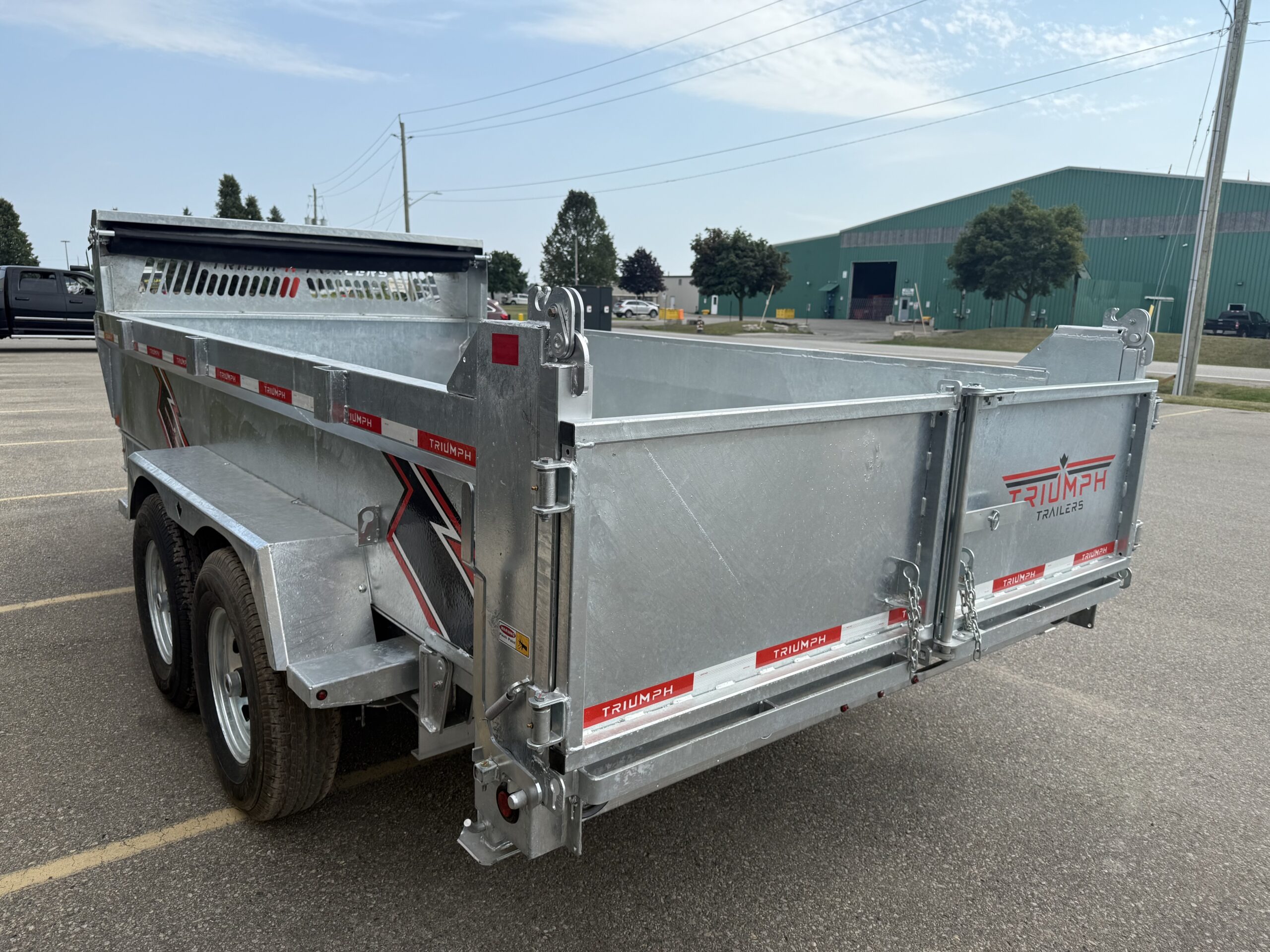

6X12 Galvanized Dump Trailer, HD Premium 7 Ton


Deck Width6′
Deck Length12′
Deck Height26″
GVWR14,000 lbs
Payload10,900 lbs
Axle Rating2×7,000 lbs
Tilt Angle46 degree




This dump trailer is our Premium Model, featuring

– Engineered I-beam chassis

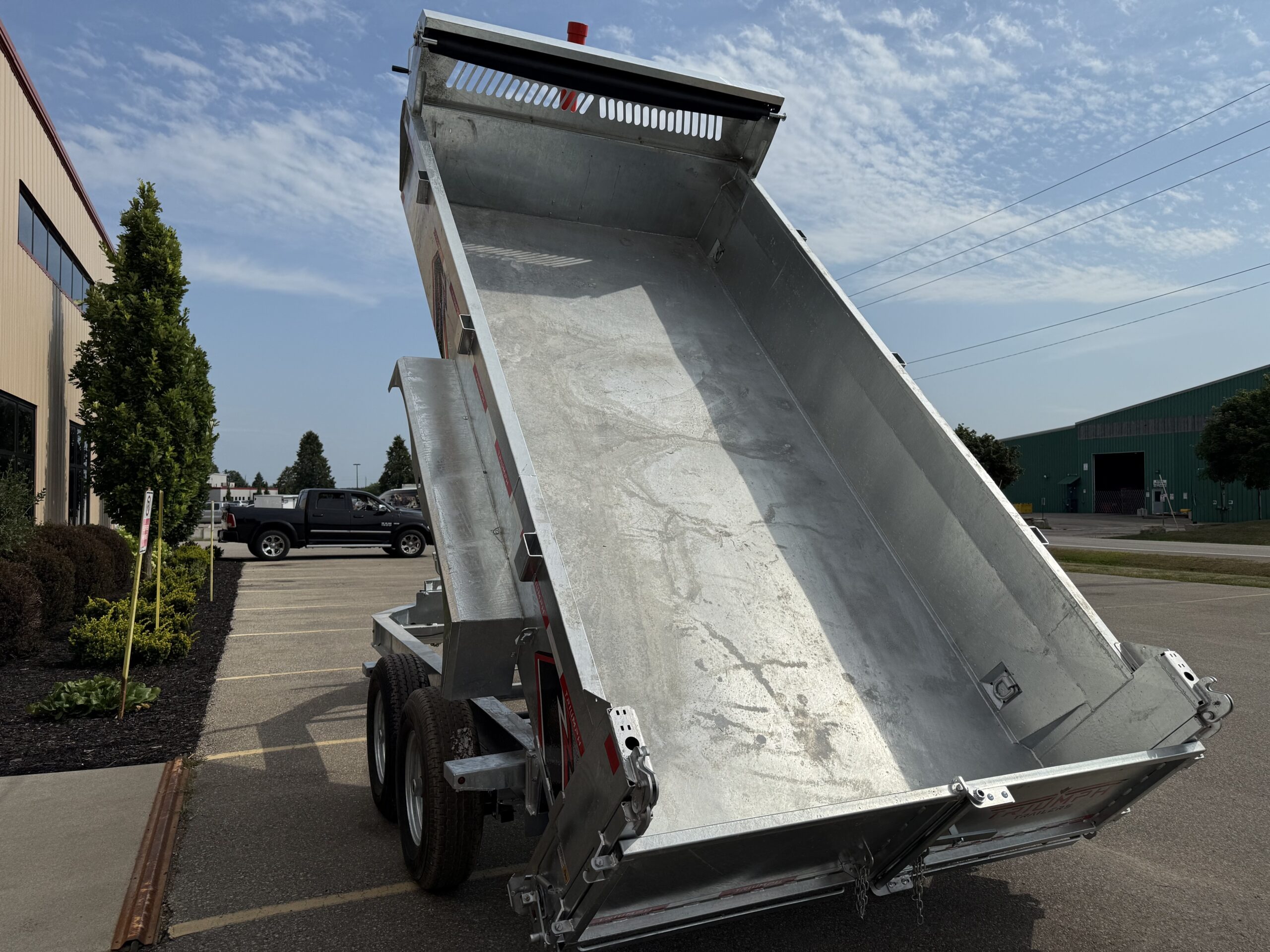

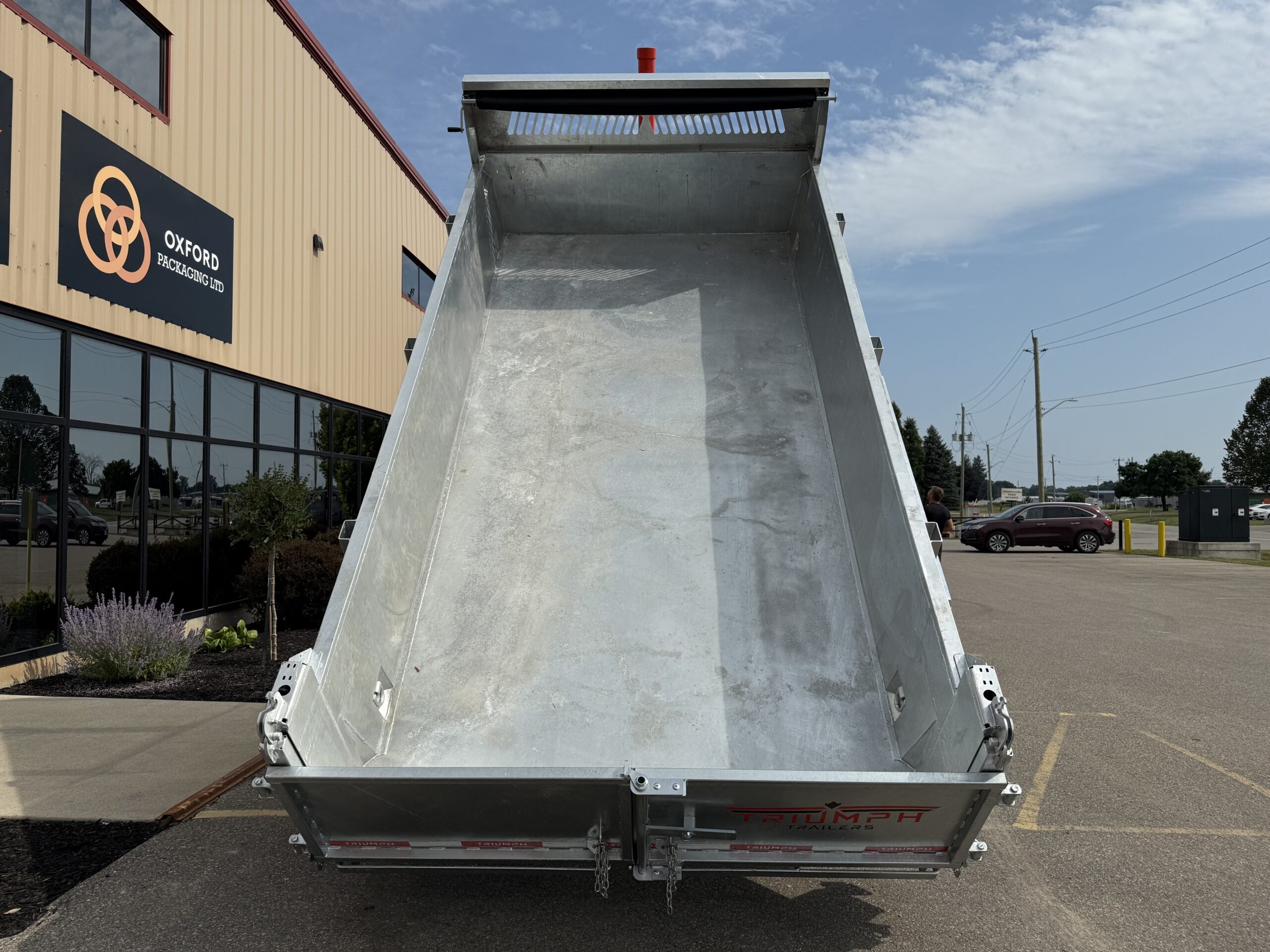

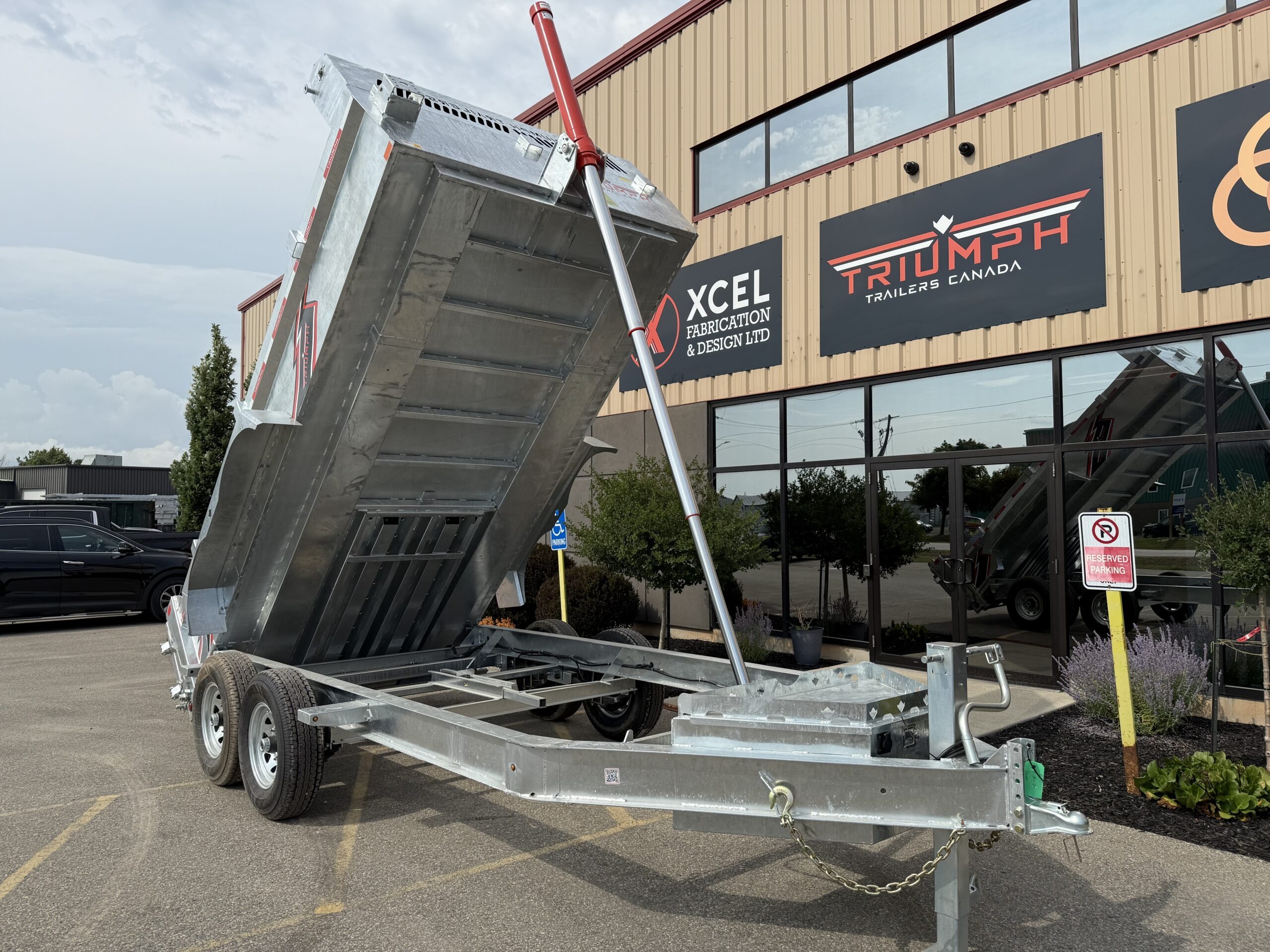

– 7 ton Telescopic Cylinder that dumps at 46 degrees angle

– 4″ drop axles

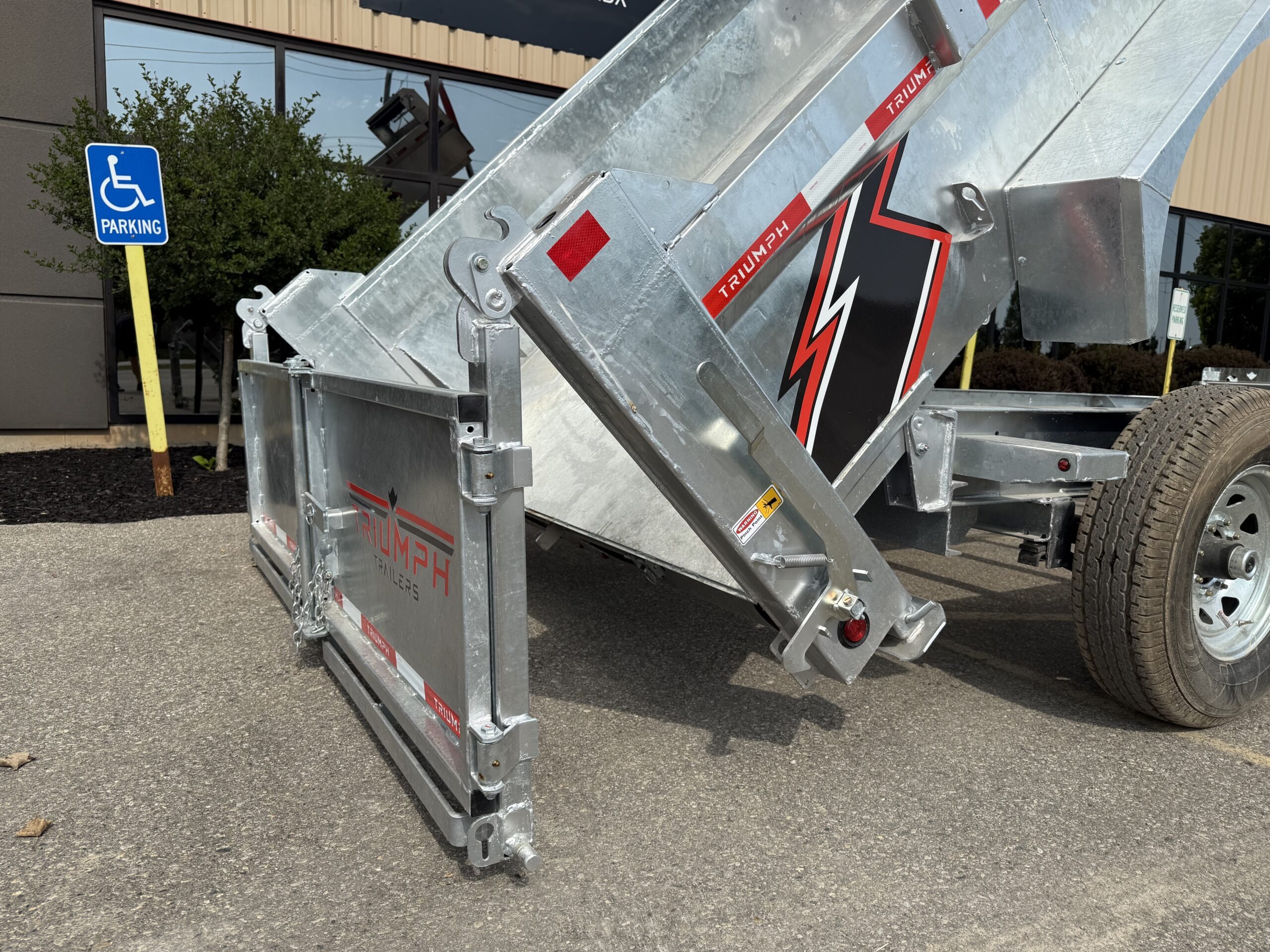

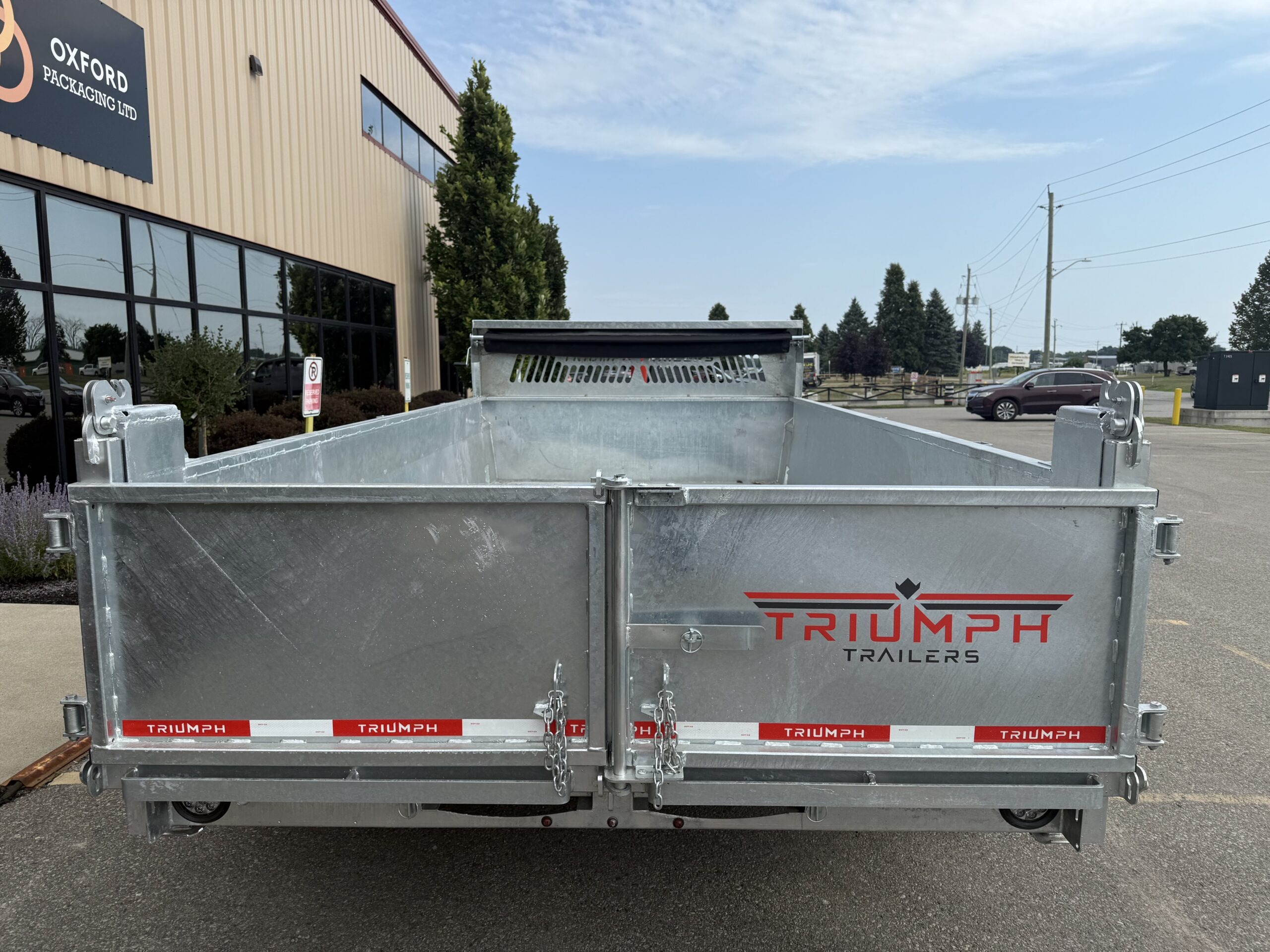

– combo barn door / spreader gate

– Double wall for strength and no damage on exterior wall: 11 gauge inner wall and 14 gauge outer


-Both axles with electric brakes

-235/80R16 wheels

-Radial tires

-Easy lube hubs

-Hinge pins zinc plated

-7k drop down jack

-All Hinges, pins have grease fittings

-Deep cycle battery

-Barn door/spreader gate

-Steel tool box with locking latch

-Power up gravity down pump/telescopic cylinder

-5″ C Channel frame

-3″ C channel floor 16″ centers

-2 5/16″ adjustable coupler

-LED lights

-Hot dip galvanize coating

-4 heavy duty D-rings recessed inside of dump

-28″ deep sides

-11 gauge steel on inner wall and 14 gauge steel on outer wall

-10 gauge floor

-Tarp kit built in house, fitted with bearings

-Drop legs



-Spare tire and mount



3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)

Additional information

Trailer Type


Deck Width

Deck Length

Deck Height



Trailer Weight

Axle Weight Rating

Coupler Style


Coupler Size

Electrical Plug

Tilt Angle
