Deck Width | 82″ |
Deck Length | 16′ |
Deck Height | 32″ |
GVWR | 24,000 lbs |
Payload | 17,990 lbs |
Axle Rating | 2×10,000 lbs |
Tilt Angle | 46 degree |

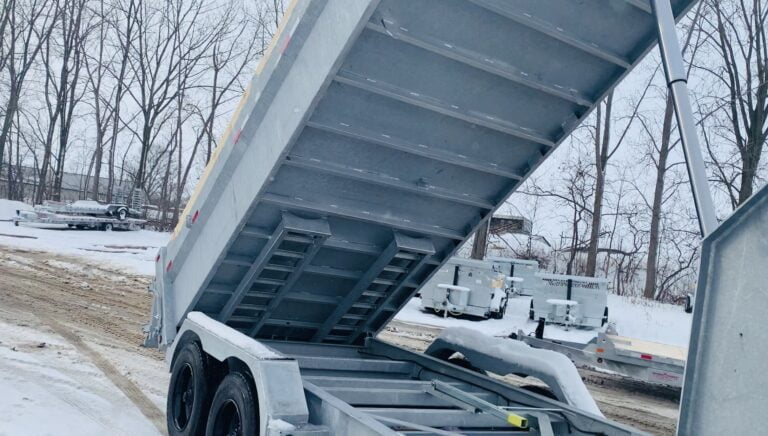

*The trailer unit shown in the pictures include options: hydraulic jacks.
-Mono block gooseneck provides greater strength than I-beam gooseneck
-10″ I-beam frame for tongue and chassis frame
-Unibody Dump Box design
-Combo Gate: Barn door/spreader gate
-Fork pockets

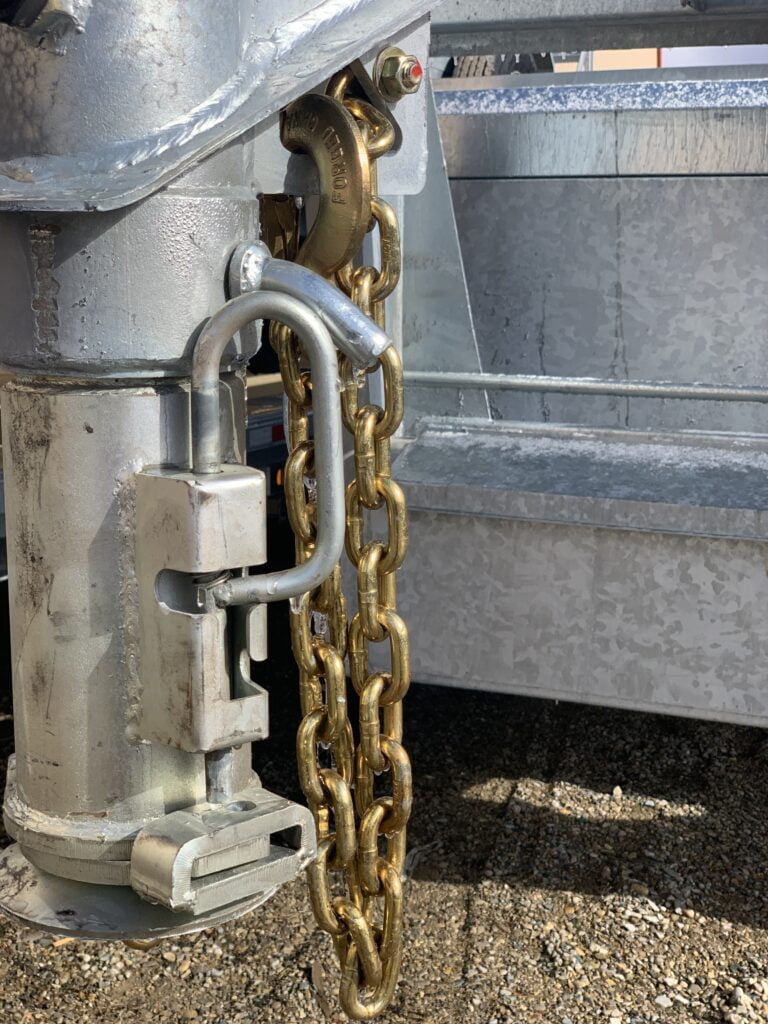

-2 5/16″ gooseneck coupler
-Hot dip galvanize coating
-Tandem 10k axles
-Electric brakes on both axles
-12 ton telescopic cylinder
-Dumps at 46 degree angle
-12k drop down jack
-215/75R17.5 tires (16 ply)
-28″ Wall Height
-Radial tires
-Easy lube hubs
-Hinge pins zinc plated
-All Hinges, pins have grease fittings
-Deep cycle battery
-LED lights
-Steel tool box with locking latch
-Drop legs
-6 D-rings
-Ramps included
-Drop-down mount for spare tire
Options
-Spare tire and mount
-2-speed jack
-Hydraulic jack
-Hydraulic brake upgrade
-5th wheel attachment
Warranty
3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)
