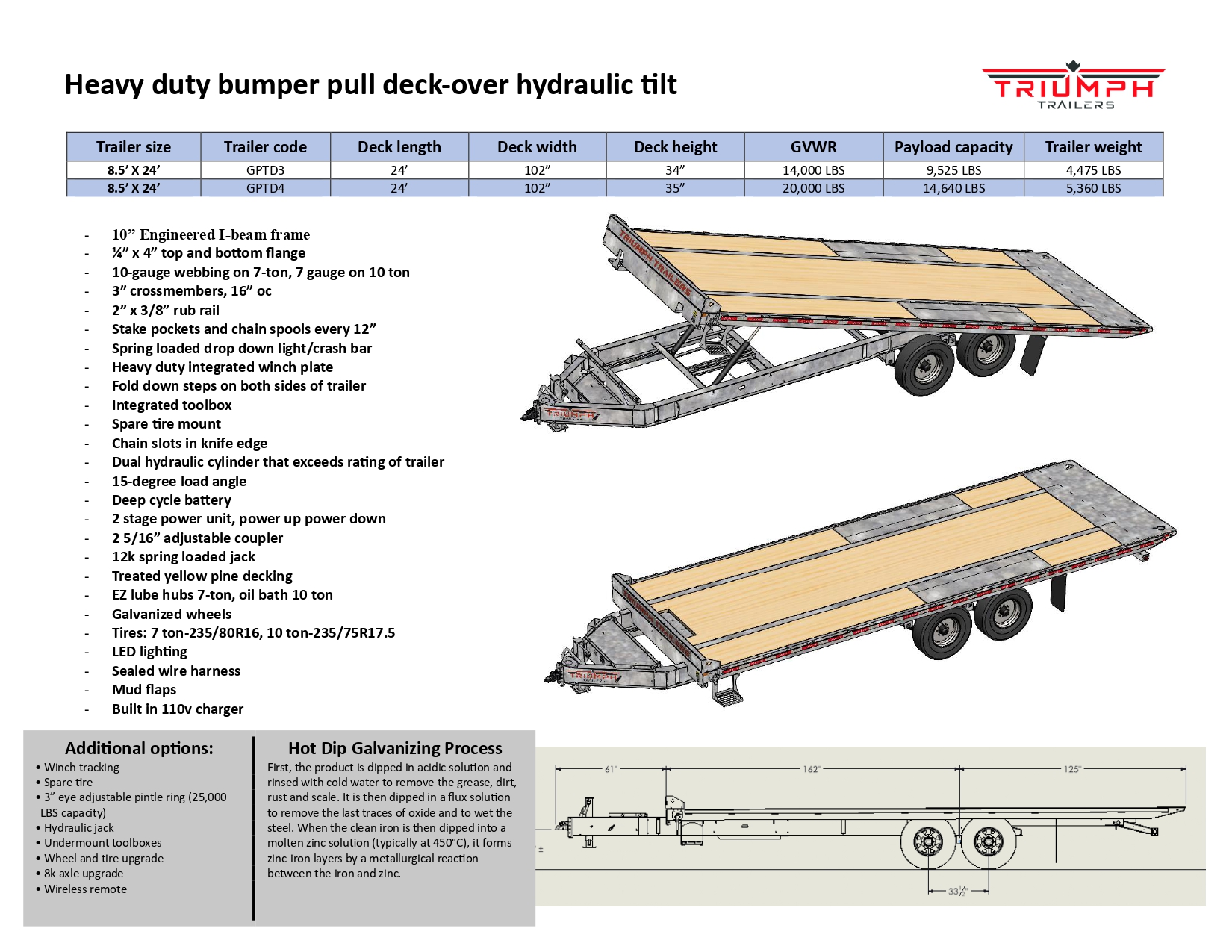

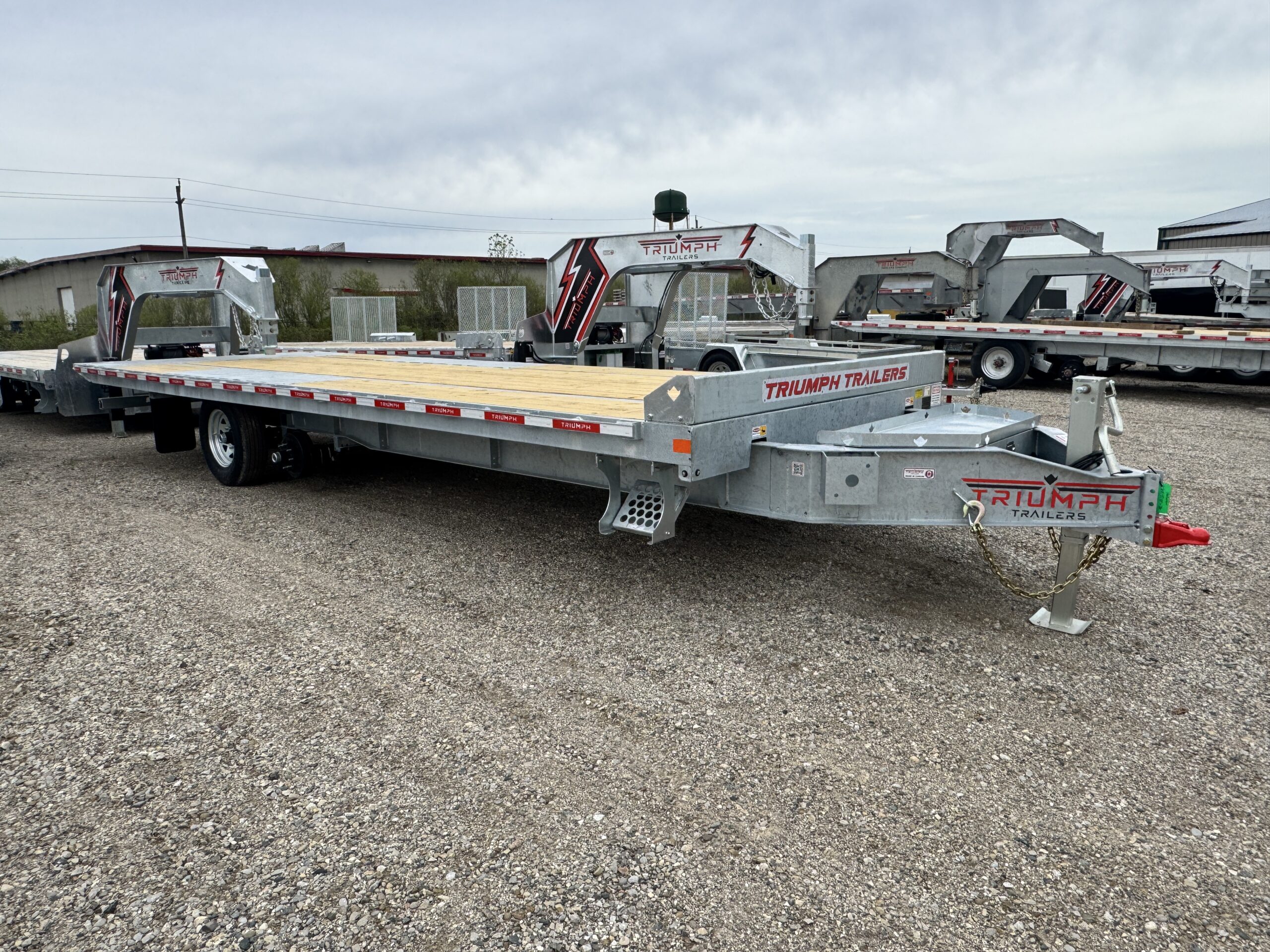

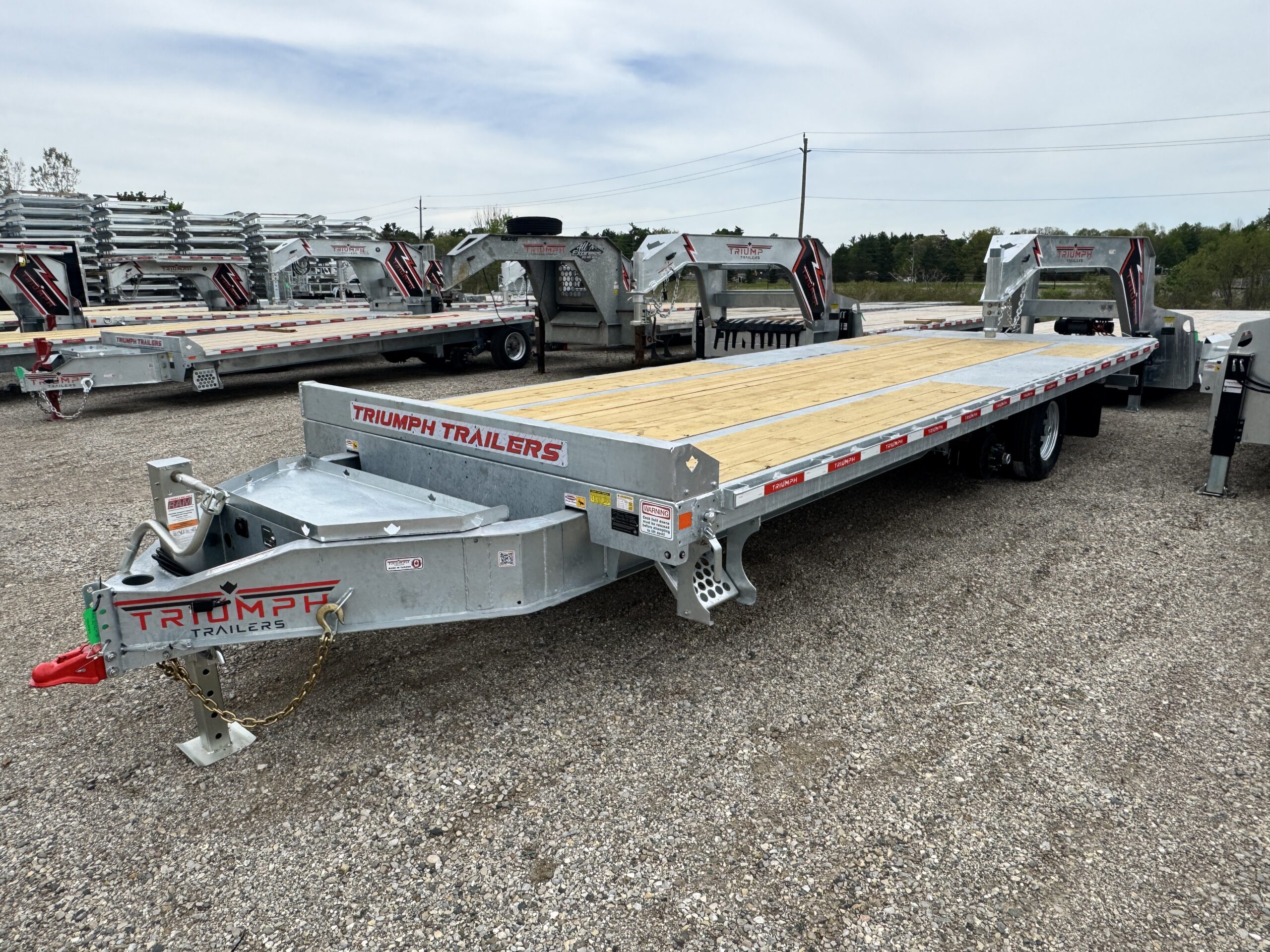

102X24 7 Ton Galvanized Deckover With Hydraulic Tilt


Deck Width 102″
Deck Length 24′
Deck Height 32″
GVWR 14,000 lbs
Payload 8,951 lbs
Axle Rating 2×7,000 lbs
Tilt Angle 15 degree

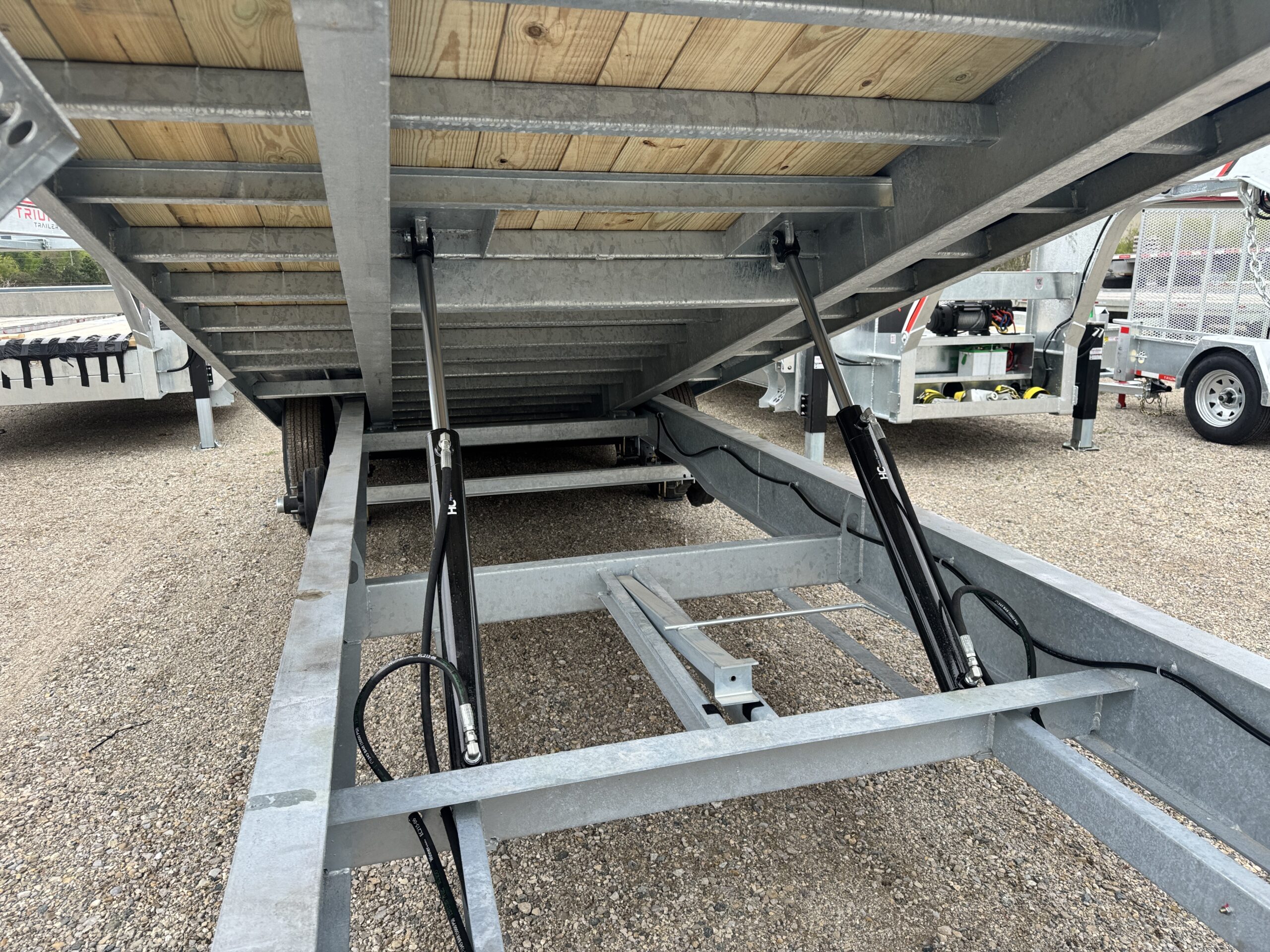

MDDO-TA102x24-70 Hydraulic Tilt


-Both axles with electric brakes

-235/80R16 galvanized wheels

-Easy lube hubs

-12k drop down jack

-8″ C Channel frame

-8” C Channel tongue that runs all the way to back of trailer

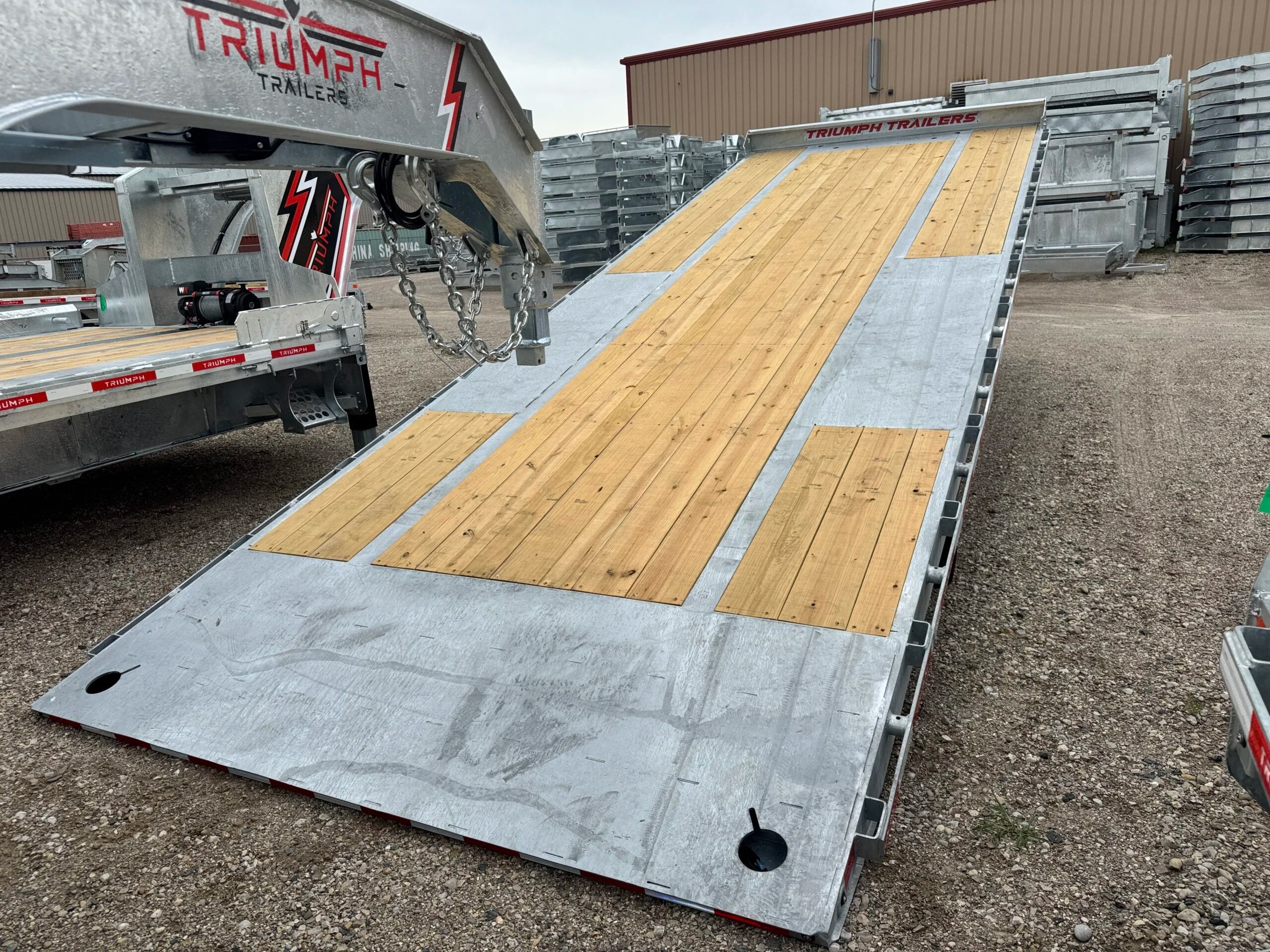

-3″ C channel floor 16″ centers

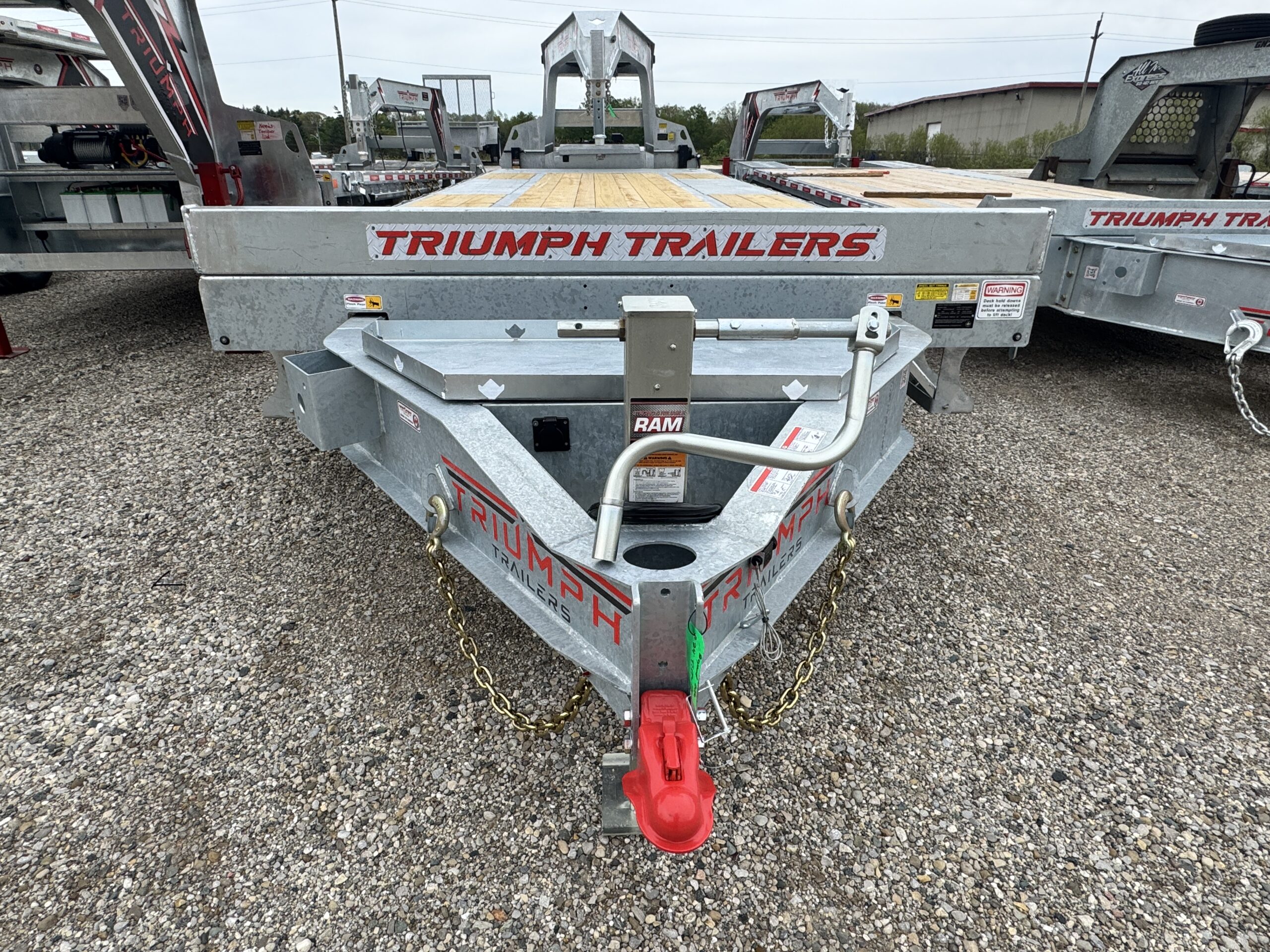

-2 5/16″ adjustable coupler

-LED lights

-Hot dip galvanize coating

-Rub rail on sides and back of trailer

-Chain spools inside rub rails

-32” Deck height

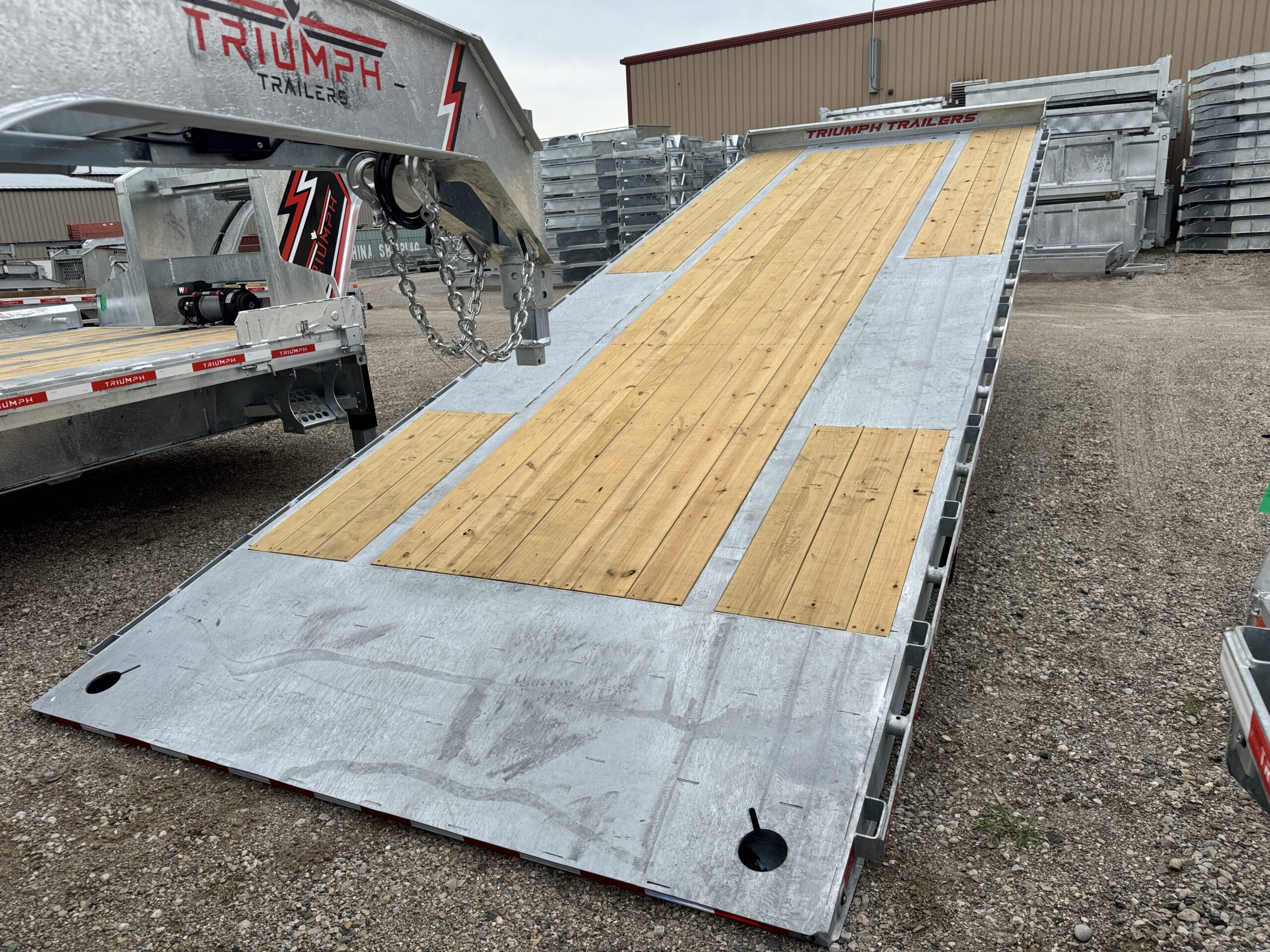

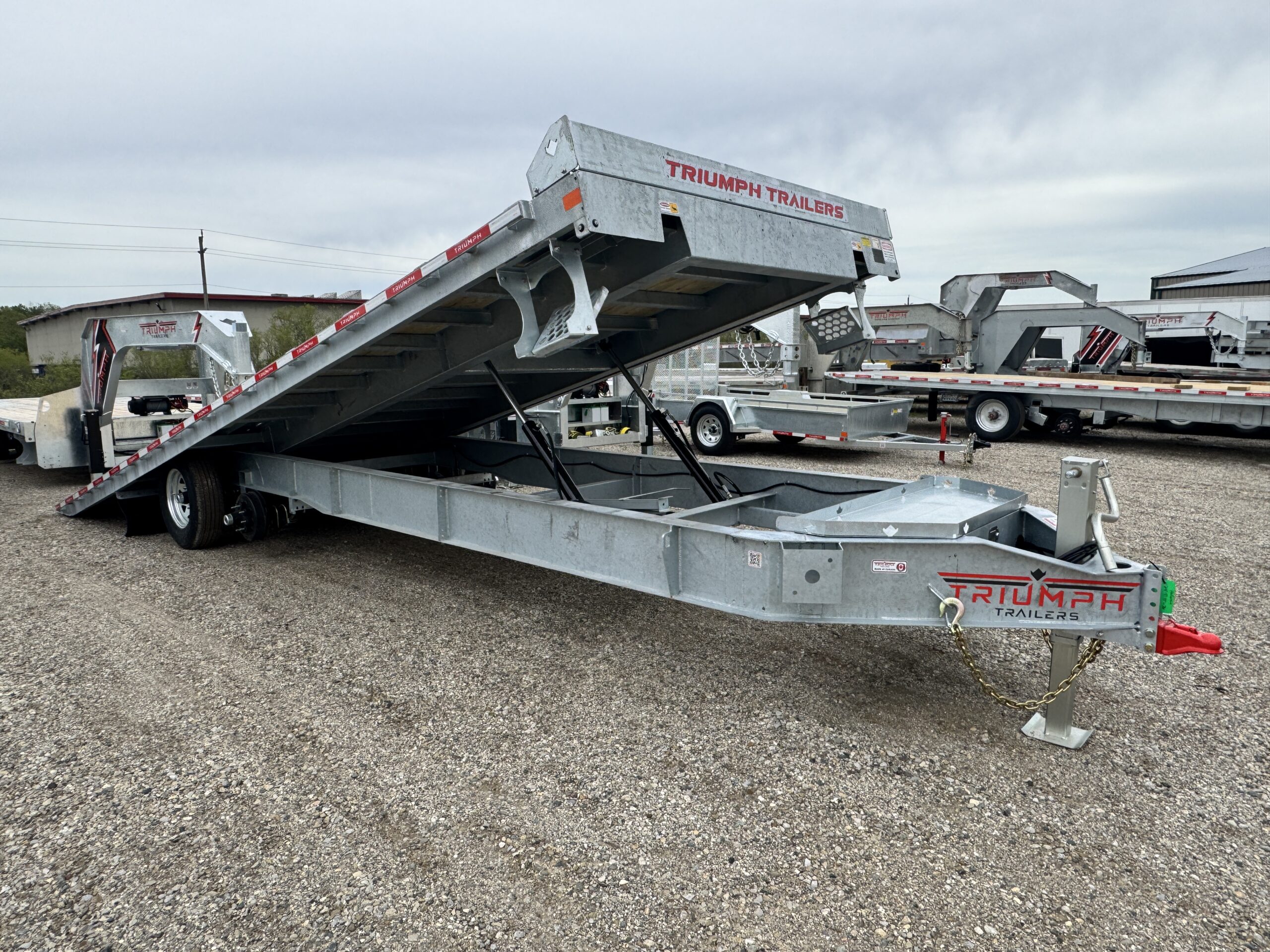

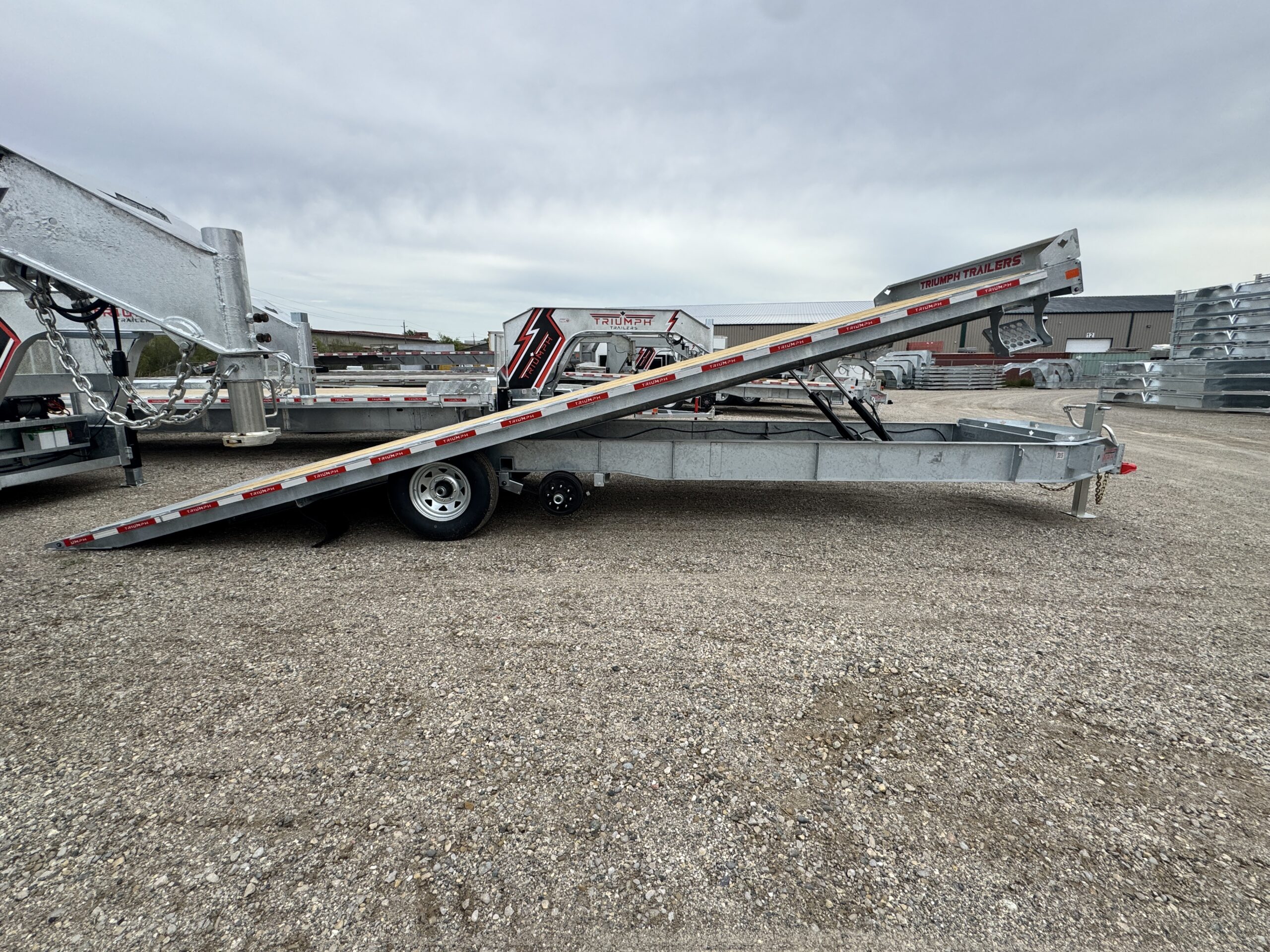

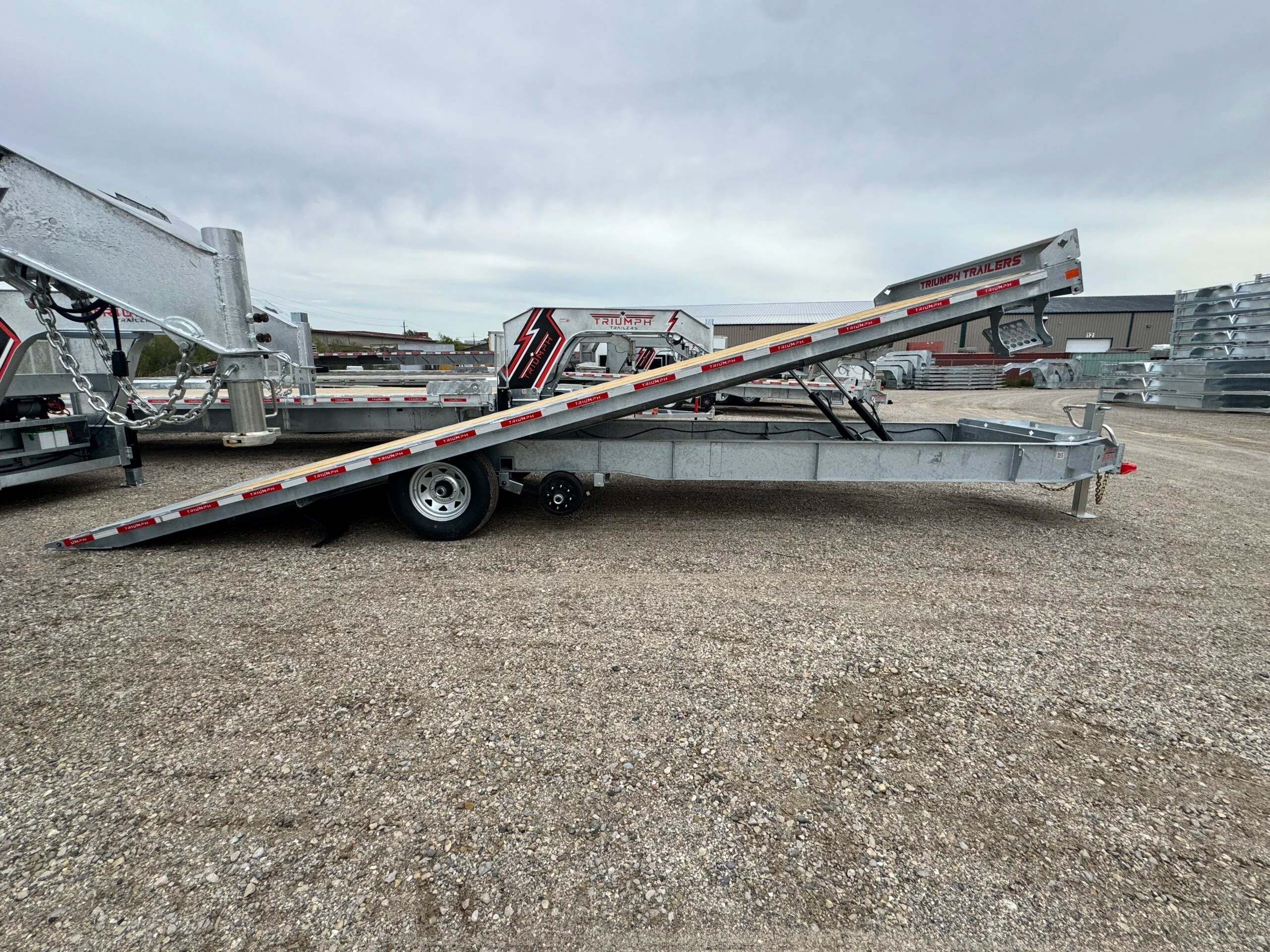

-Trailer tilts at a 15 degree angle

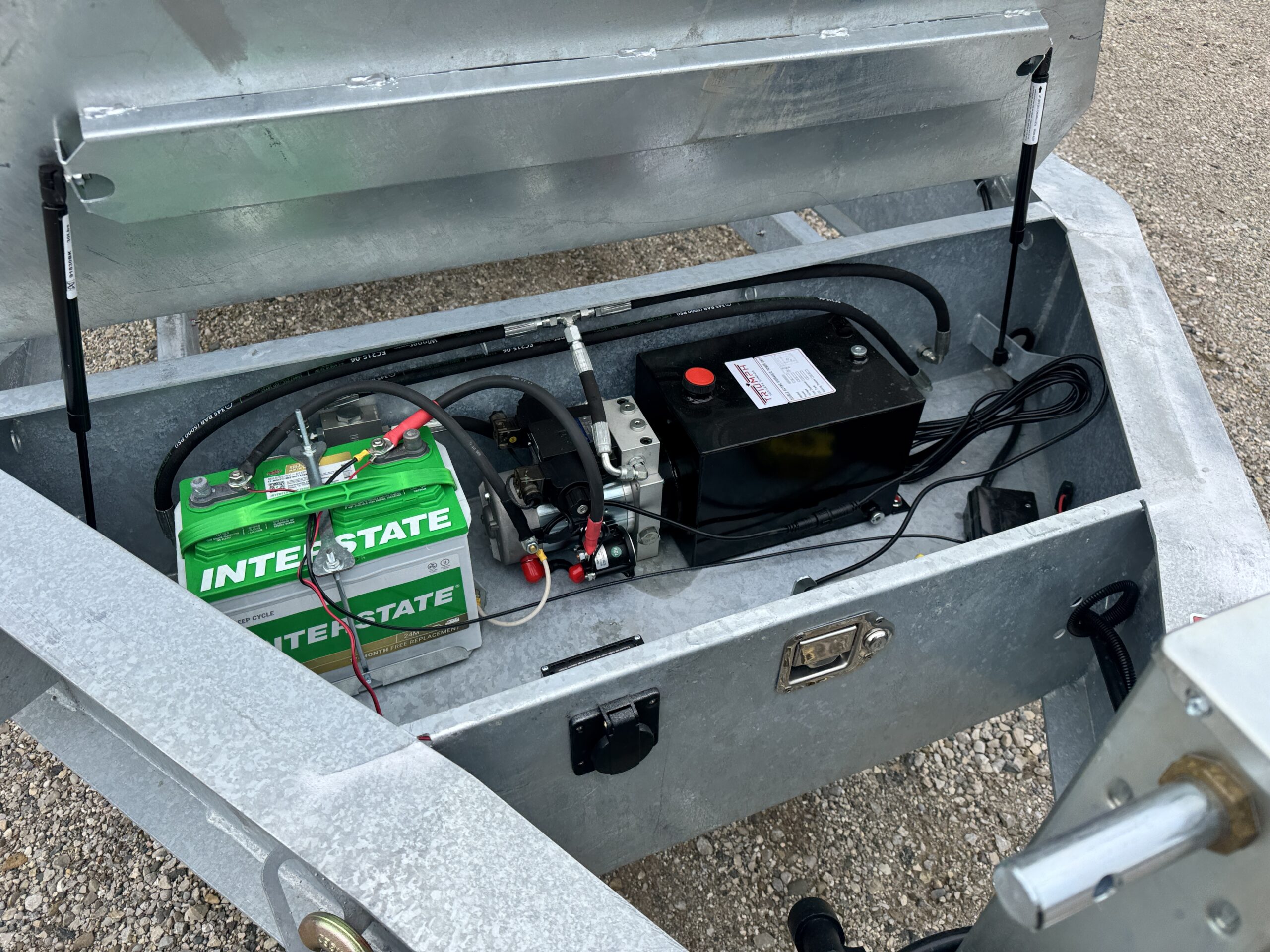

-Deep cycle battery

-Trailer weight  2540KG

-Payload 3820 KG



-Spare tire with mount

-Winch tracking


Structural Warranty – 2 Years
Axles Warranty – 5 Years
Led Lights – Lifetime
