15 Ton 102×35 Galvanized Gooseneck Deckover with Dovetail

$50,395.00

Deck Width 102″
Deck Length 35′
Deck Height 34″
GVWR 36,000 lbs
Payload 25,552 lbs
Axle Rating 2×15,000 lbs
Tilt Angle 15 degree
SKU: GDTGN1 Categories: , , , ,

Description

HDDOGN-TA102x35-15k

  • 15k dually axles with slipper suspension
  • Both axles with electric brakes
  • 235/80R17.5 radial tires
  • Manufactured beam running front to back
  • 3” C-channel at 16” centers with angled supports underneath
  • Monoblock Gooseneck (stronger than I-beam gooseneck)
  • 3” gooseneck coupler
  • Tandem 12k Hydraulic jacks
  • LED lighting
  • Low profile deck (34” deck height)
  • Sealed wire harness
  • Fold out footsteps on both sides in front
  • Built in toolbox in front
  • Two undermount toolboxes
  • Stake pockets/rub rail along sides of trailer
  • Chain spools inside rub rail

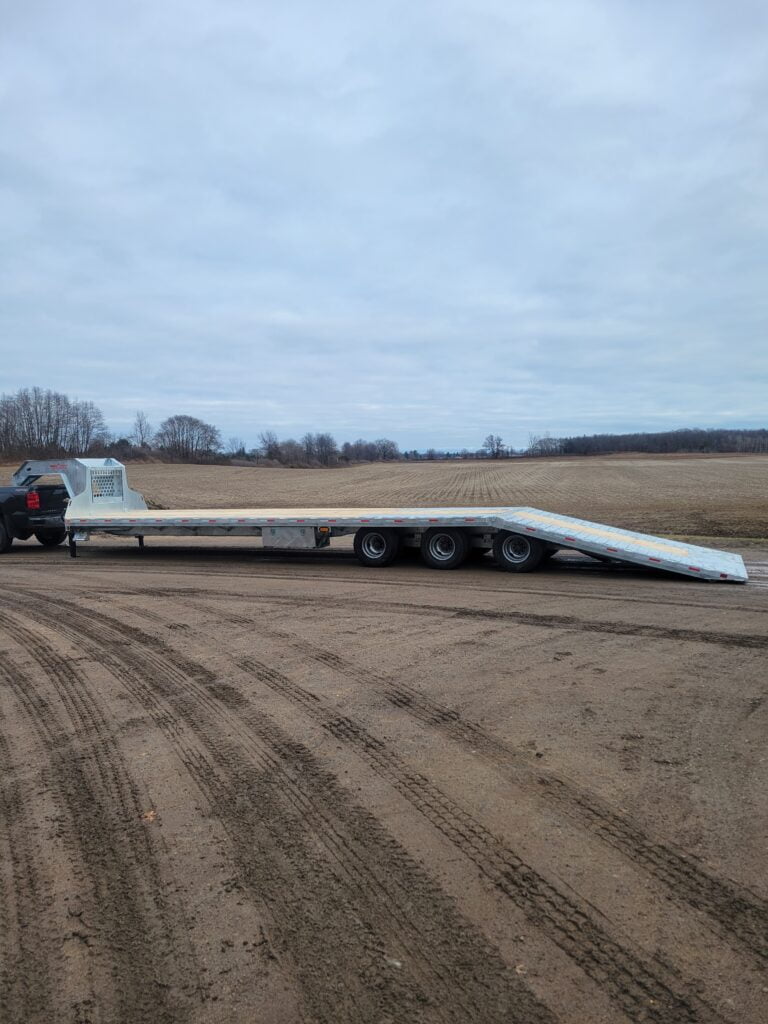

  • 12’ hydraulic dovetail
  • Dovetail rated to lift and carry 10,000 pounds
  • Dovetail designed with an over center lock so no other locking mechanism needed
  • Chain cabinet between gooseneck
  • Hot dip galvanize finish
  • Trailer weight 4770 KG
  • Payload 11590 KG

Options

  • Winch tracking with a slider every 5 feet
  • 15k hydraulic axle upgrade
  • 5th wheel attachment optional
  • Spare tire

Warranty
Structural Warranty – 2 Years
Axles Warranty – 5 Years
Led Lights – Lifetime

Additional information

Trailer Type

,

Finish

Deck Width

Deck Length

Deck Height

GVWR

Payload

Trailer Weight

Axle Weight Rating

Coupler Style

Coupler Size

Electrical Plug

Tilt Angle
