| Deck Width | 102″ |
| Deck Length | 20’+5′ Mega Ramp |
| Deck Height | 34″ |
| GVWR | 36,000 lbs |
| Payload | 28,200 lbs |
| Axle Rating | 2×15,000 lbs |
Standard Features:
16” Engineered I-beam

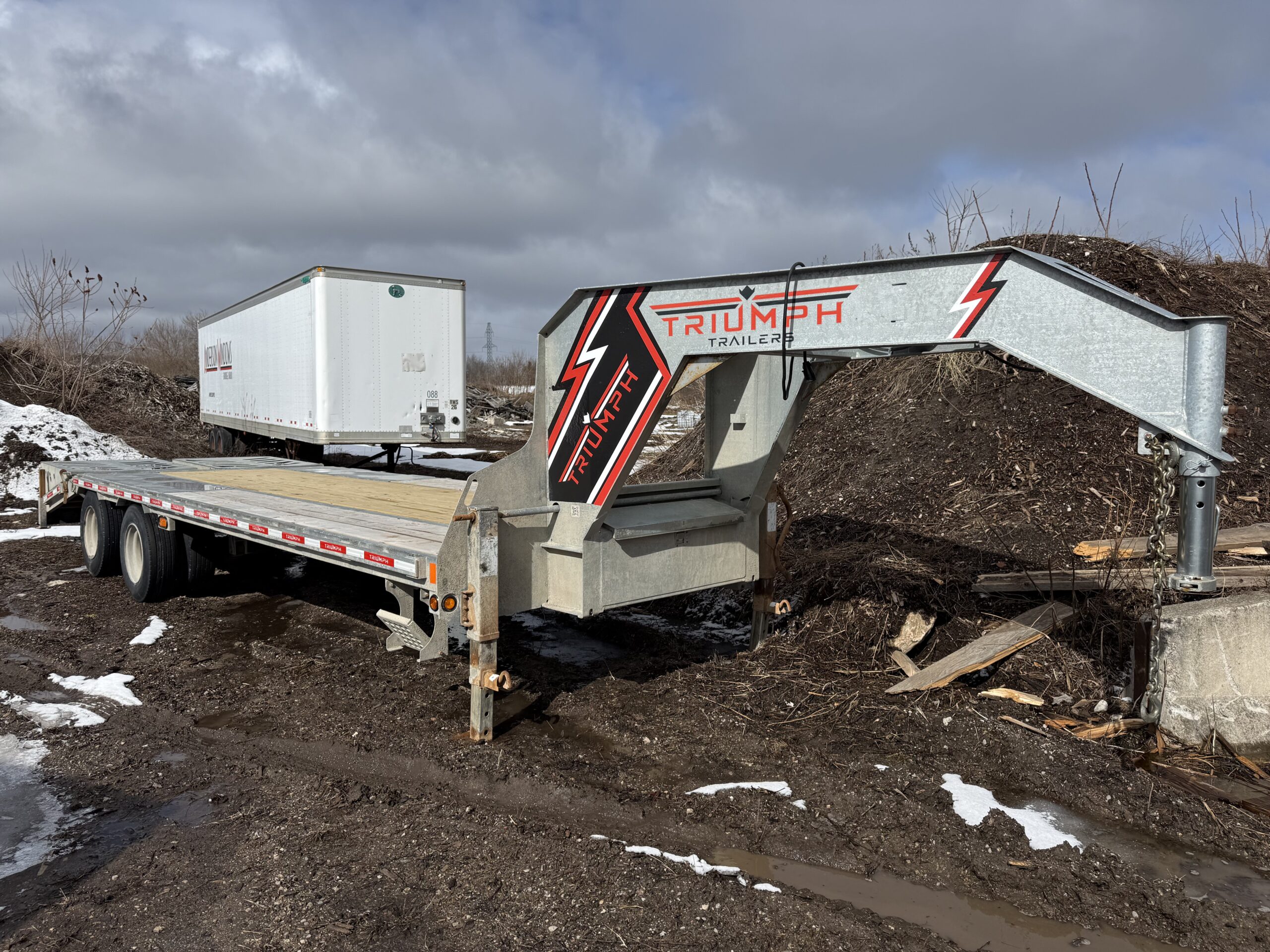

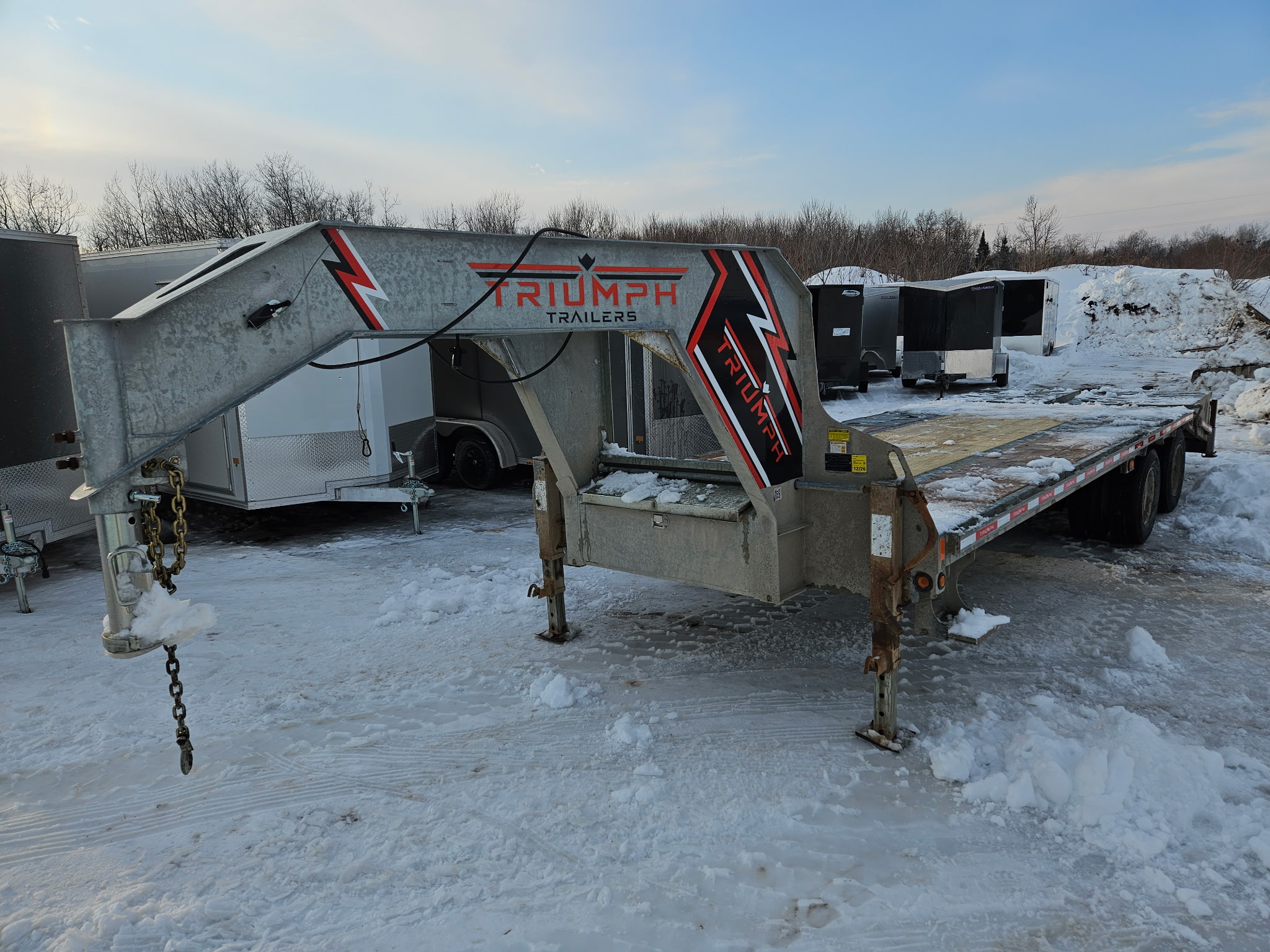

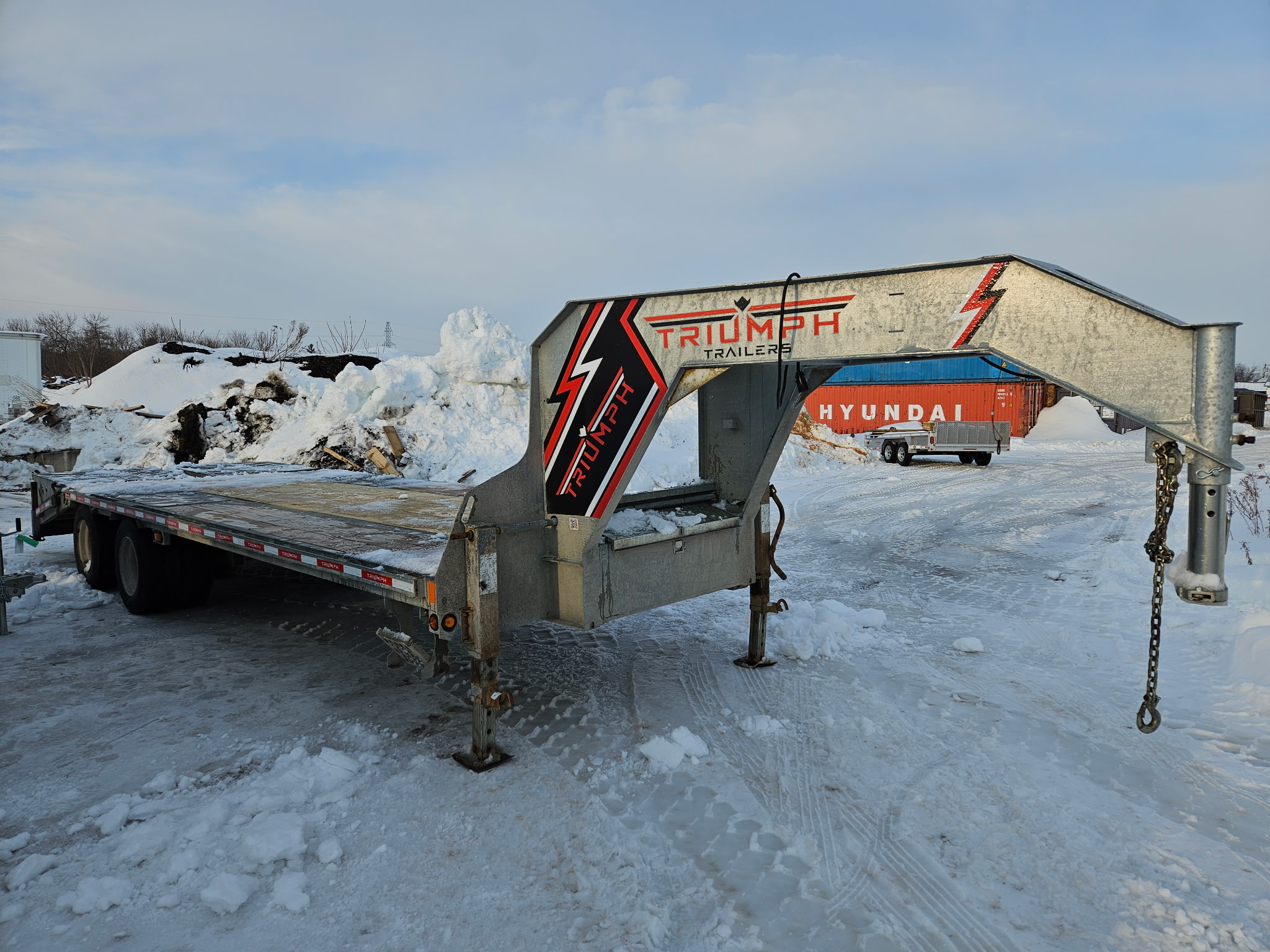

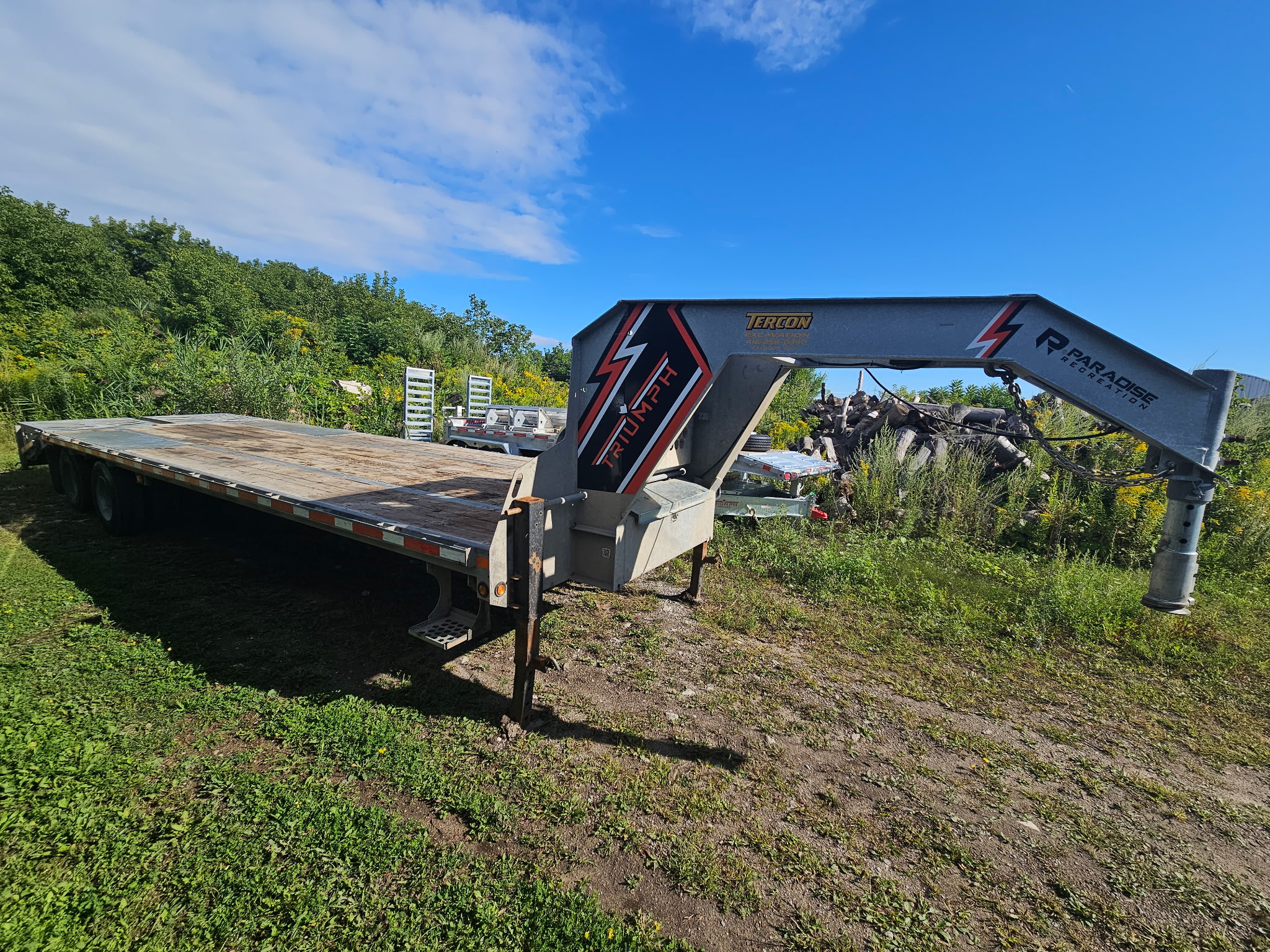

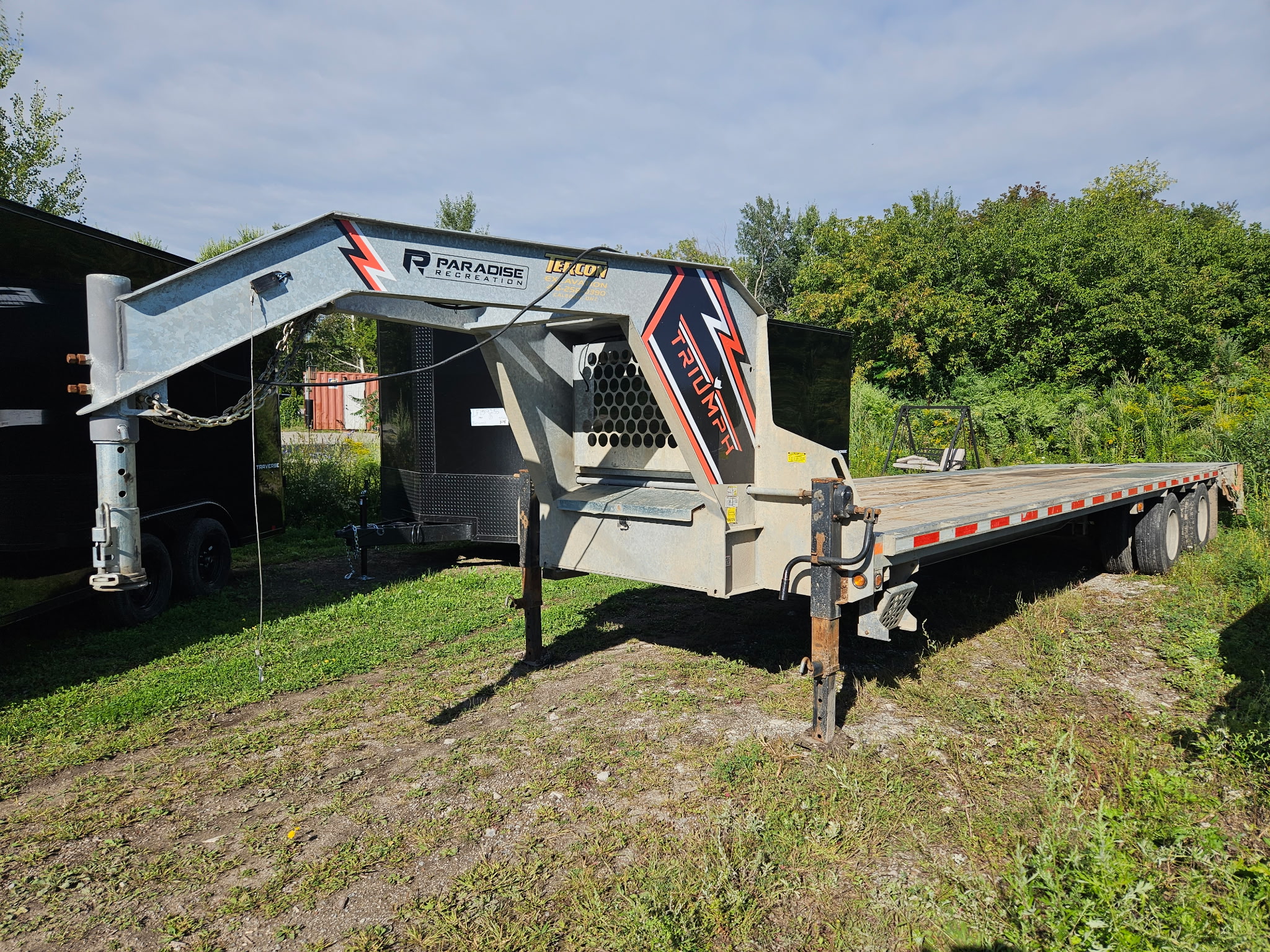

Monoblock Gooseneck (stronger than I-beam gooseneck)
2 5/16“ gooseneck coupler
15K Dual Axles with Slipper Suspension
Both axles with electric brakes
Wood Decking

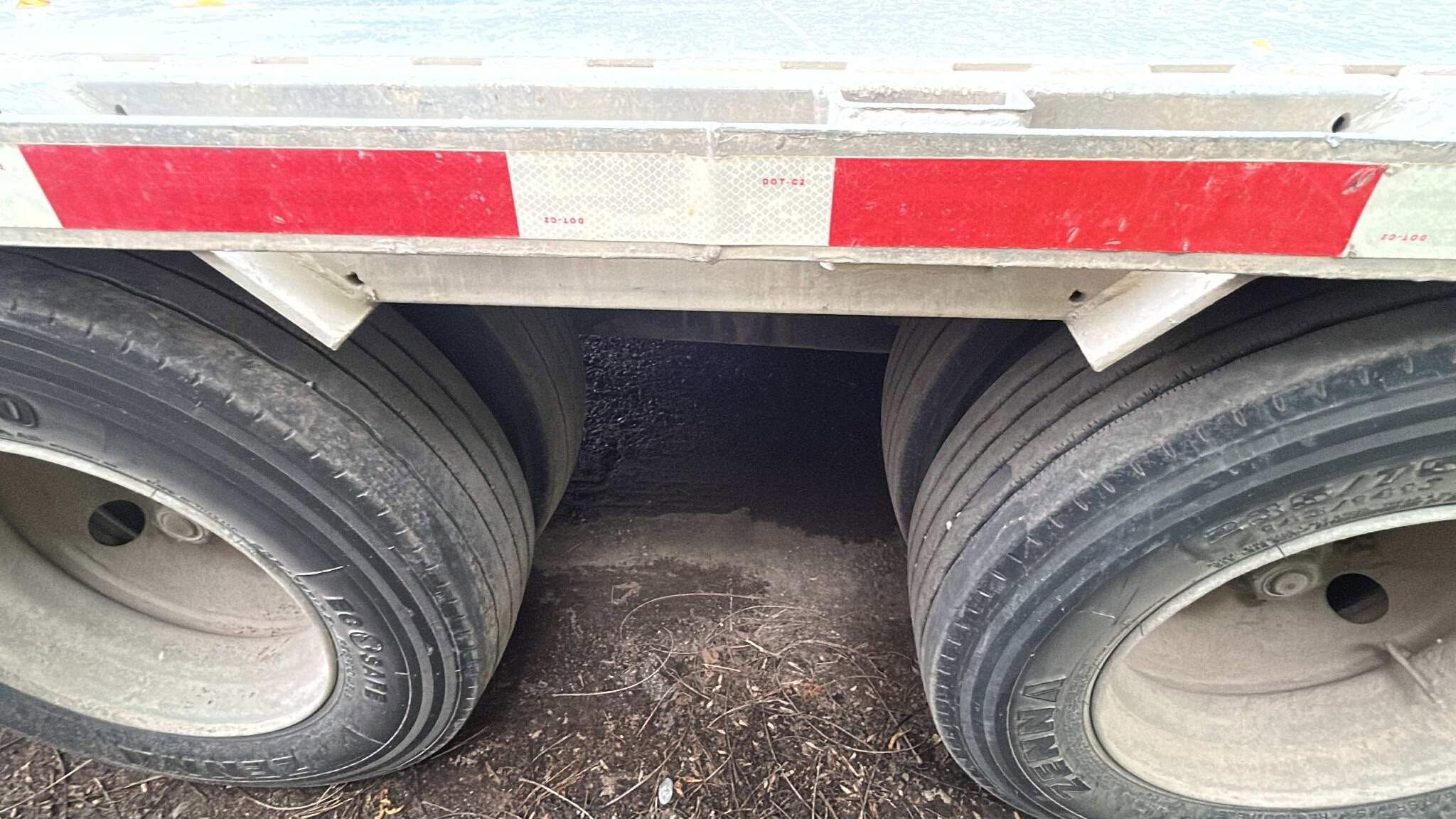

235/75R17.5 radial tires
3” channel at 16” centers with angled supports underneath
Tandem 12k jacks
LED lighting
Low profile deck (34” deck height)
Heat shrink connectors on wire harness
Fold out footsteps on both sides in front
Drop legs
Built in toolbox
Stake pockets/rub rail along sides of trailer
Chain spools inside rub rail

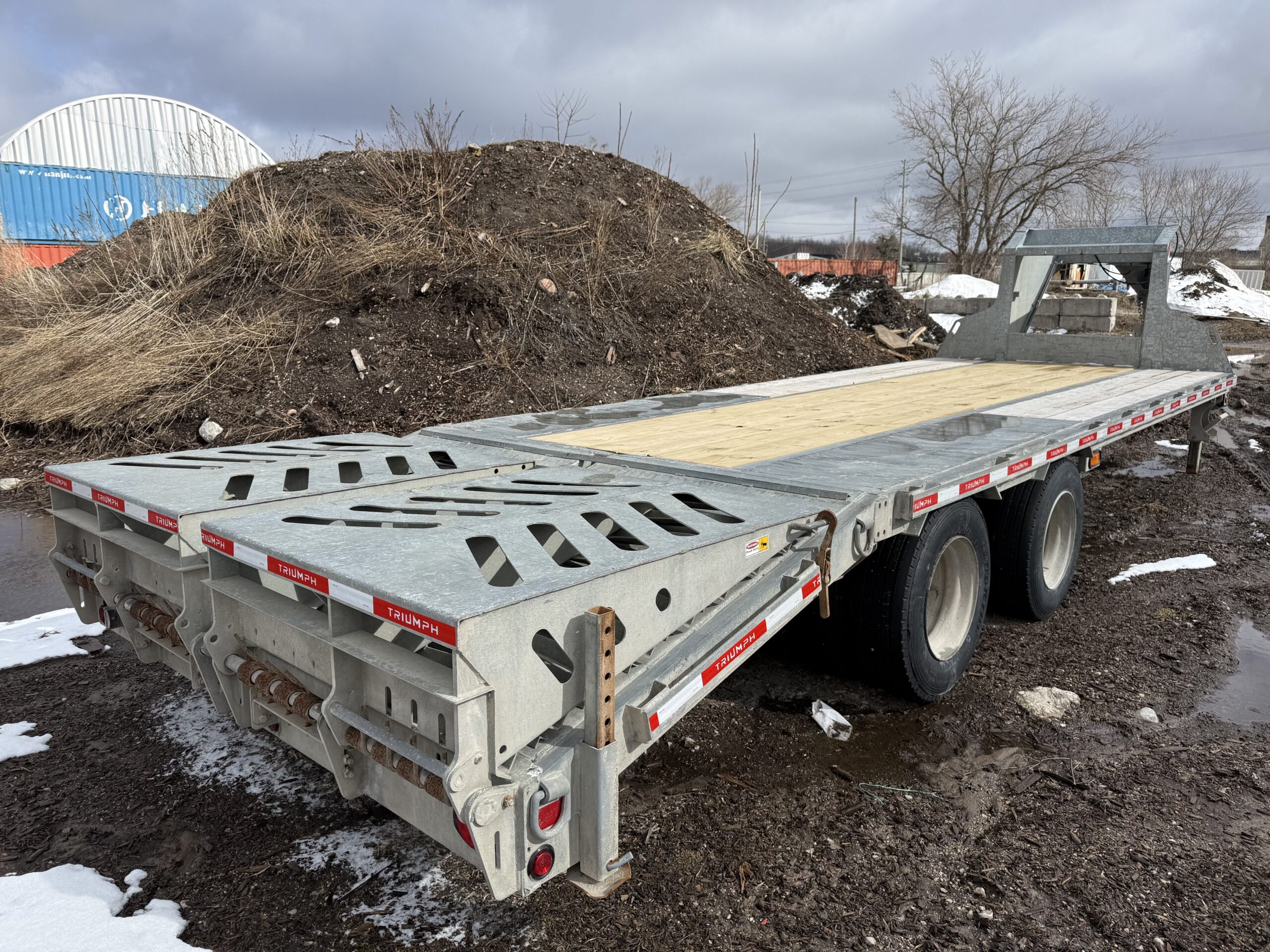

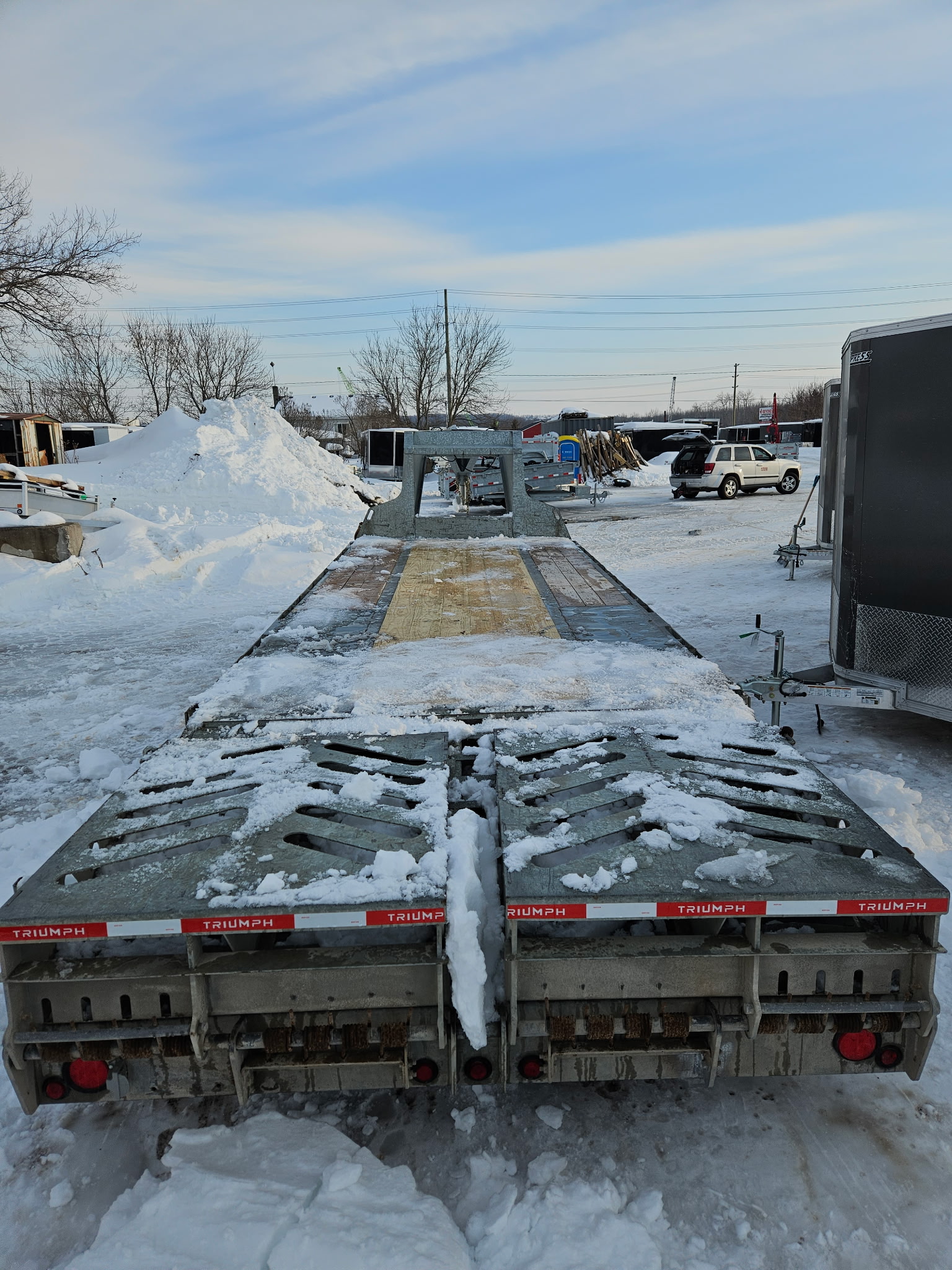

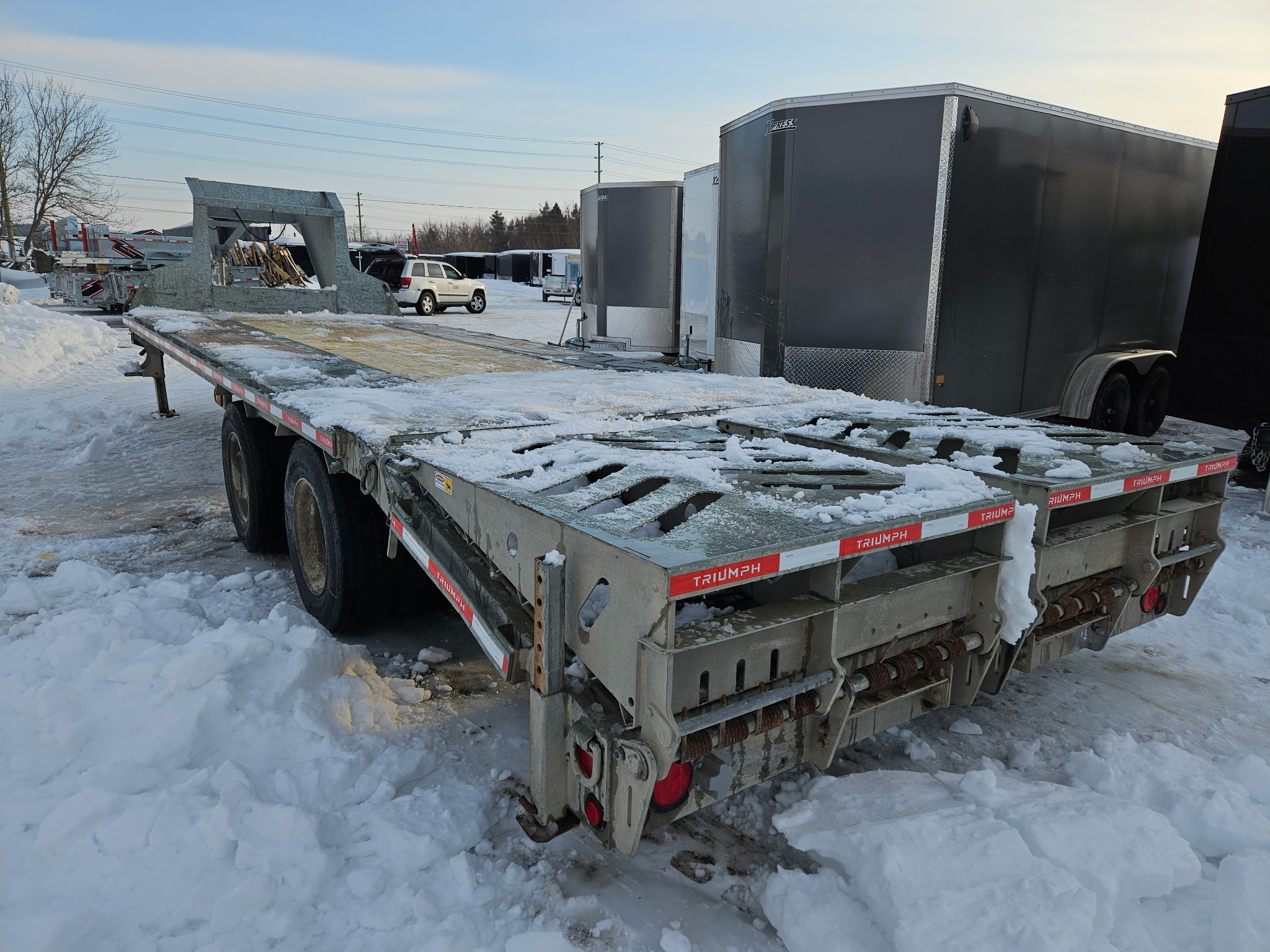

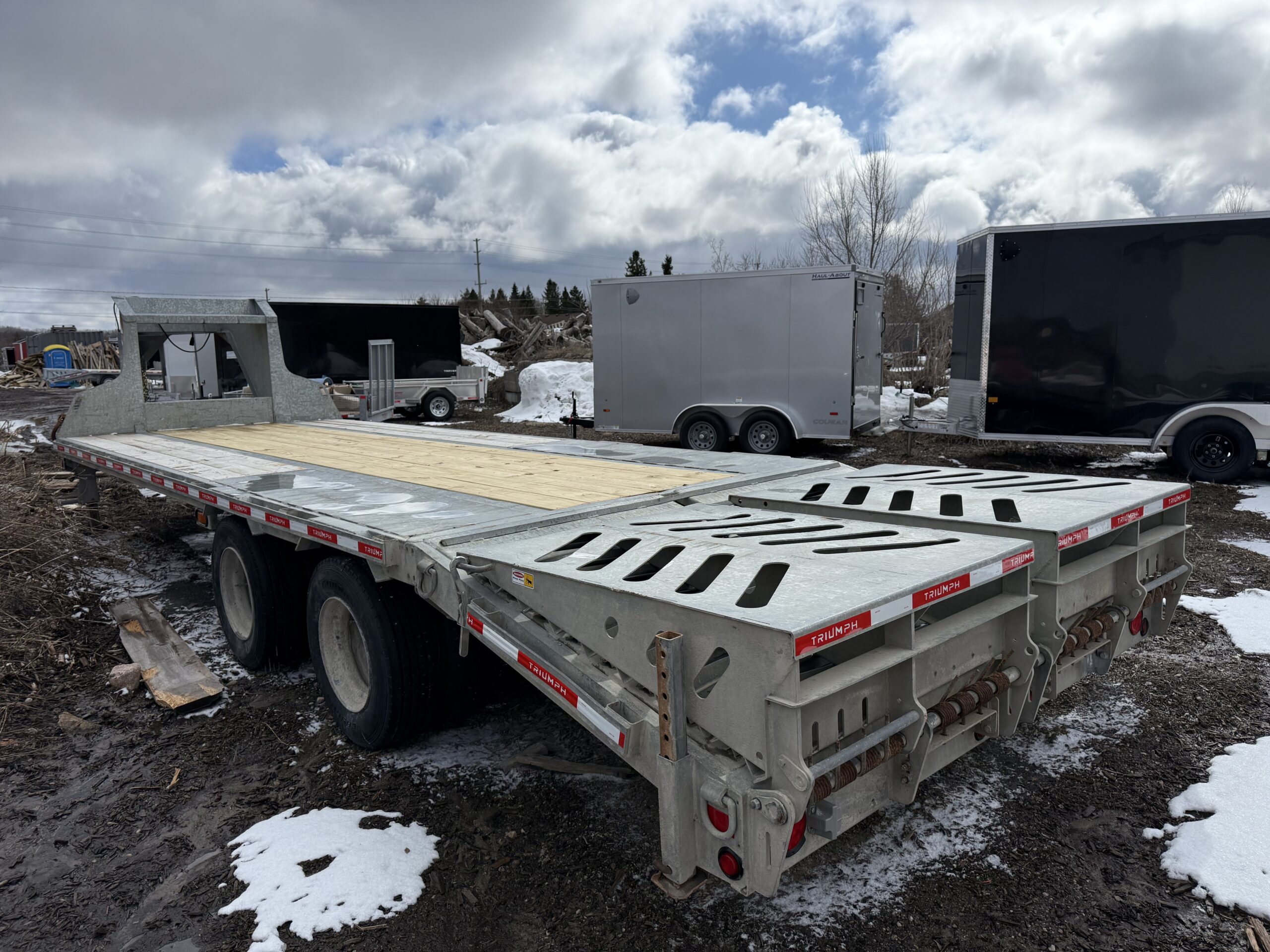

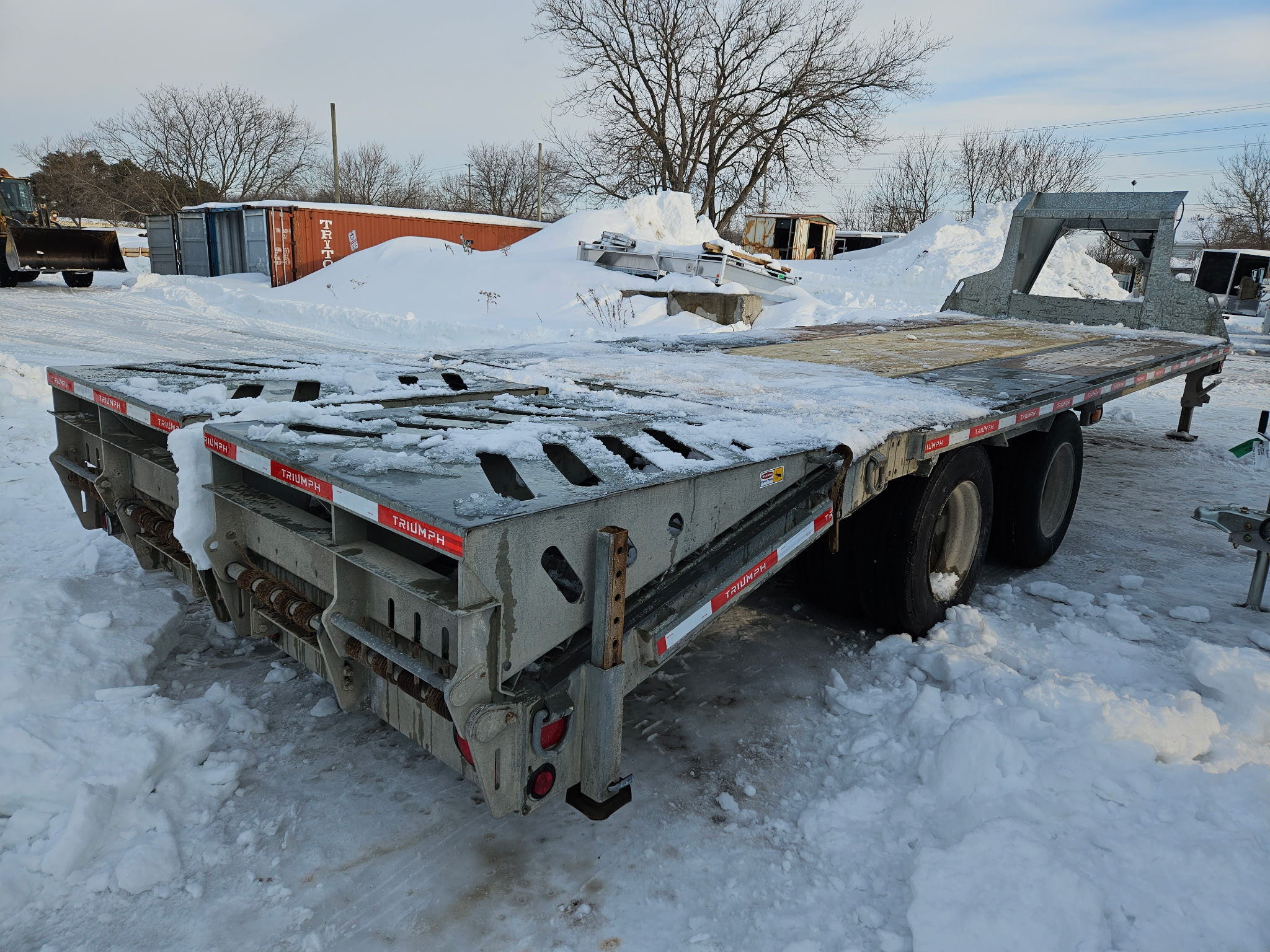

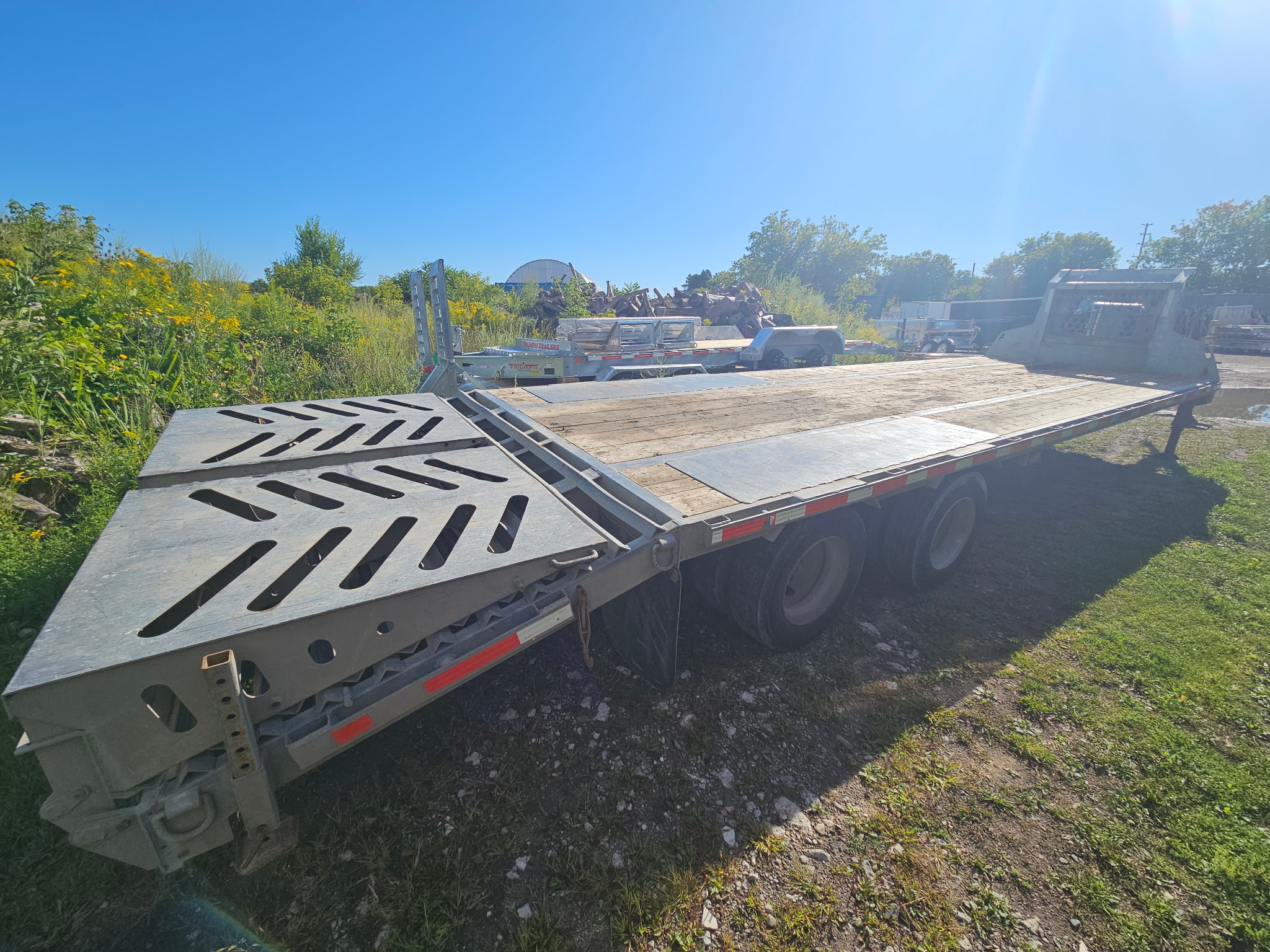

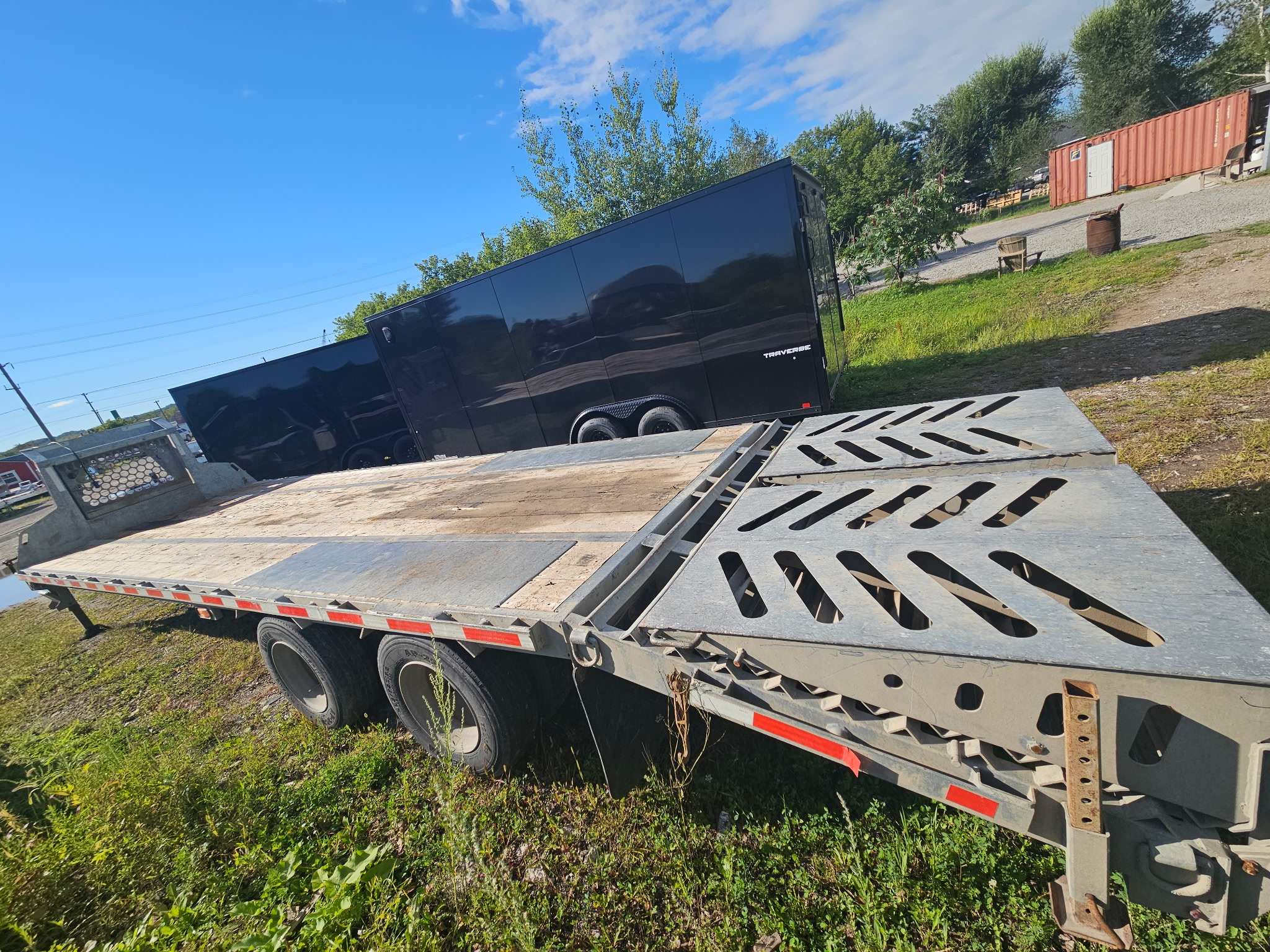

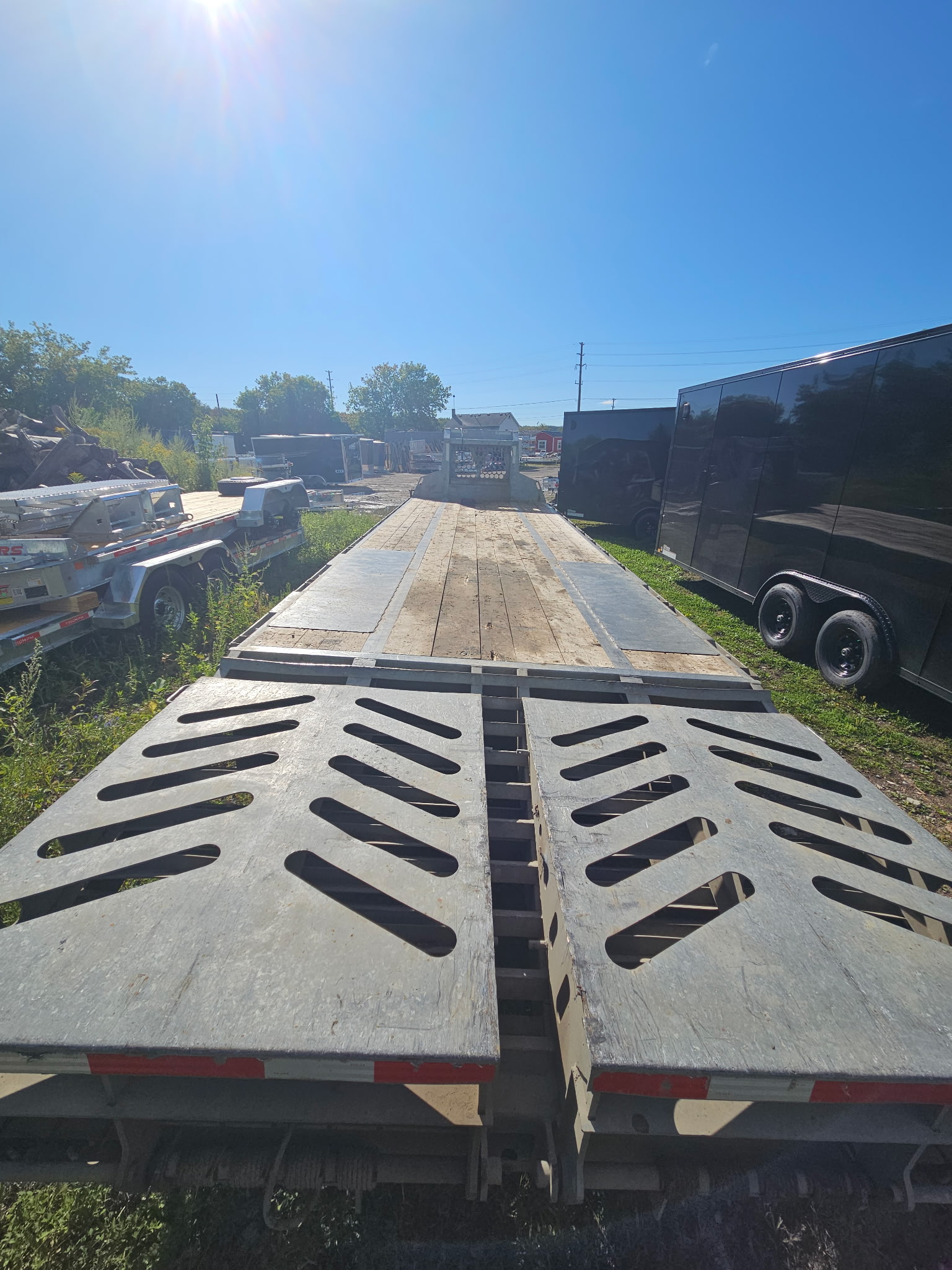

5’ beavertail with folding ramps
Heavy duty Spring assisted
Mega ramps
Hot dip galvanize finish
