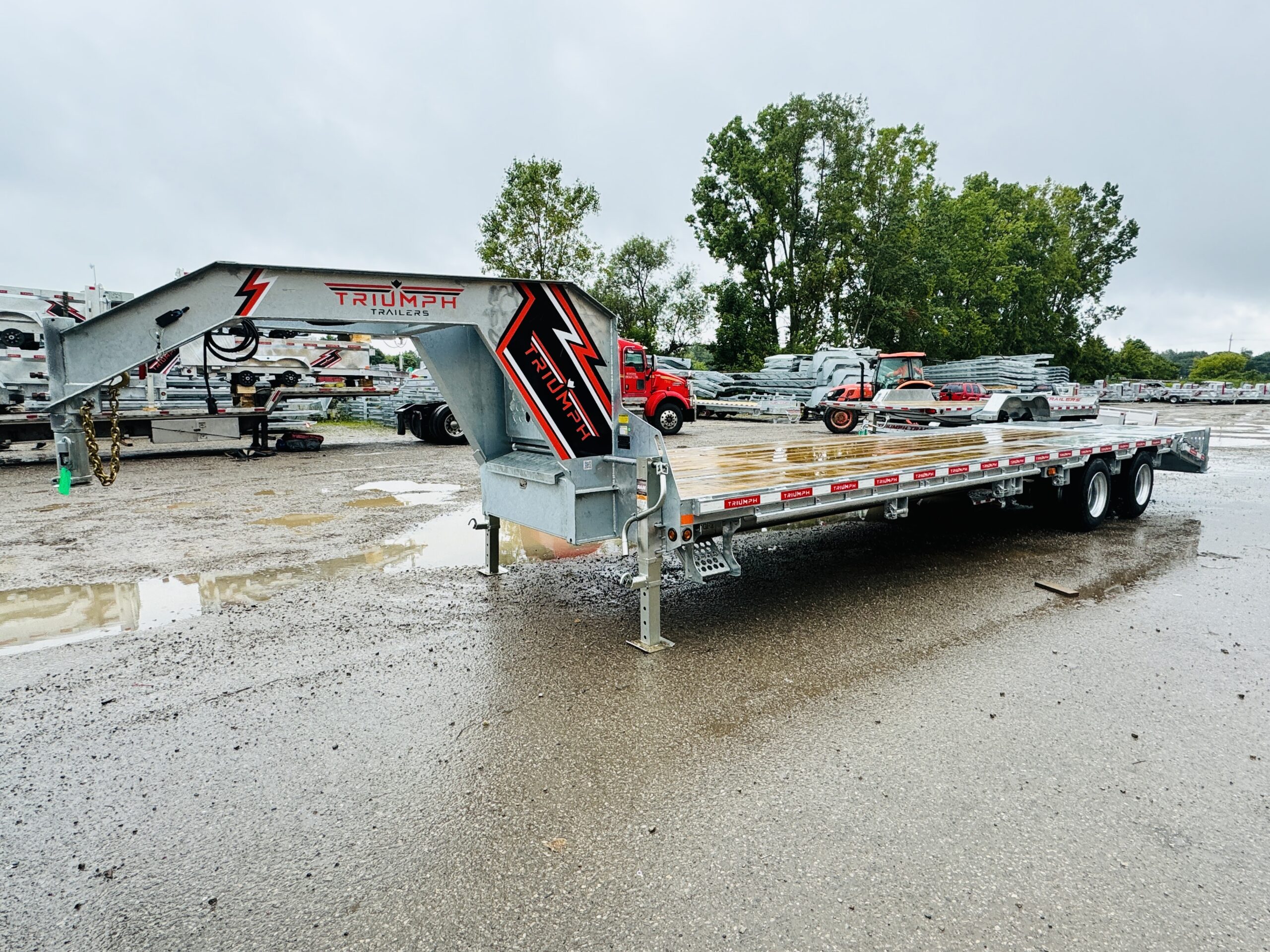

102X25+5 12 Ton Galvanized Gooseneck Deckover with Mega Ramp

$29,895.00

Deck Width 102″
Deck Length 25’+5′ Mega Ramp
Deck Height 34″
GVWR 28,800 lbs
Payload 21,495 lbs
Axle Rating 2×12,000 lbs

Description

HDDOGN-TA102x25+5-12k

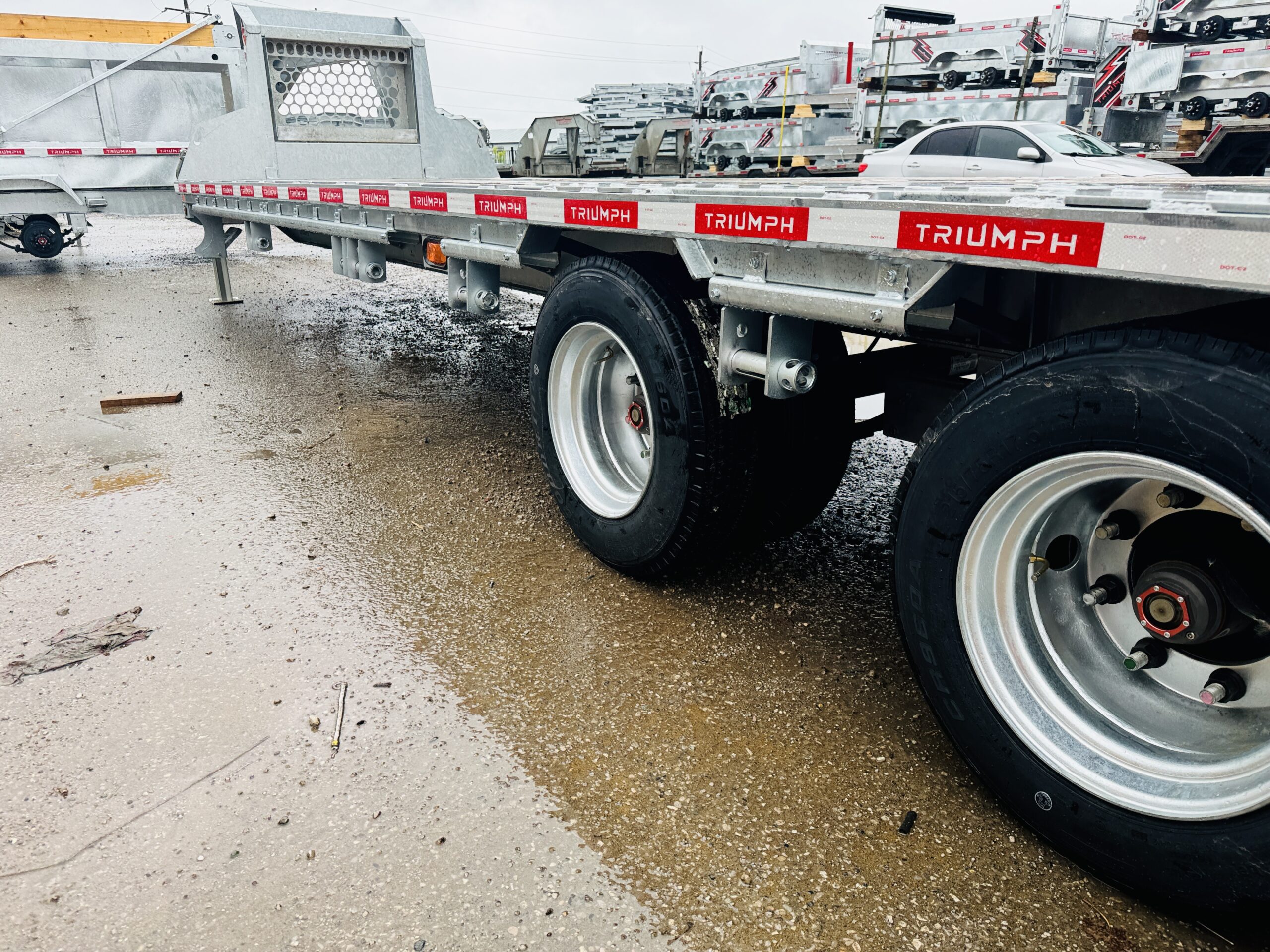

  • 12k dually, Dexter axles with slipper suspension
  • Both axles with electric brakes
  • 235/80R16 radial tires
  • 12” beam running front to back
  • 3” Cchannel at 16” centers with angled supports underneath

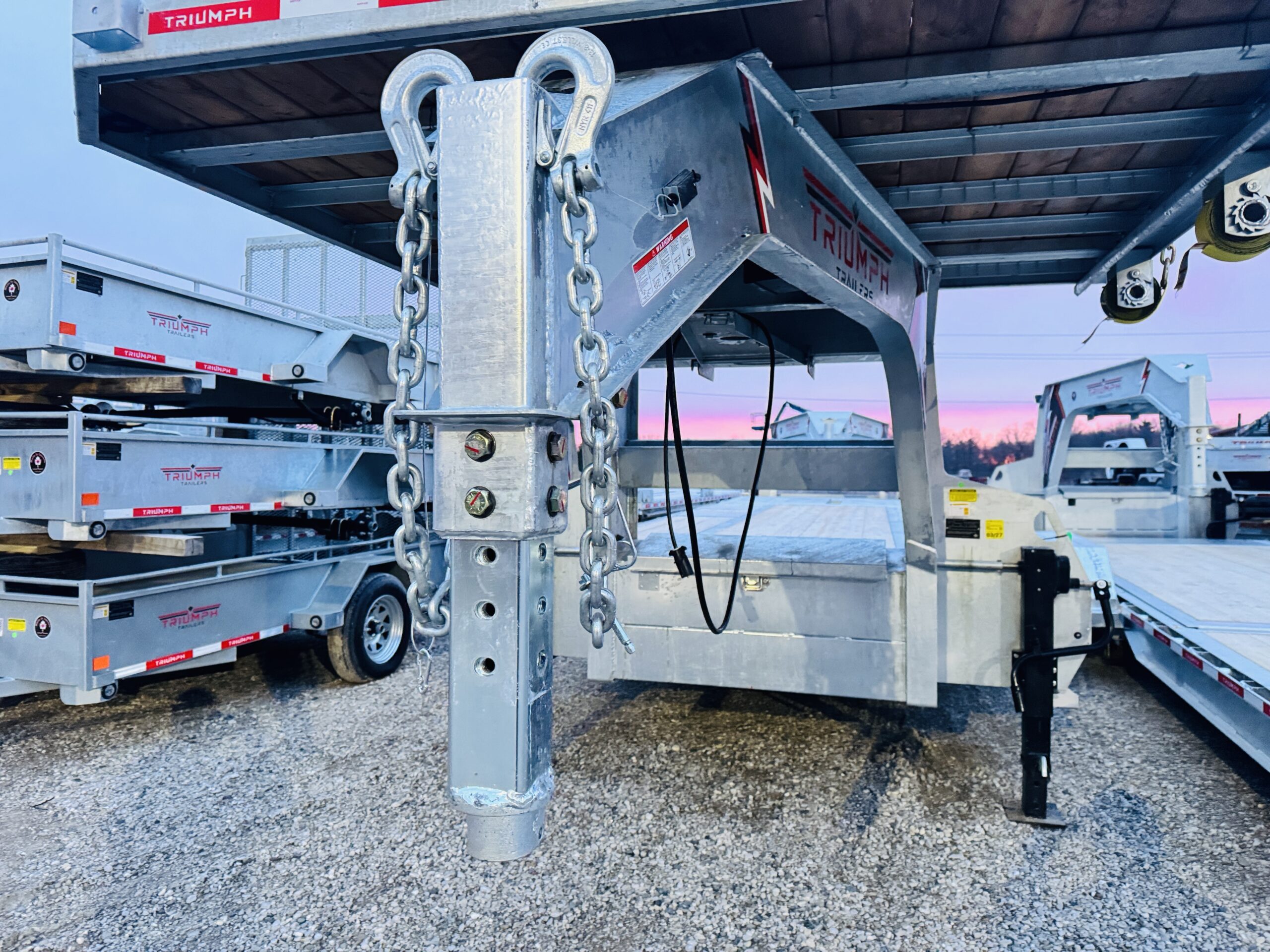

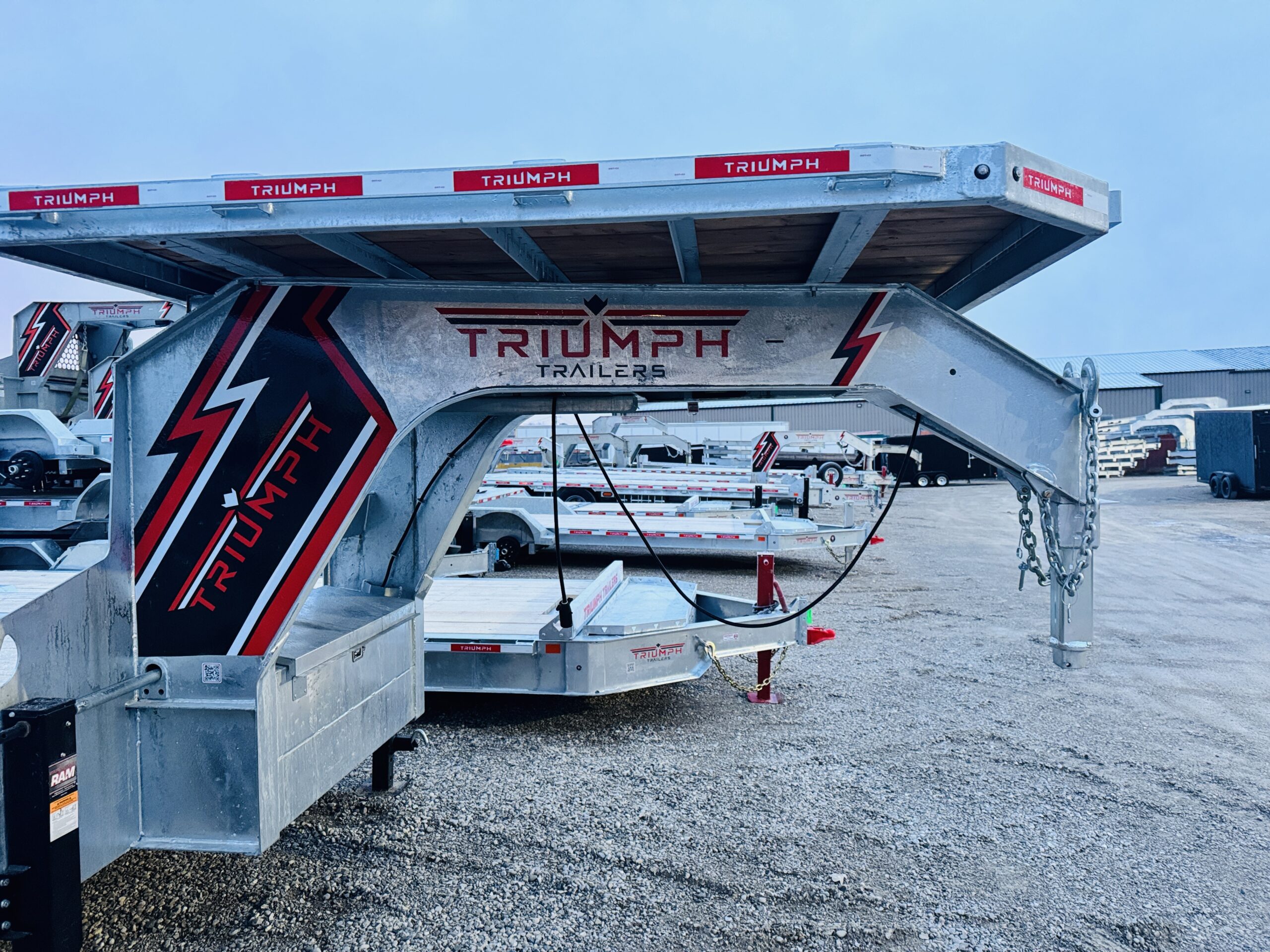

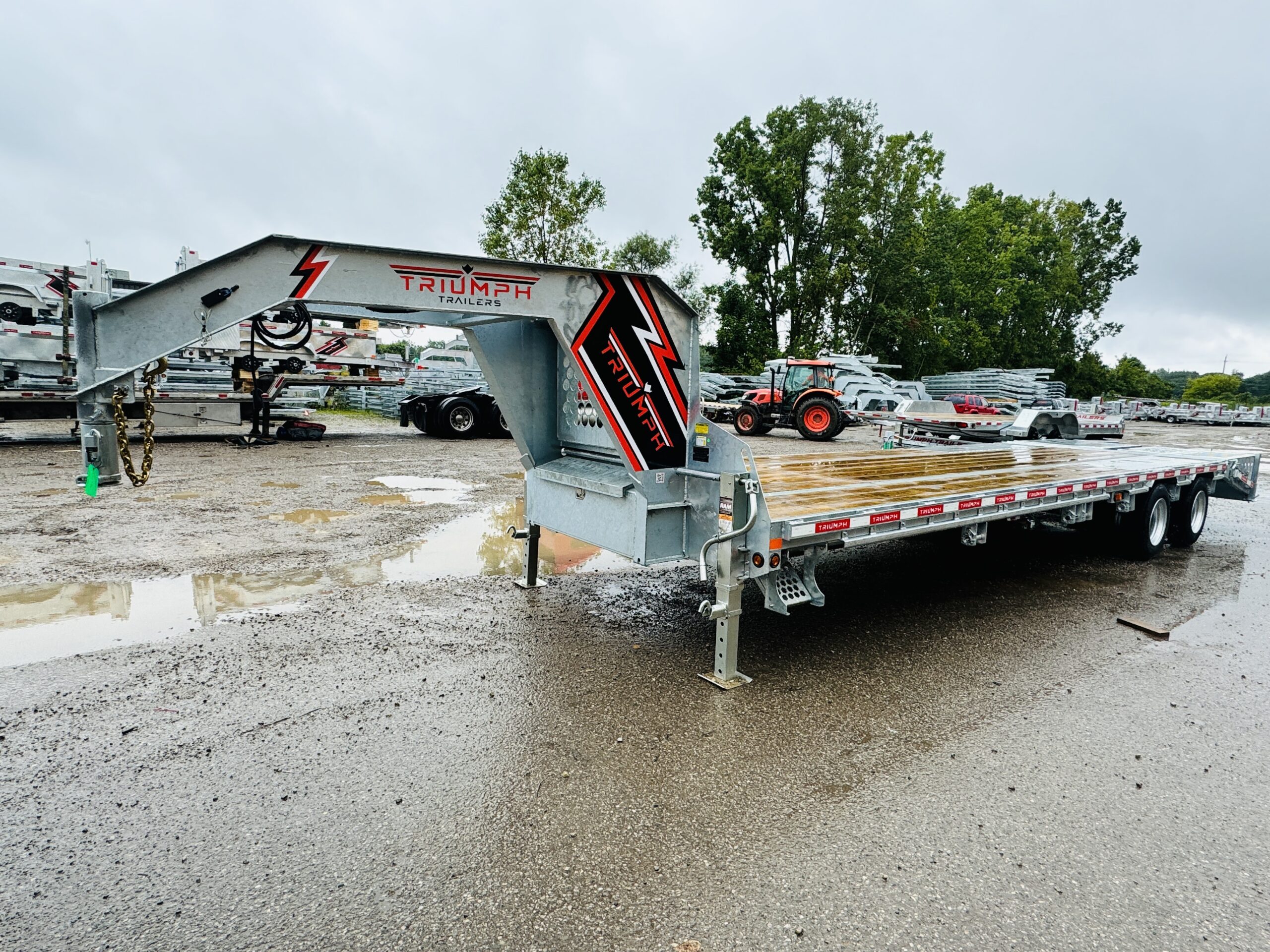

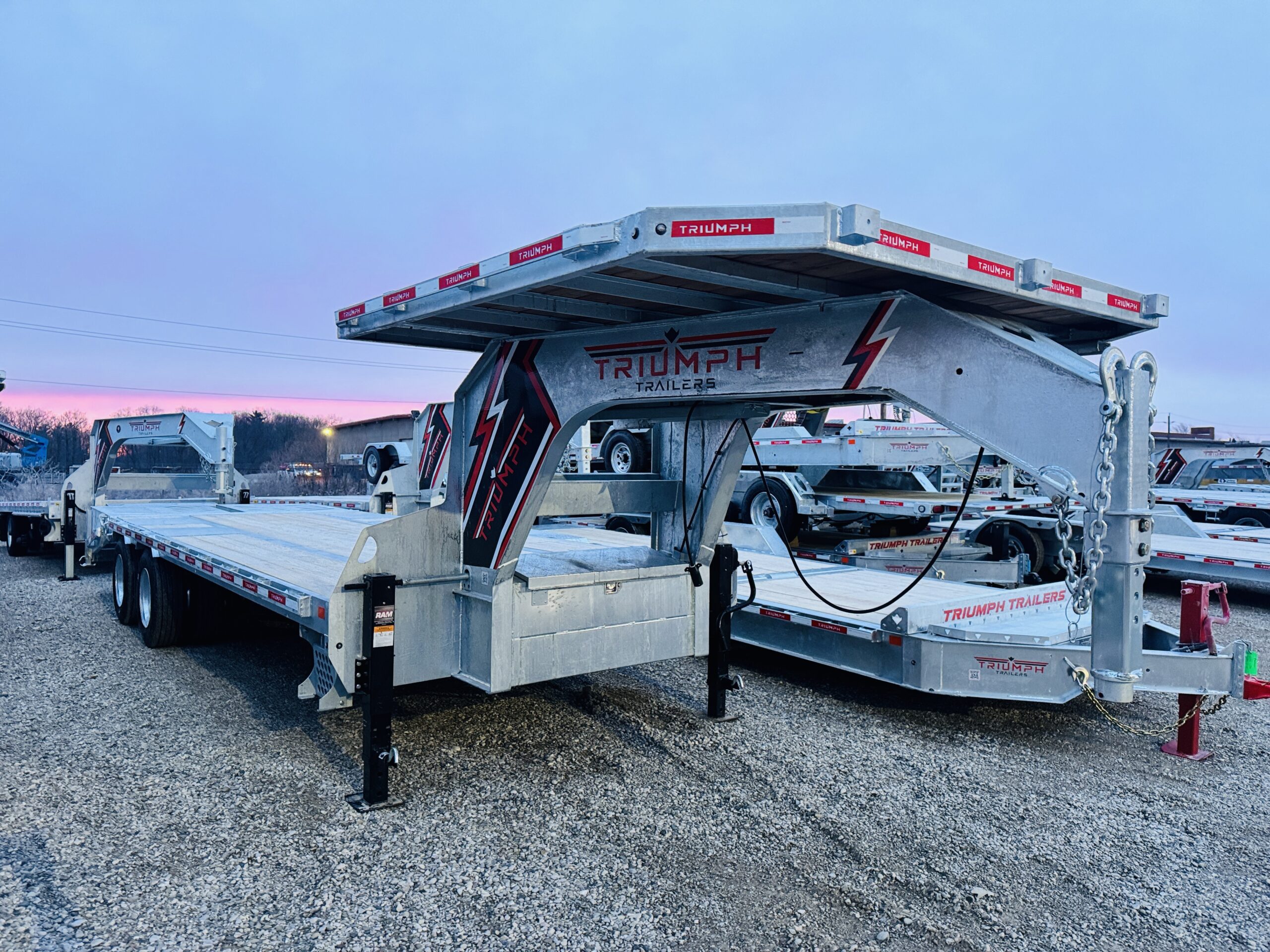

  • Monoblock Gooseneck (stronger than Ibeam gooseneck)
  • 2 5/16 gooseneck coupler

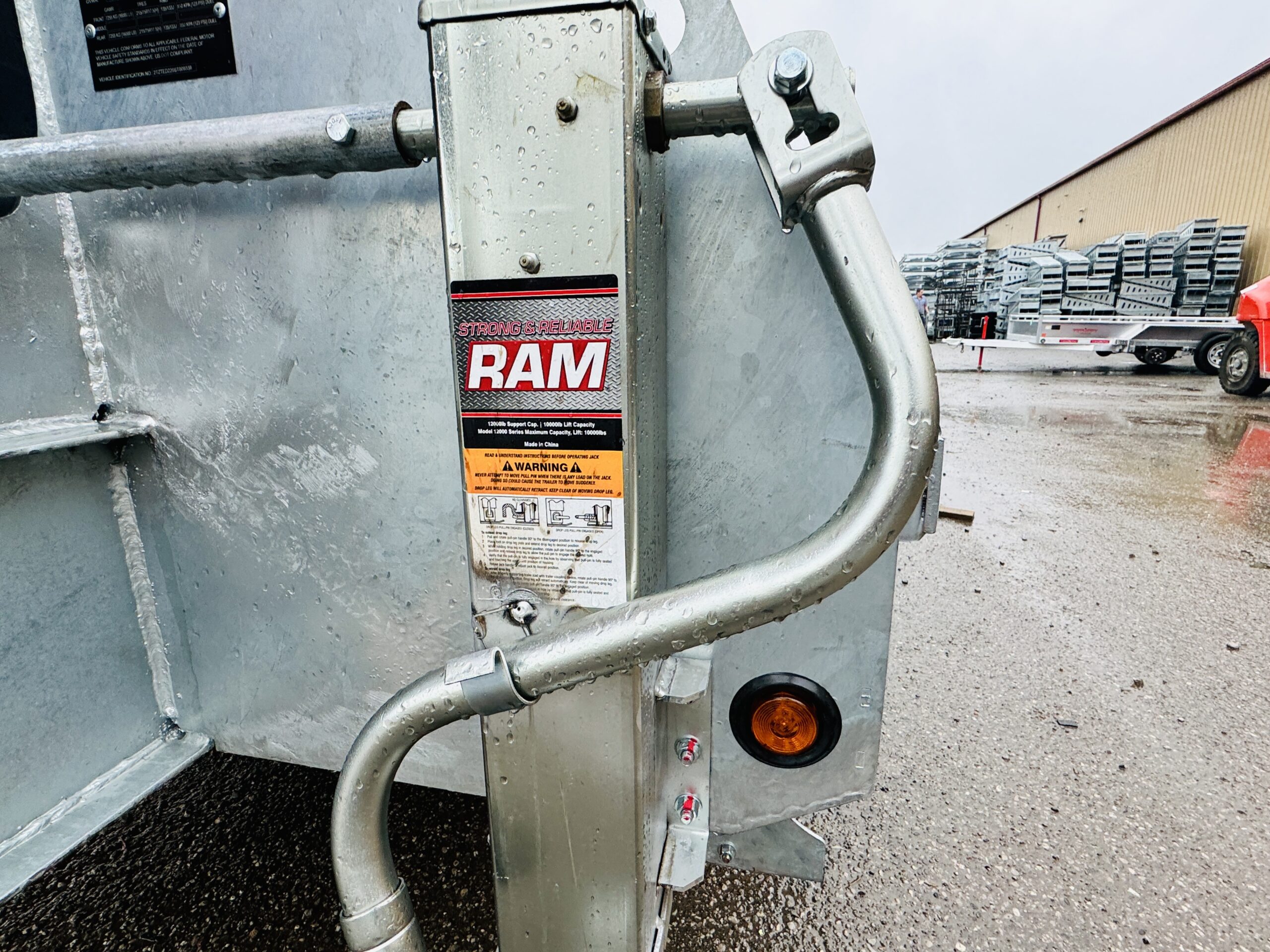

  • Tandem 12k jacks
  • LED lighting
  • Low profile deck (34” deck height)
  • Heat shrink connectors on wire harness
  • Fold out footsteps on both sides in front
  • Drop legs

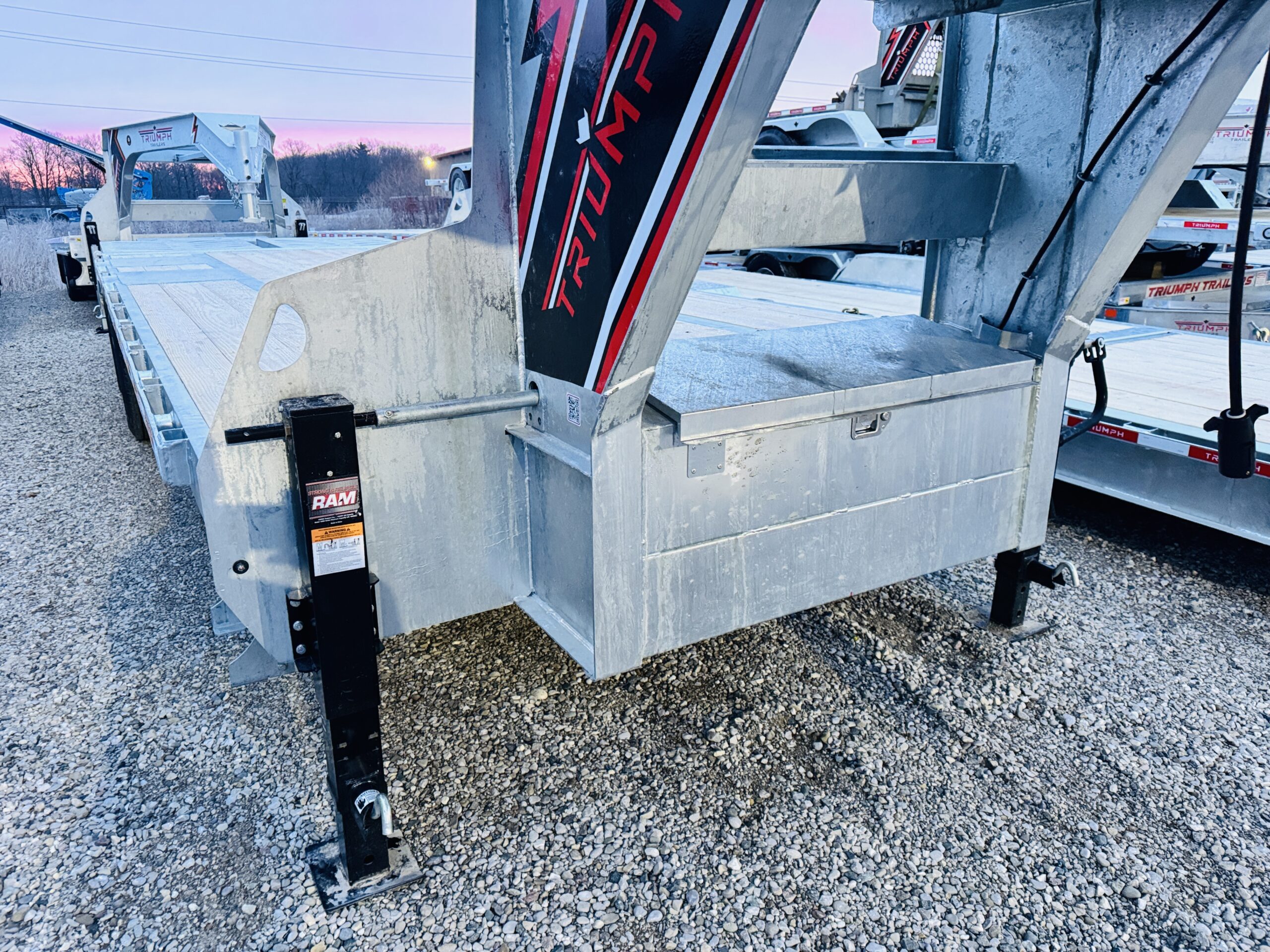

  • Built in toolbox
  • Stake pockets/rub rail along sides of trailer
  • Chain spools inside rub rail

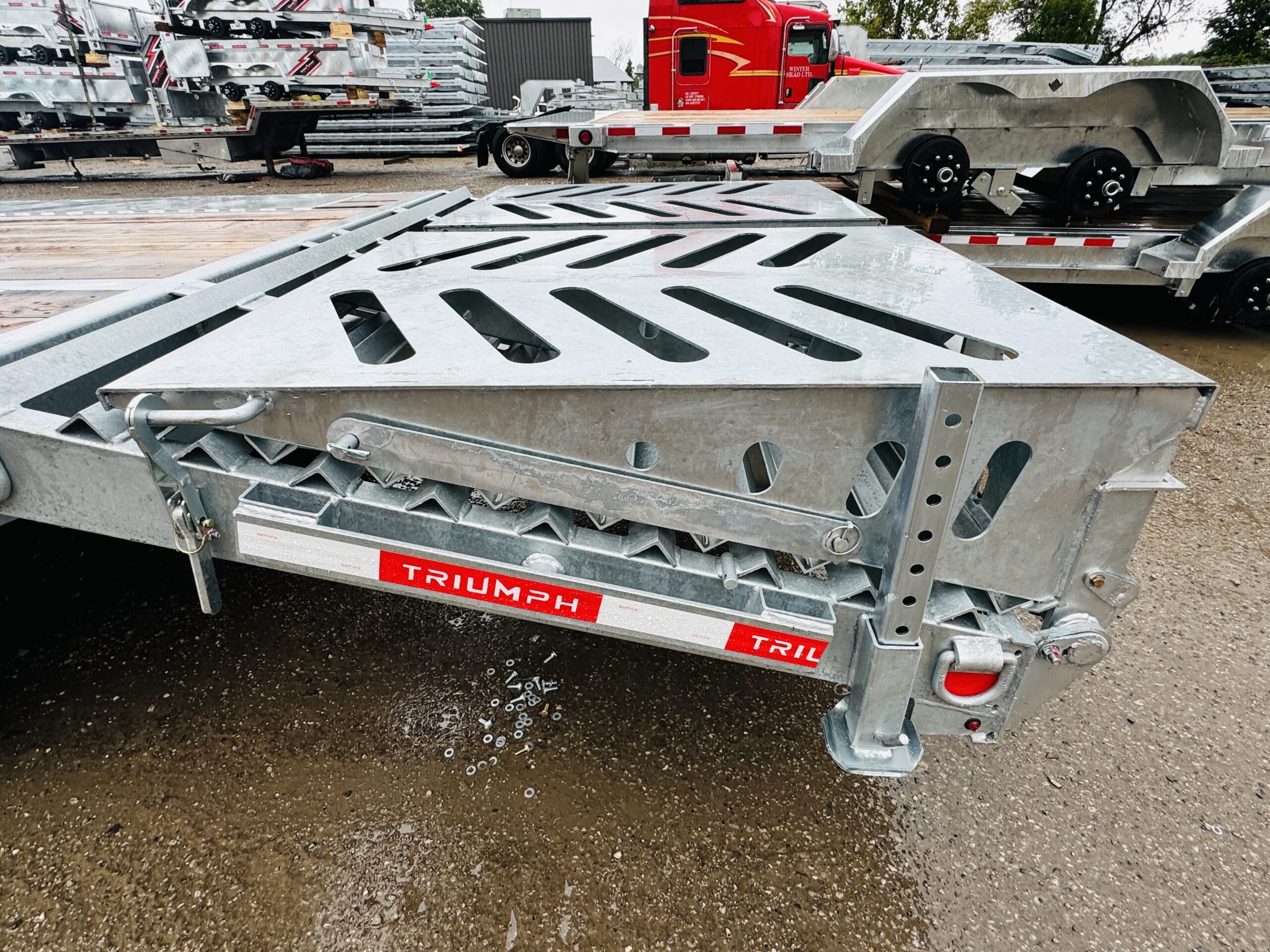

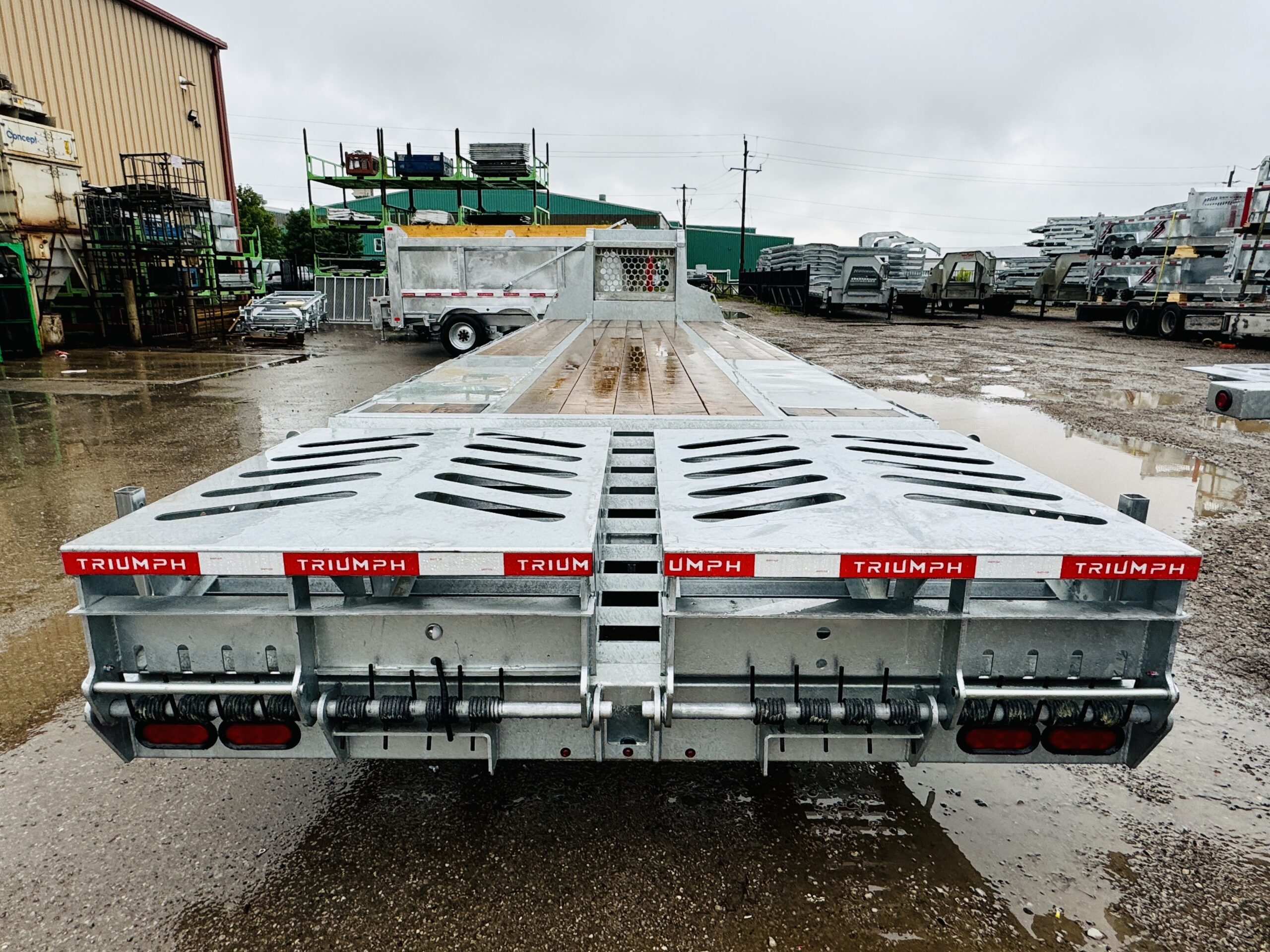

  • 5’ beavertail with folding ramps
  • Heavy duty Spring assisted

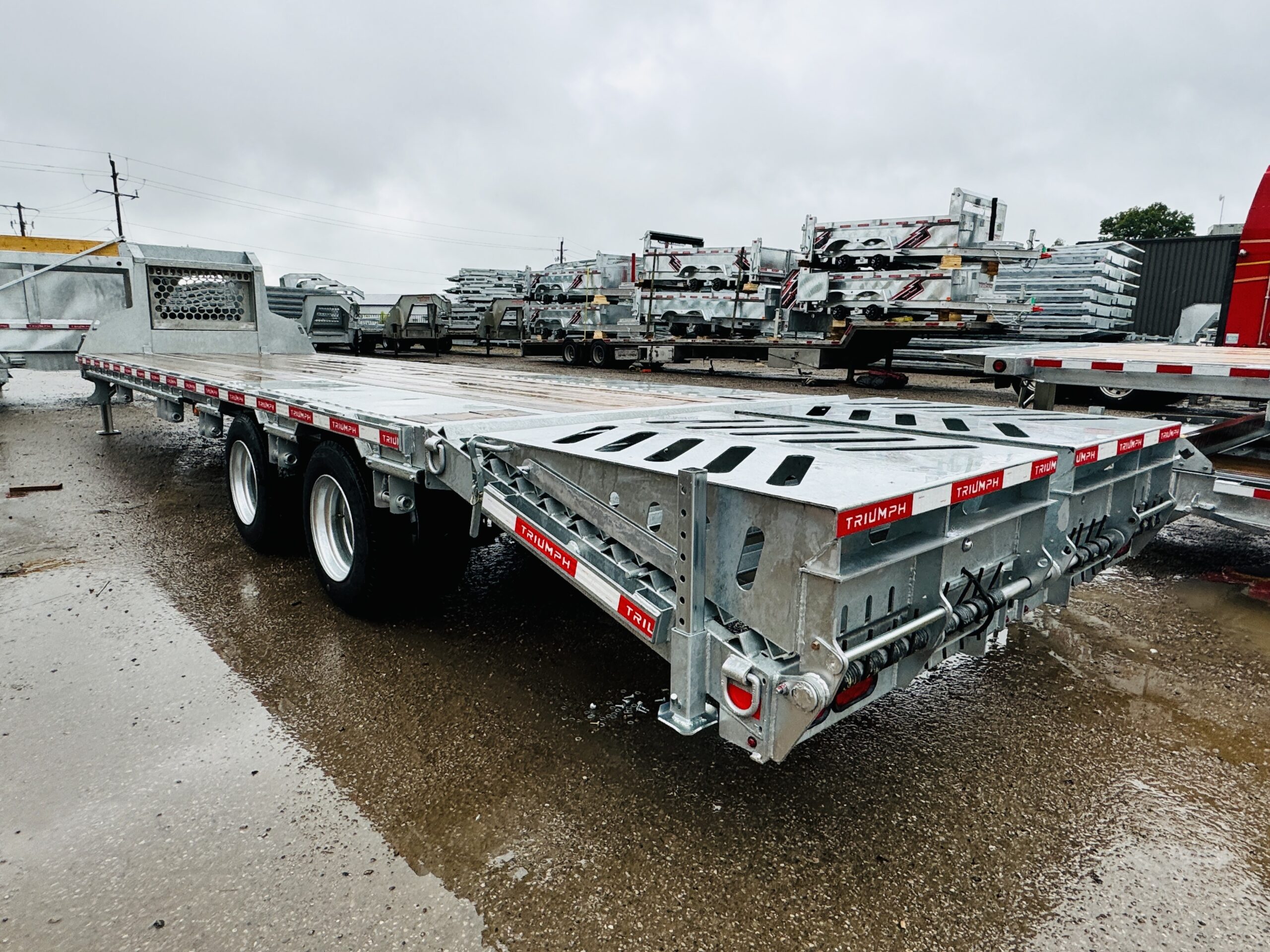

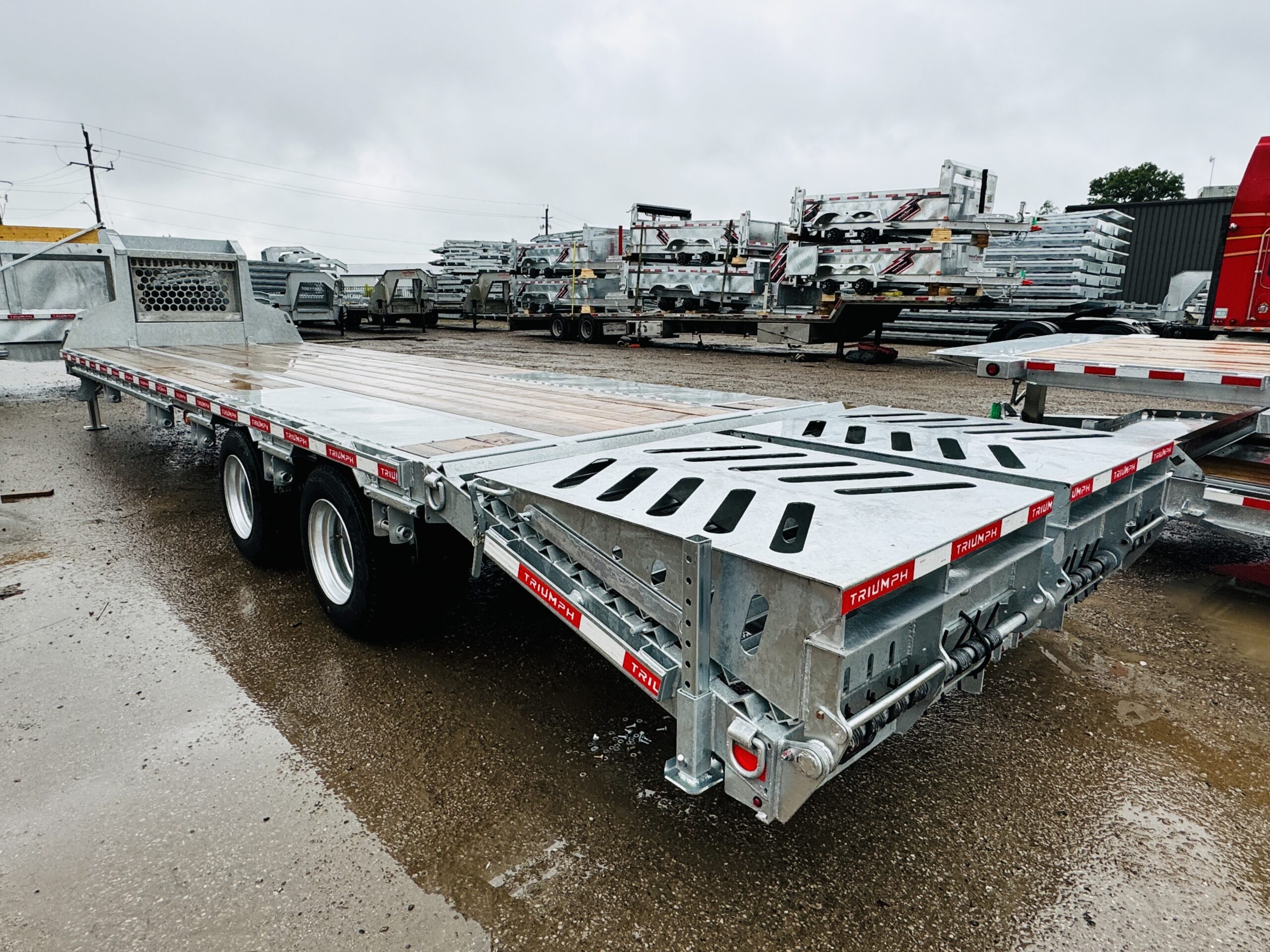

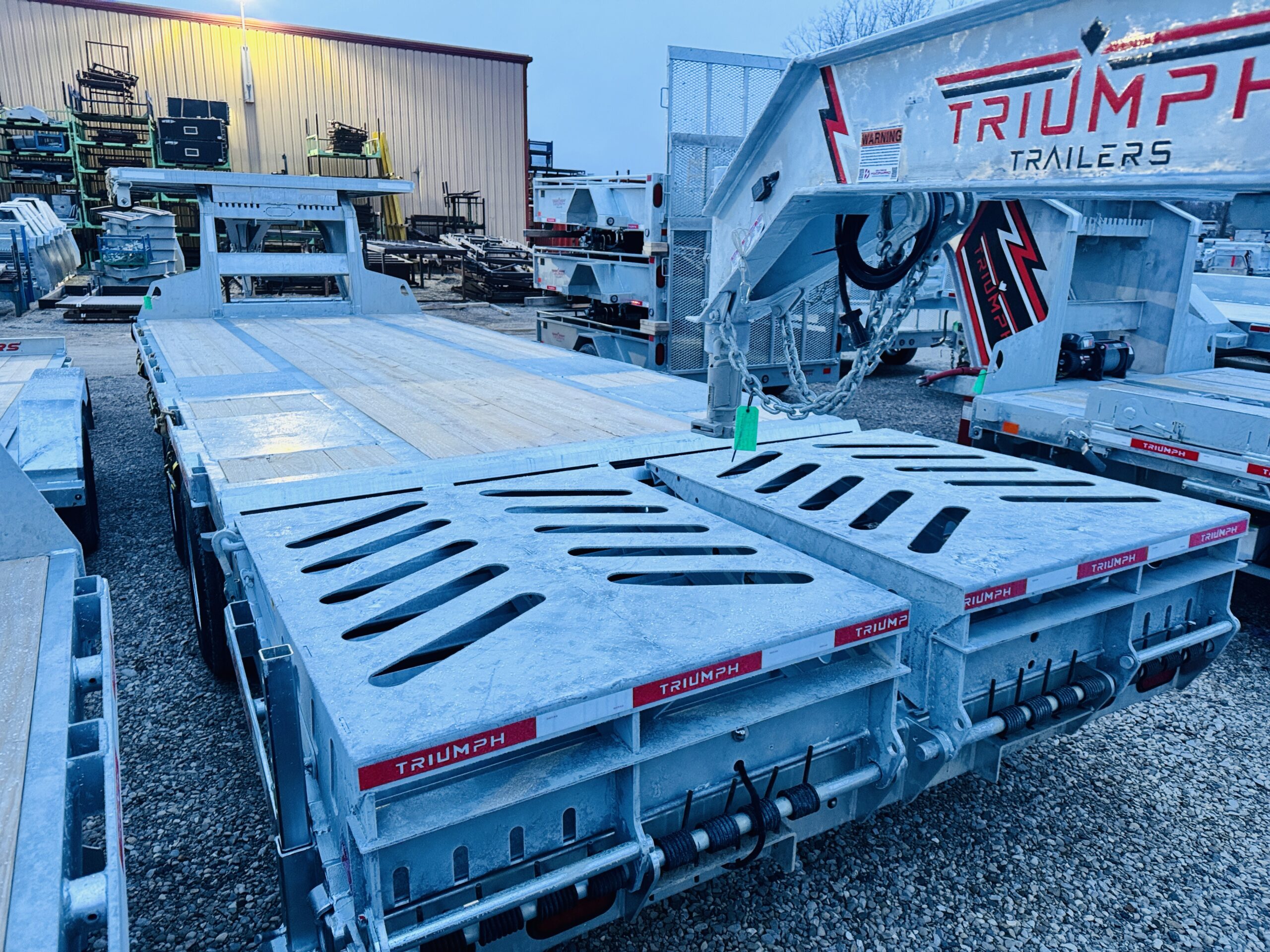

  • Mega ramps

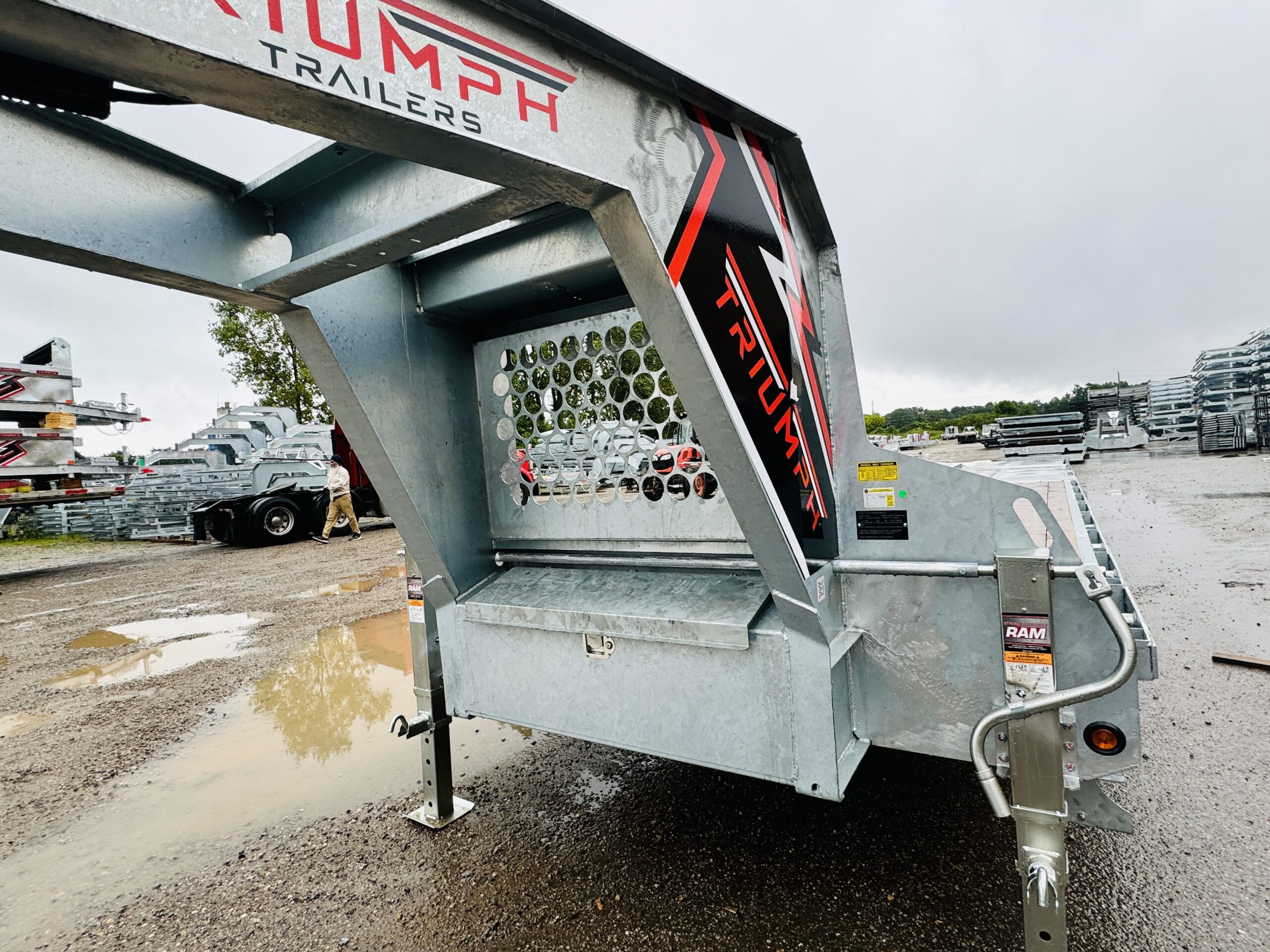

  • Chain cabinet between gooseneck
  • Hot dip galvanize finish
  • Trailer weight 3530 KG
  • Payload 10300 KG



Options

  • Winch tracking with a slider every 5 feet
  • 15k axle upgrade
  • 15k hydraulic axle upgrade
  • 5th wheel attachment optional
  • 2 speed jacks
  • Spare tire

Warranty
Structural Warranty – 2 Years
Axles Warranty – 5 Years
Led Lights – Lifetime

Additional information

Trailer Type

Finish

Deck Width

Deck Length

Deck Height

GVWR

Payload

Trailer Weight

Axle Weight Rating

Coupler Style

Coupler Size

Electrical Plug
