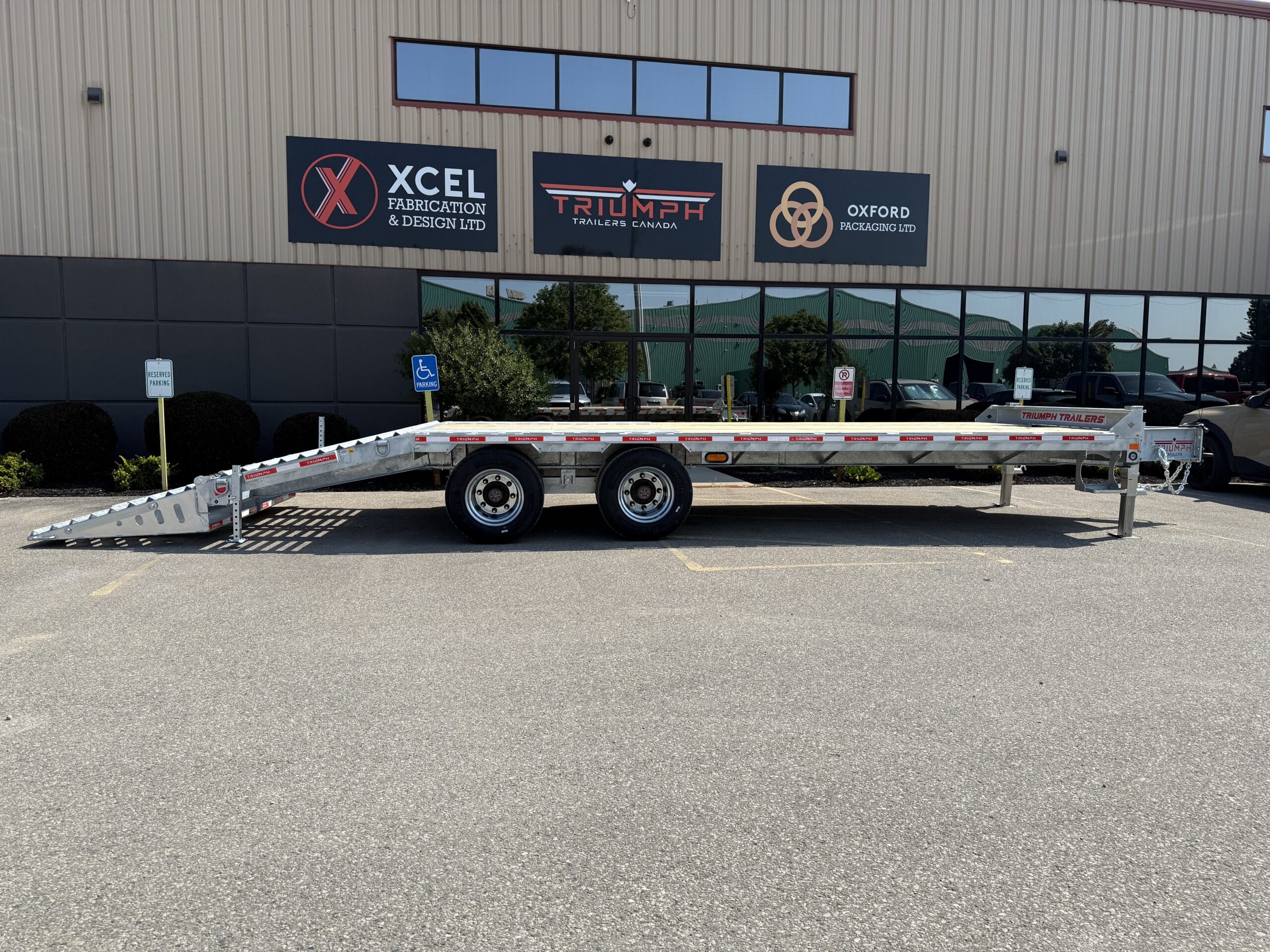

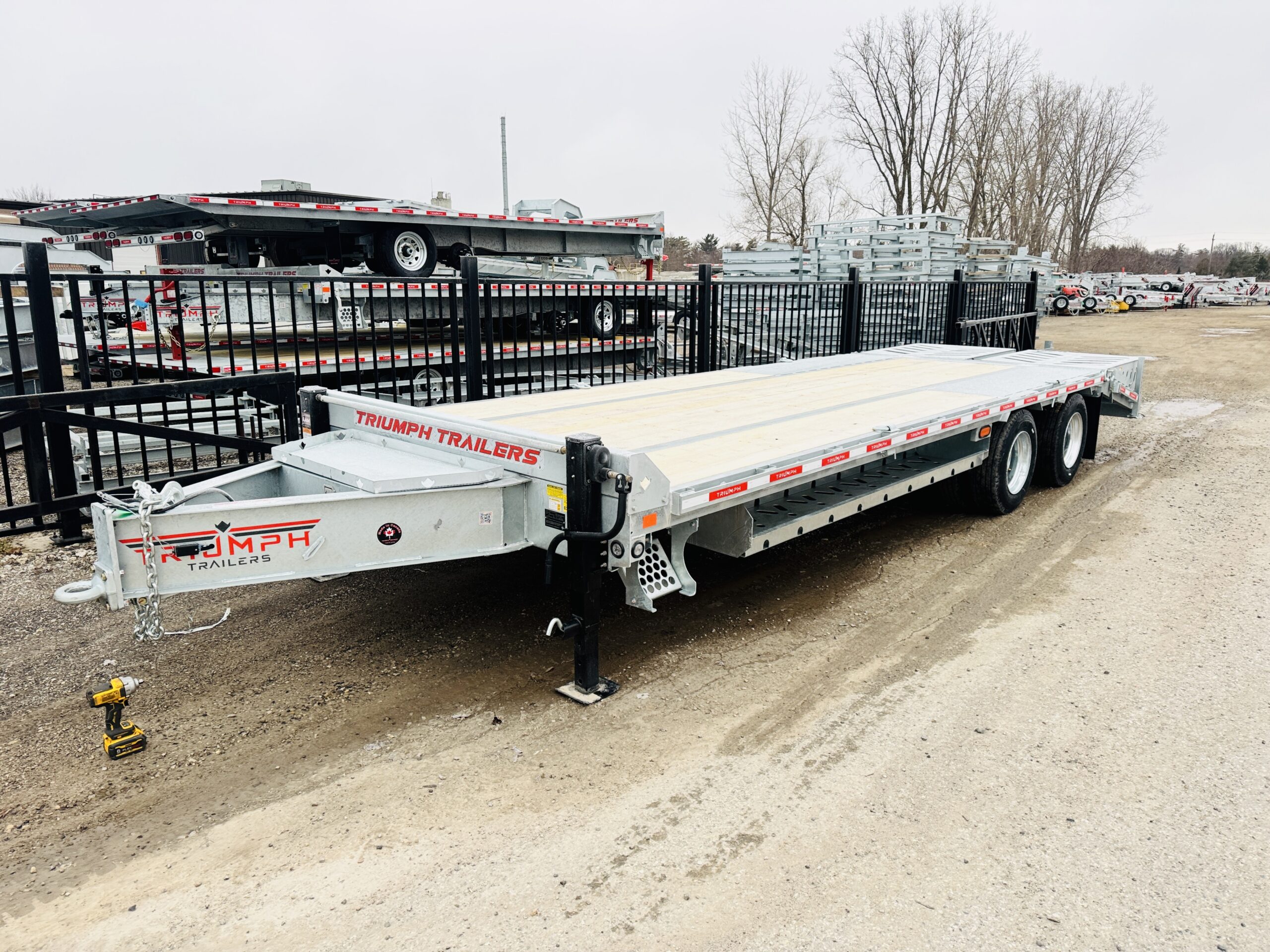

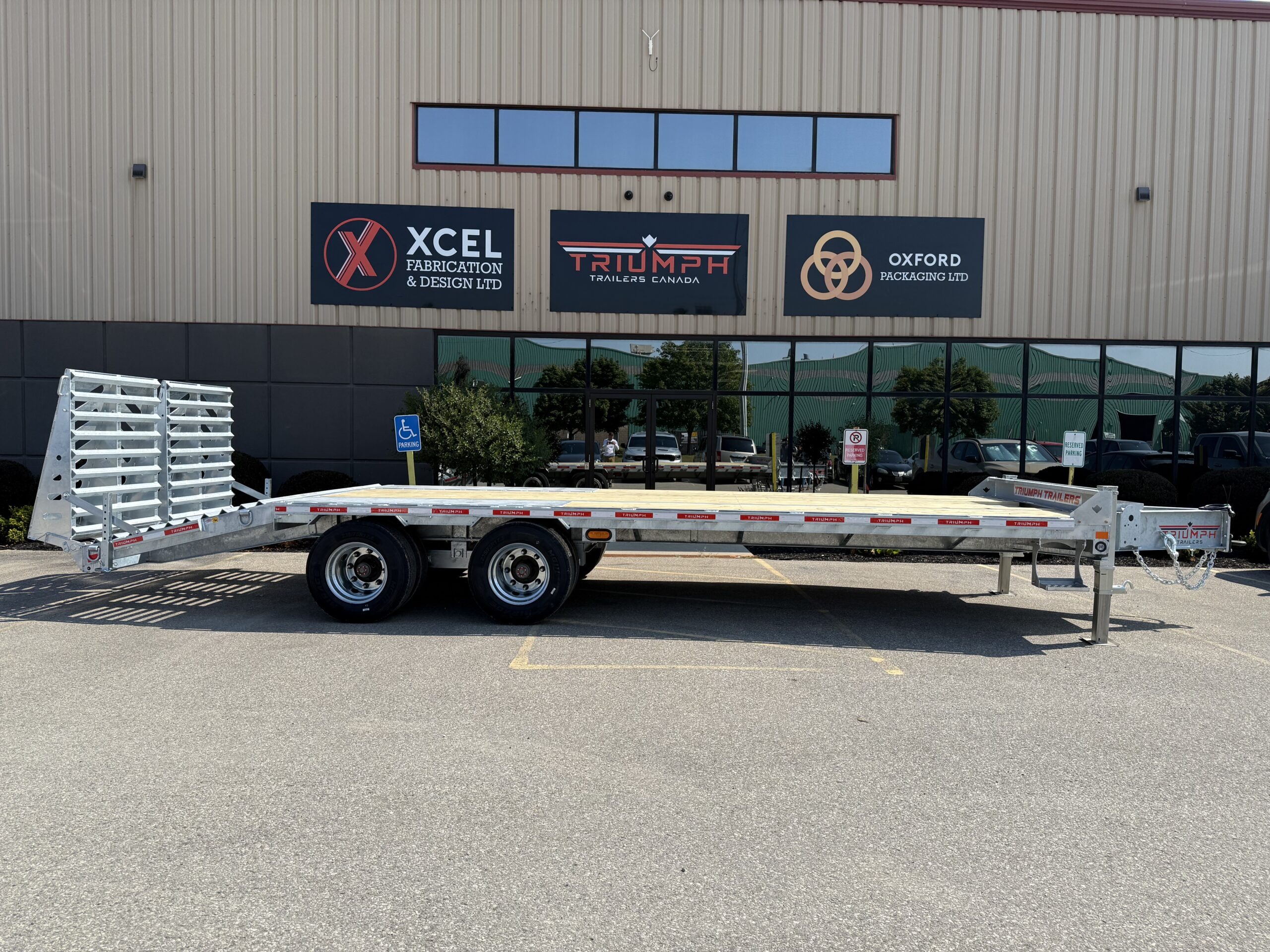

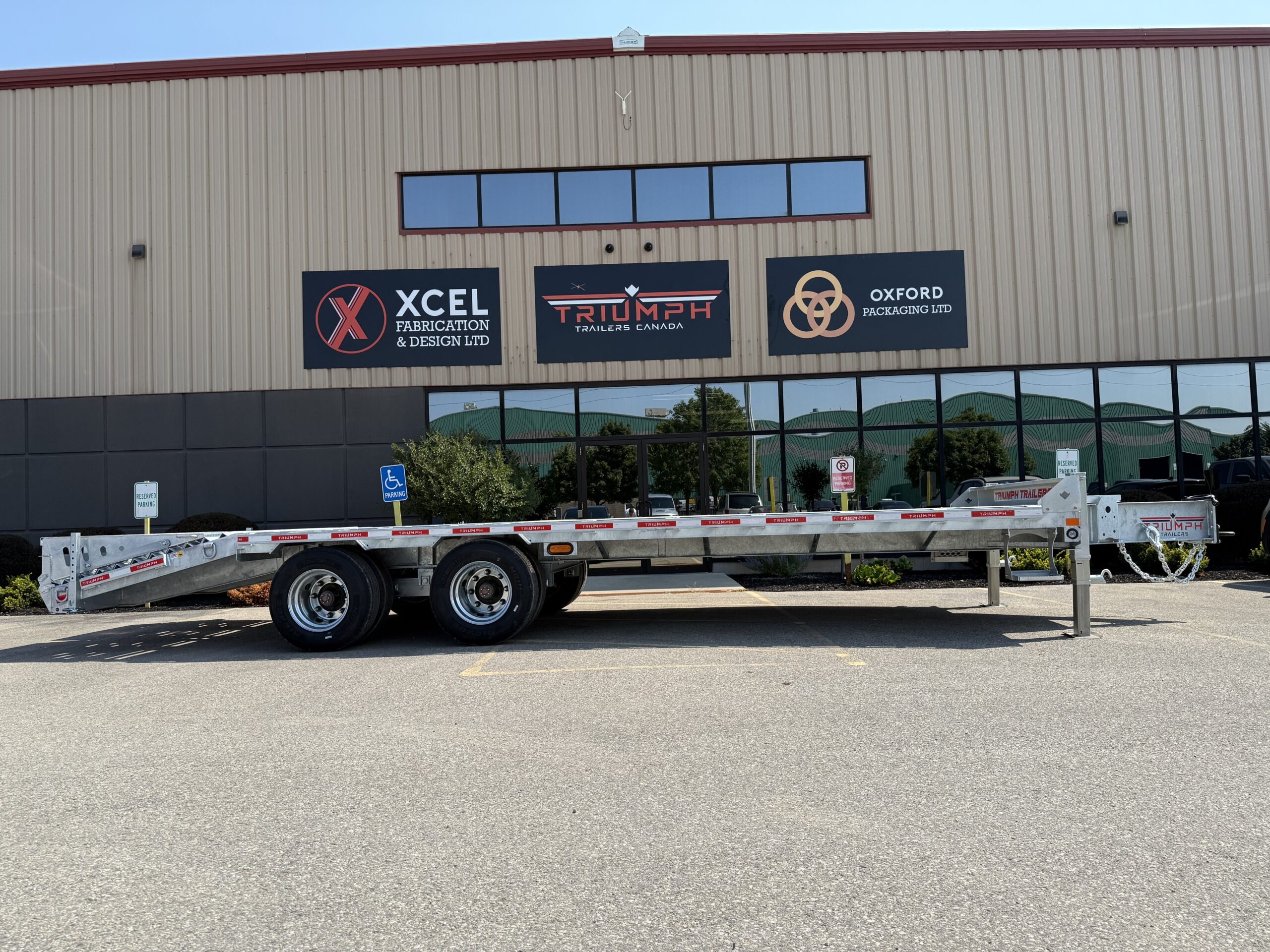

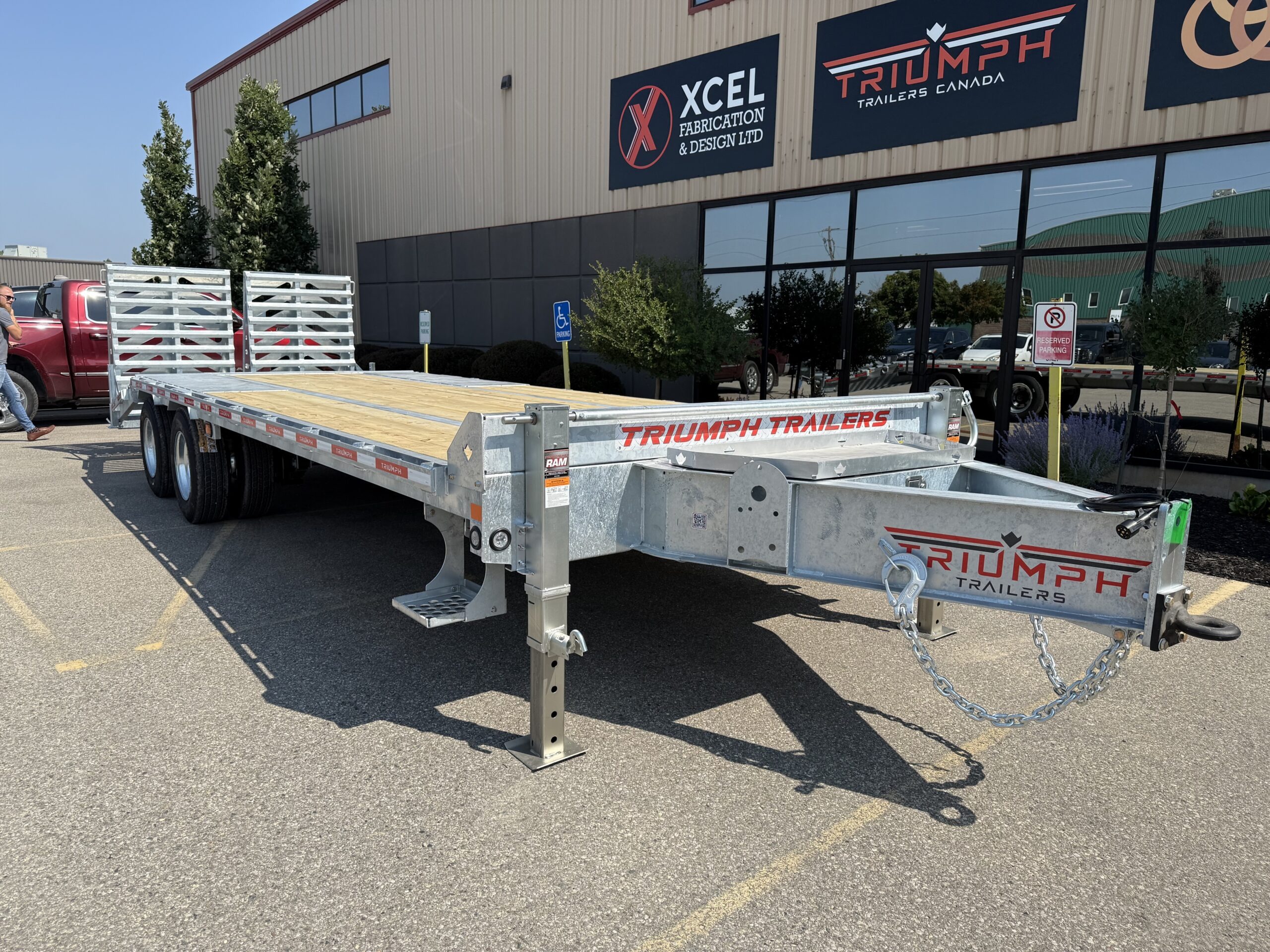

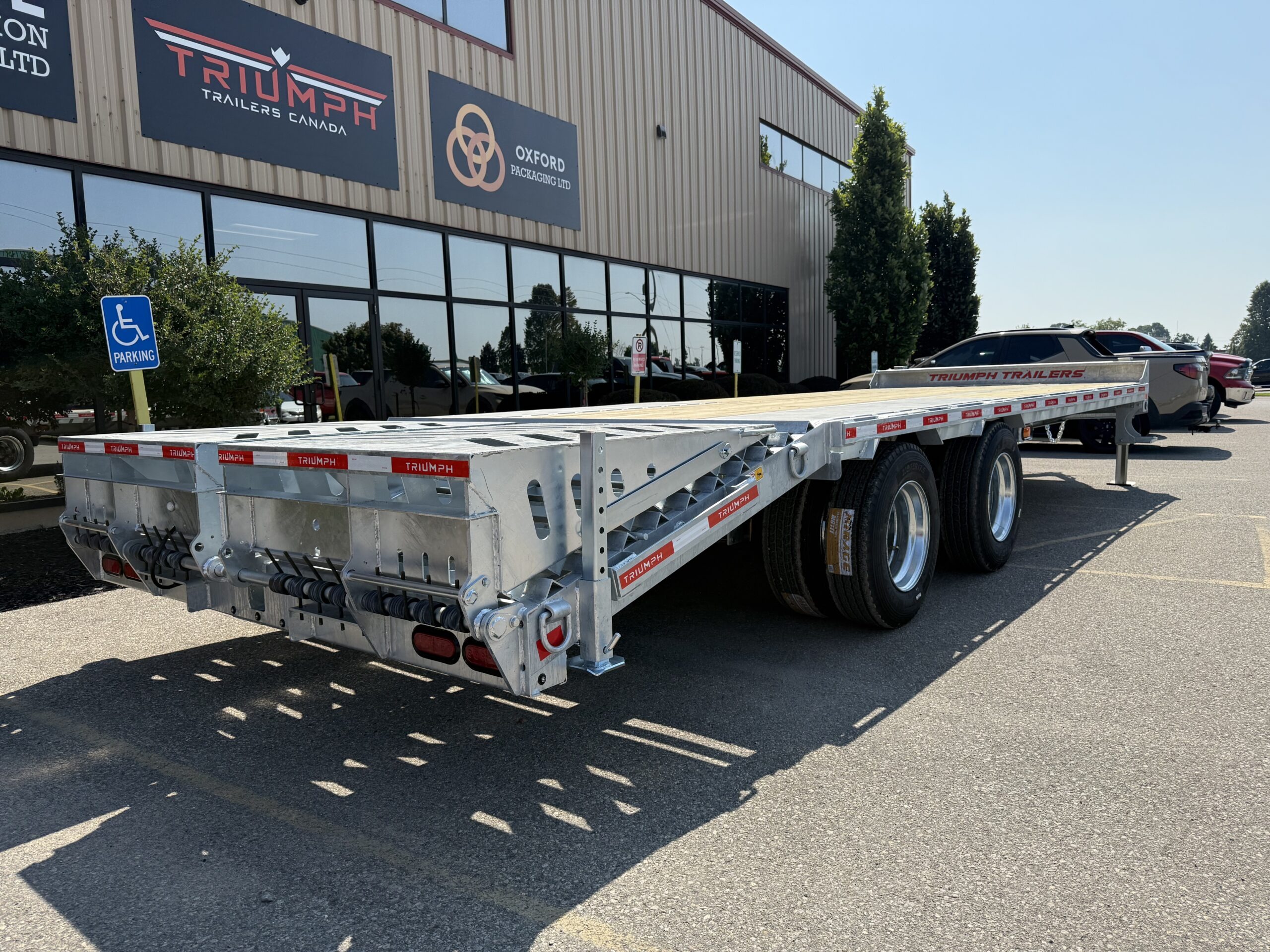

20+5 Foot 12 Ton Galvanized Pintle Deckover Trailer


Deck Width102″
Deck Length20’+5′ Mega Ramp
Deck Height34″
GVWR26,400 lbs
Payload19,125 lbs
Axle Rating2×12,000 lbs

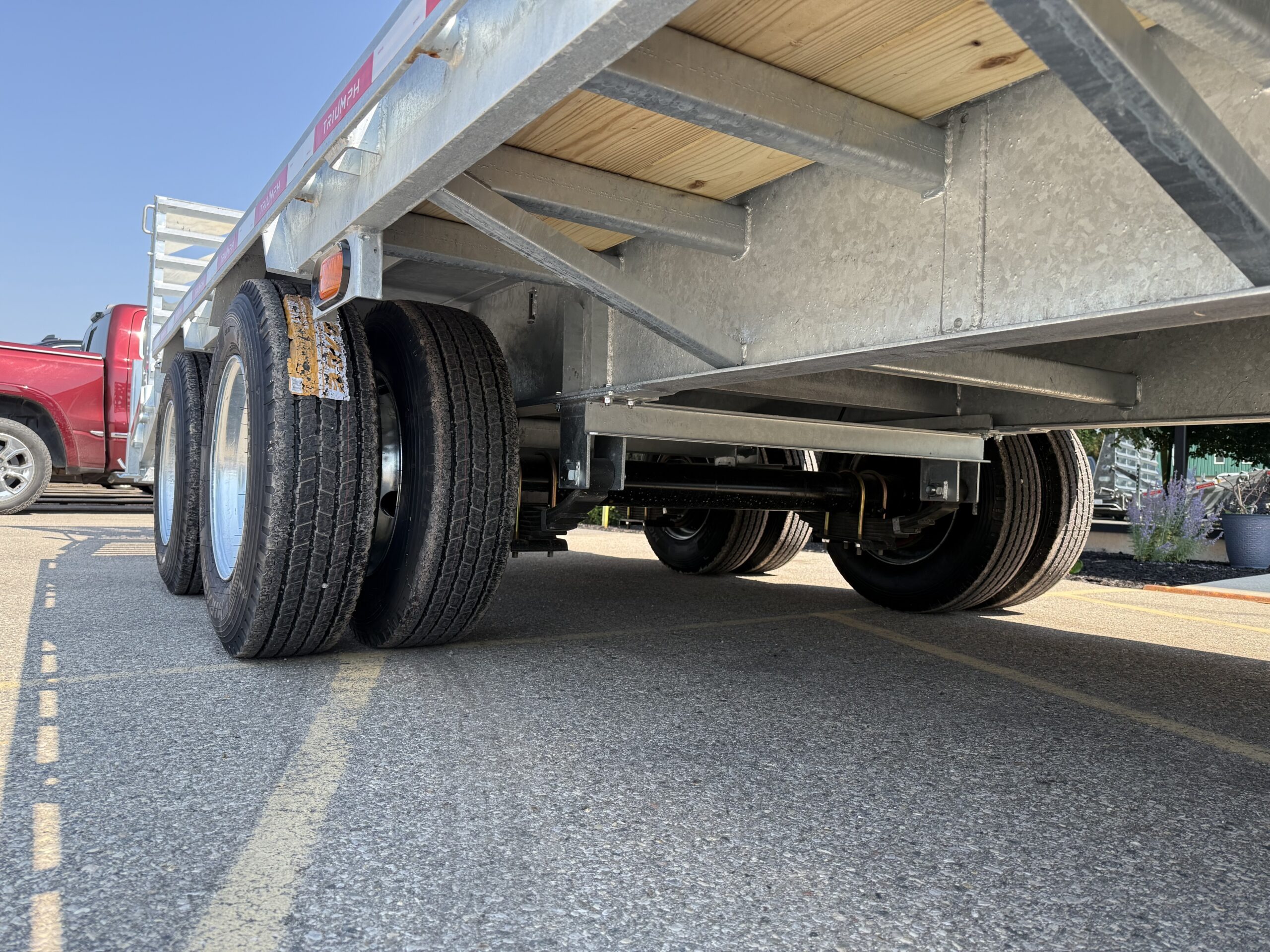

  • 12k dually, Dexter axles with slipper suspension
  • Both axles with electric brakes
  • 235/80R16 radial tires
  • 12” beam running front to back
  • 3” C-channel at 16” centers with angled supports underneath
  • Fitted with 12 welded HD D-rings

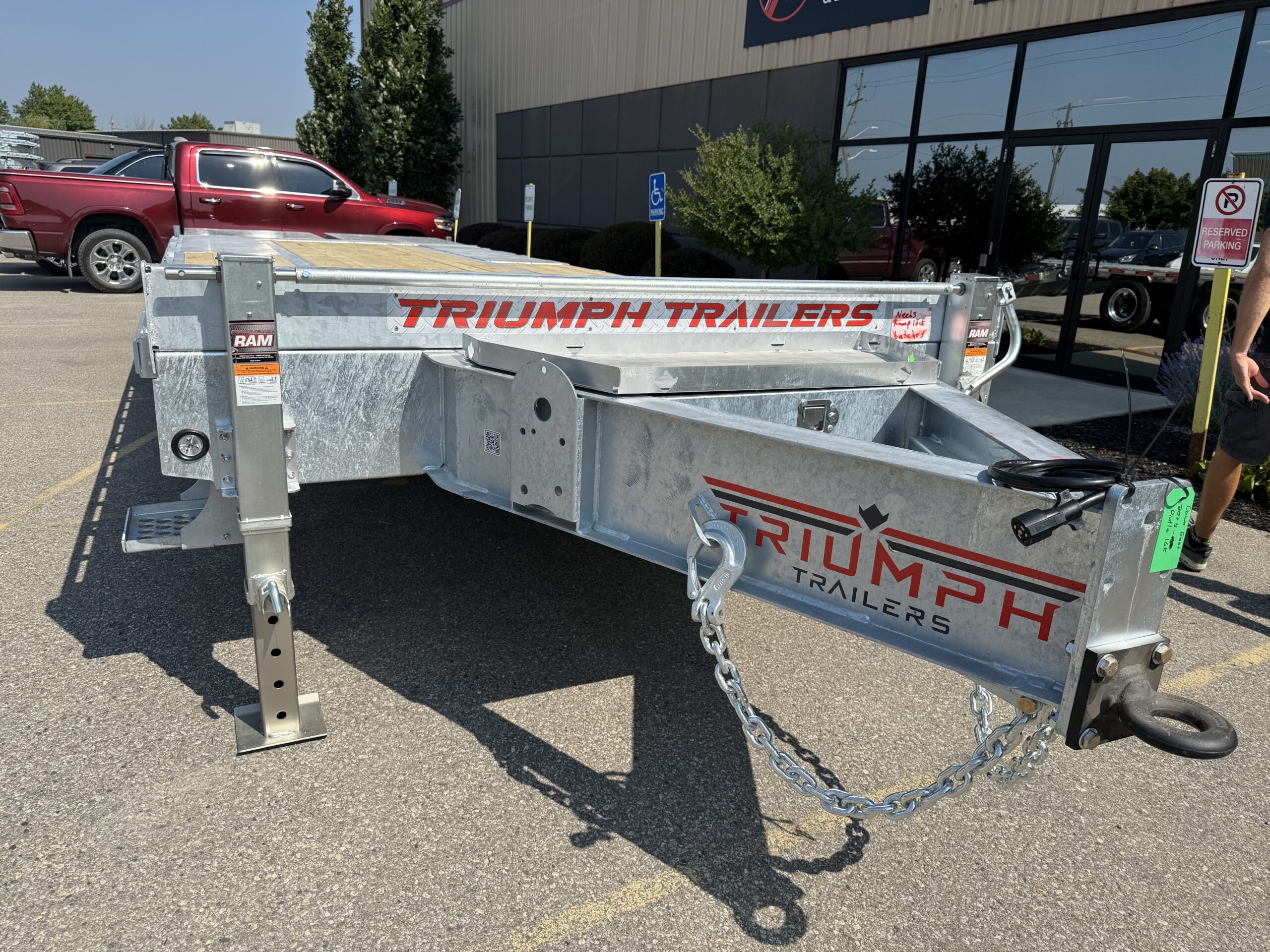

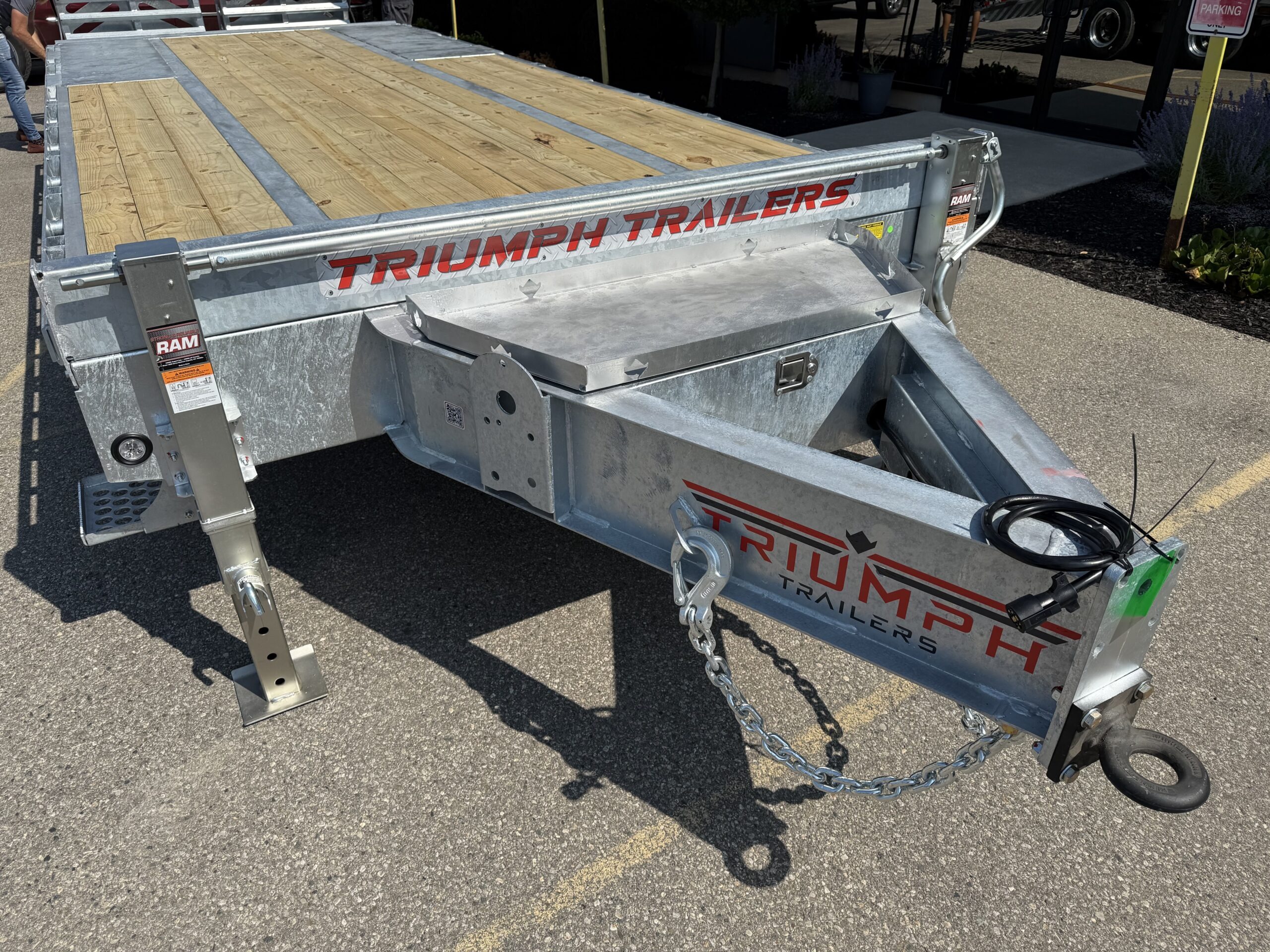

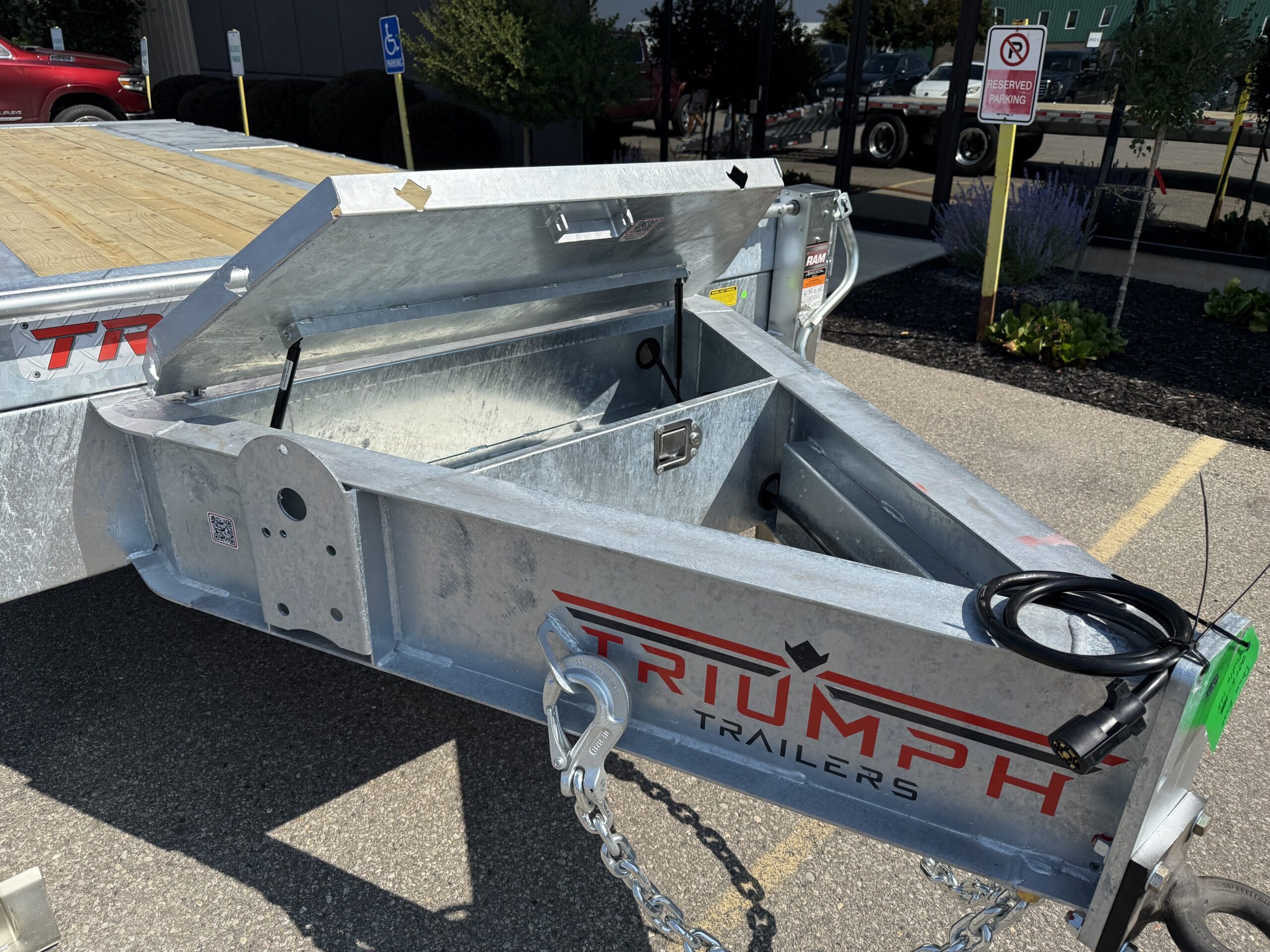

  • Pintle ring rated for 40,000 pounds
  • Tandem 12k jacks
  • LED lighting
  • Low profile deck (34” deck height)
  • Heat shrink connectors on wire harness
  • Drop legs
  • Stake pockets/rub rail along sides of trailer
  • 5’ beavertail

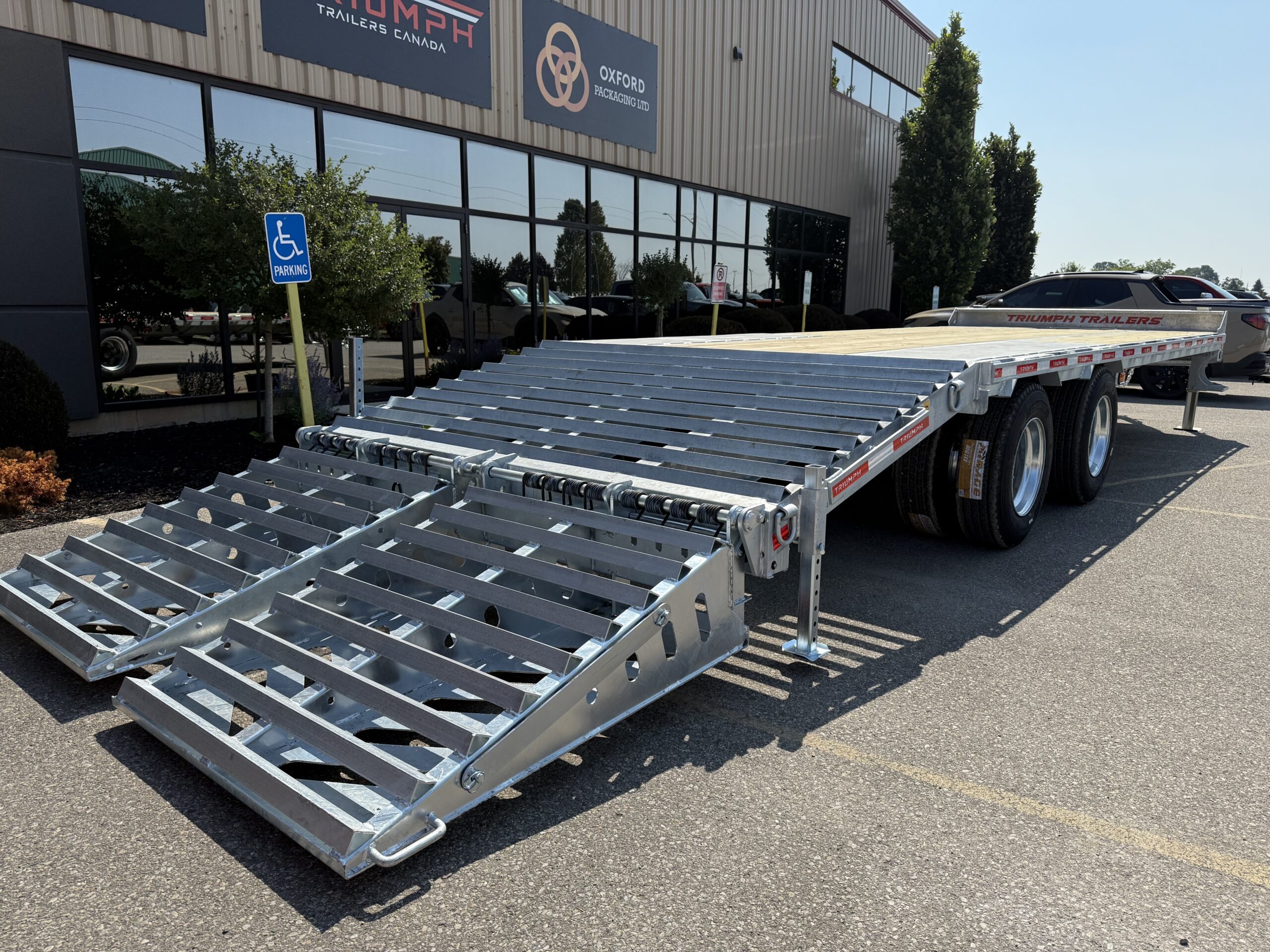

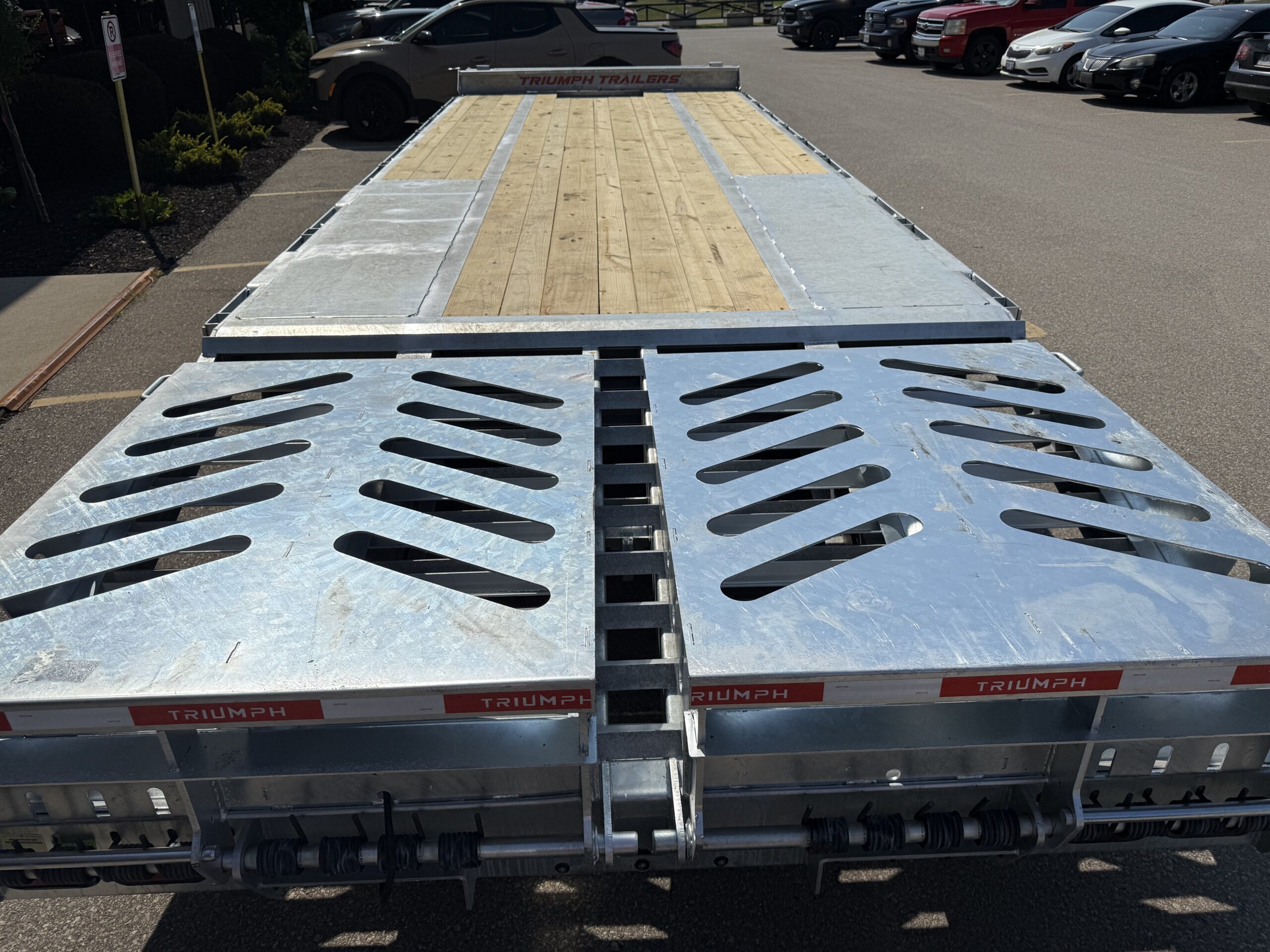

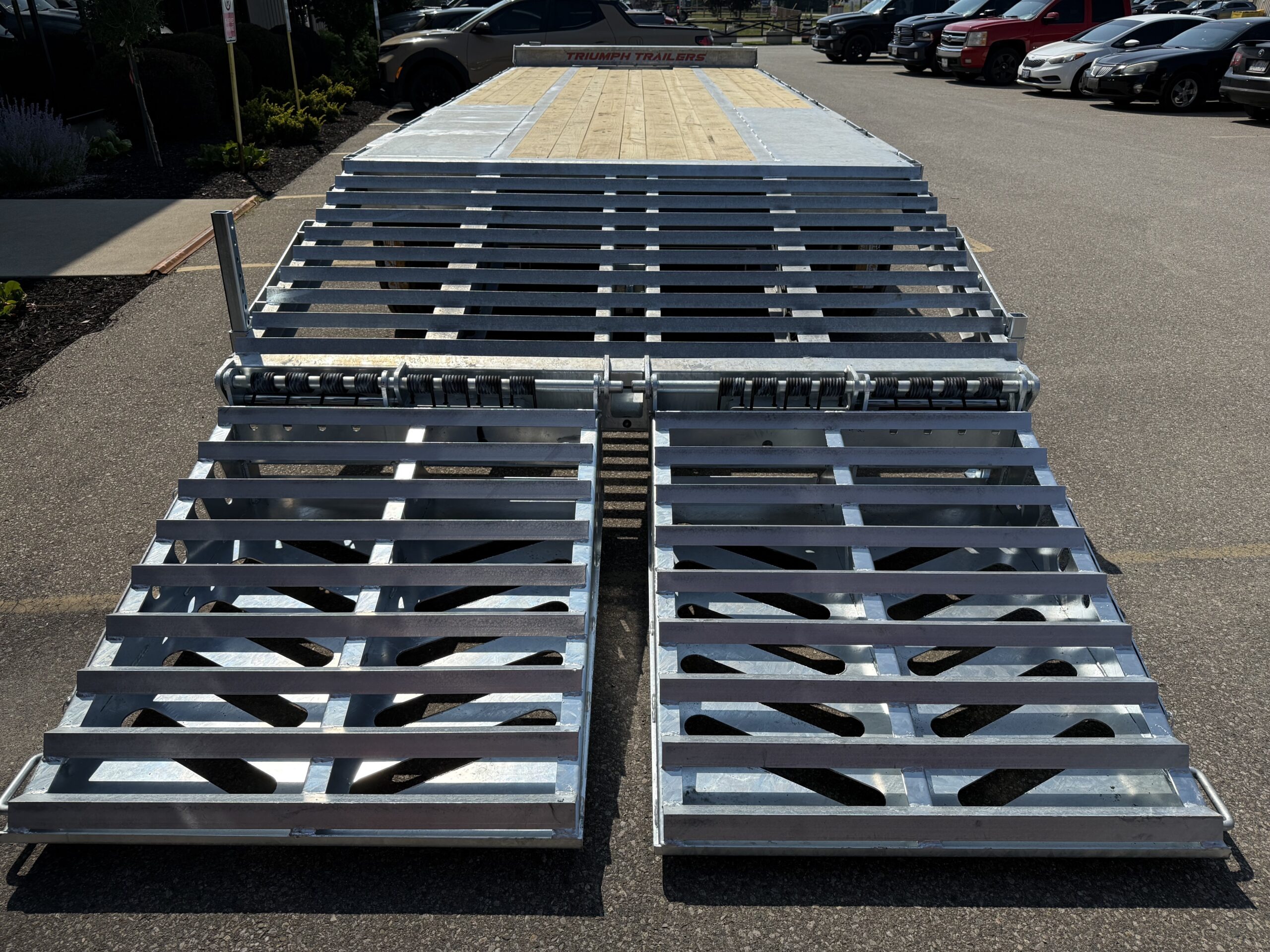

  • Mega ramps

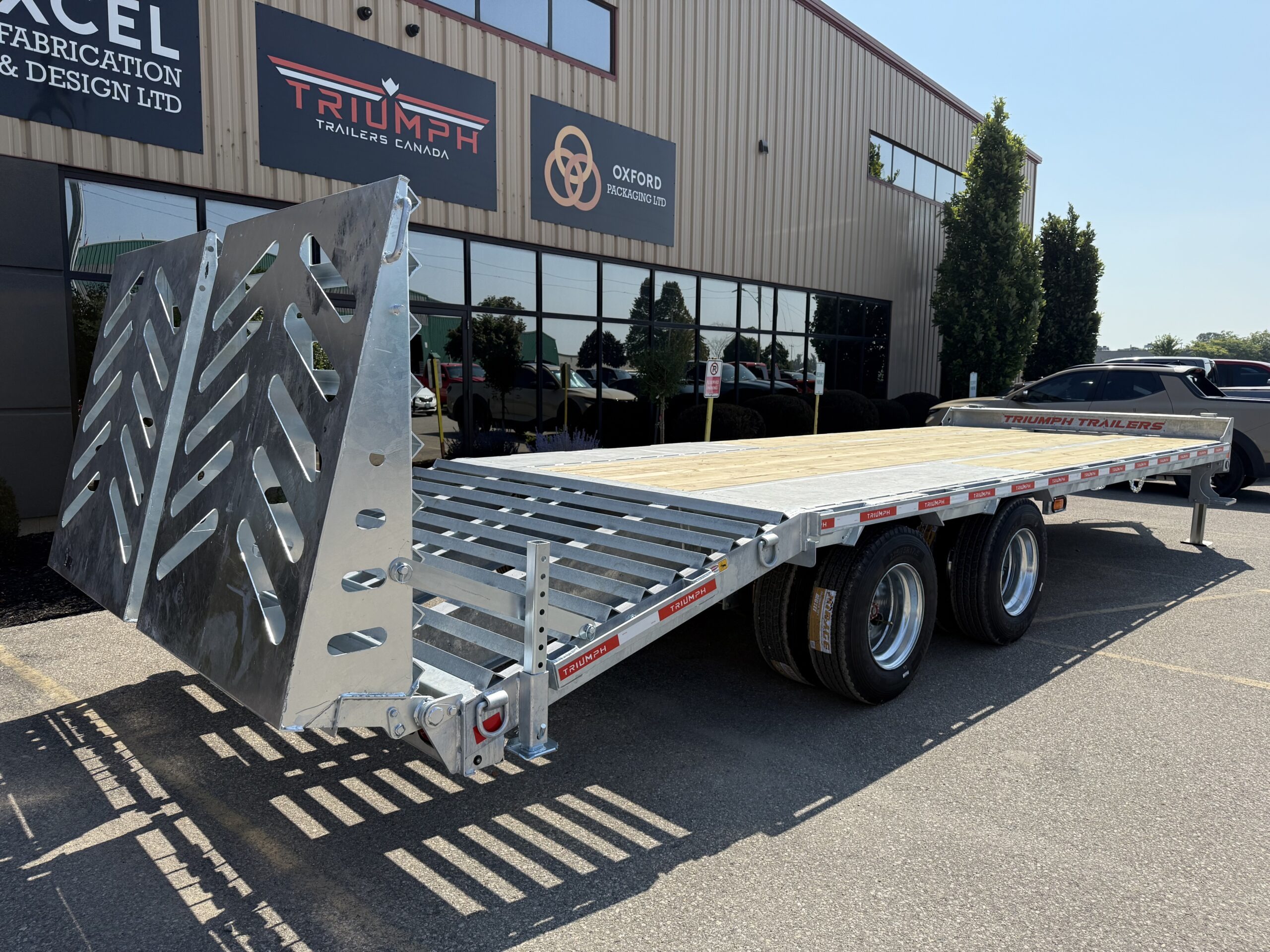

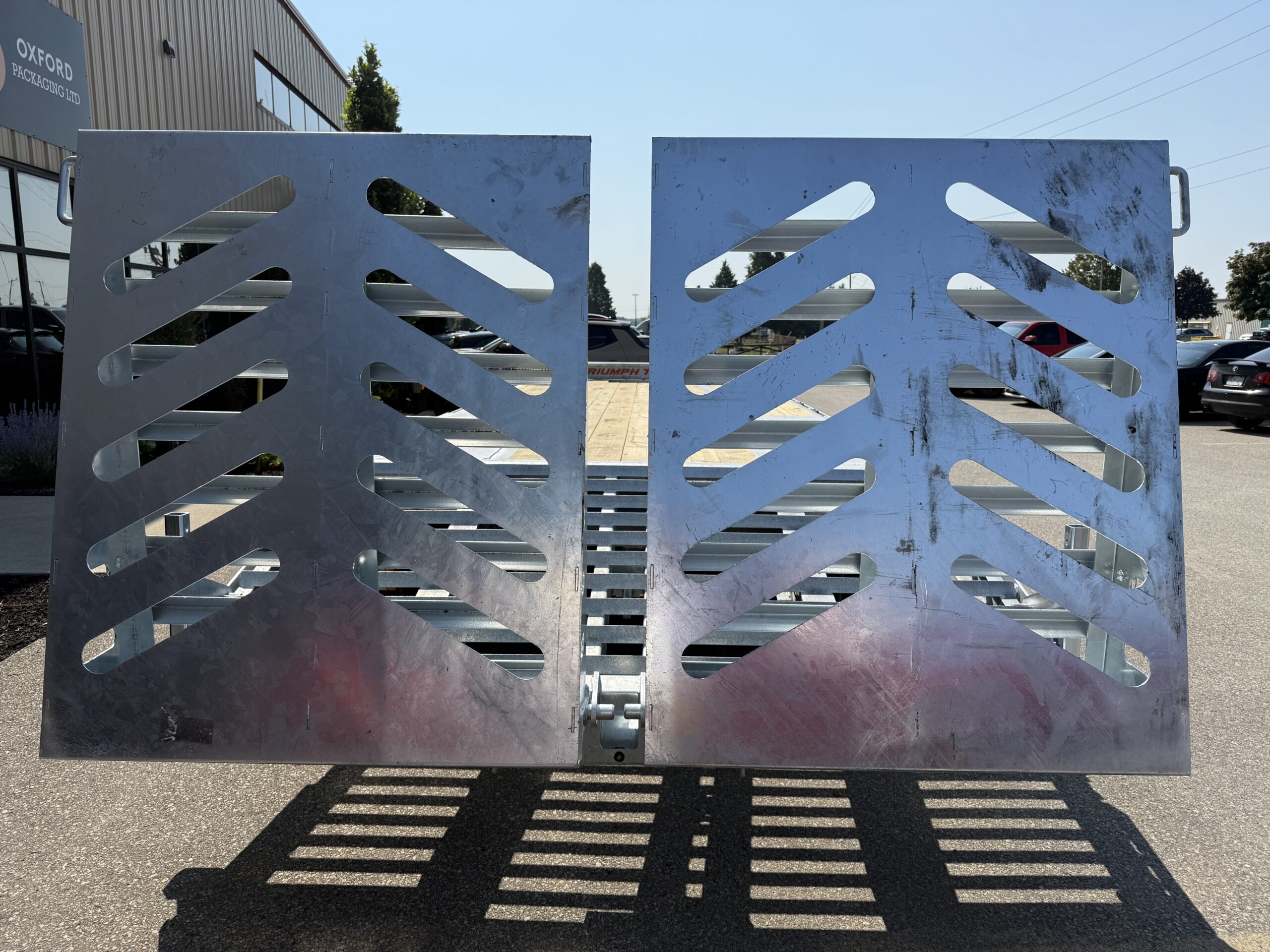

  • Heavy duty Spring assisted ramps
  • Hot dip galvanize finish

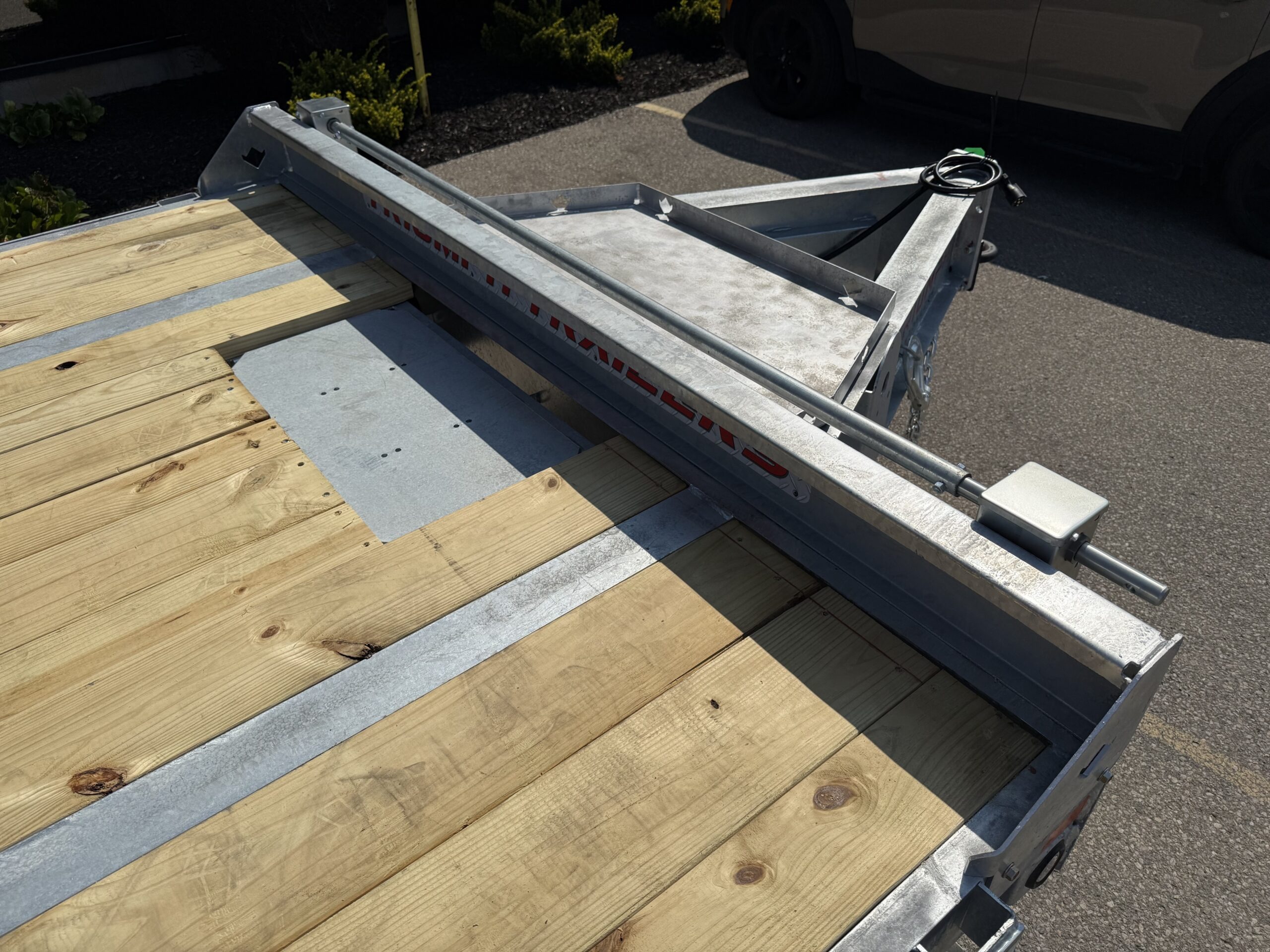

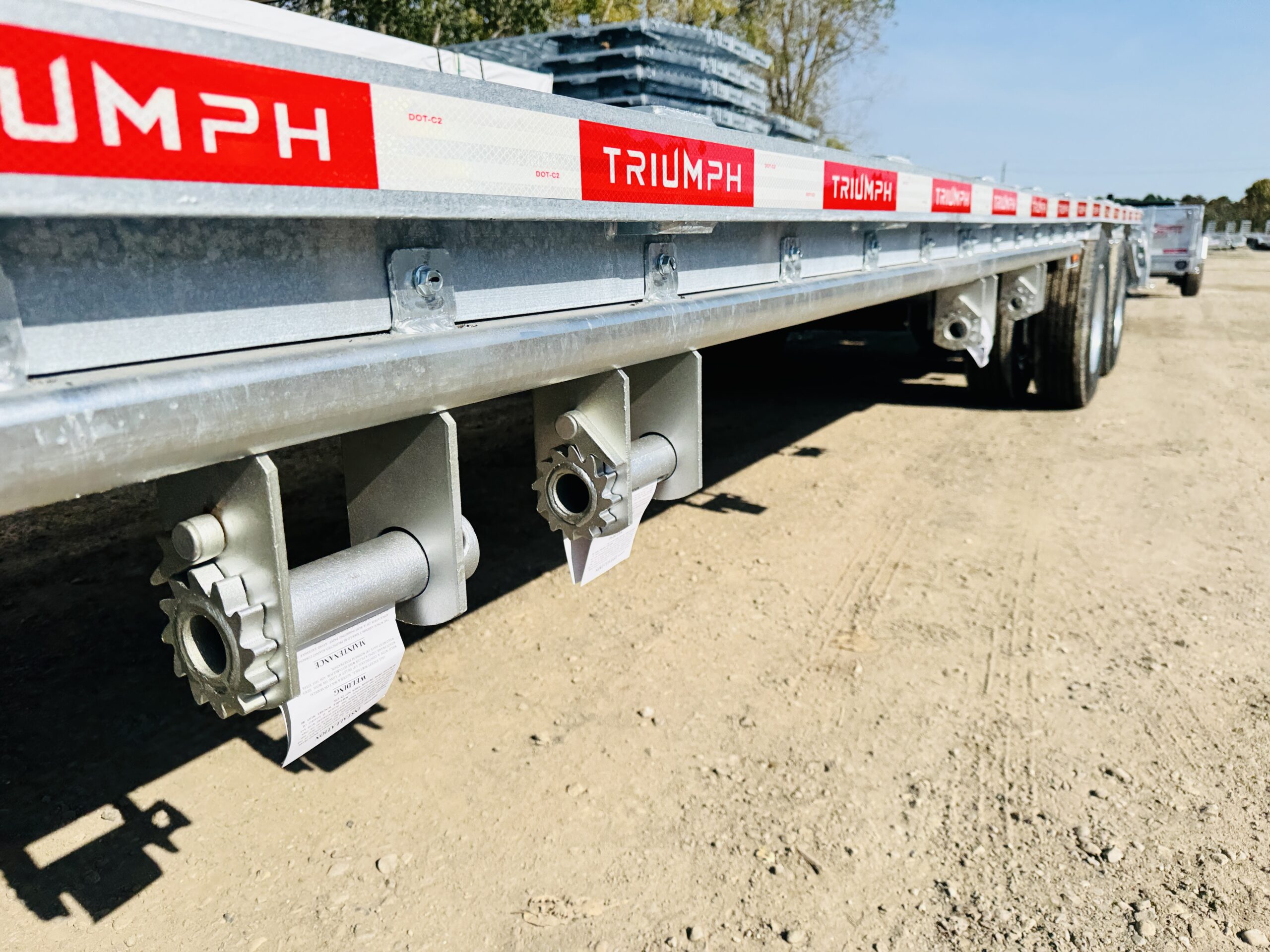

  • Winch tracking with a slider every 5 feet
  • 15k axle upgrade
  • 15k hydraulic axle upgrade
  • 5th wheel attachment optional
  • 2 speed jacks
  • Spare tire

3 Year – Structure and Frame Defects
5 Year – Axle System and Trailer Finish (Aluminum and Galvanized)

Additional information

Trailer Type


Deck Width

Deck Length

Deck Height



Trailer Weight

Axle Weight Rating

Coupler Style

Coupler Size

Electrical Plug
