7×18 Aluminum Premium Enclosed Trailer

Description

• OVERALL LENGTH – 23’3”
• OVERALL WIDTH – 8‘8”
• OVERALL HEIGHT – 8’10”
• INTERIOR LENGTH (BOX) – 17’9″
• INTERIOR (V-NOSE) – 39″
  INTERIOR WIDTH – 6’7″
  INTERIOR HEIGHT – 7′
  ROAD-TO-FLOOR – 15″
  INTERIOR SPACE – 800sfq
  REAR DOORS: easy-drop ramp
  OPENING WIDTH – 6’4″
  OPENING HEIGHT – 6’10”
  SIDE DOOR: 32″ flush-lock
  OPENING WIDTH – 30″
  LOAD RATING – 5,000 lbs
  CURB WEIGHT – 2,000 lbs
  GVWR – 7,000 lbs

OUTER CLADDING and FRONT CORNERS: screwless .030 high-grade aluminum

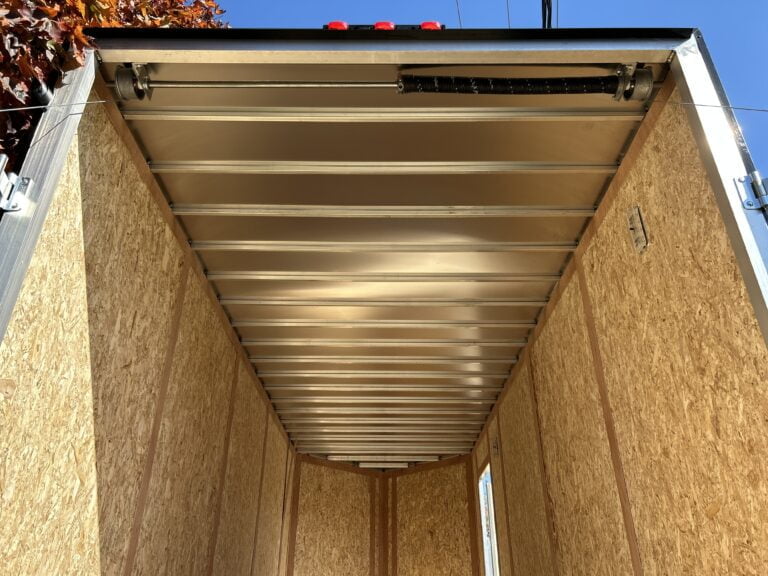

INNER SIDEWALLS and ROOF CONSTRUCTION: 3/8-inch Drymax with 16-inch on-centres

FLOOR CONSTRUCTION: 3/4-inch Drymax plywood with 16-inch on-centres

FRAME CONSTRUCTION: integrated triple-tube tongue and frame configuration

DROP AXLES: two axles rated 3,500 lbs (7,000 GVWR)

HITCH FORMAT: A-frame with 2 5/16″ ball receiver

EXTERIOR LIGHTS: LED stop, tail, turn and marker

INTERIOR LIGHTS: LED wall-mount (2)
