Description

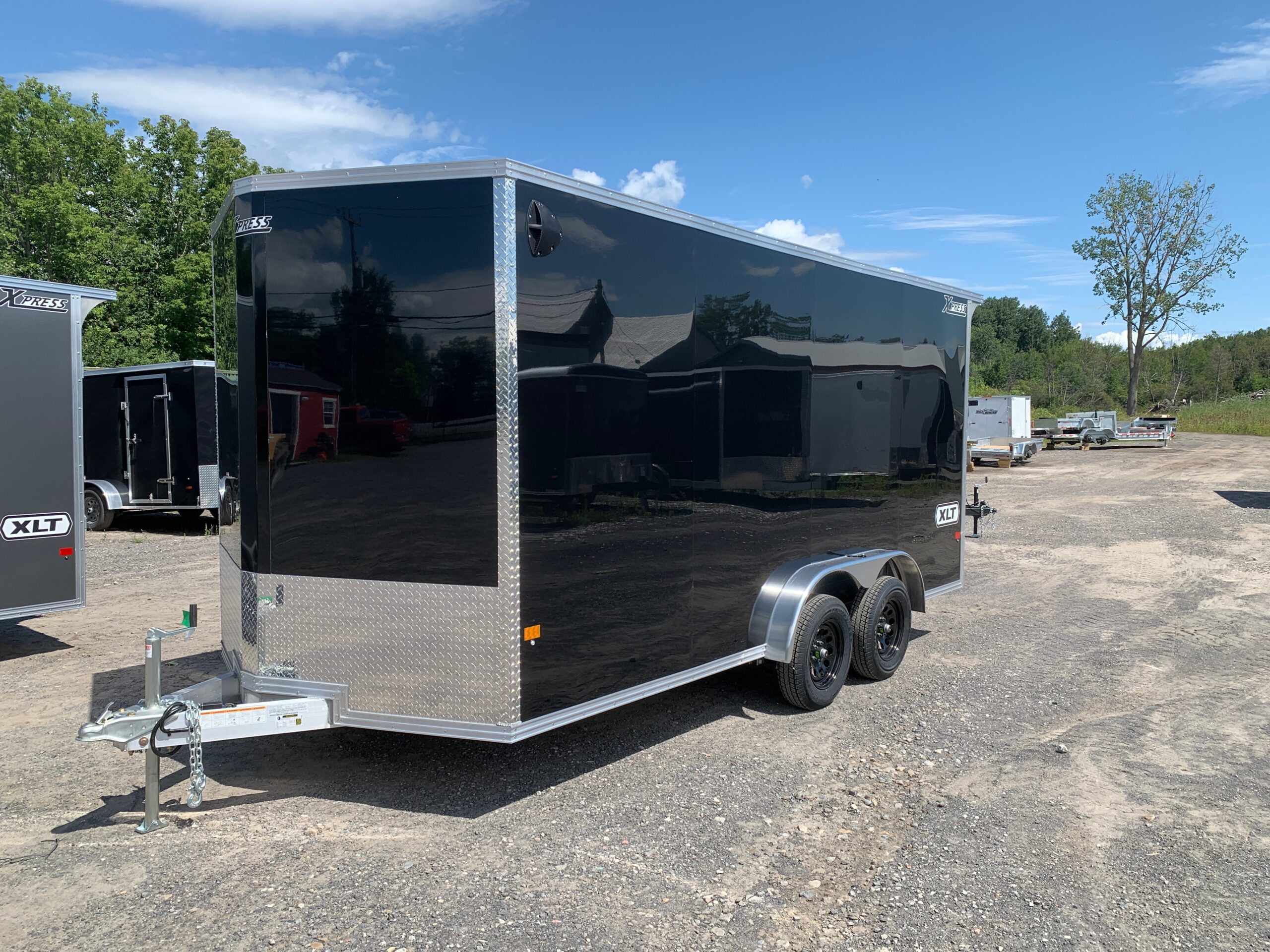

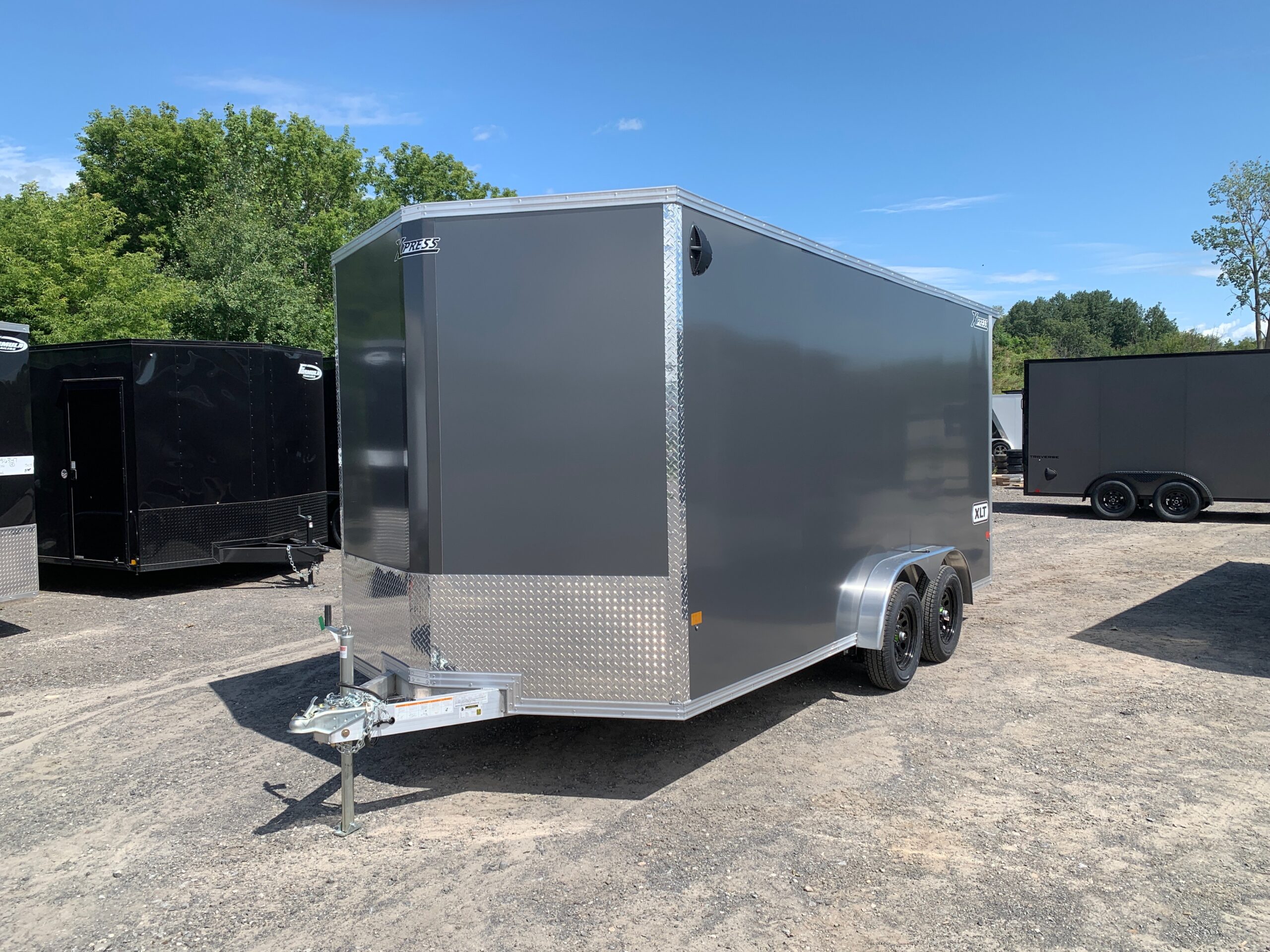

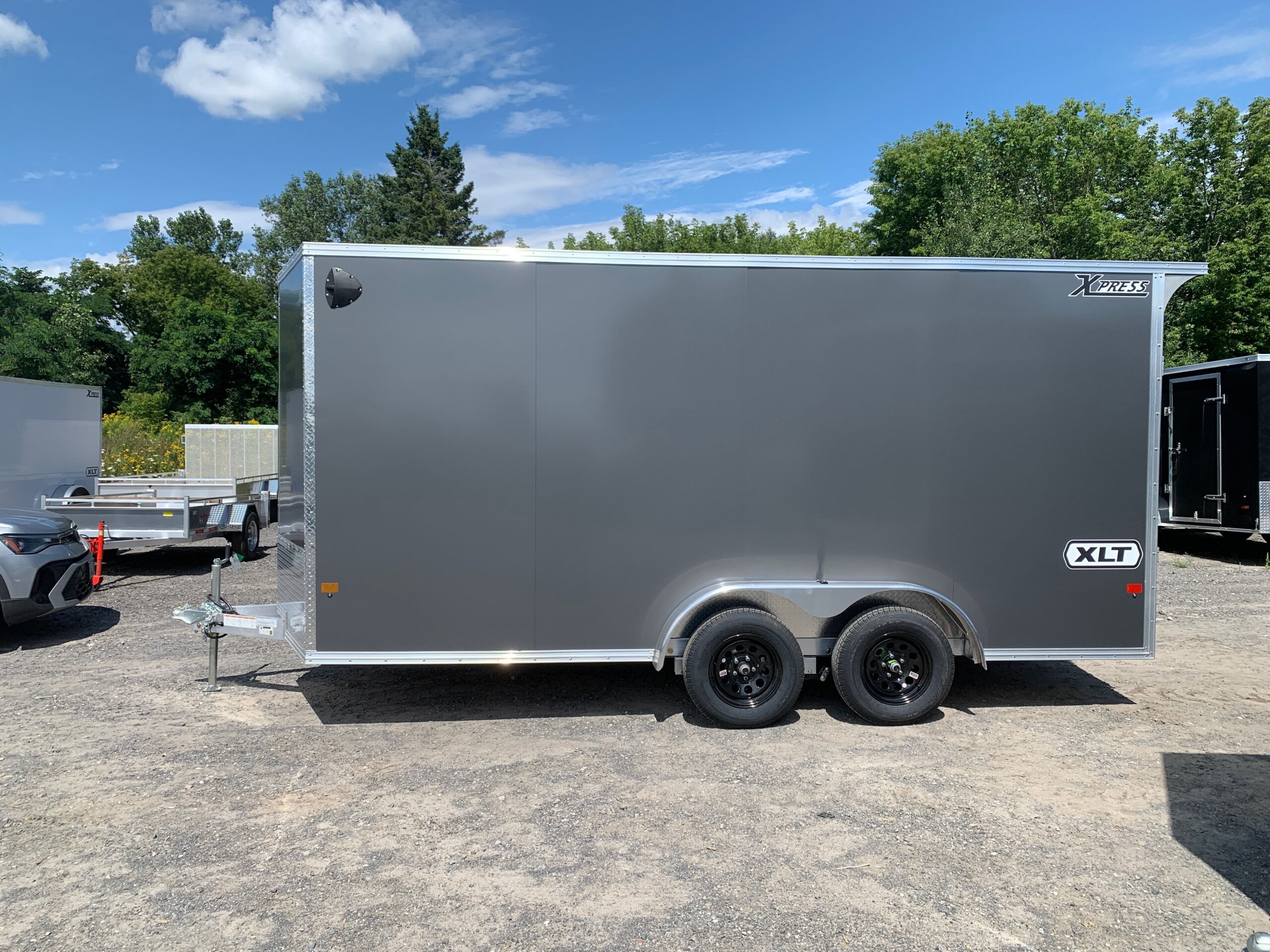

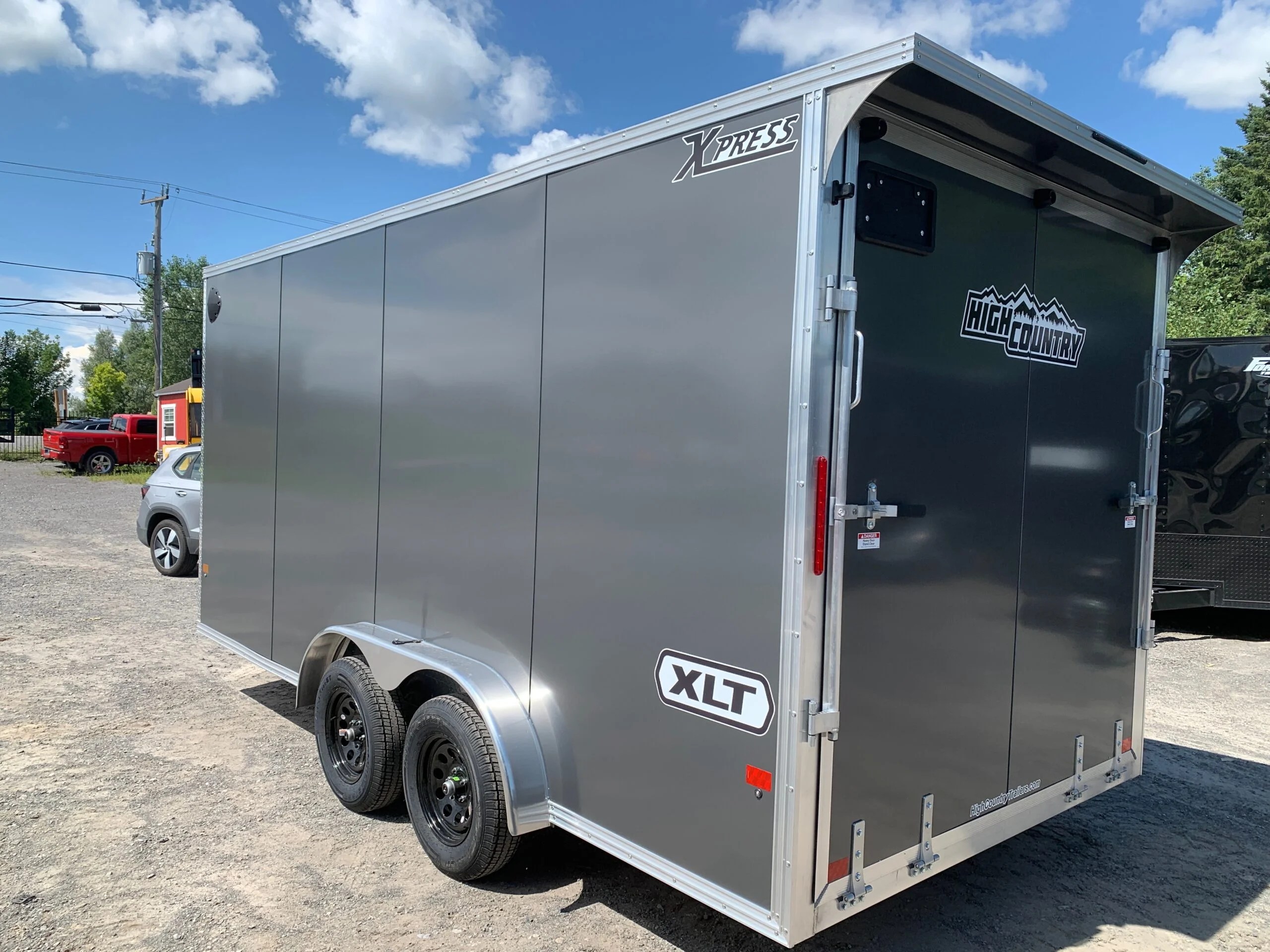

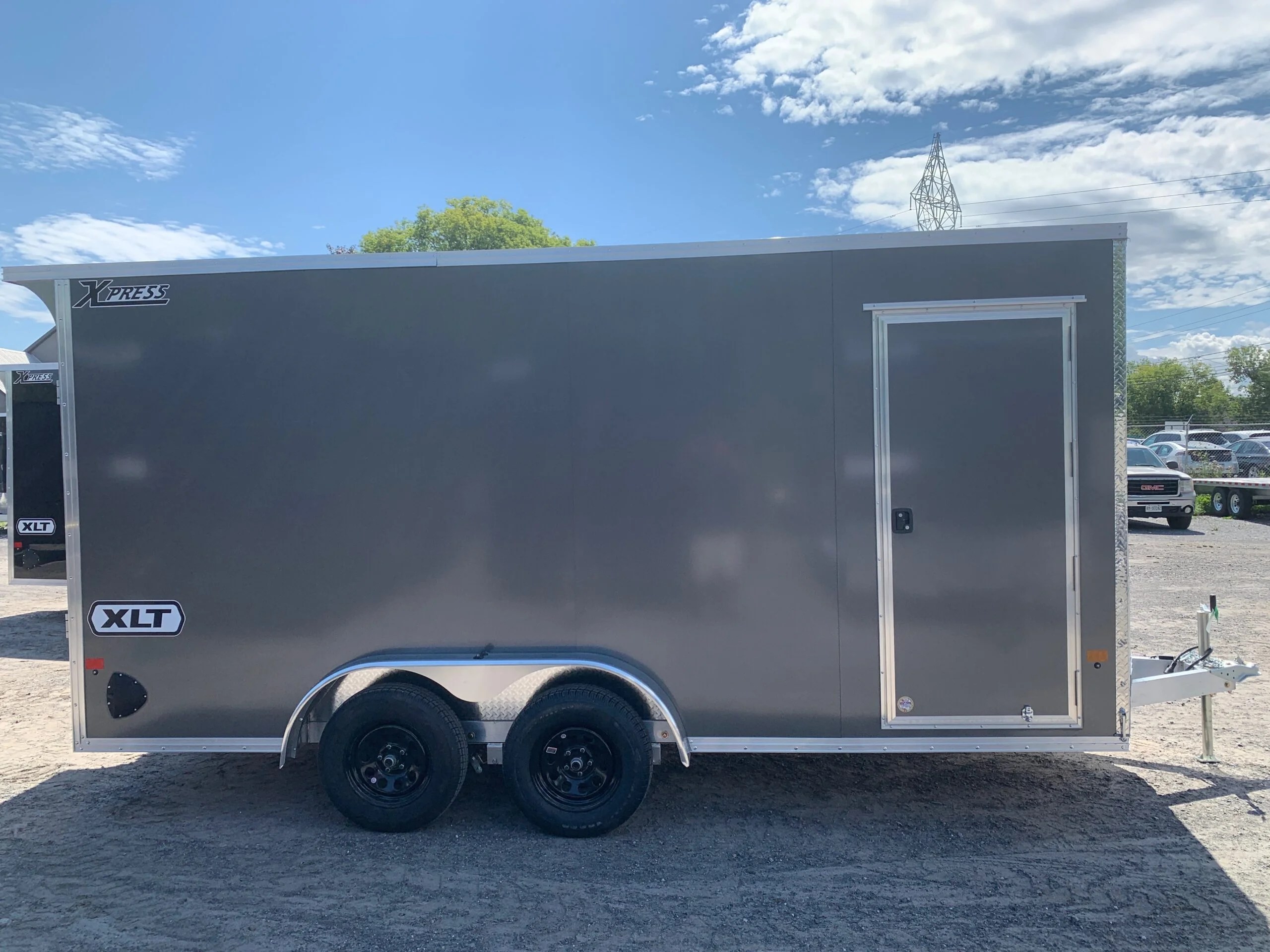

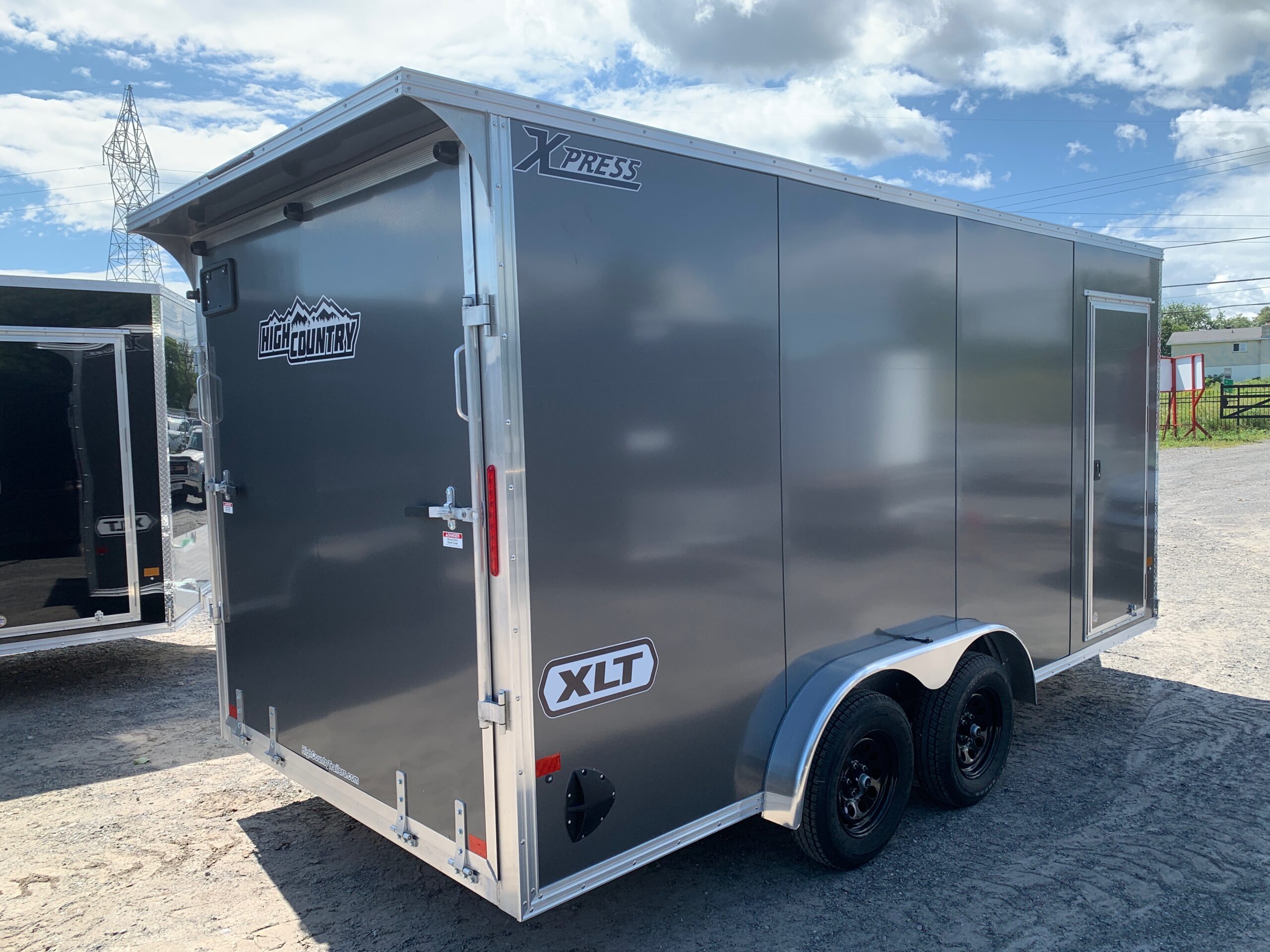

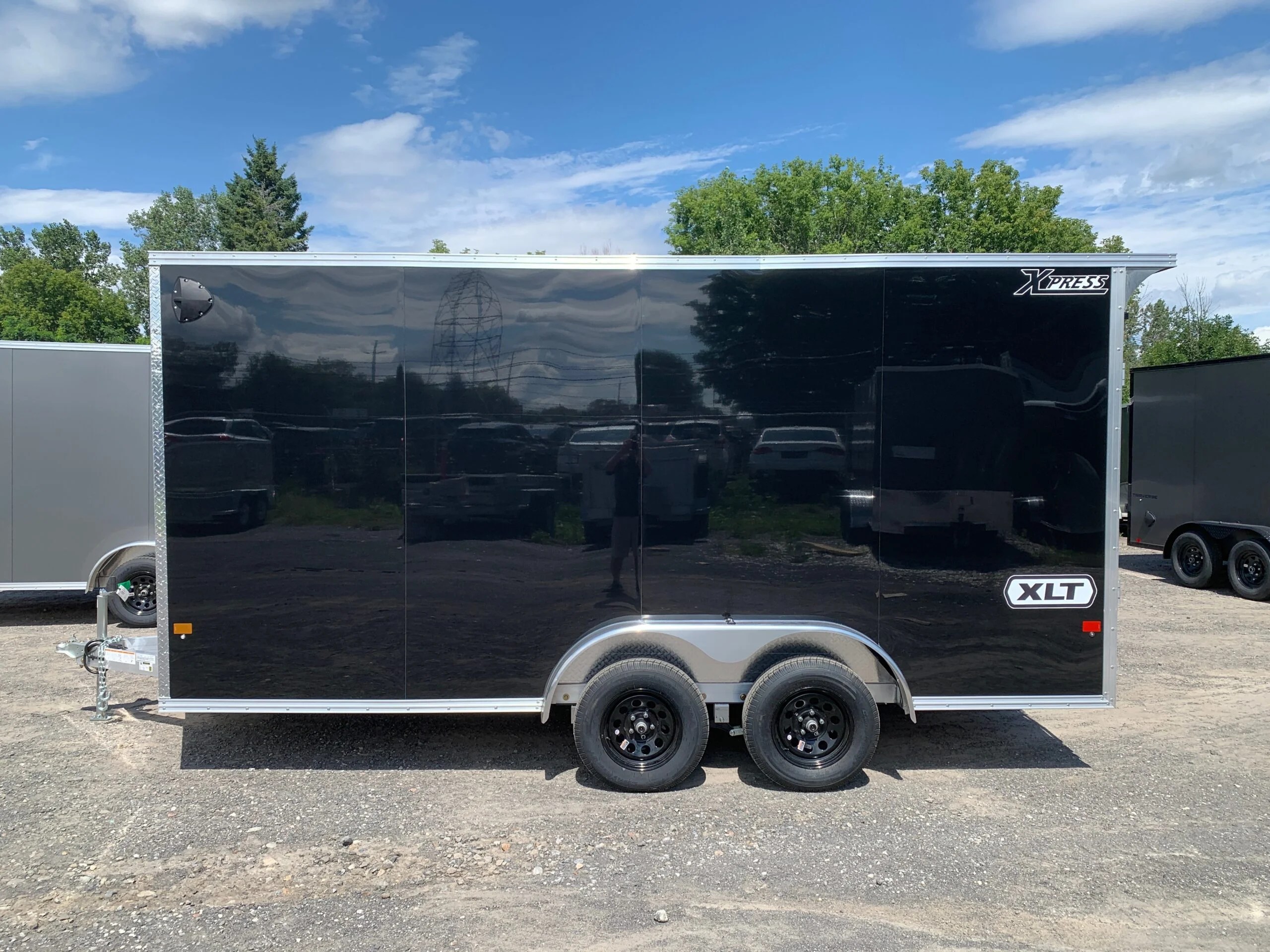

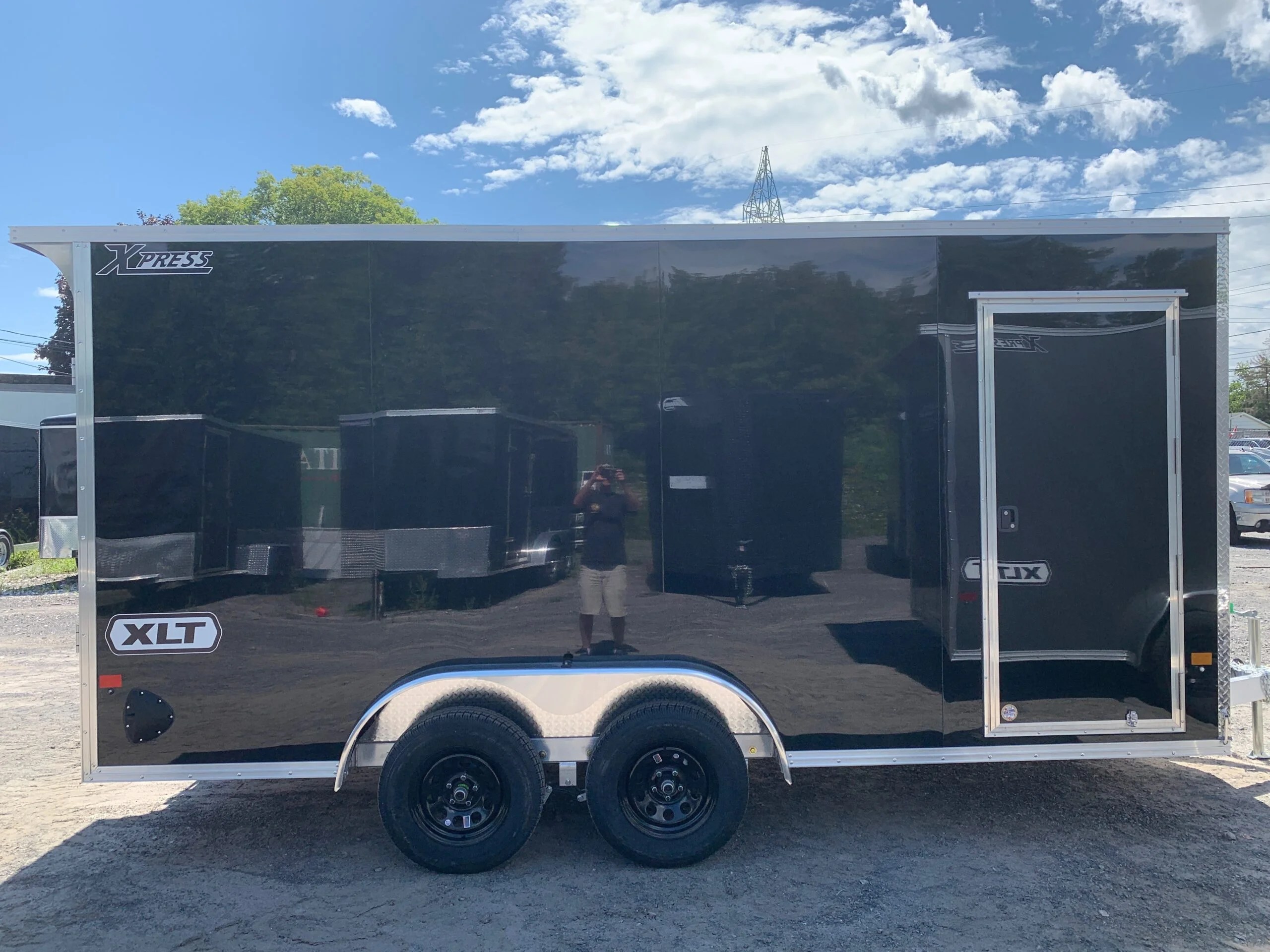

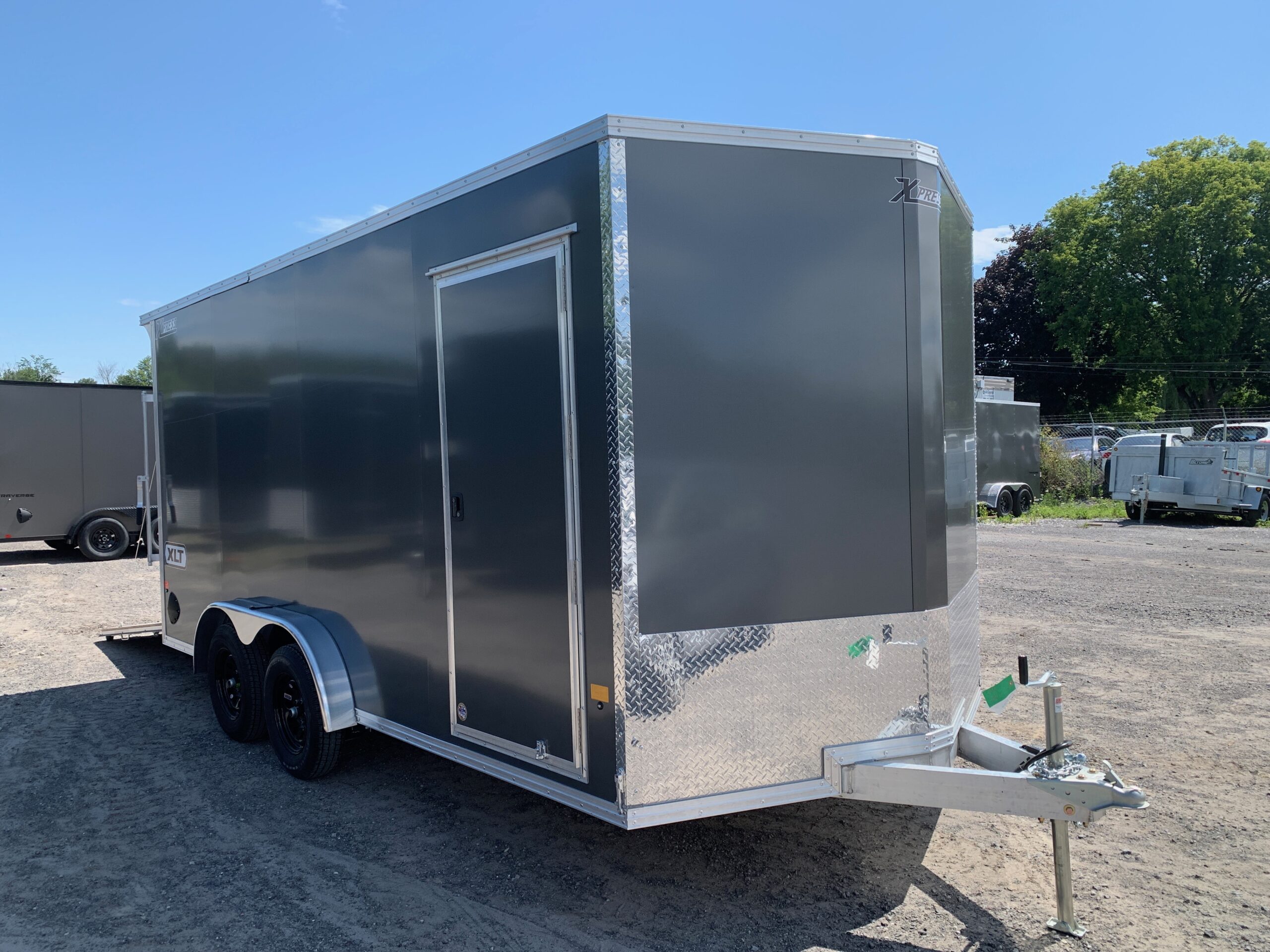

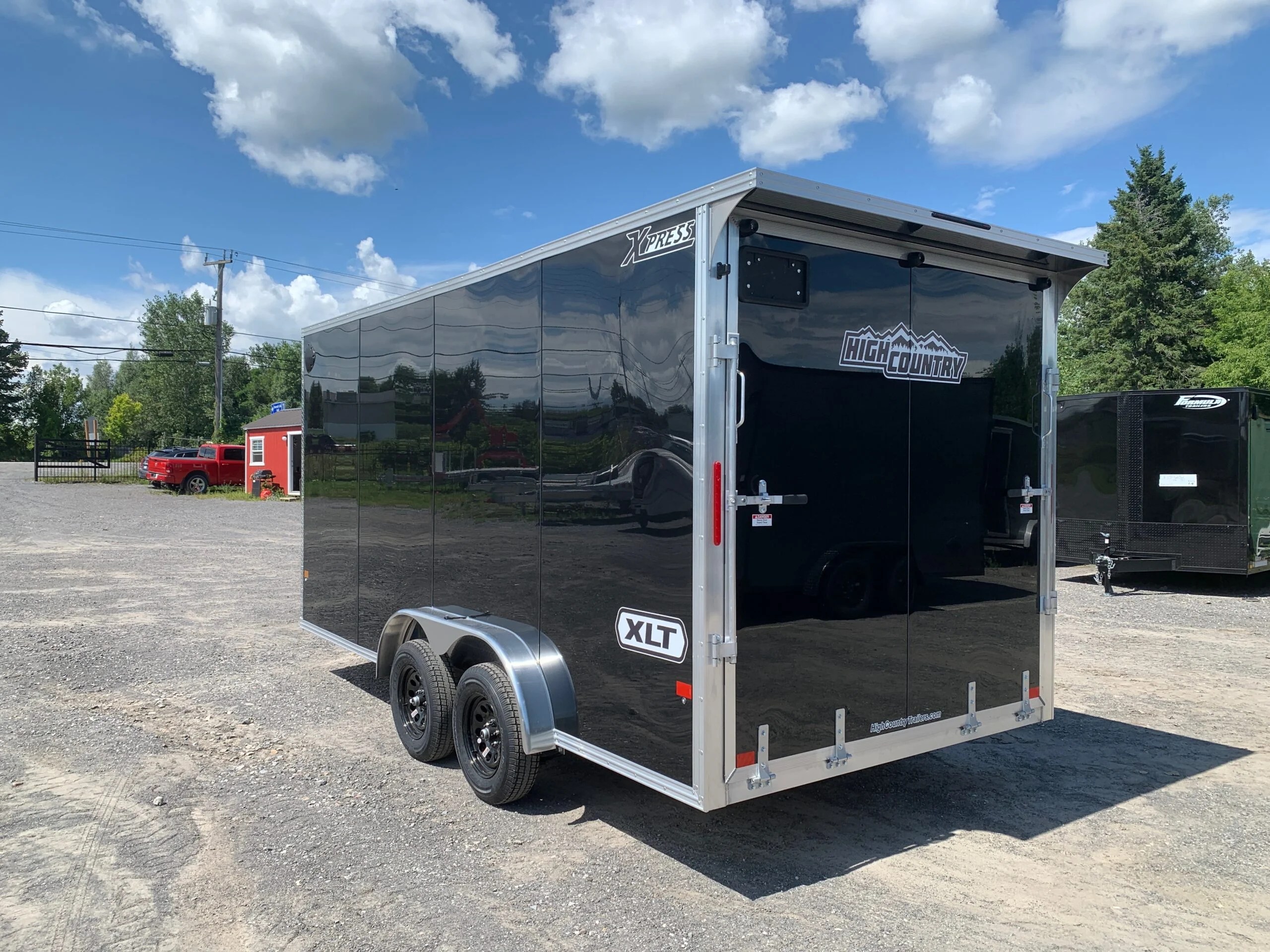

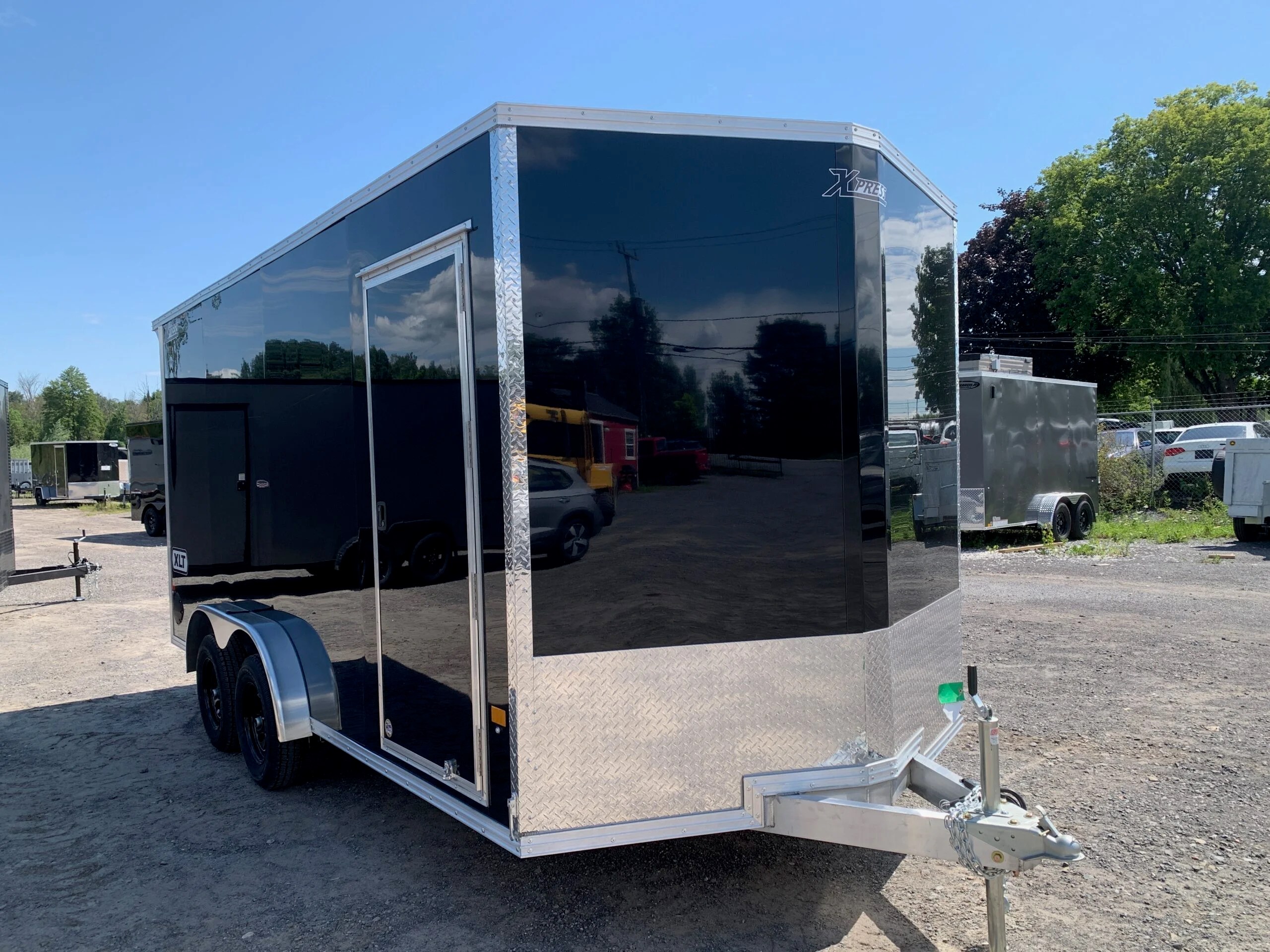

Alcom 7.5X16 Tandem Axle Aluminum Enclosed, Ramp Door, 87″H
Options & Upgrades Included:
**WIDTH – 7.5′ (FT)**
87″ Interior Height (81″ Door Opening Height)
6? Additional Height on Side Door
Upgrade to ACP (Aluminum Composite Panels) Exterior .080 Sheeting

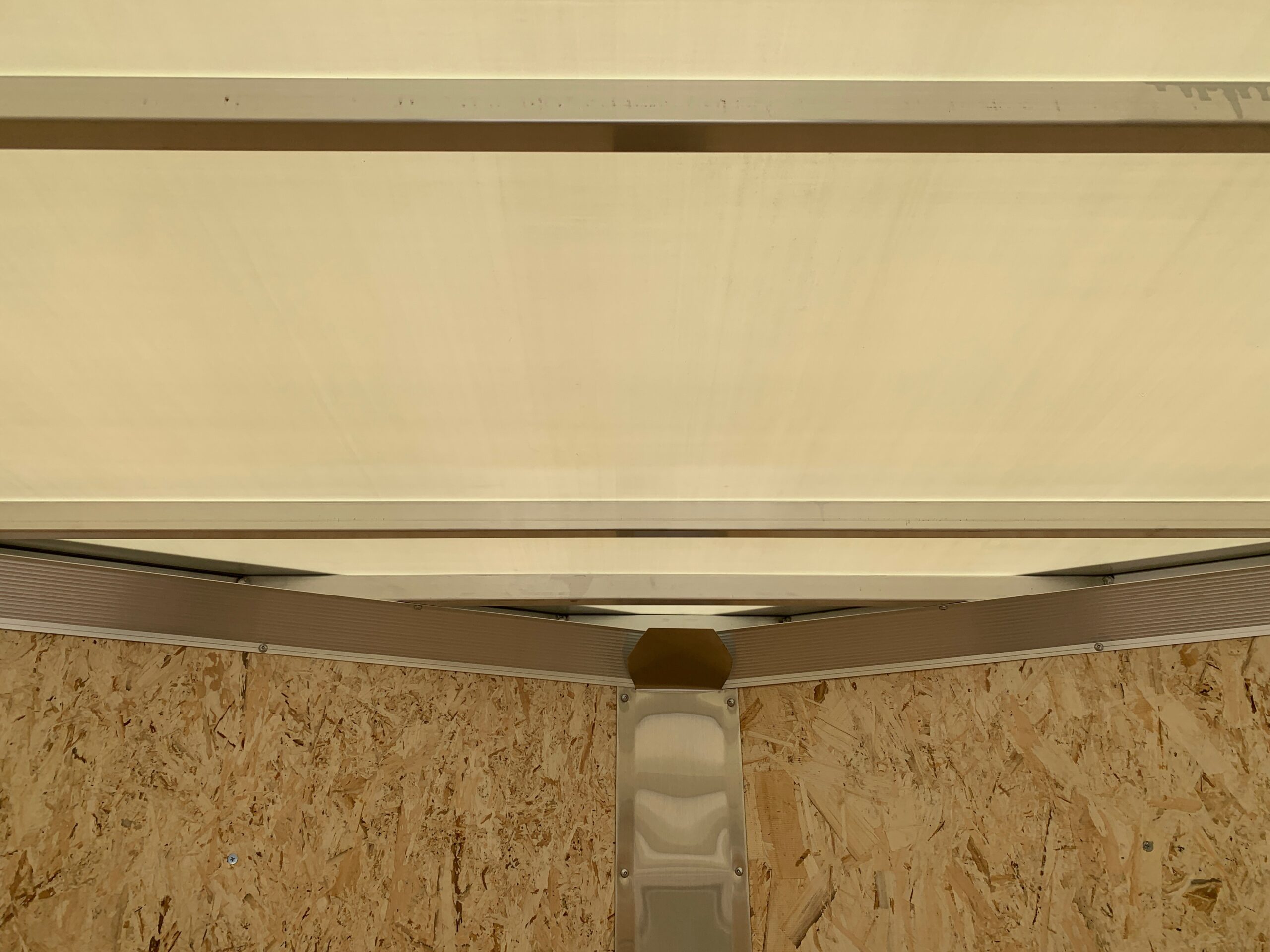

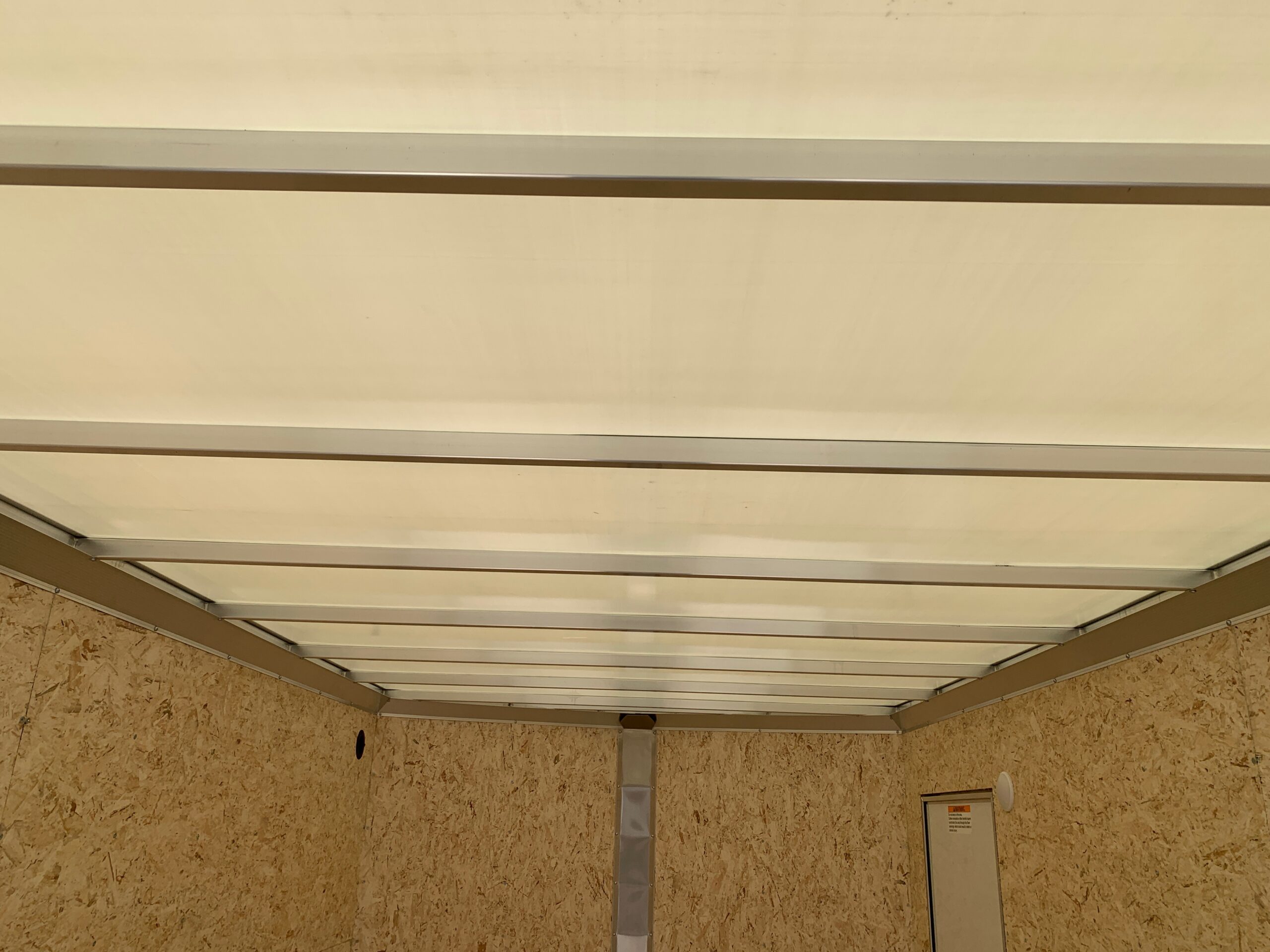

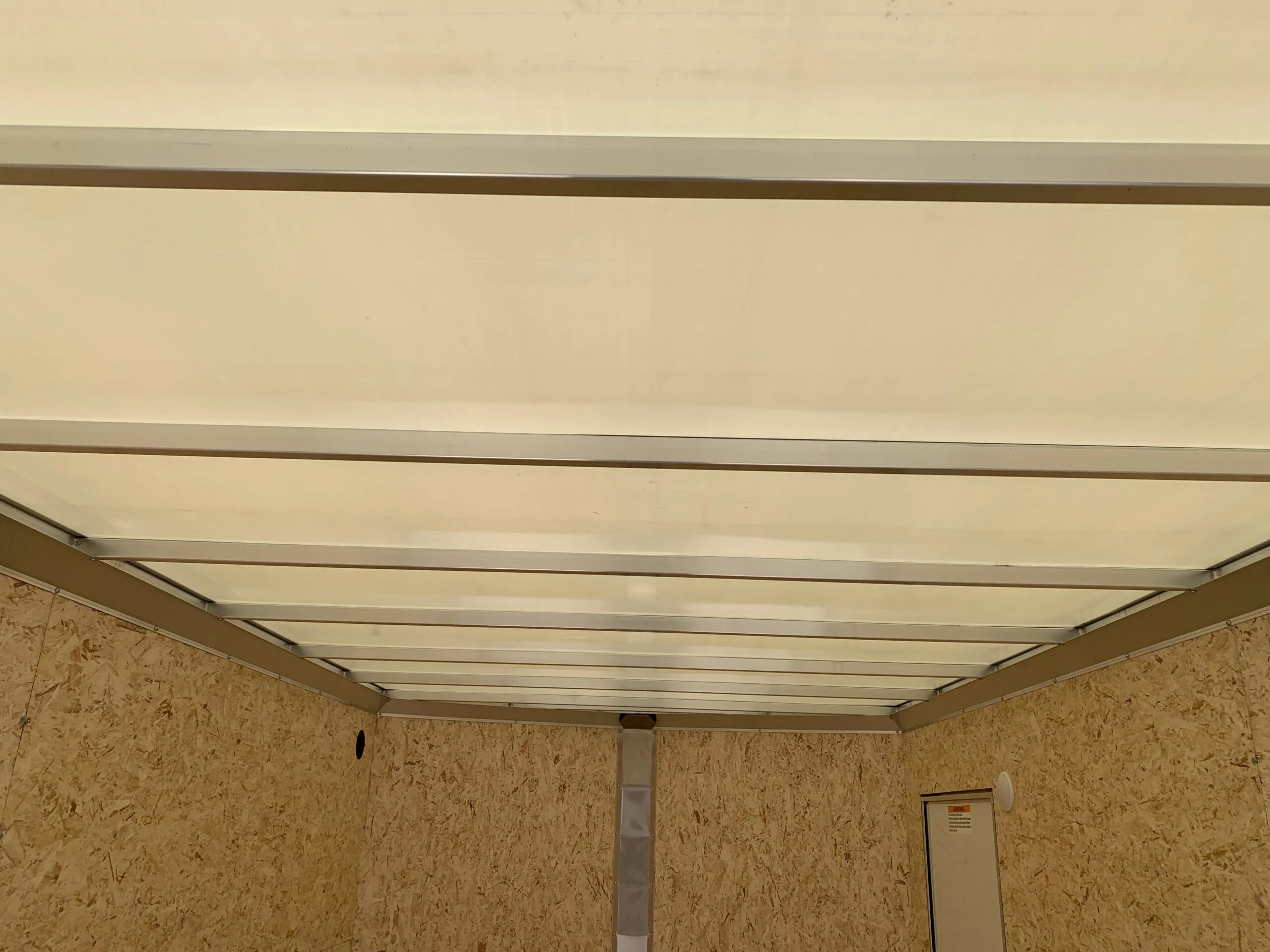

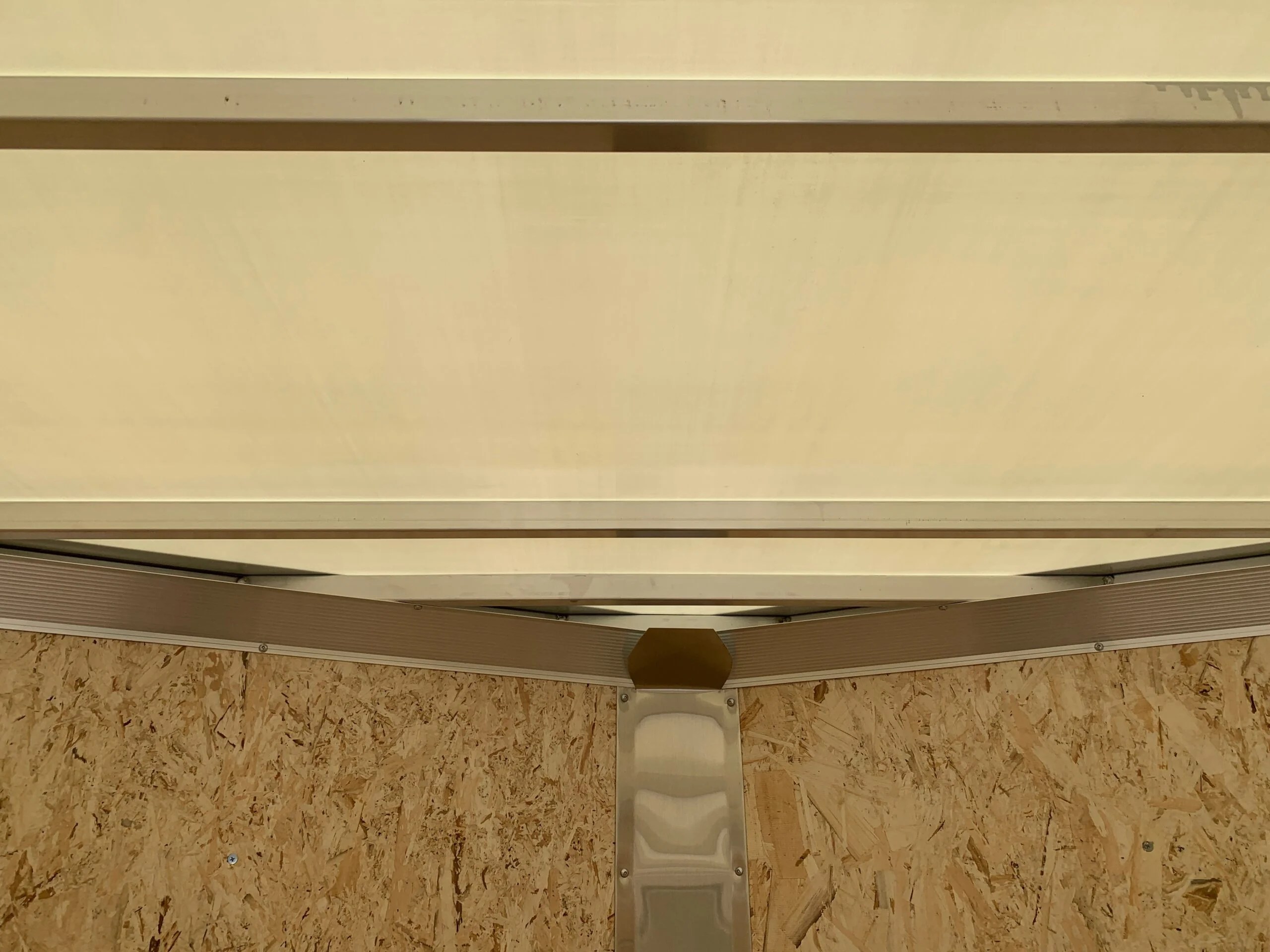

Upgrade to Composite Translucent Roof

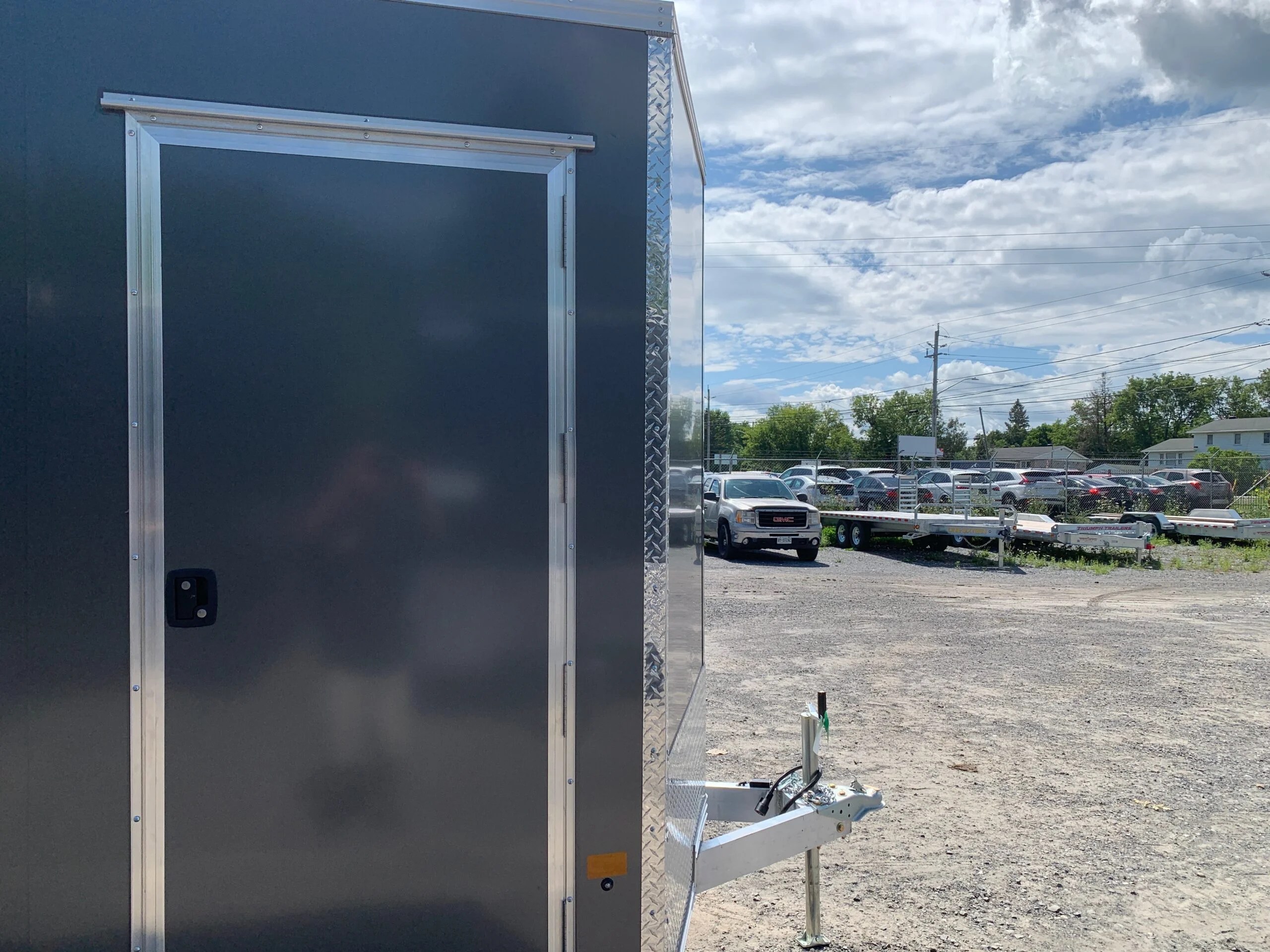

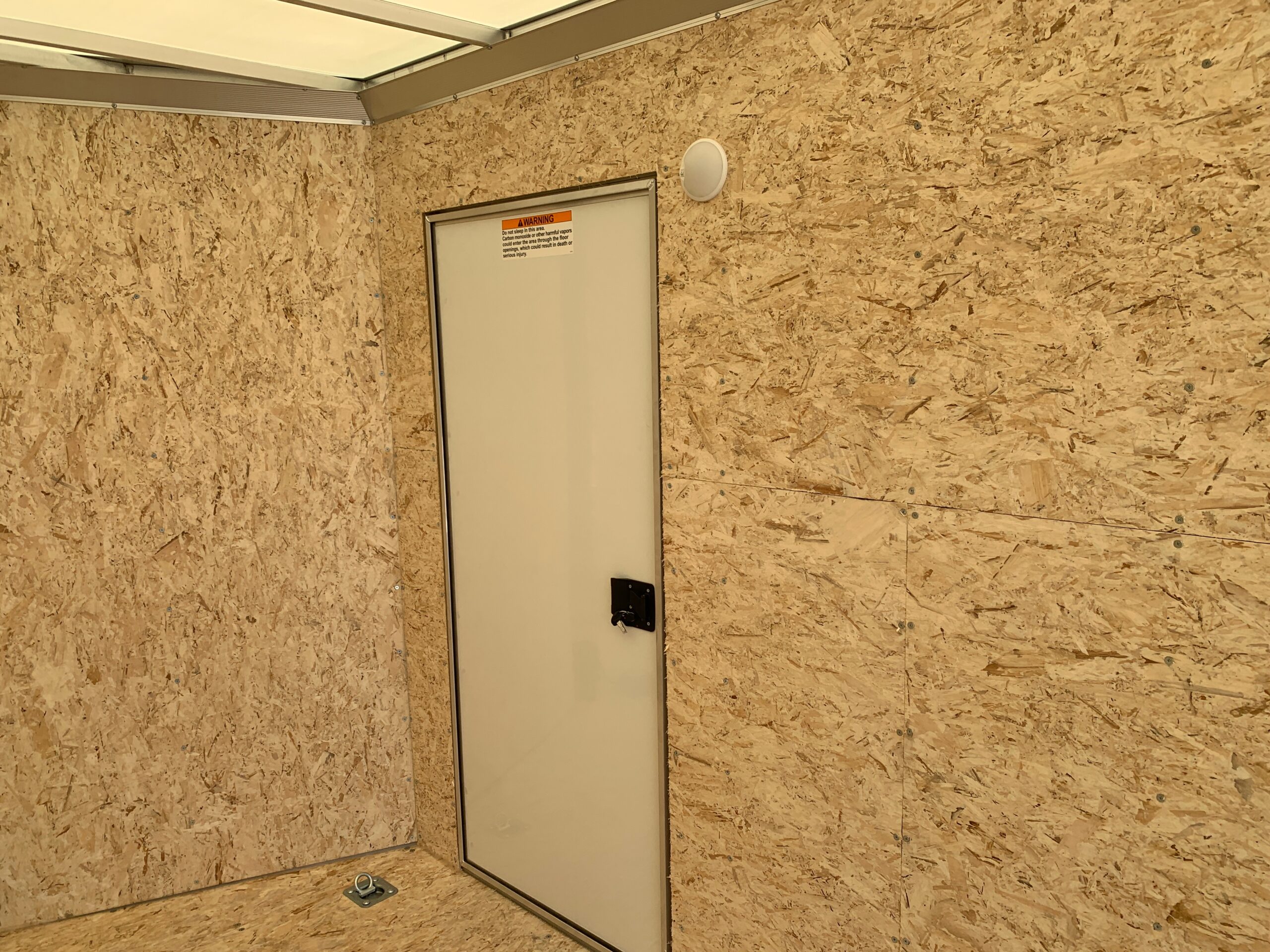

Upgrade to 32″ x 72″ Paddle Handle & Piano Hinge Side Access Door (From 66″)

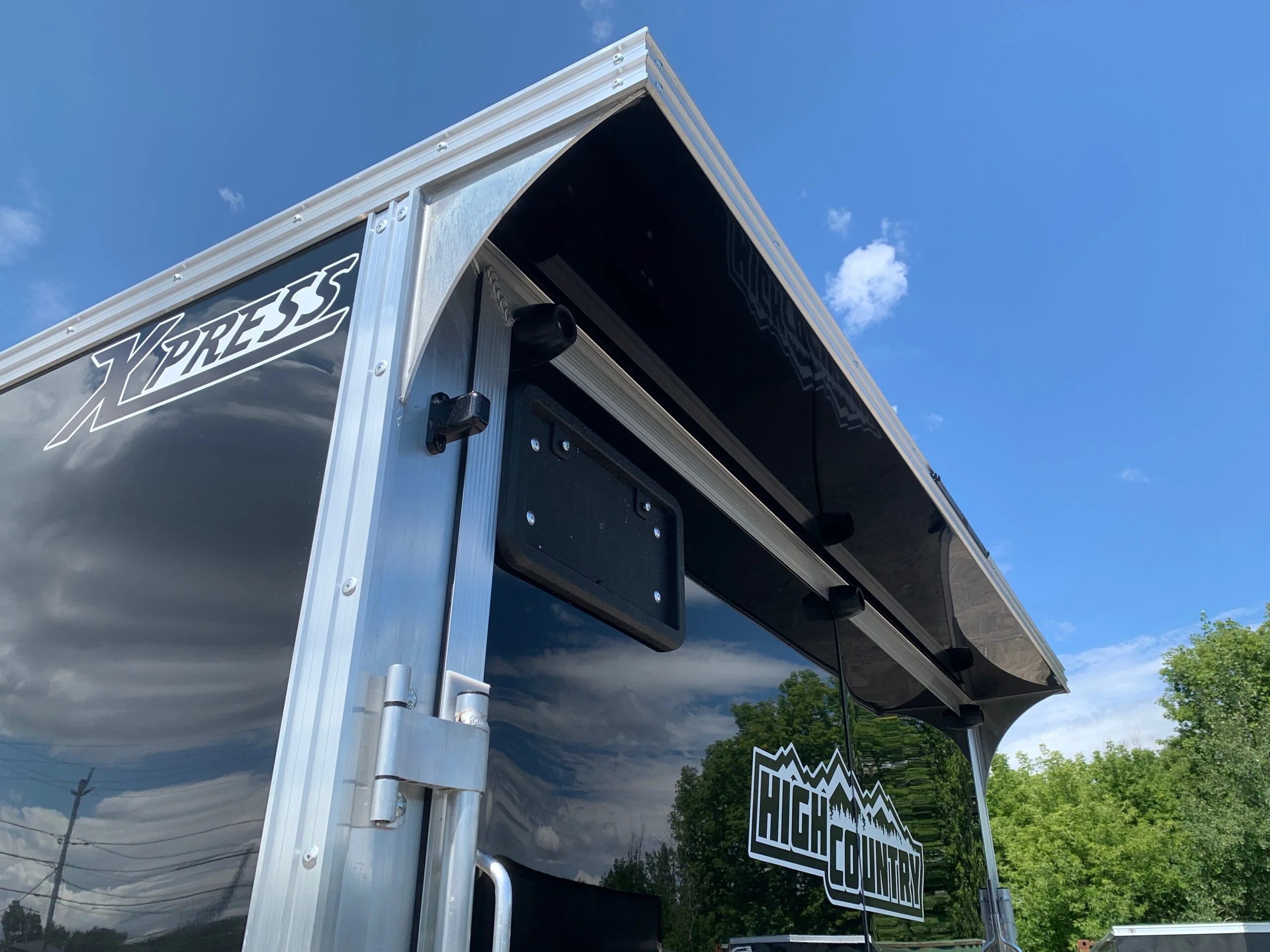

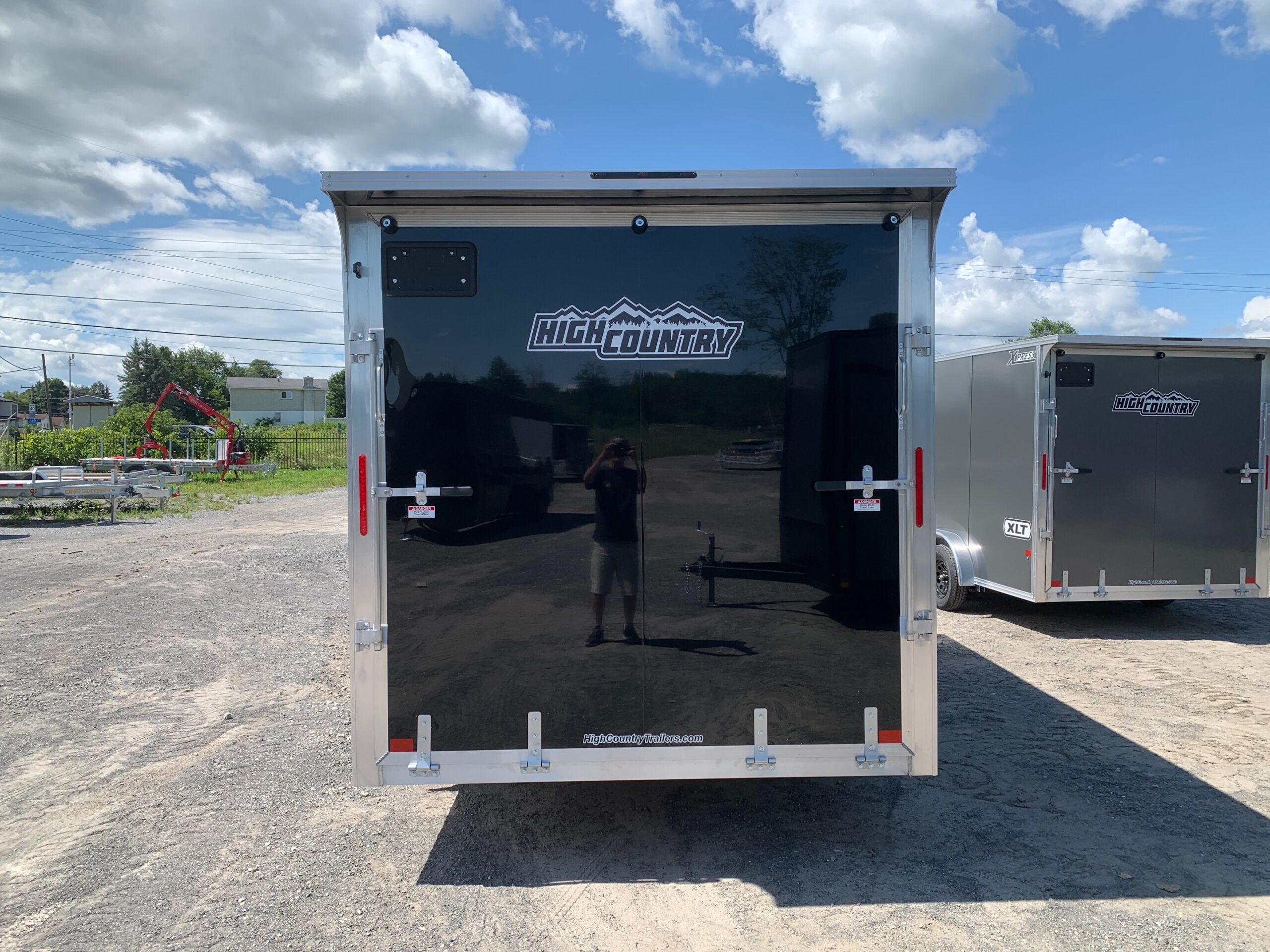

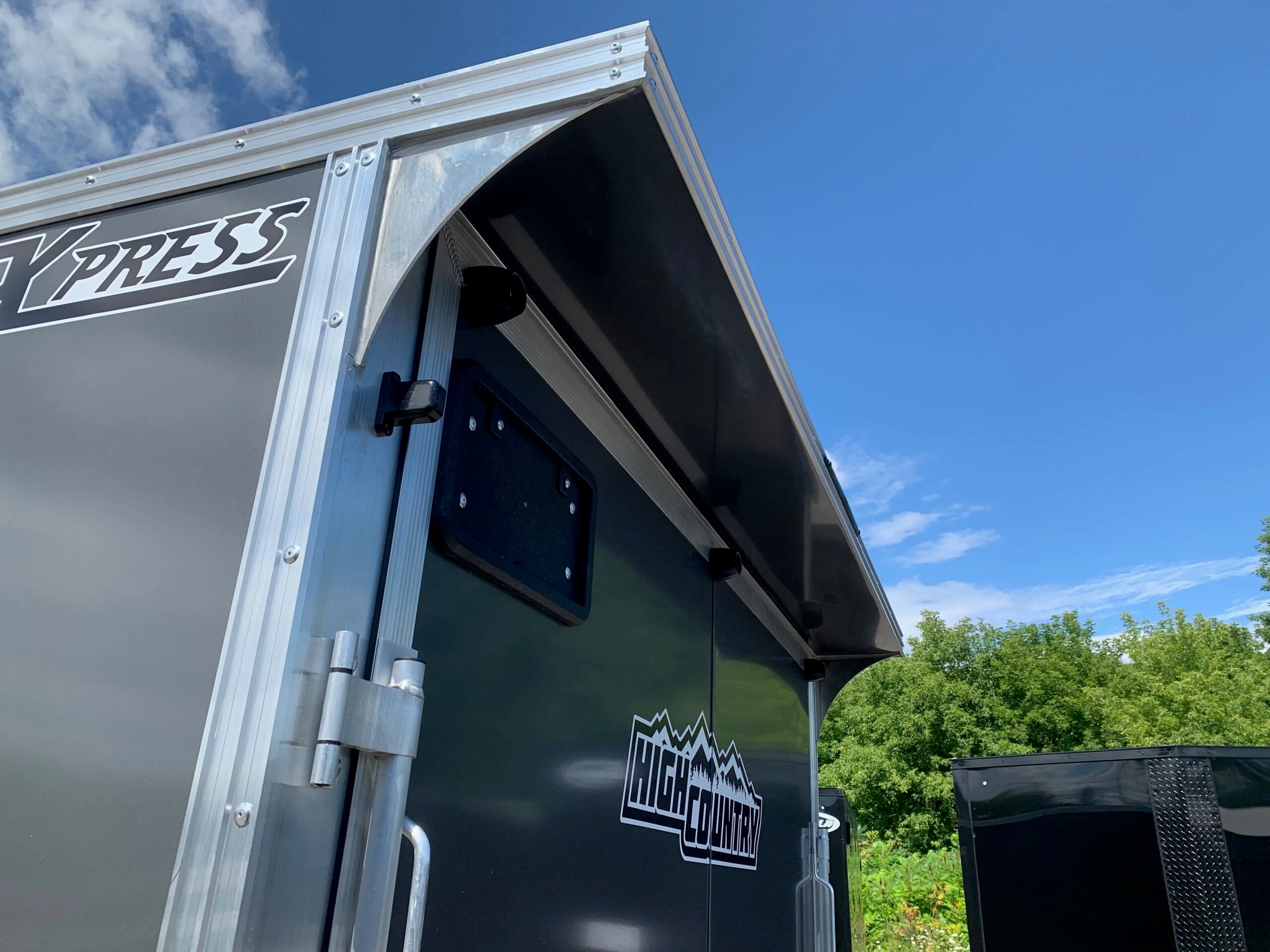

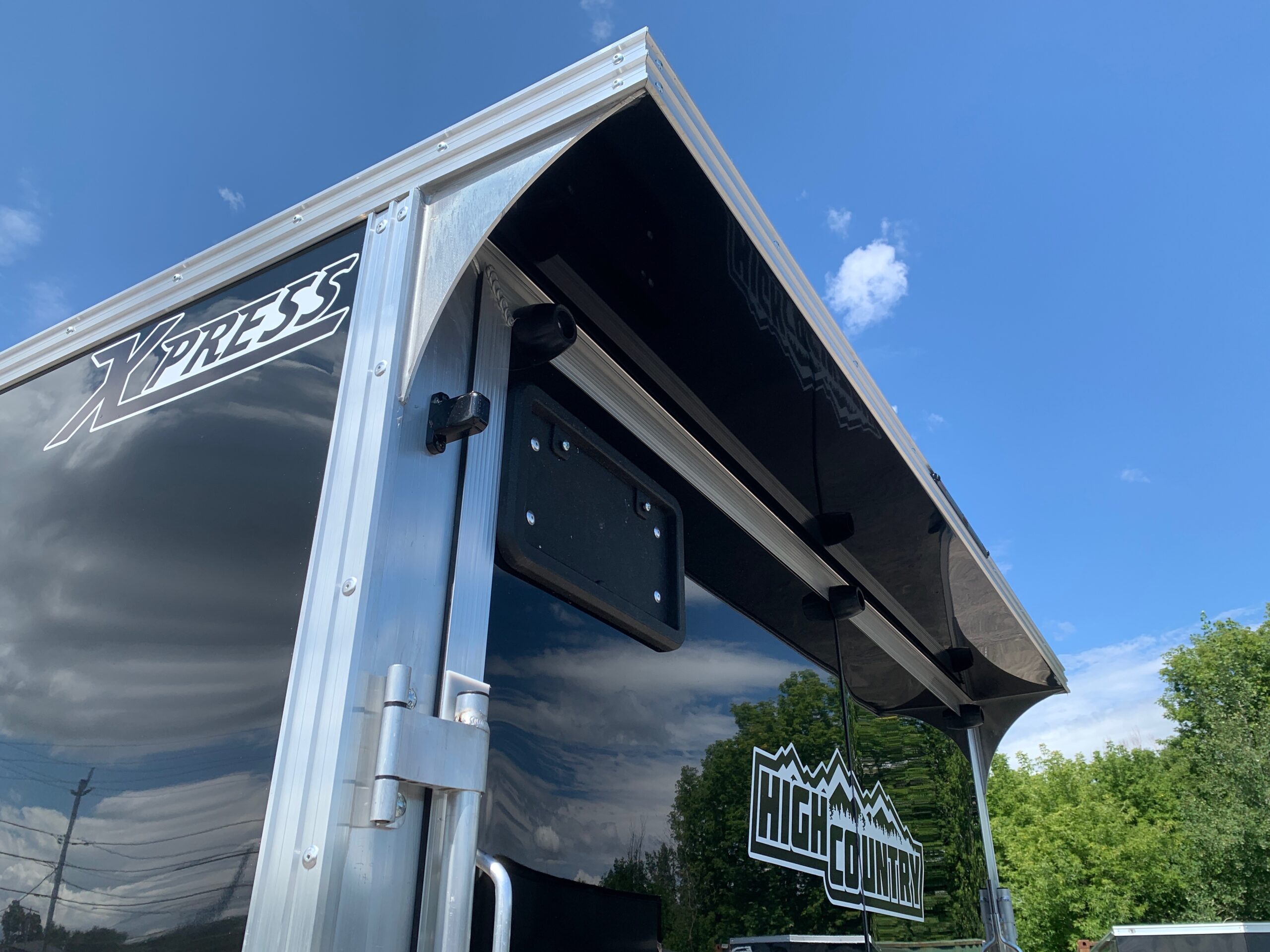

2026 Rear Door Canopy – Economy Version, 3″ Trim, No Lights.

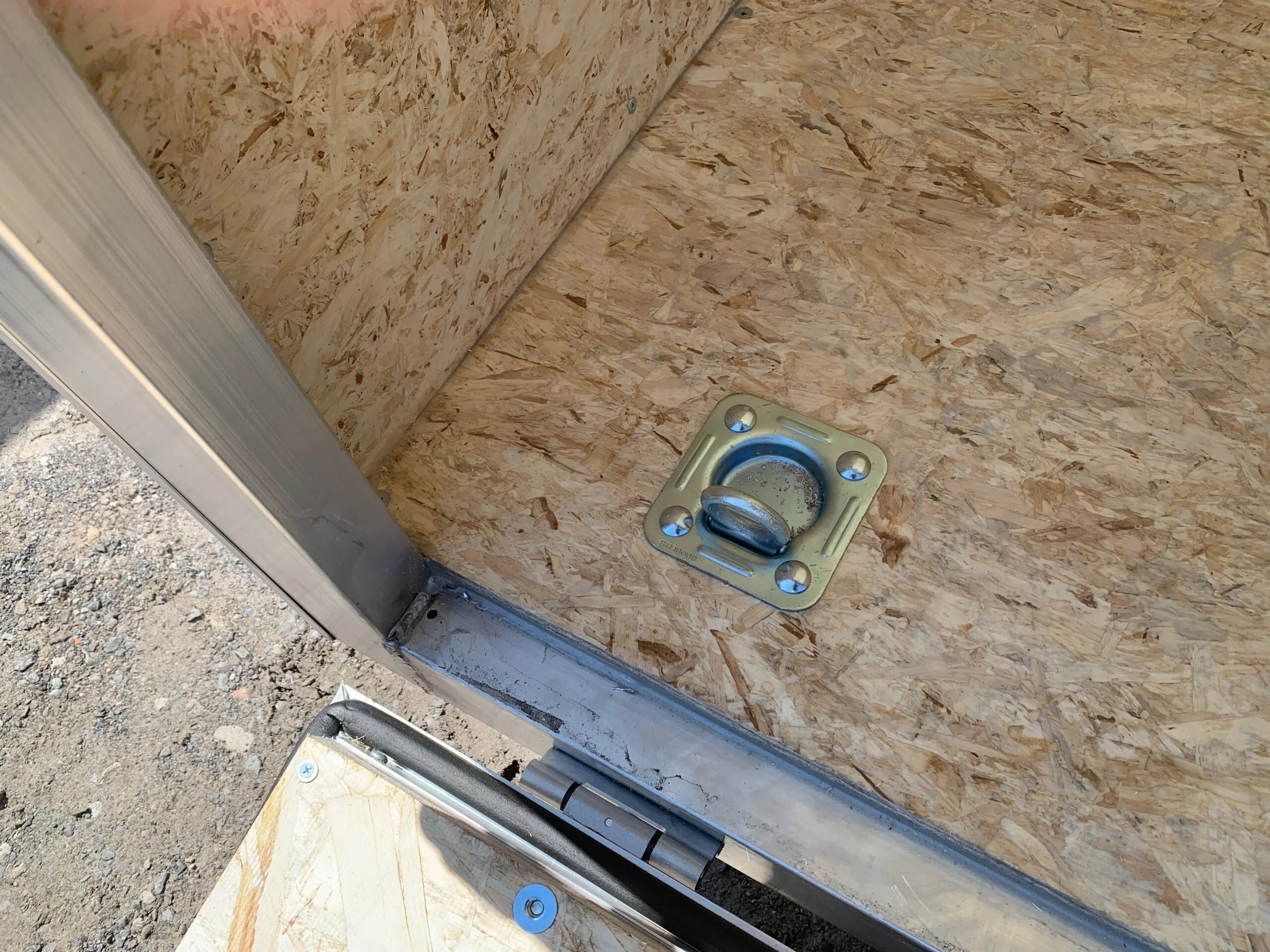

5000# Recessed Heavy Duty D-Ring w/ Backing Plate (Installed)
LOCATION: ONE IN EACH CORNER
XPRESS 7X16 XLT PRO Series Standard Features (Override by Options & Upgrades):
All-Aluminum Construction
Integrated Frame
One-Piece Aluminum Roof
2″x4″ Subframe Tubing
24″ O/C Floor & Roof Studs
16″ O/C Wall Studs
Box Length: 16′
Box Width: 84″
Interior Height: 84″
Rear Door Opening WxH: 76″x78″

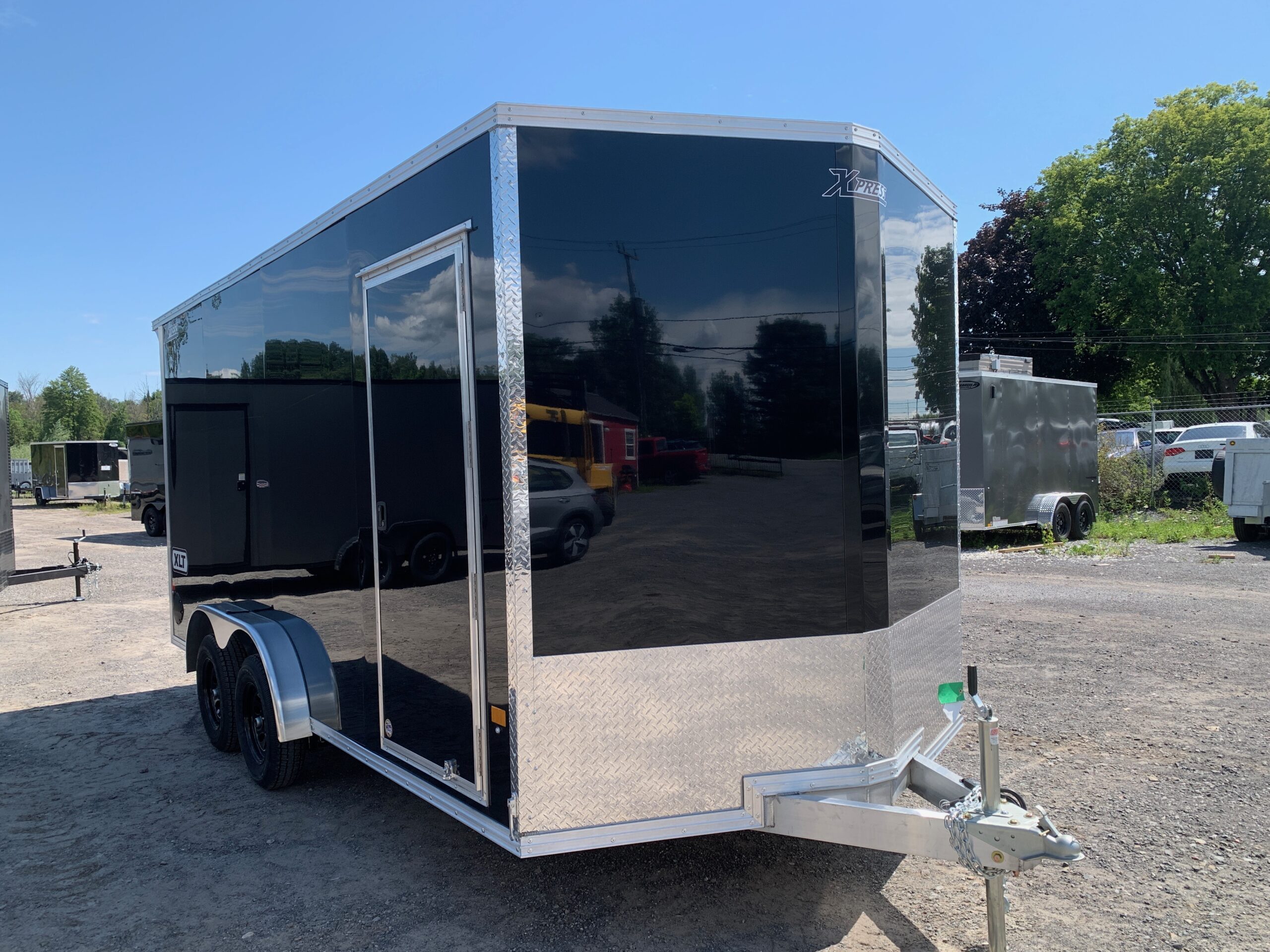

V-Nose Construction (18″ Wedge)
24″ Stoneguard
2000# Center Jack

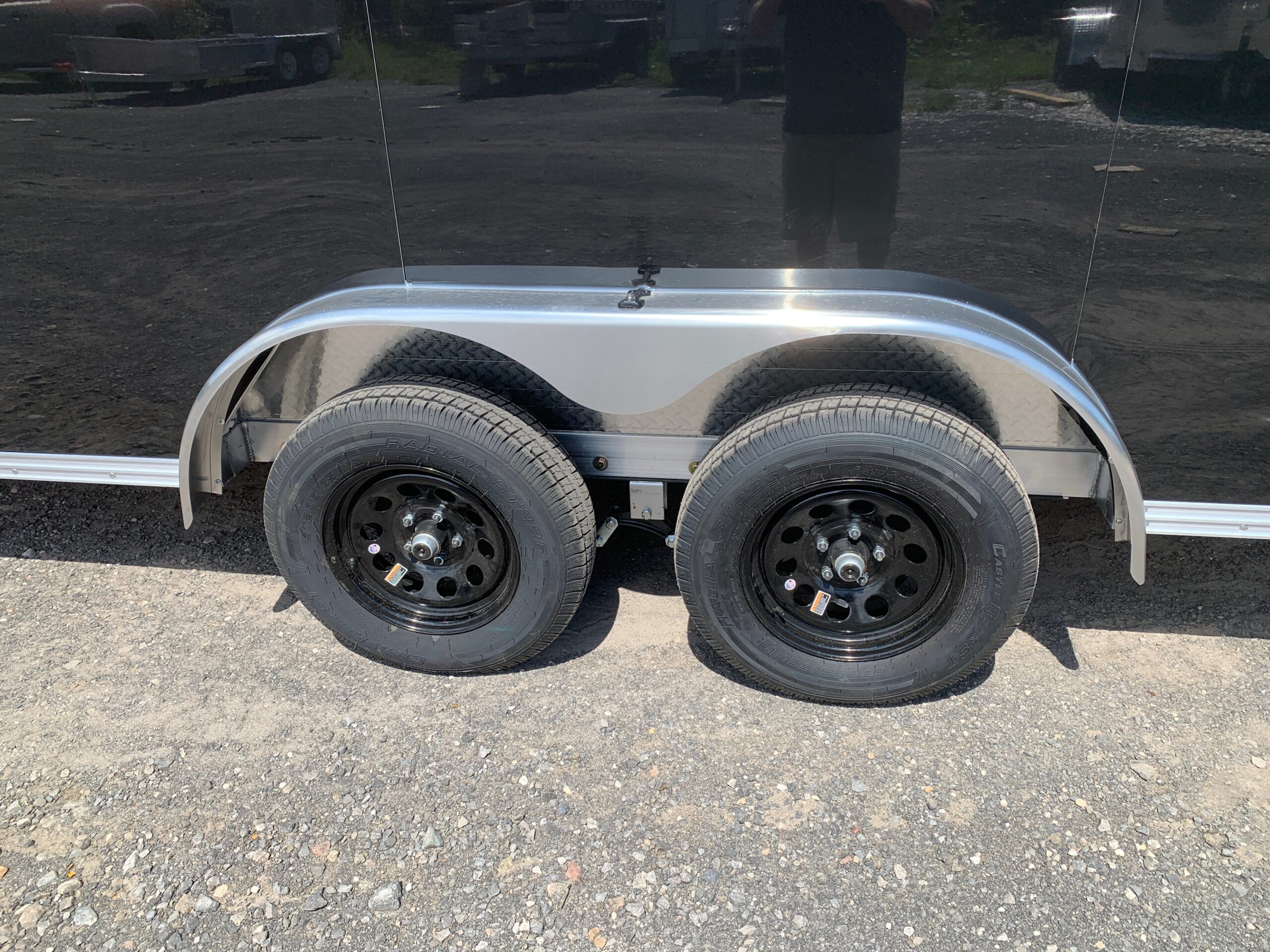

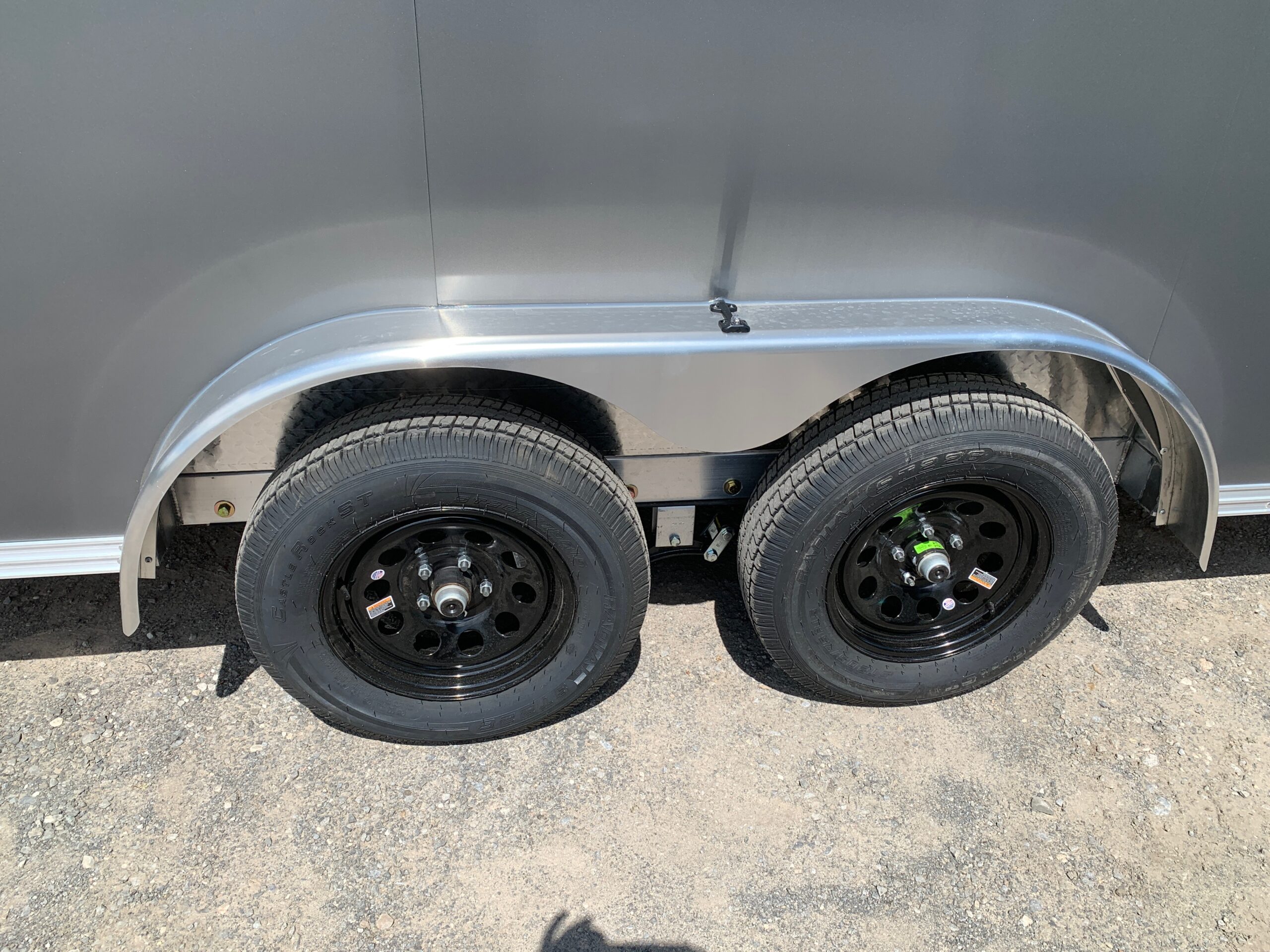

Axles: 2-3500# Braked Leaf Spring w/ 4? Drop
GVWR: 7000#
Tire: 15″ Gloss Black Mods 205/75R15

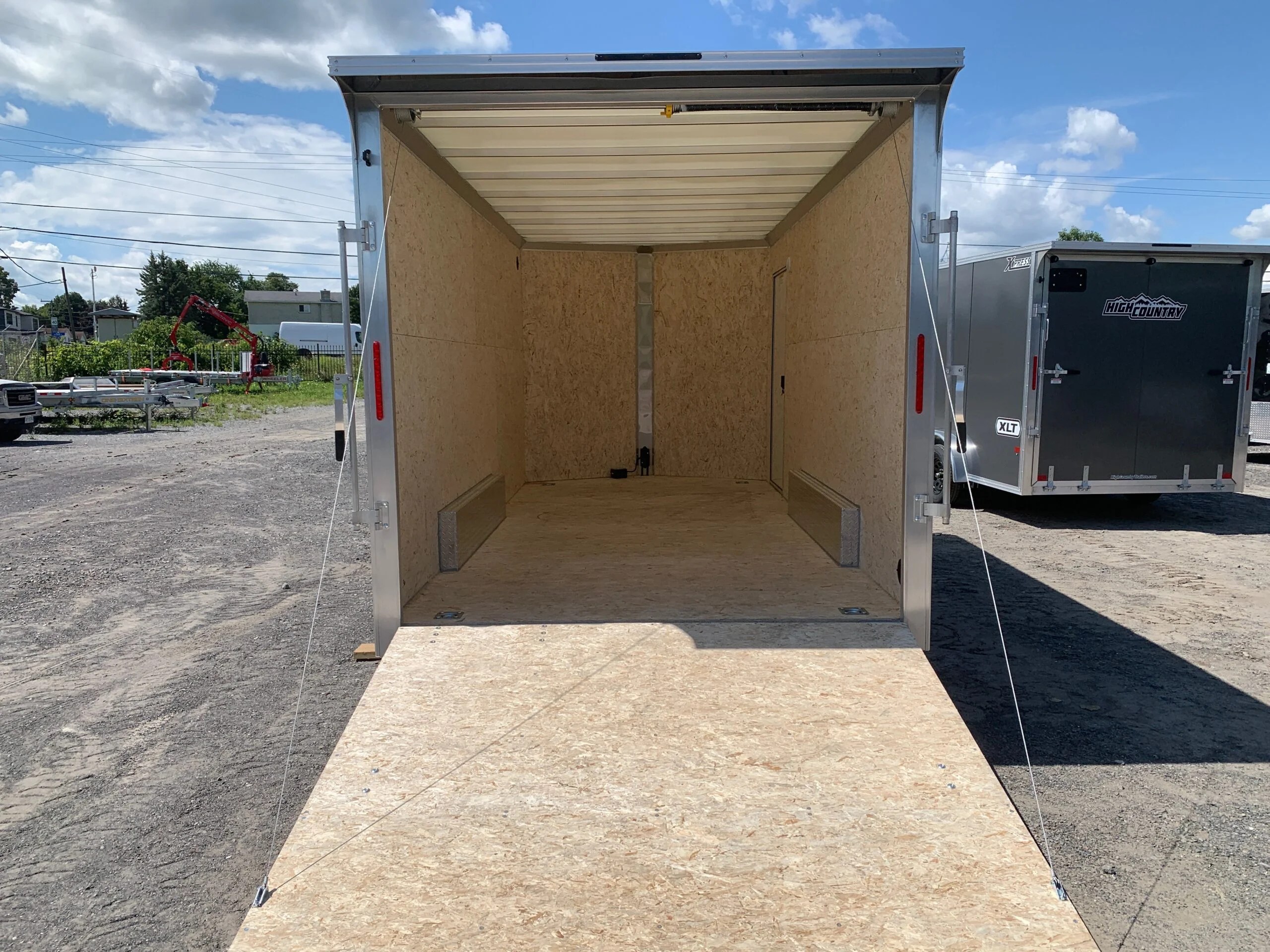

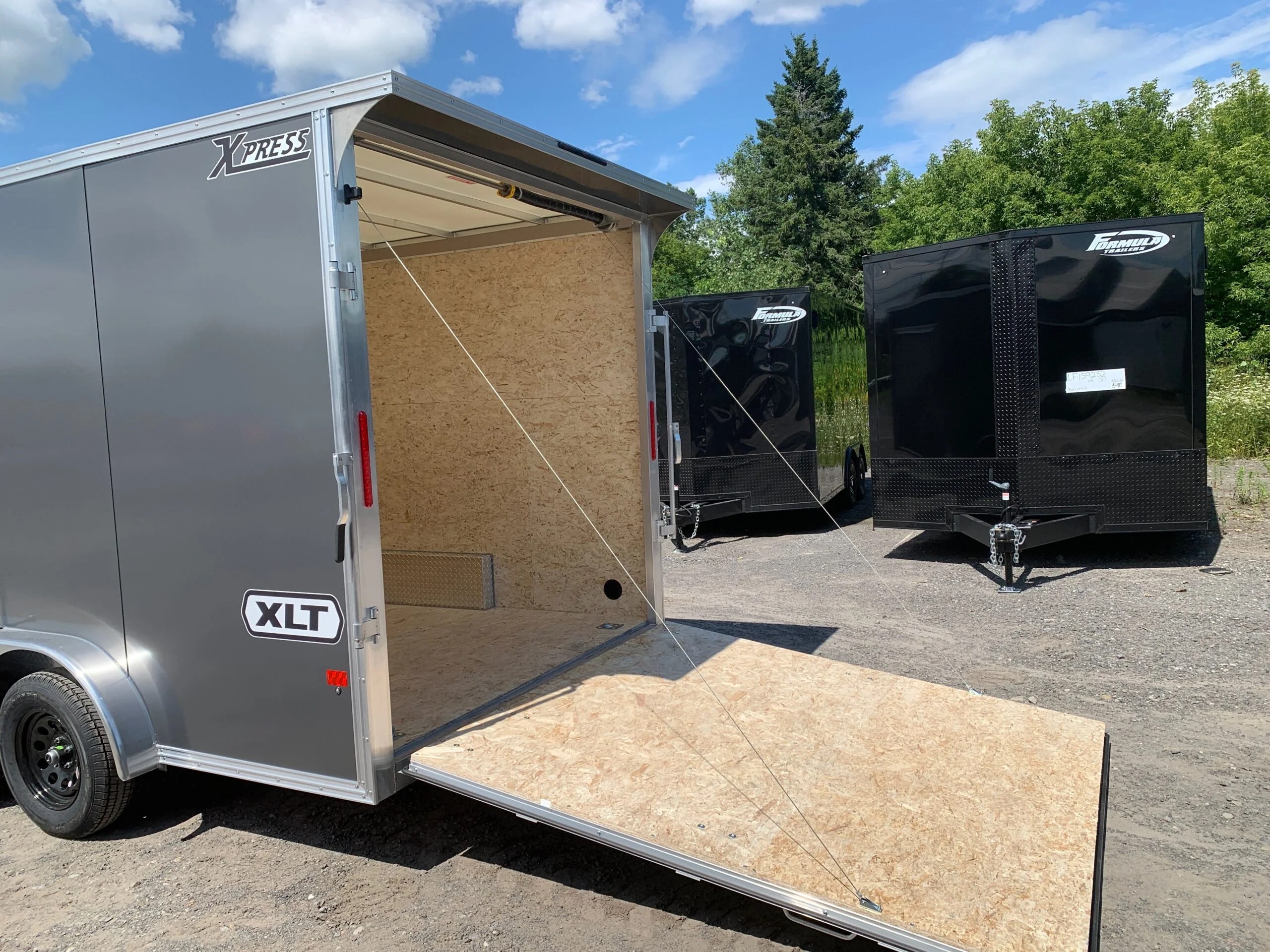

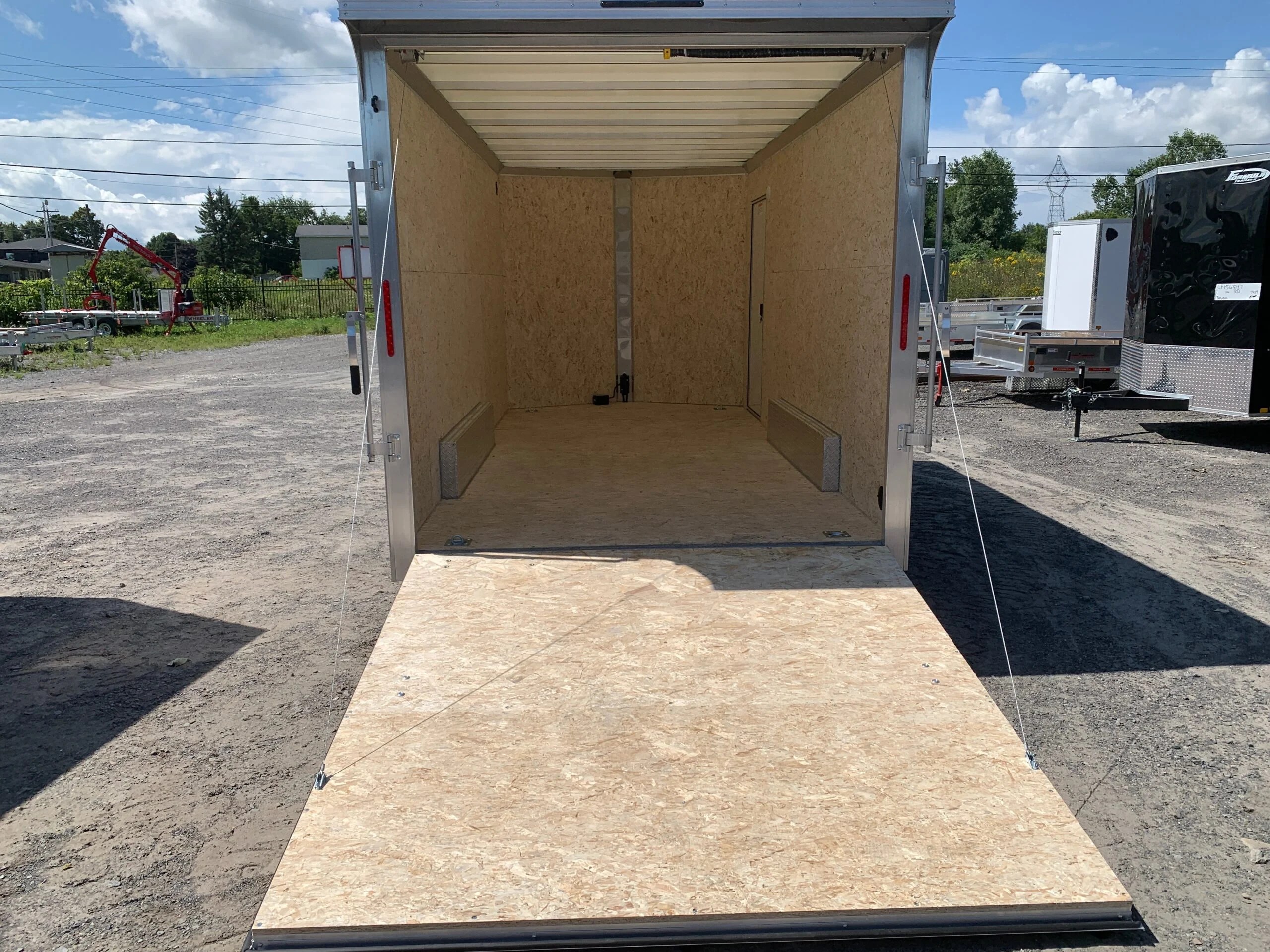

Rear Ramp w/ Spring Assist w/ Aluminum Hardware
32″x66″ Side Access Door w/ Paddle Handle & Piano Hinge
Plastic Salem Vents
(1) Interior Dome Light near SAD (No Wall Switch)
LED Slimline Stop/Turn/Tail Lights
LED ID Marker Light Bar (Top/Center Bulkhead)
Exterior LED Lighting
3/4″ Water Resistant Decking
3/8″ Water Resistant Interior Walls
Interior Cove Trim
2-5/16″ Coupler w/ Safety Chains
.030 Screwless Skin, 3M Bonded on Seams
3″ Exterior Trim
4-Year Limited Warranty
